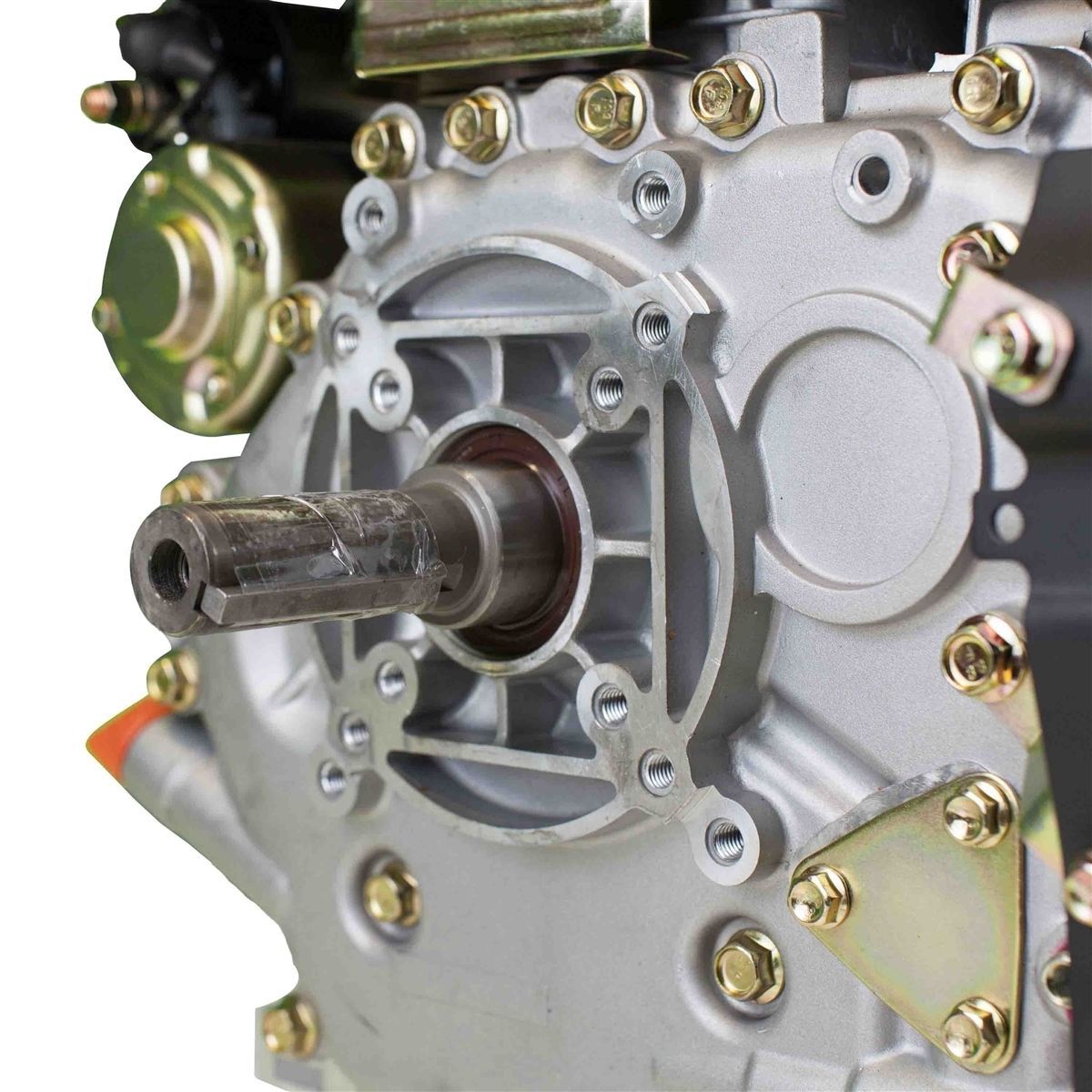

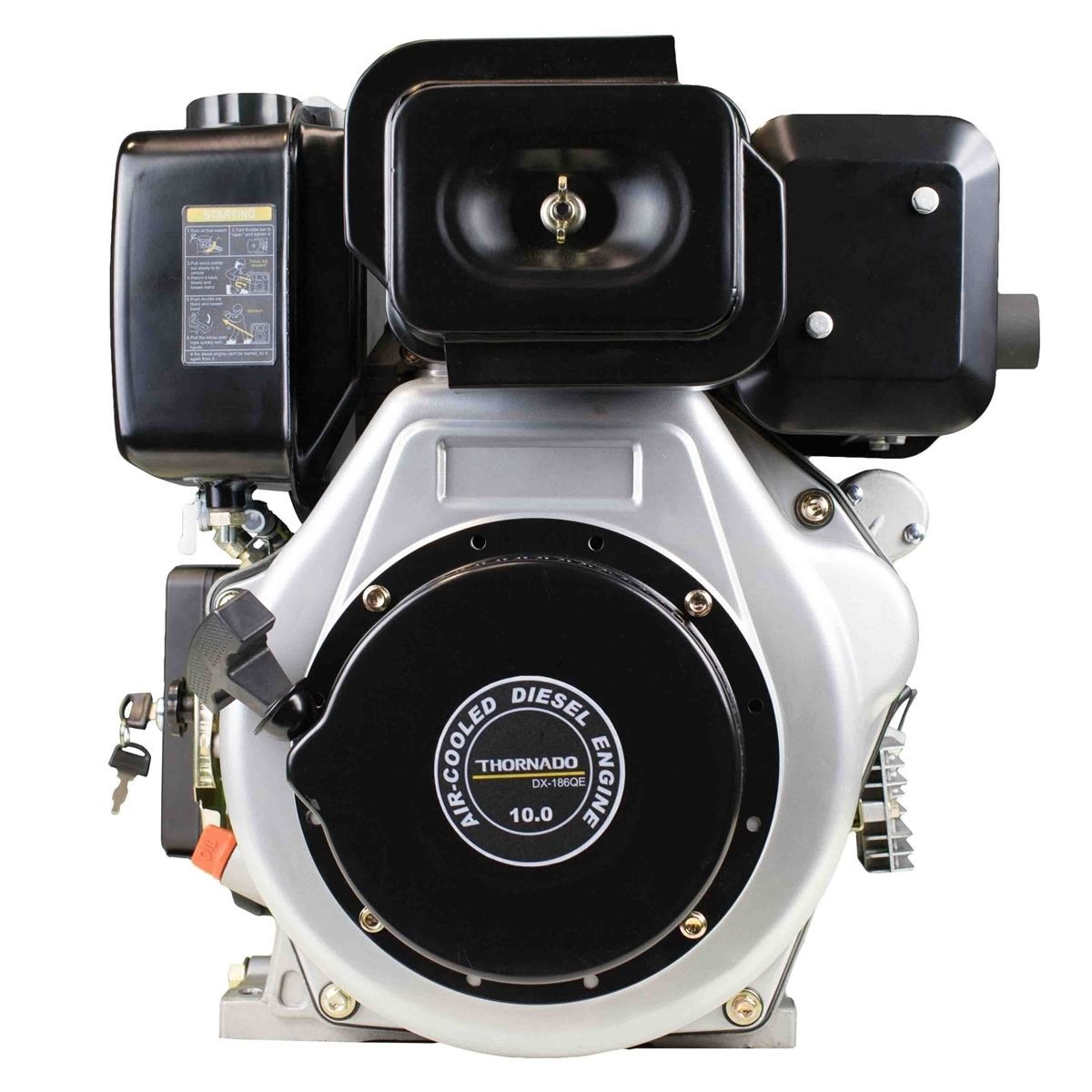

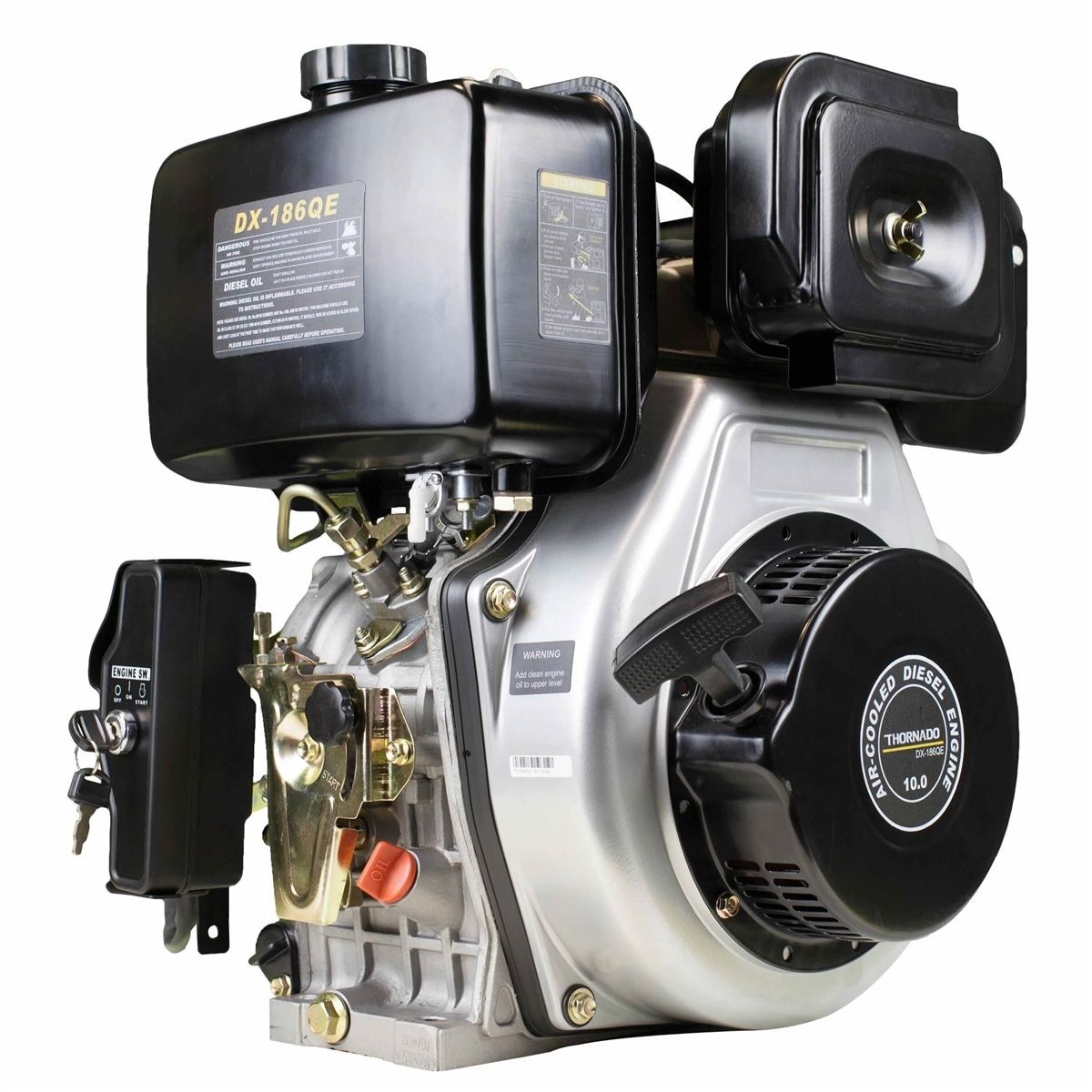

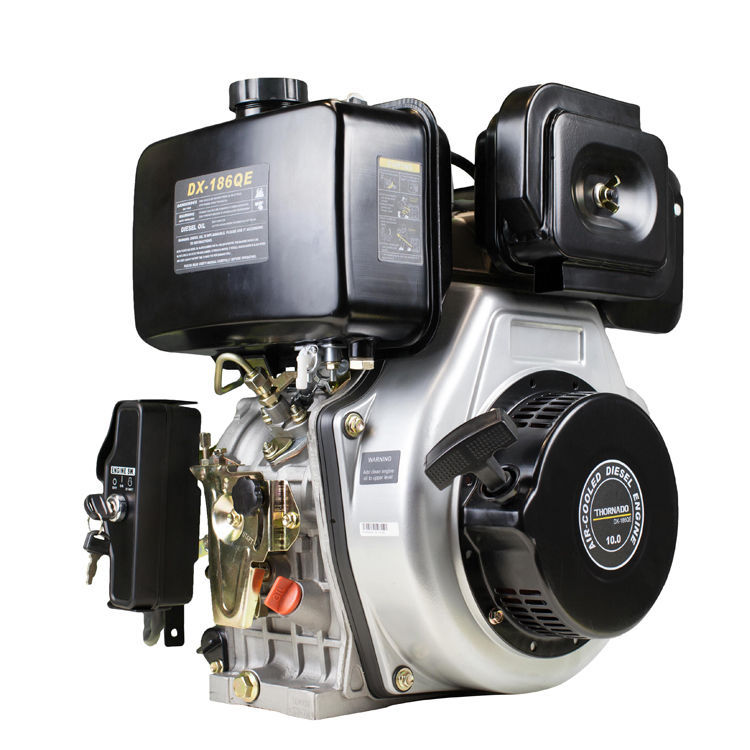

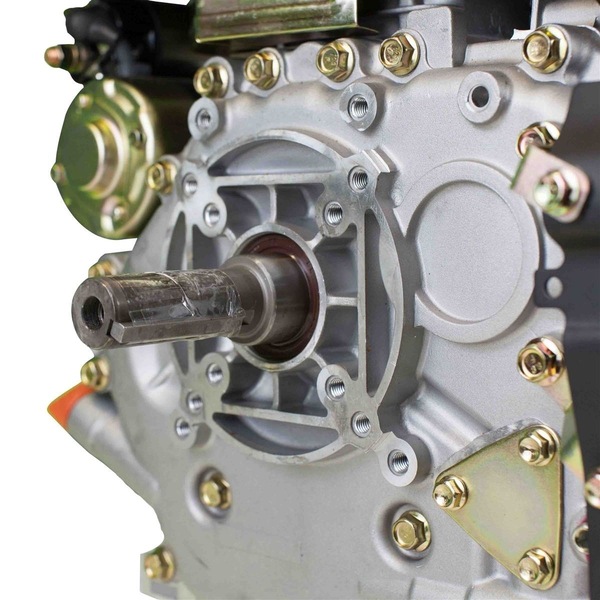

The Thornado 10HP diesel engine is a 4-stroke, single cylinder forced air-cooled engine with a electric starter that makes it easy to get the equipment running and on task. The engine is coupled with a horizontal key shaft of 25.4mm diameter.
The thornado 10HP diesel engine is designed and built with all high quality parts that make the engine very durable and better than most of the available brands on the market nowadays. Highly efficient, the Thornado 10HP engine has multiple uses because of its small size, its light weight, and its portability. The Thornado 10HP engine seems to be the perfect solution using in variety of applications including water pumps, Go-karts, generator, Chippers, Pressure Washers, Bench saws & other Agricultural uses.
*T&C's Apply, see Warranty Policy for full details.
SPECIFICATIONS | |
Model No | DX-186QE |
Type | Single cylinder 4 stroke, forced air cooled |
Displacement | 418cc |
Bore x Stroke | 86 x 72 |
Max Power HP / Rpm | 10 HP / 3600 Rpm |
Max Torque | 18.5/2800 |
Combustion System | Direct Injection |

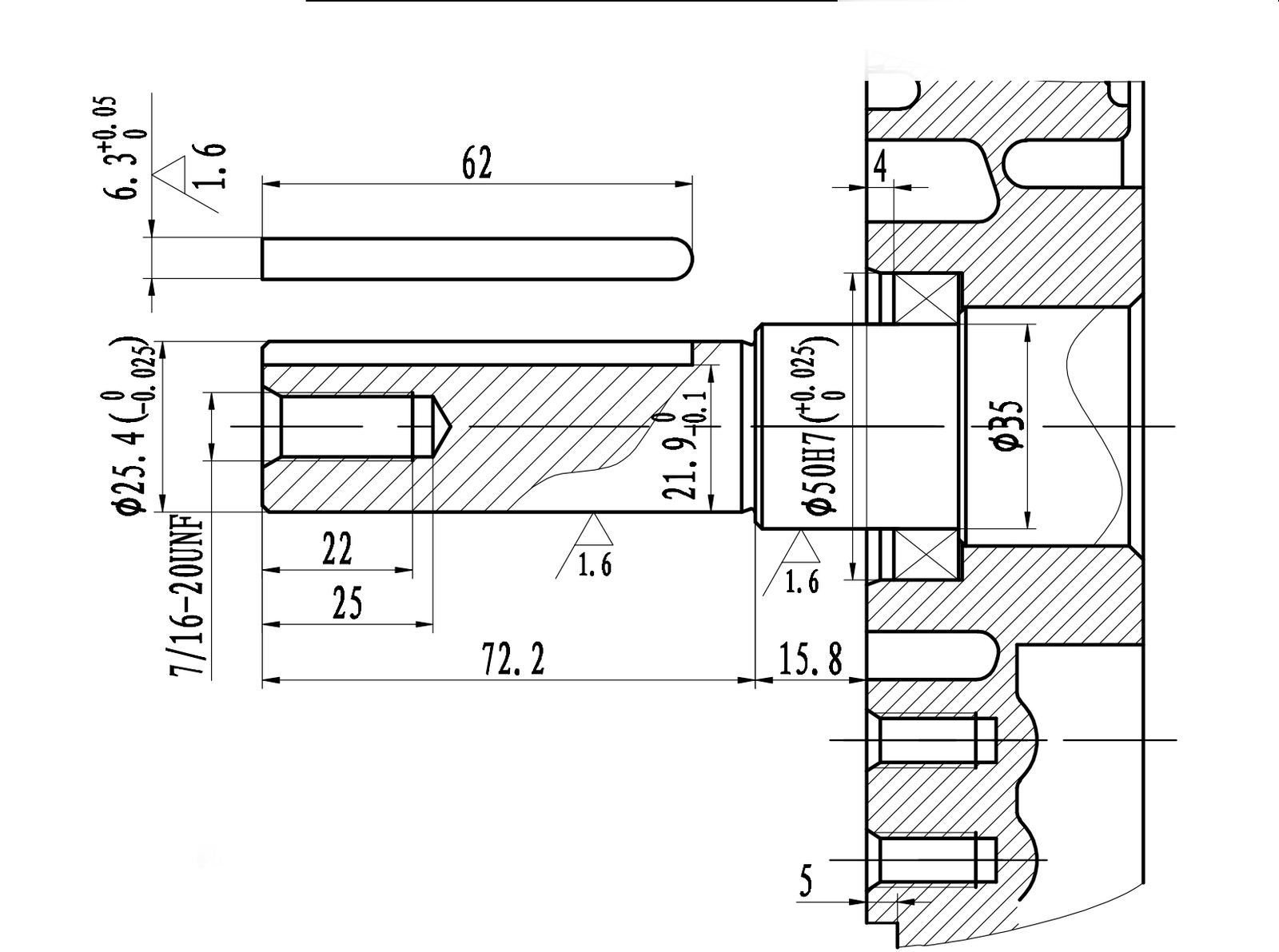

Shaft Type | Horizontal Key Shaft (Q Type) |
Shaft Diameter | 25.4mm |
Shaft Length | 72.2mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 19:1 |
Fuel Type | Diesel |
Oil Type | SAE10w-30 / SAE15w-40 |
Fuel Tank Capacity | 5.5L |
Oil Capacity | 1.6L |

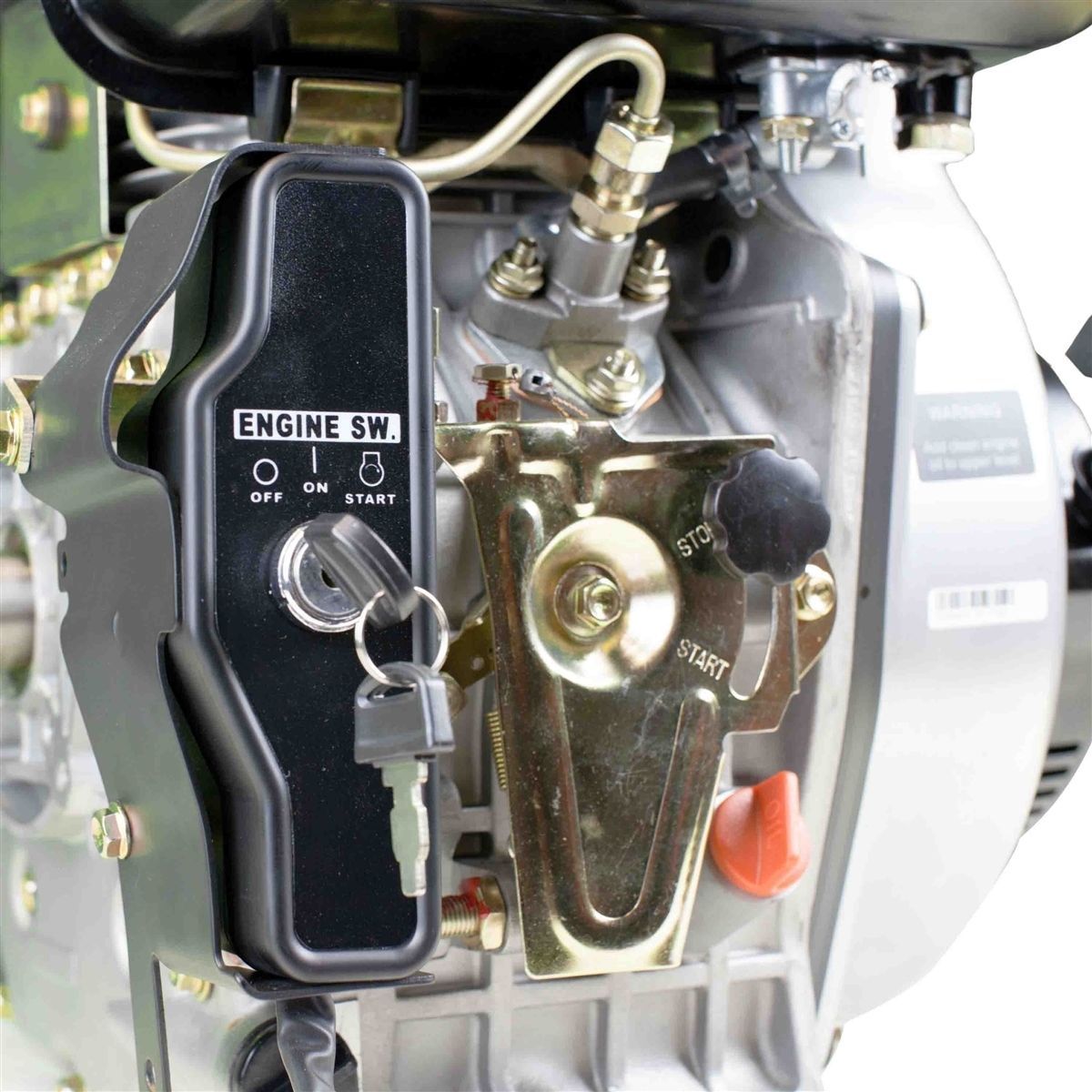

Starting System | Electric start / Recoil manual start |
Product Length | 440 mm |
Product Width | 417 mm |
Product Height | 495 mm |
Dry Weight | 50kg |
Model No | DX-186QE |
Type | Single cylinder 4 stroke, forced air cooled |
Displacement | 418cc |
Bore x Stroke | 86 x 72 |
Continuous HP / Rpm | 9HP / 3000 Rpm |
Max Power HP / Rpm | 10 HP / 3600 Rpm |
Combustion System | Direct Injection |
Shaft Type | Horizontal Key Shaft (Q Type) |
Shaft Diameter | 25.4mm |
Shaft Length | 72.2mm |
Shaft Rotation | Anti clockwise from output |
Compression Ratio | 19:1 |
Fuel Type | Diesel |
Oil Type | SAE10w-30 / SAE15w-40 |
Fuel Tank Capacity | 5.5L |
Oil Capacity | 1.6L; |
Starting System | Electric start / Recoil manual start |
Dimension (L x W x H) | 420 x 424 x495 mm |
Dry Weight | 52kg |
Estimated Delivery Time Frame: 2-7 business days
