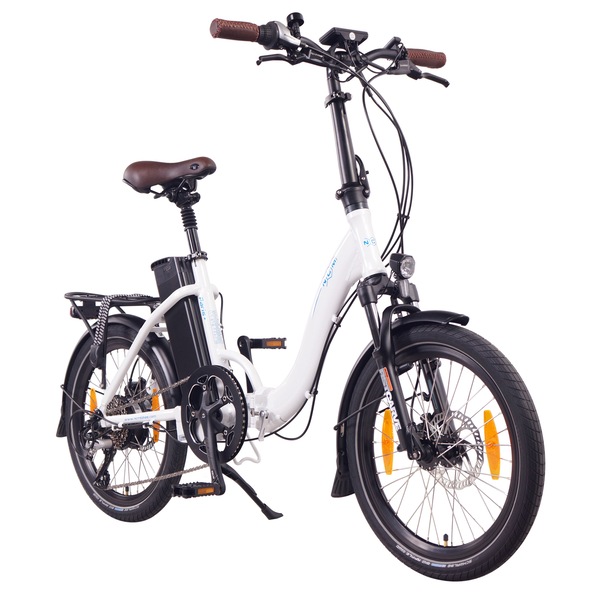

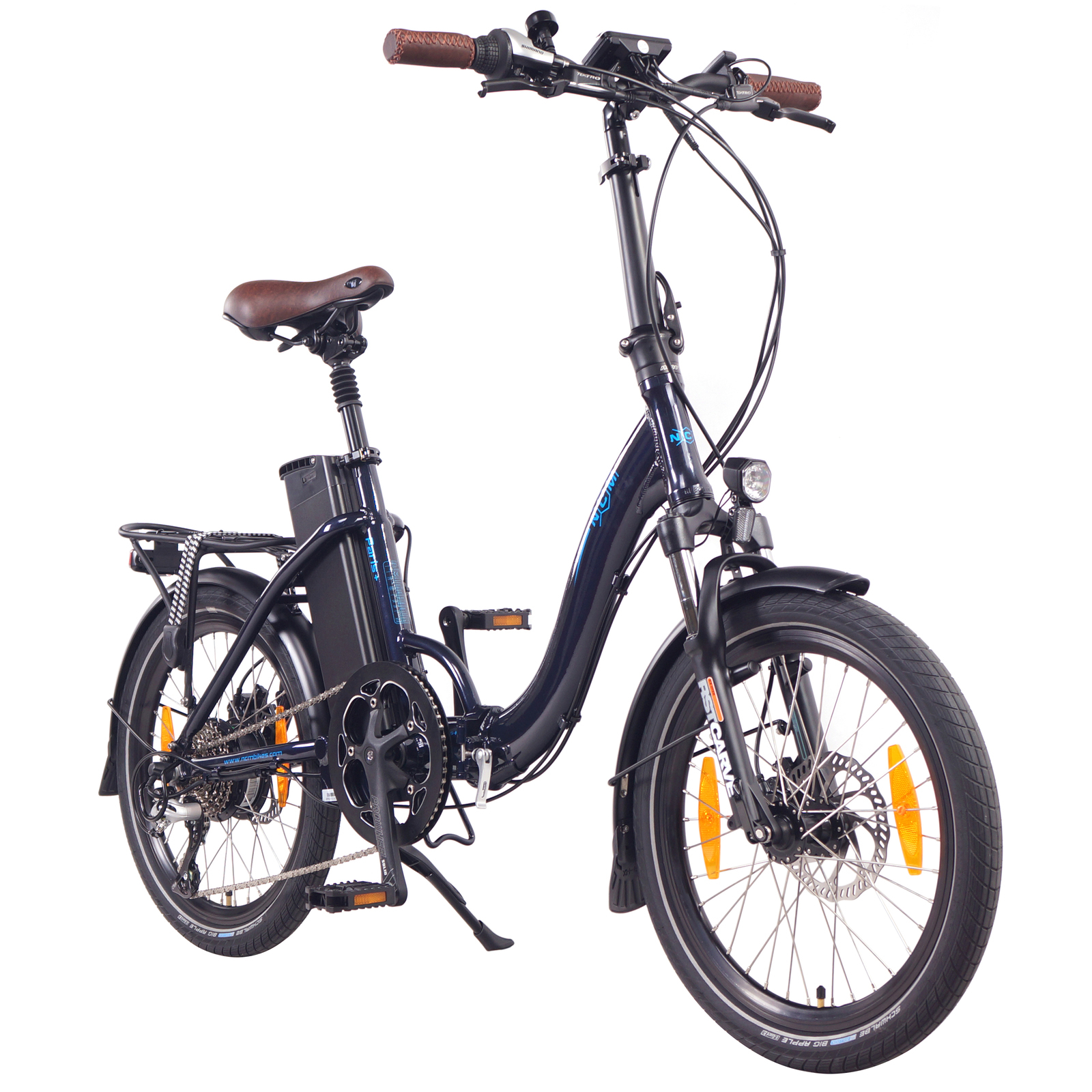

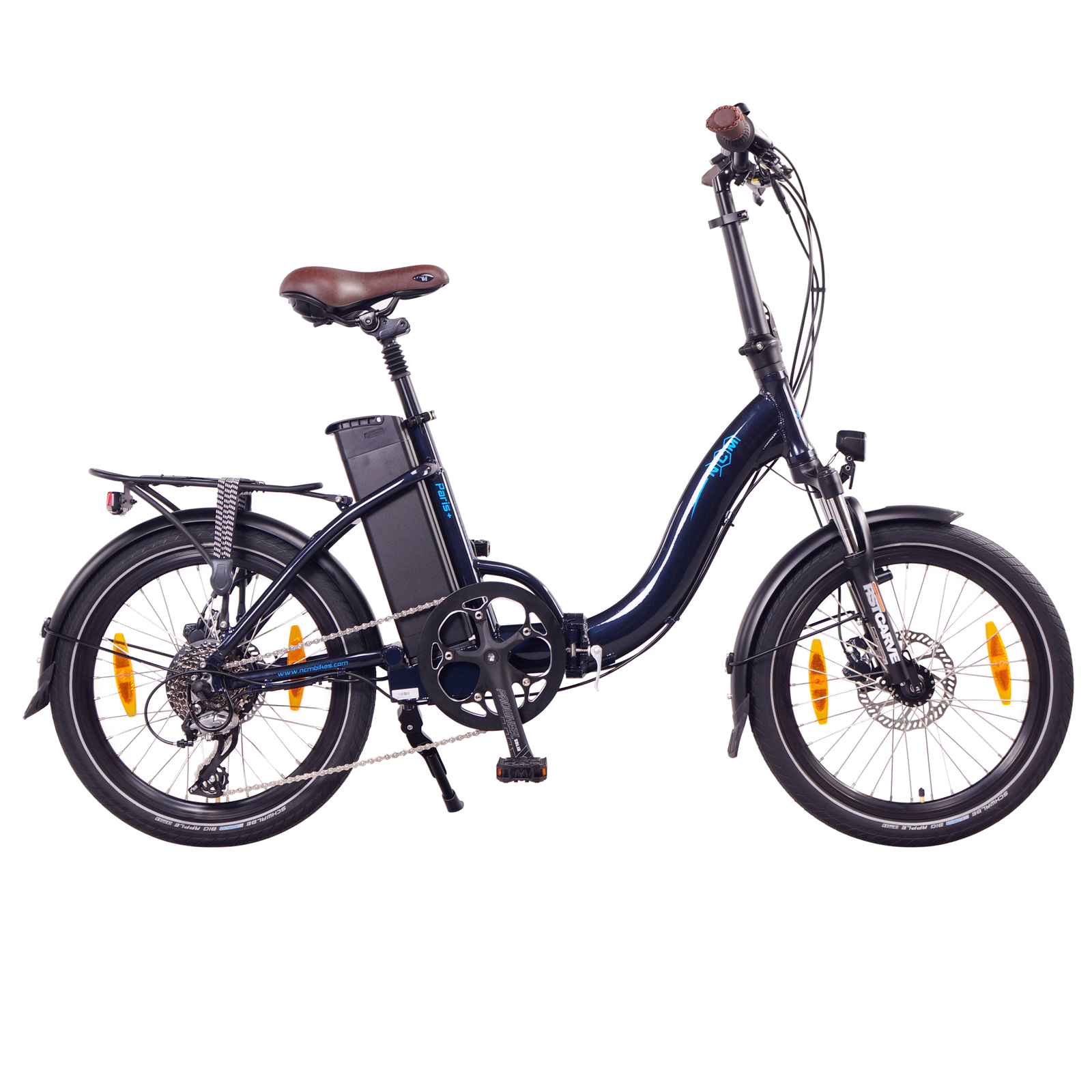

General Information
Weight: 25kg (55lbs)

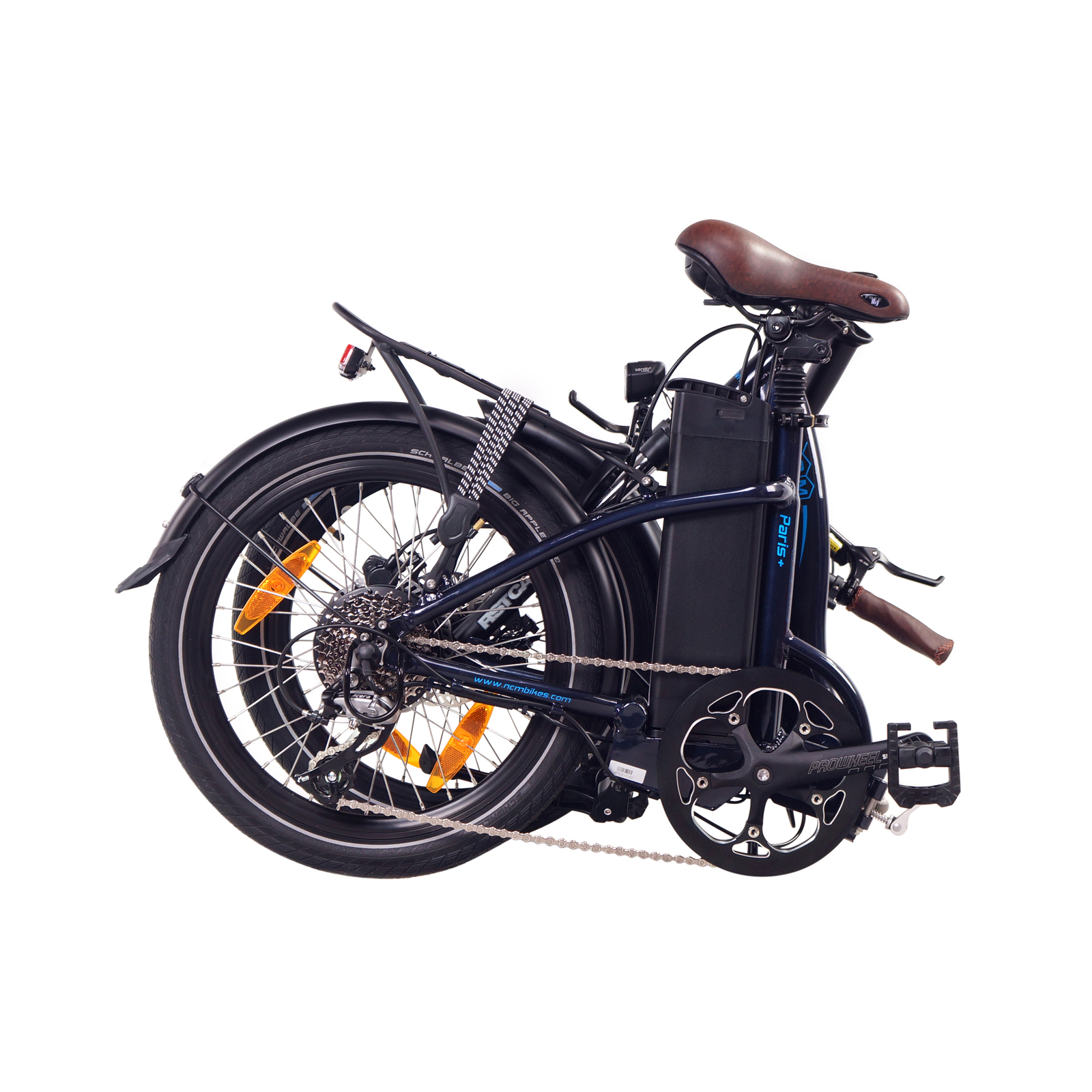

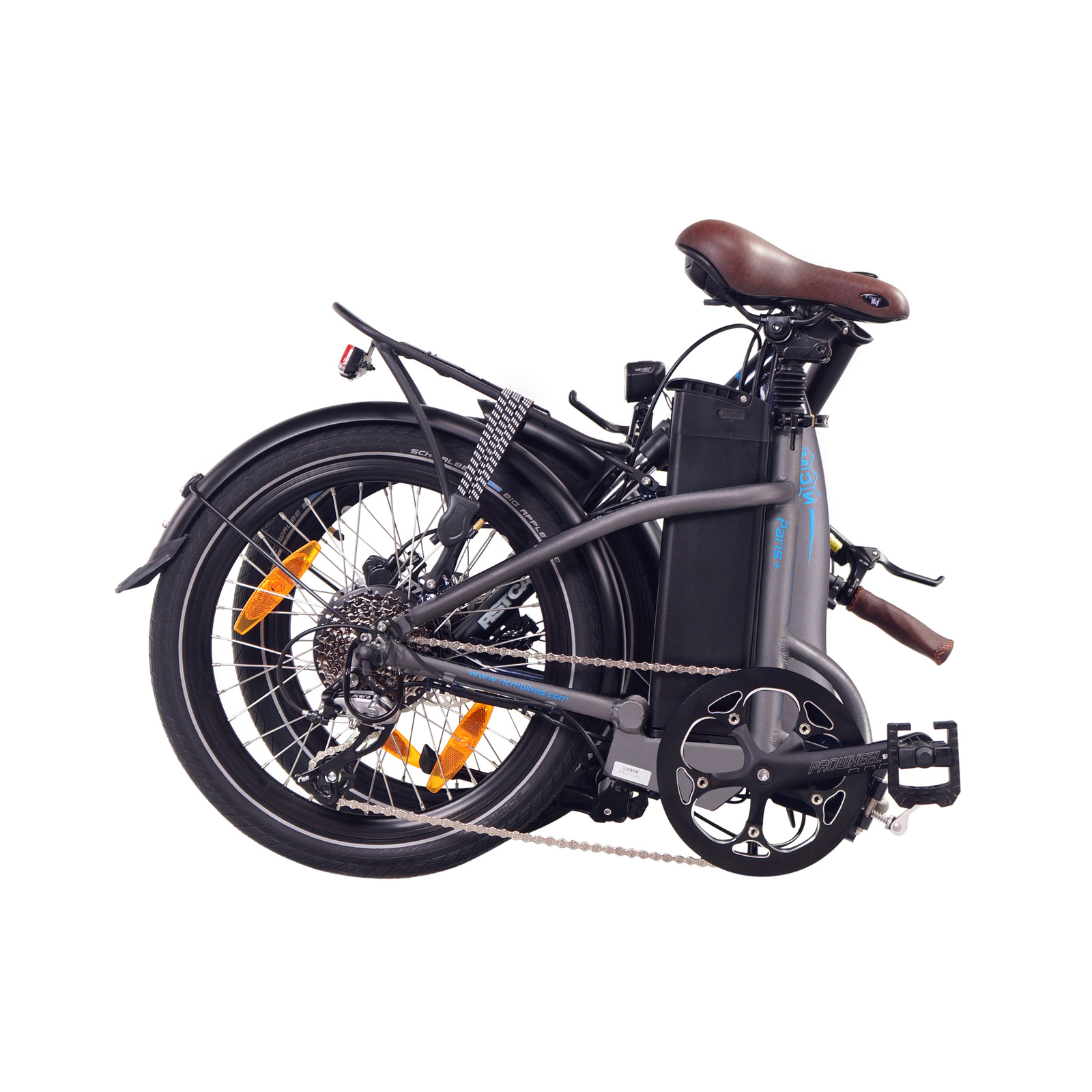

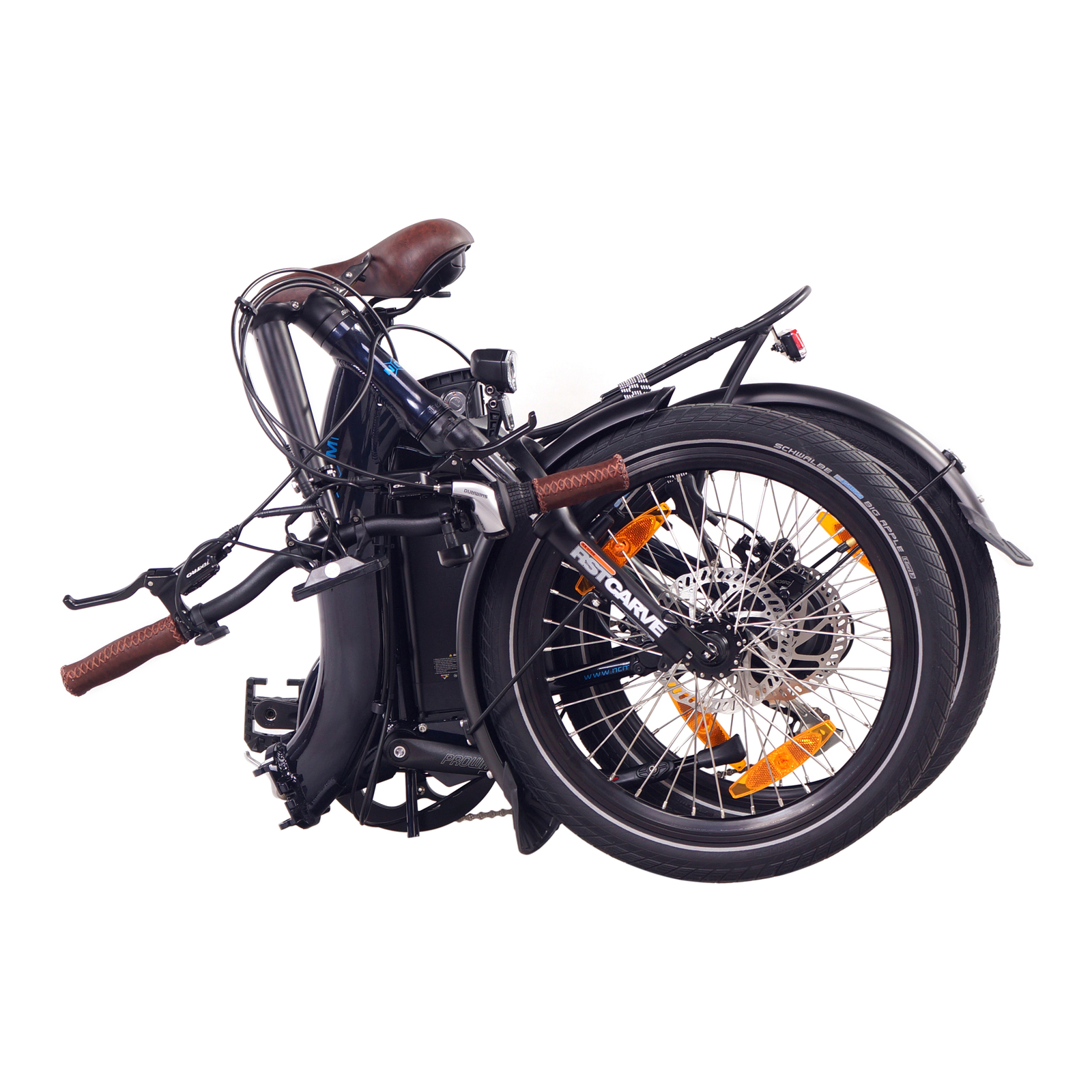

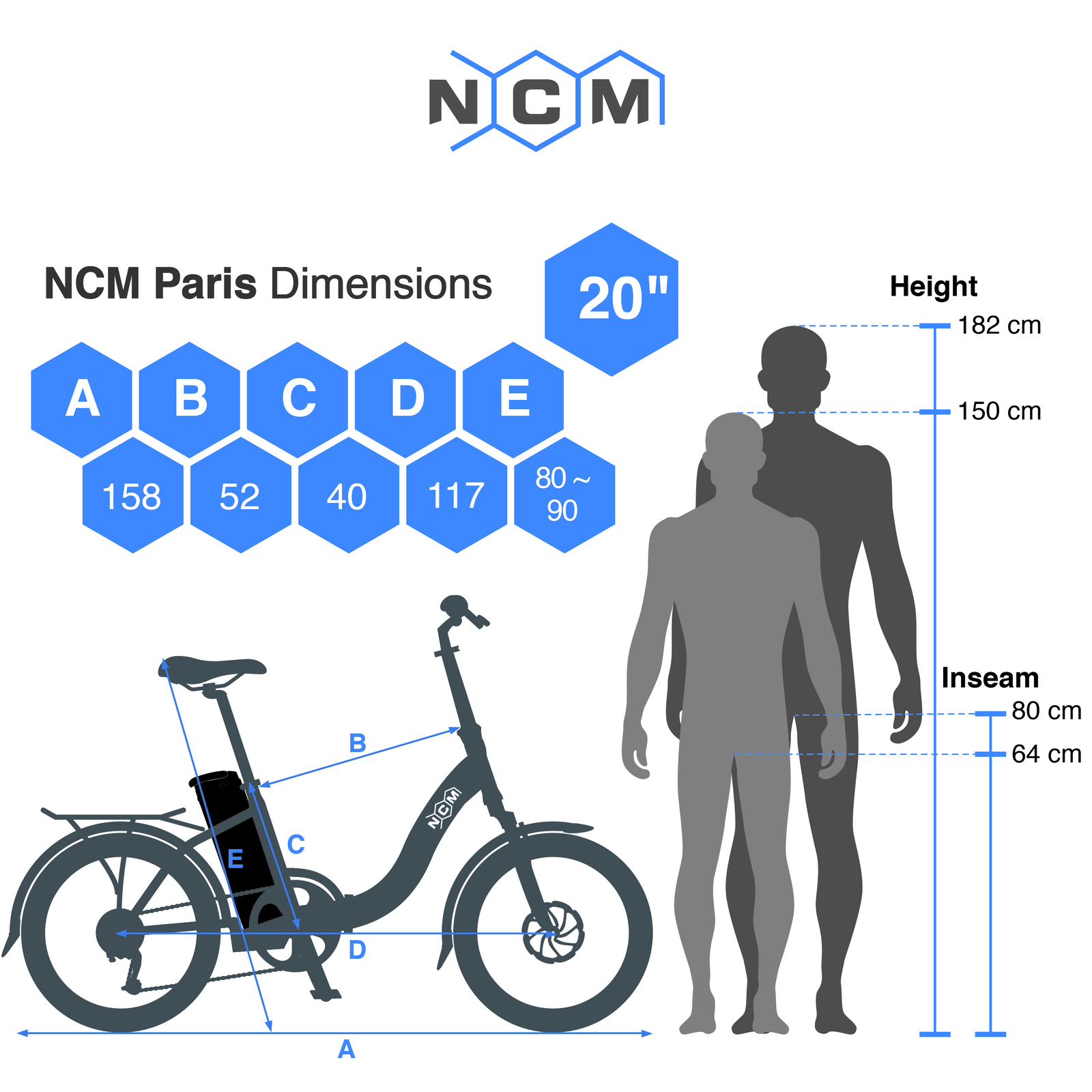

Type: Folding Wheel size: 20”
Load capacity:125kg (275lbs)
Maximum speed: 25km/h
Electric parts

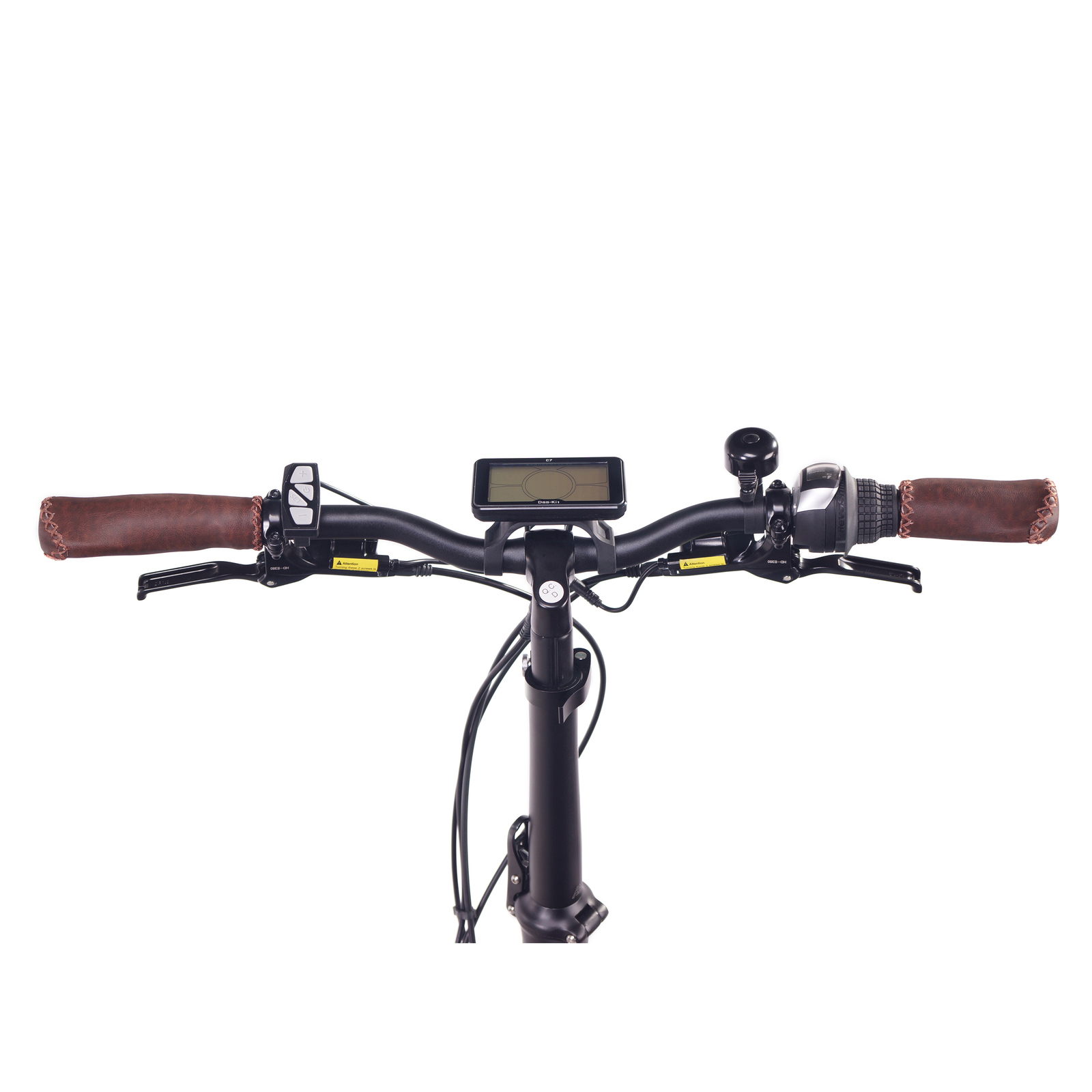

Display: Das-Kit, C7, LCD, 6 Levels, 6km/h walk mode
Controller: Das-Kit, CT4, 36V 14A

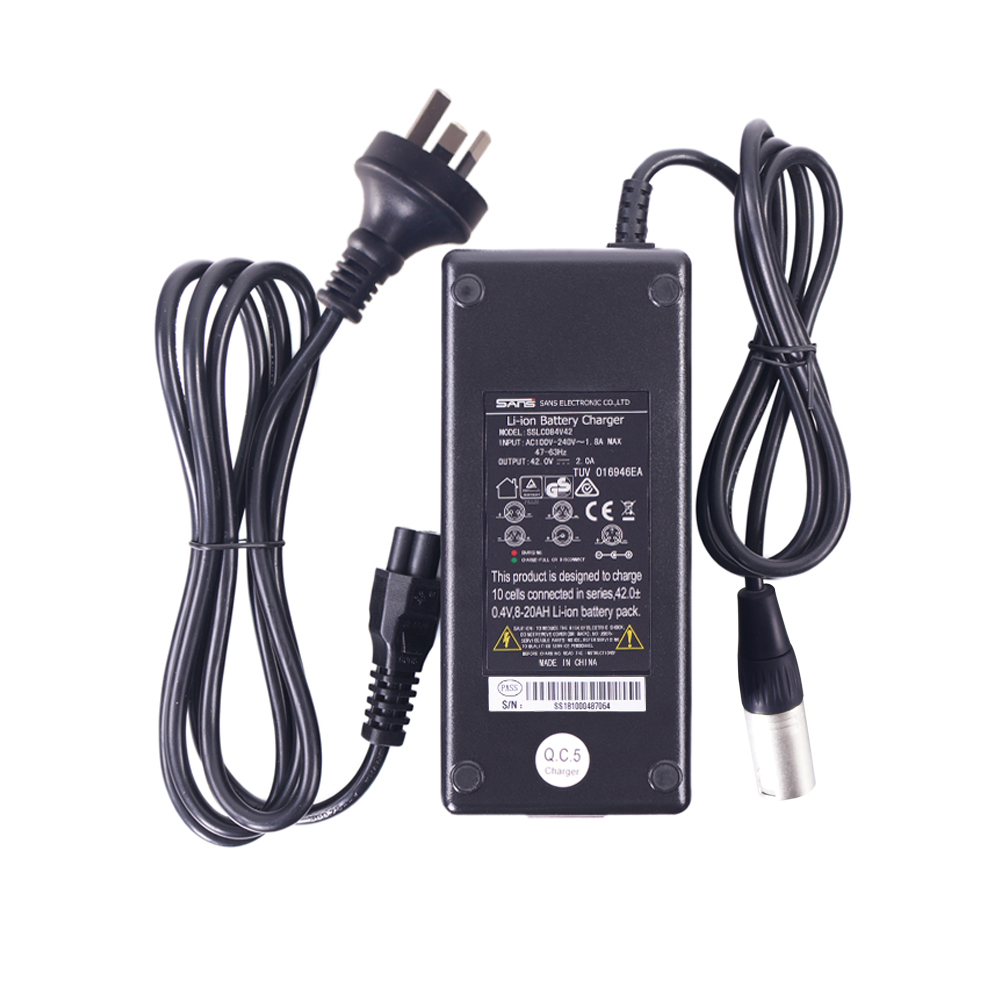

Charger: Included M363AU 36V 3A with XLR plug

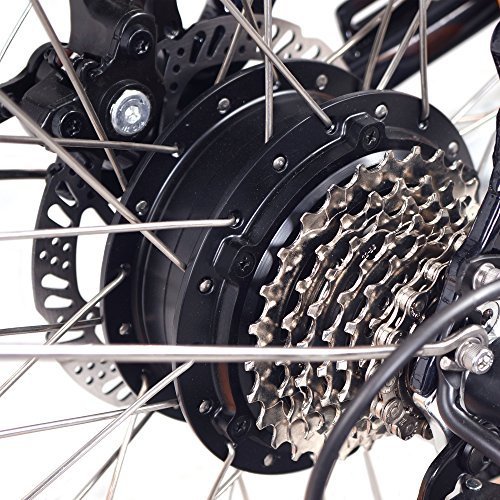

Motor: Das-Kit, R2S Rear-drive motor, 36V 250W-350W, 15.5mph
Battery: 36V 19Ah 684Wh, with USB port Average range: 50-130km depending on assistance level
Front/Rear Light: Spanninga, KENDO, 36V, 20 Lux over bike battery / Spanninga, SOLO with 2xAA batteries

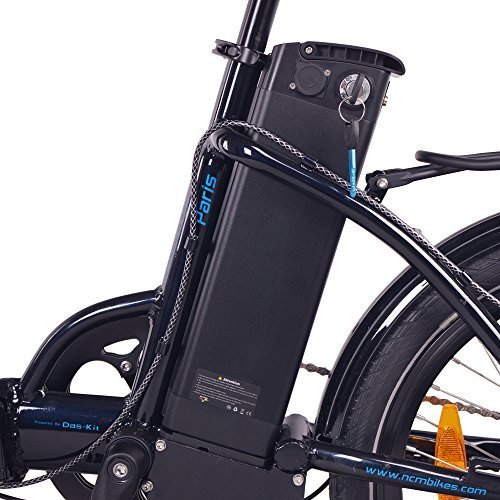

Battery Information:
Lithium-ion Battery
Model: B1U-3619P
Ratings: DC 36V, 19Ah, 684Wh
Bike parts

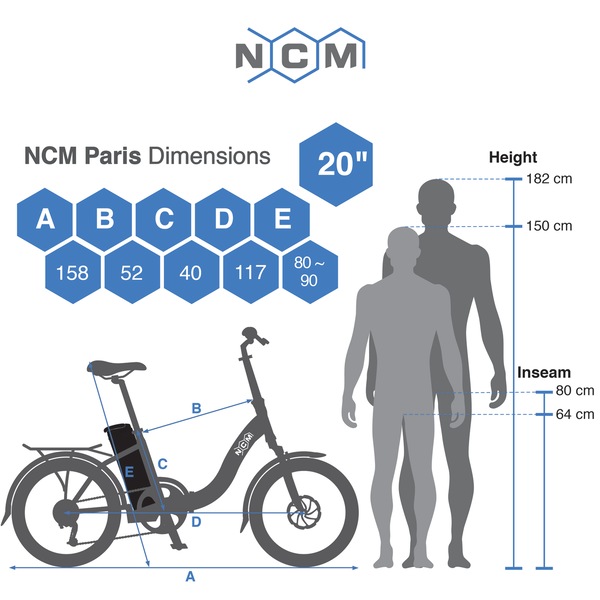

Frame: Alu. 6061, 20"*380MM
Fork: RST Carve, with suspension
Brake Levers: Tektro, with brake sensor on both sides
Brakes F/R: Tektro hydraulic Disc Brakes, MD-280
Crank: Prowheel, SOLID-252AA9
Rear Derailleur: Shimano, Acera 8-speed, RDM360
Tyres: Schwalbe, Big Apple, 20"*2.0

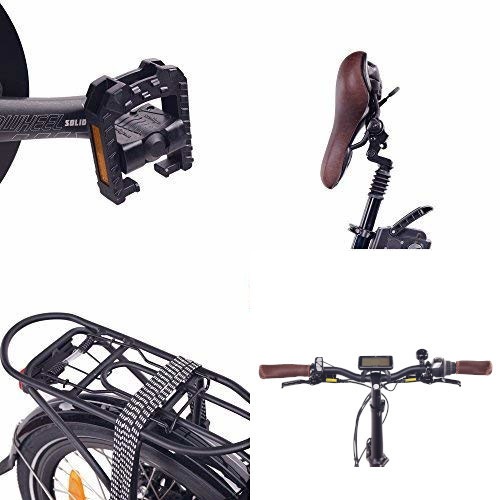

Saddle: Selle Royal, Freeway, Brown with Gel
Seat Post: CL, PB-523, with suspension, 27.2*350mm
Grips: Selle Royal, brown synthetic leather
Pedals: Wellgo, foldable
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
