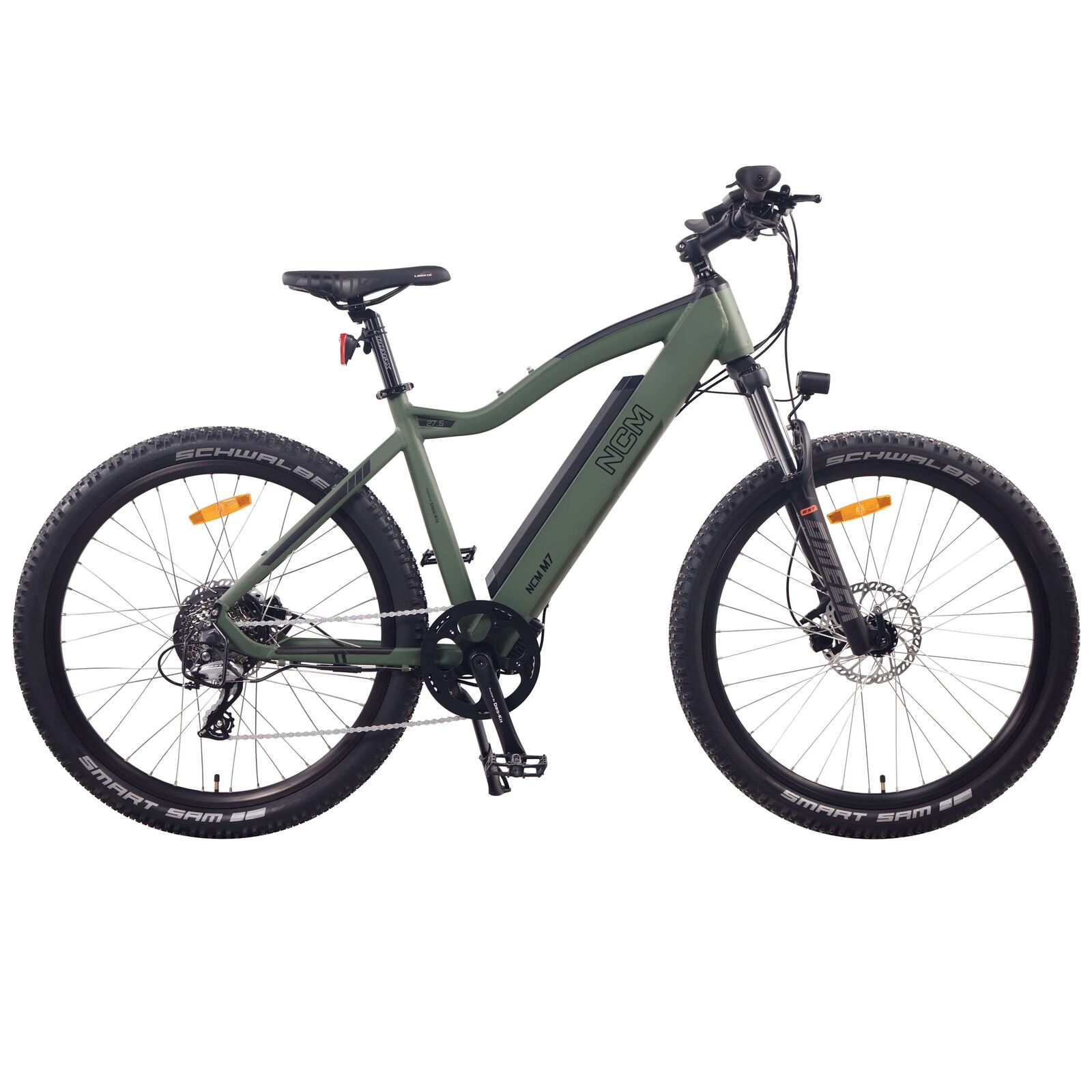

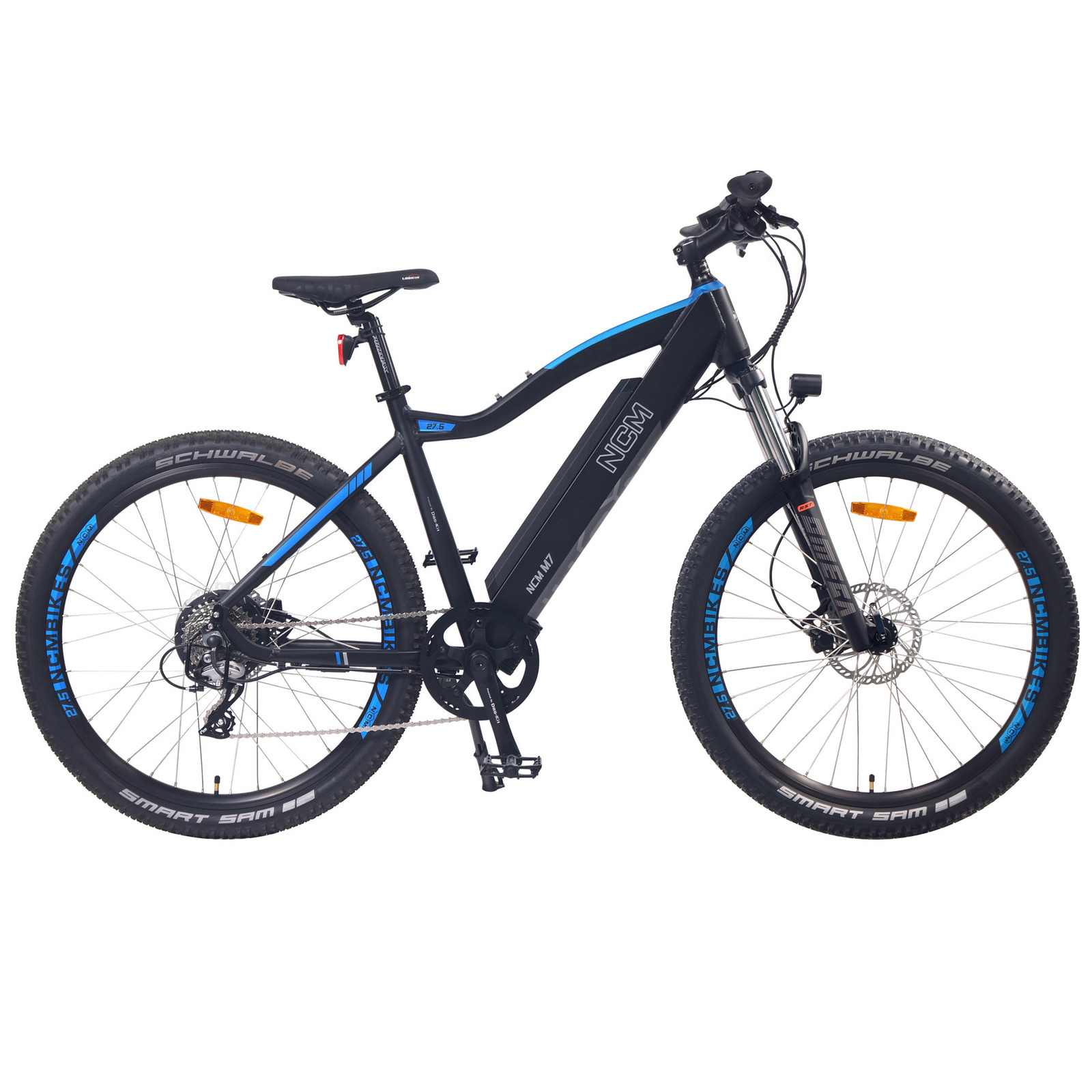

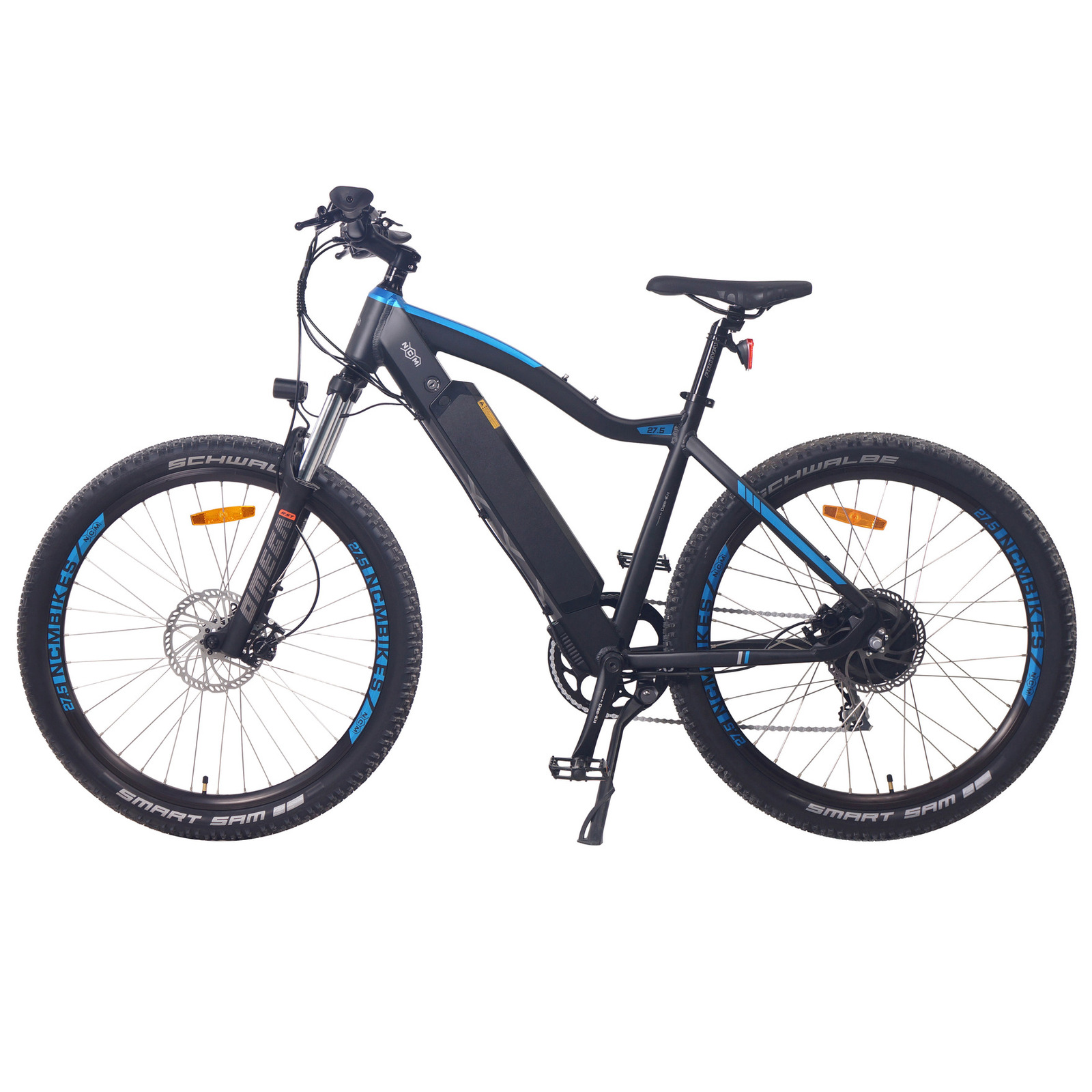

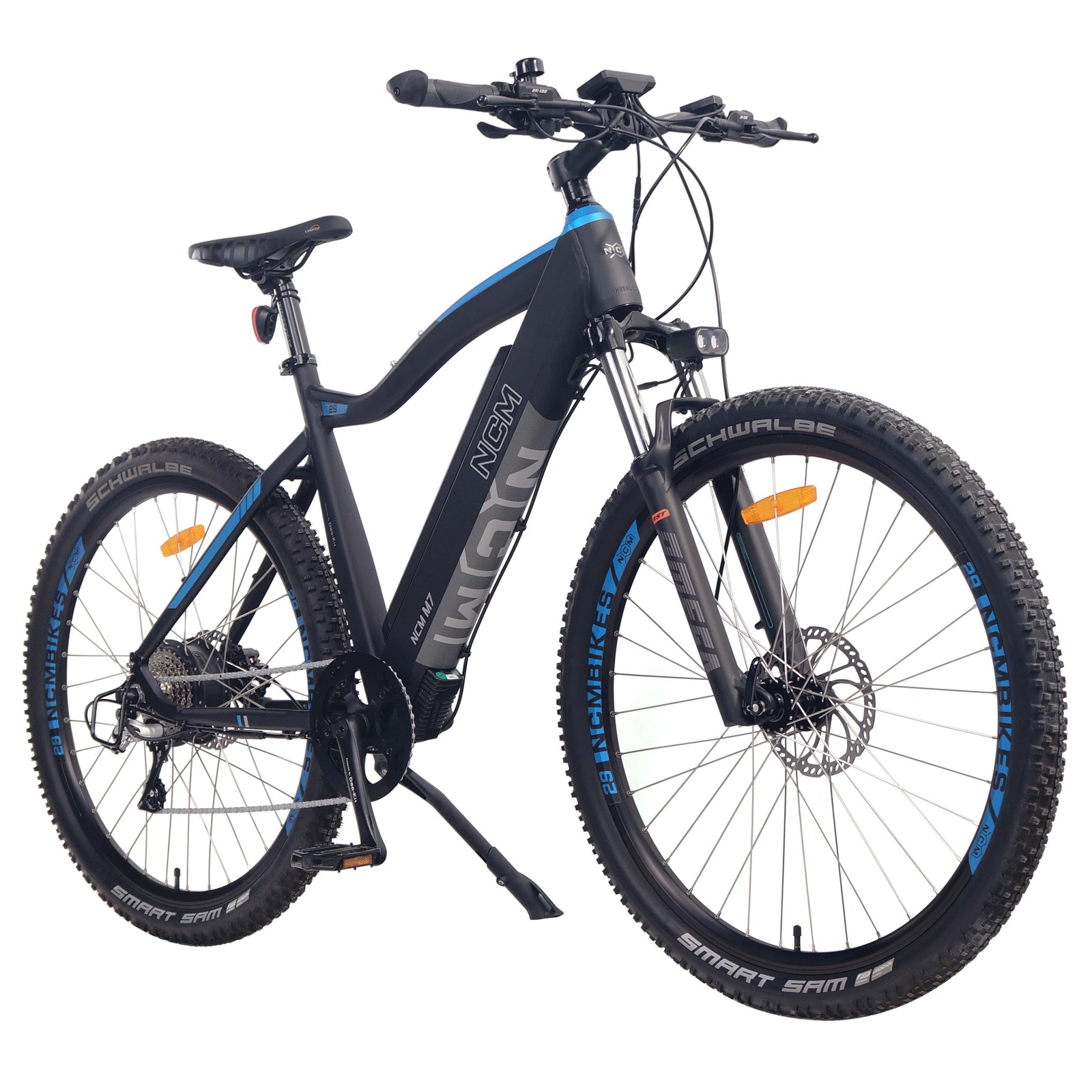

Ready for an Electric Mountain Bike able to take on any terrain for your next adventure? Rough gravel roads? No problem! Our E-Mountain bikes offer exceptional performance for even more fun on off-road trails. Rugged and capable, the new NCM M7 Electric Mountain Bike is hugely versatile. An e-mountain bike equipped with high-end brakes, drive systems, and torque the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their e-bike can handle whatever they throw at it. Fitted with a location tag within the battery, feel safe knowing your e-bike is just a convenient check away. Focusing on usability and capability, this E-bike is designed with a tough aluminum frame and a strong rigid handlebar and saddle for improved ergonomics and performance. High-quality electric bicycle components allow for great performance and control on and off-road.

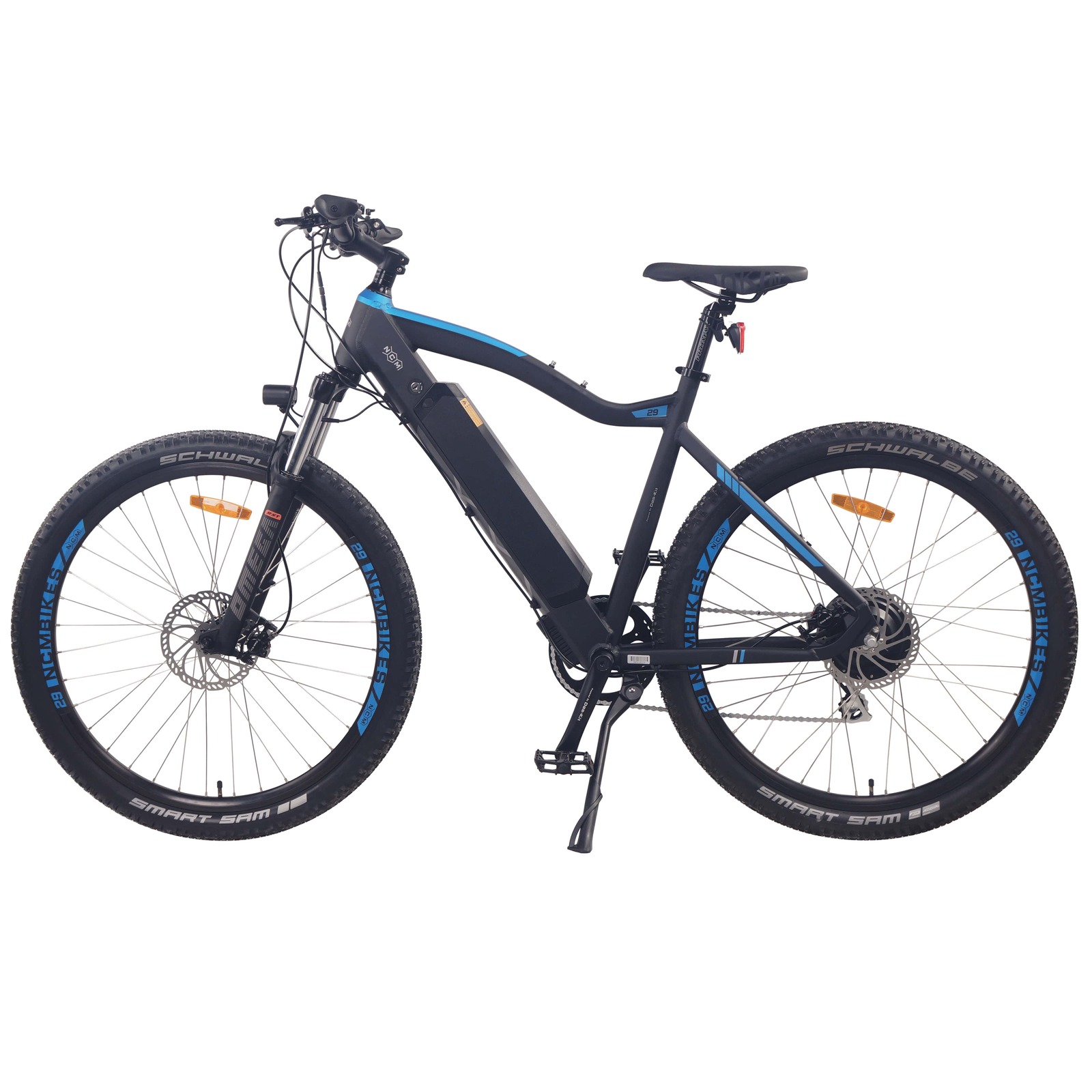

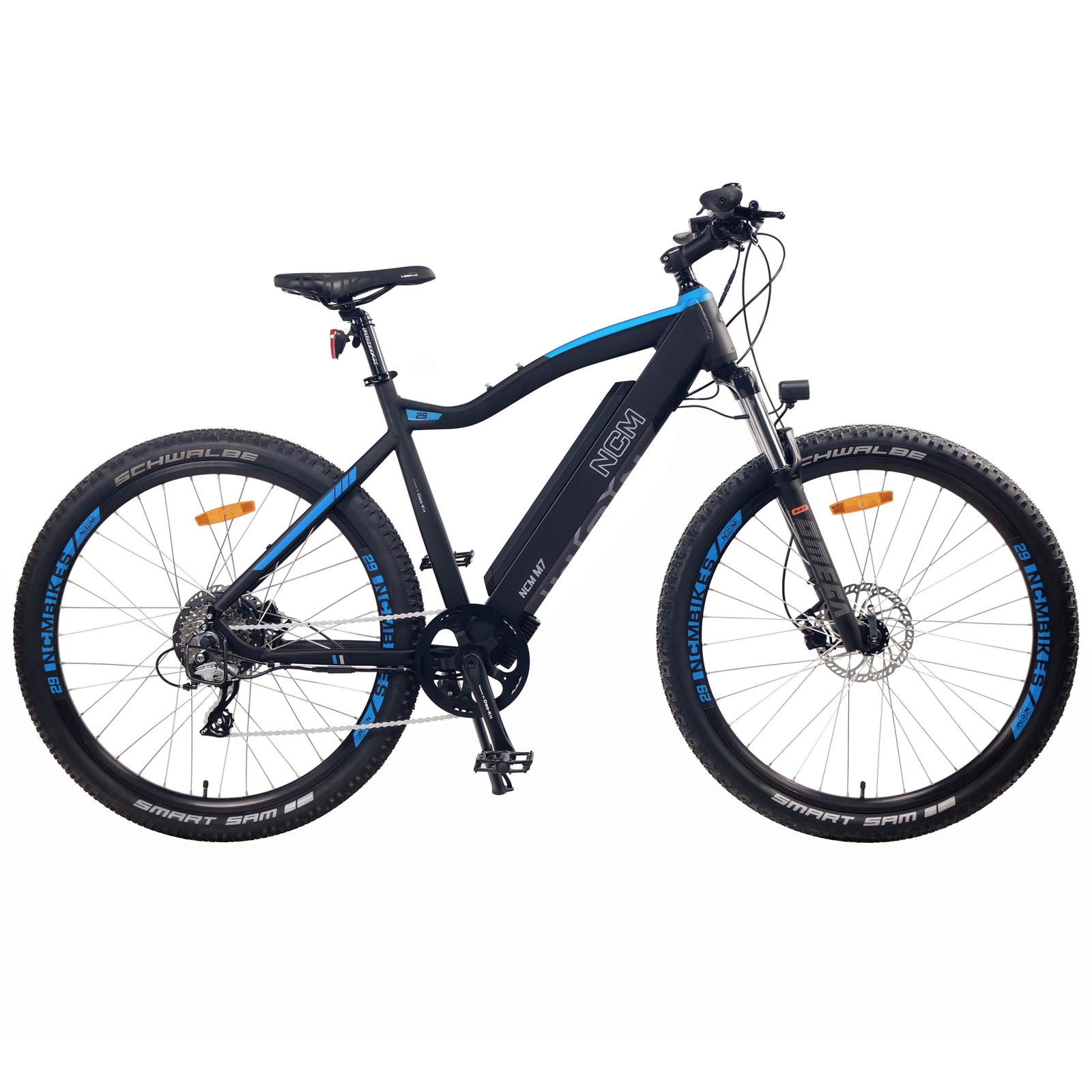

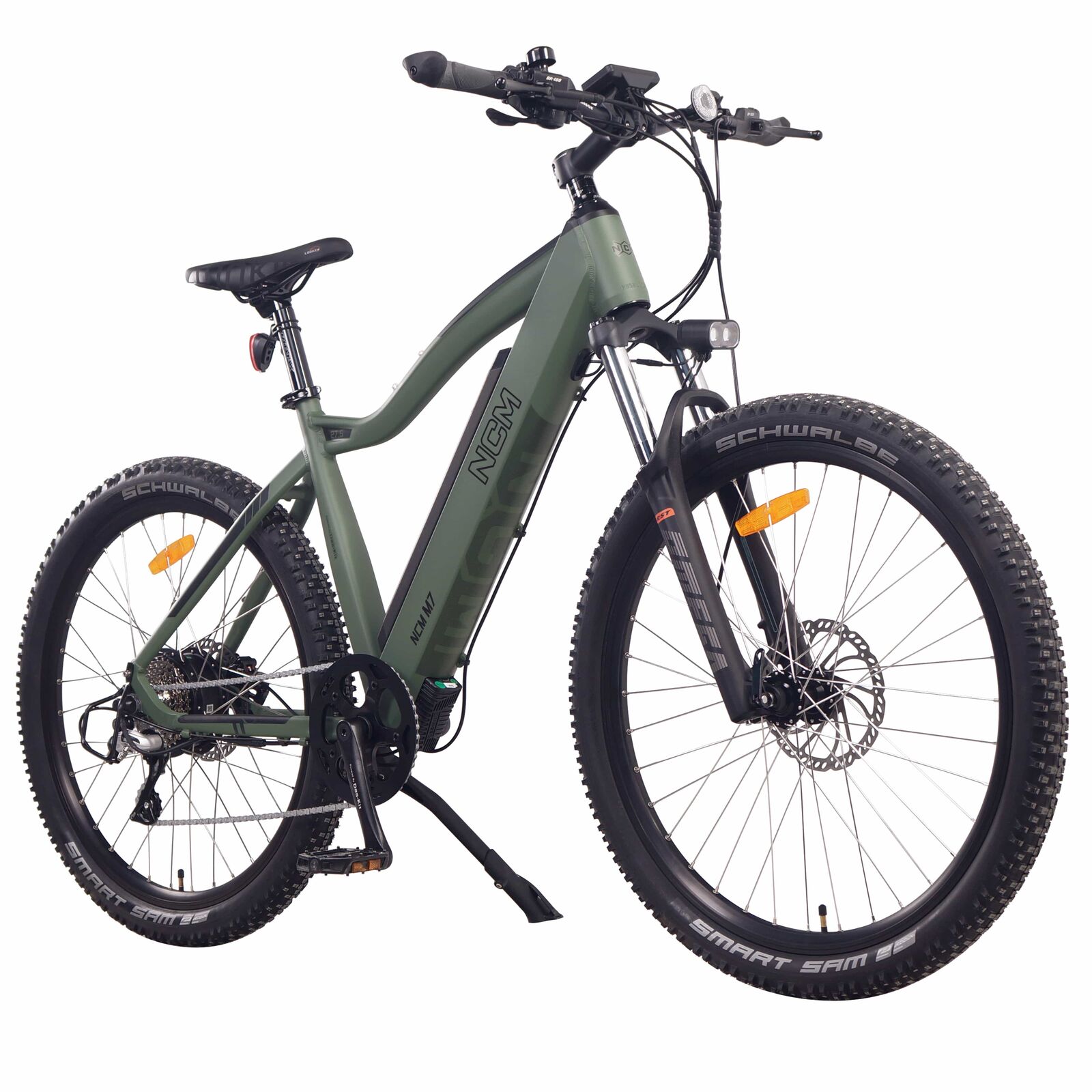

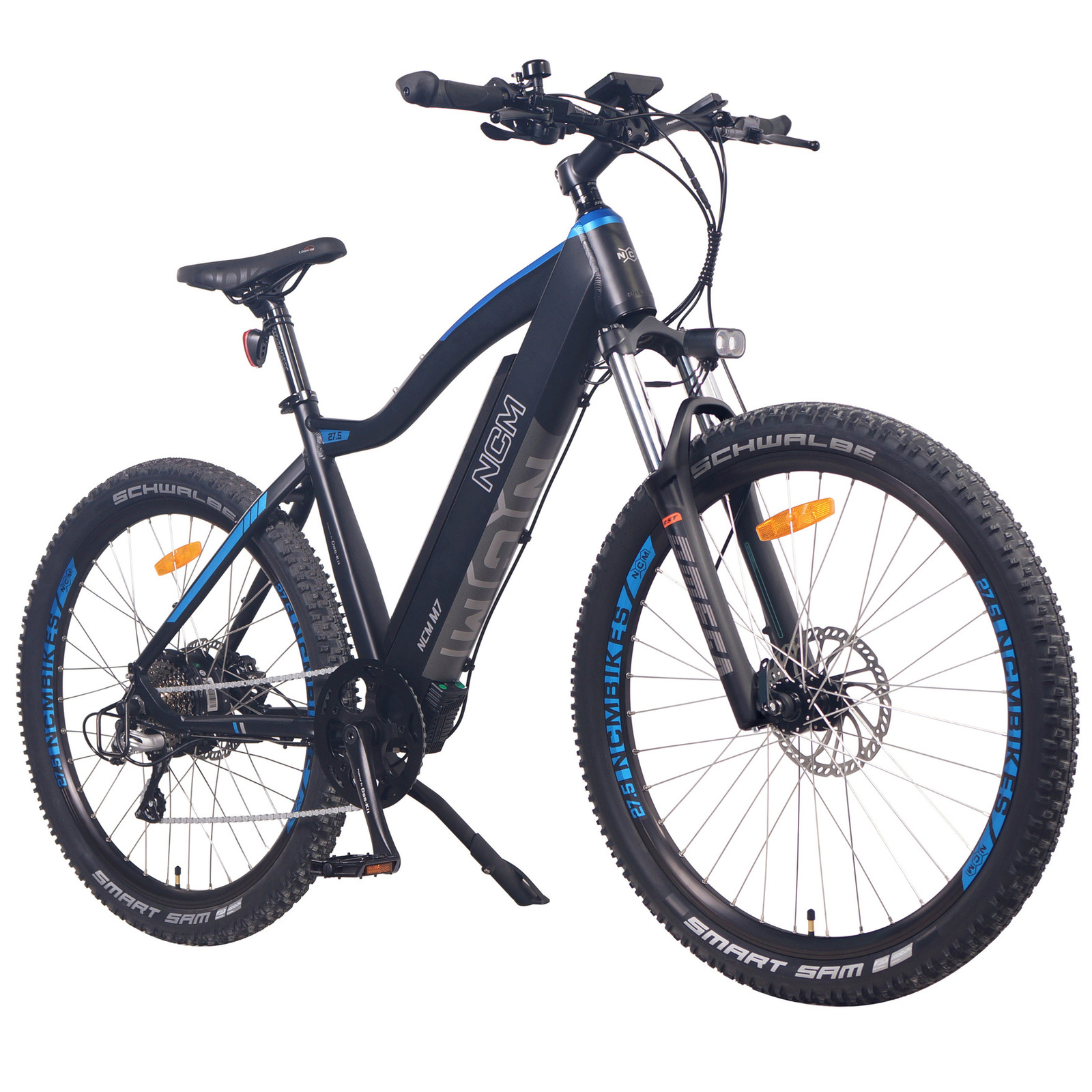

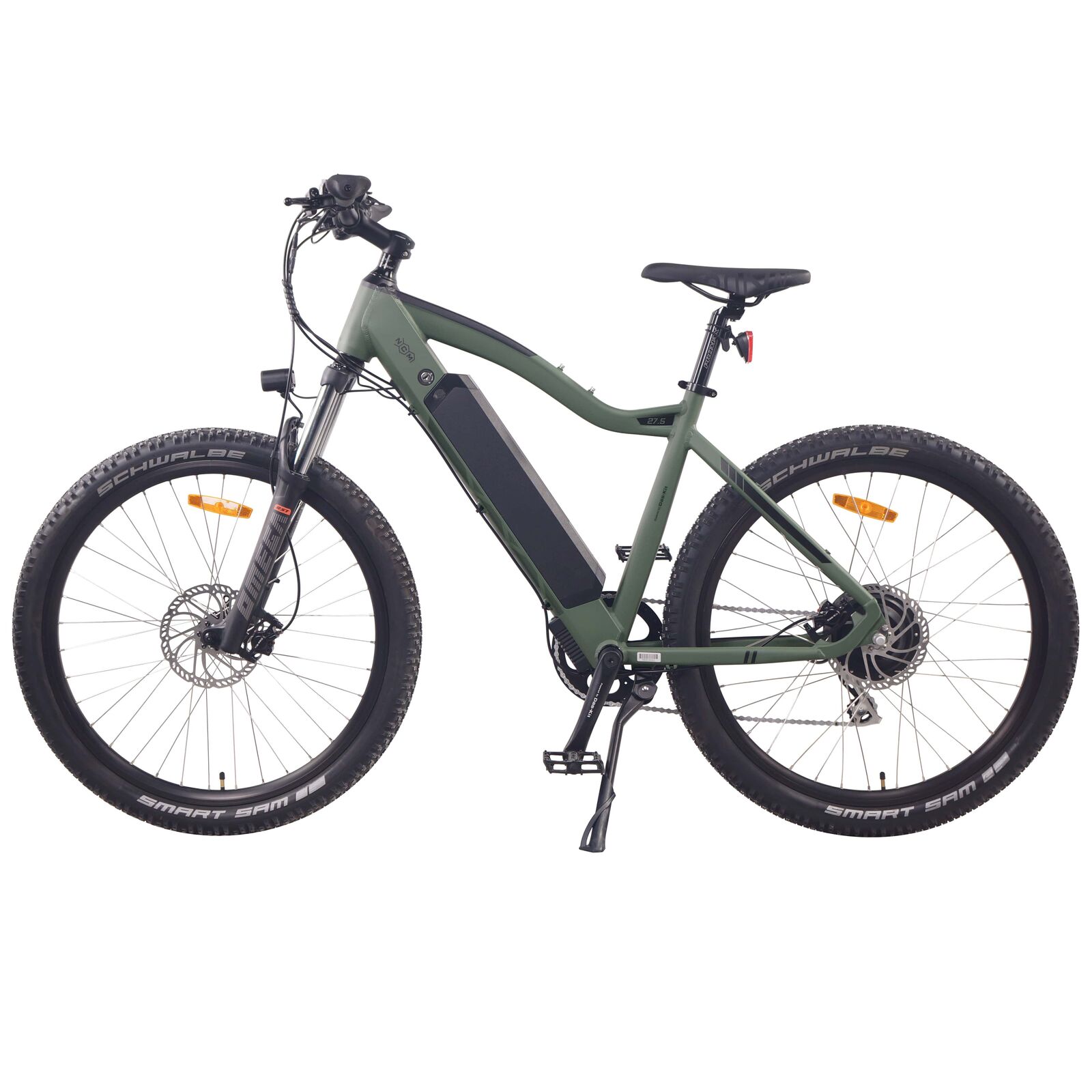

The NCM M7 is the upgraded version of NCM Moscow Plus that comes with a Das-Kit 500W Peak motor, and a 48V 19Ah 912Wh long-lasting battery that will give you reach up to 180km per charge. This depends on rider weight, terrain, and riding style. High-quality bike components allow for great performance and control on and off-road. With multiple levels of pedal assist, the only thing that will take your breath away is certainly not the climb, but the view you see when you reach your destination. Strength and power are the characteristics that describe our E-MTBs most accurately and are also reflected in their design. With sizes from 26 to 29 inches, we offer everyone the opportunity to experience this feeling of freedom.
General Information
Weight: 27.5”= 27.3kg
Type: E-Mountainbike
Wheel size: 27.5”
Load capacity: Max. 125kg
Maximum speed: 25km/h
Battery Information
Lithium-ion Battery
Model: i7-4819
Ratings: DC 48V, 19Ah, 912Wh
Electric parts
Battery: Das-Kit, i7-4819, 48V 19AH, 912WH with Tag Technology
Motor: Das-Kit, X15, Rear drive motor, 48V 250W
Controller: Das-Kit, T7+, 48V 22A

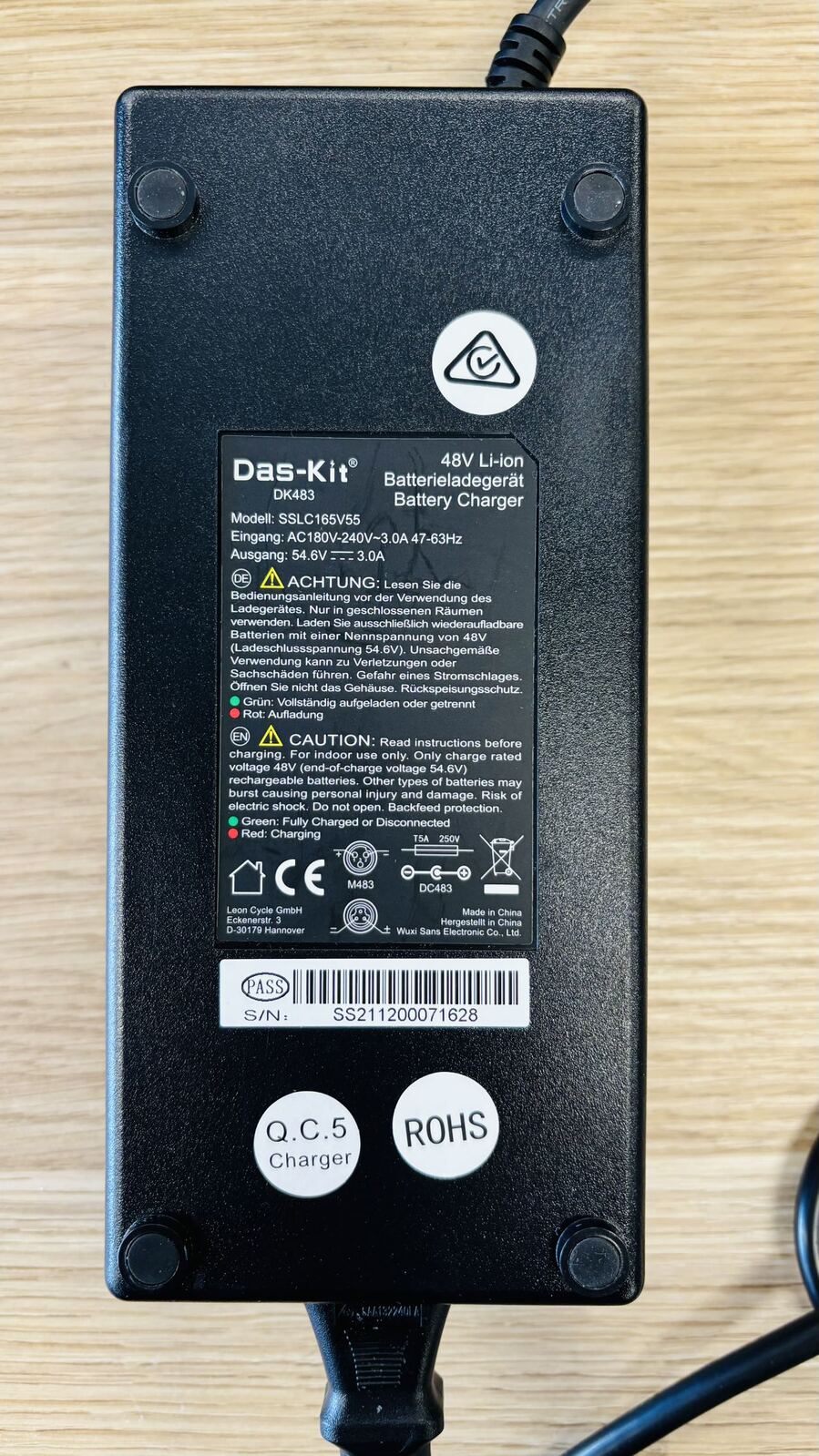

Charger: Das Kit, 48V 3A

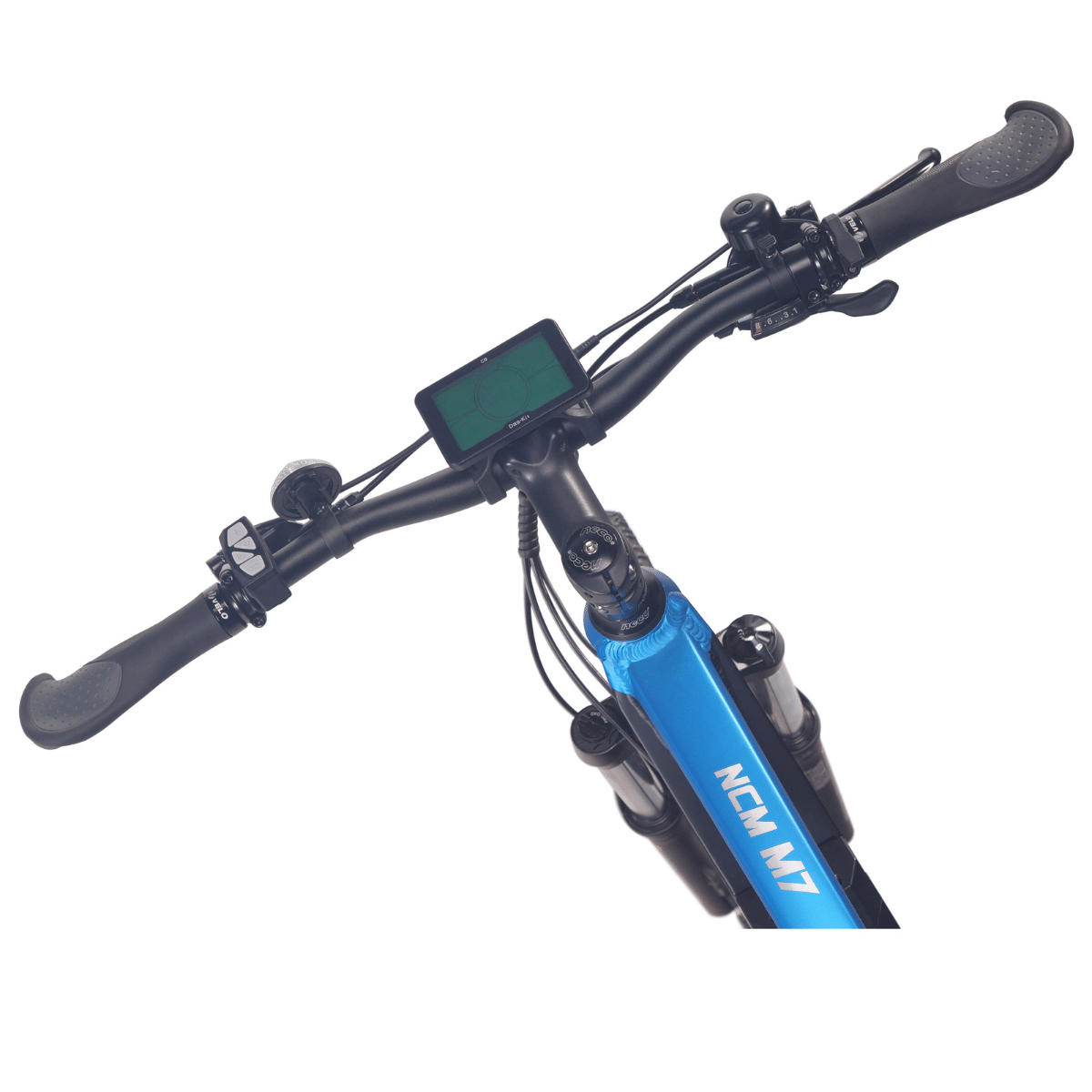

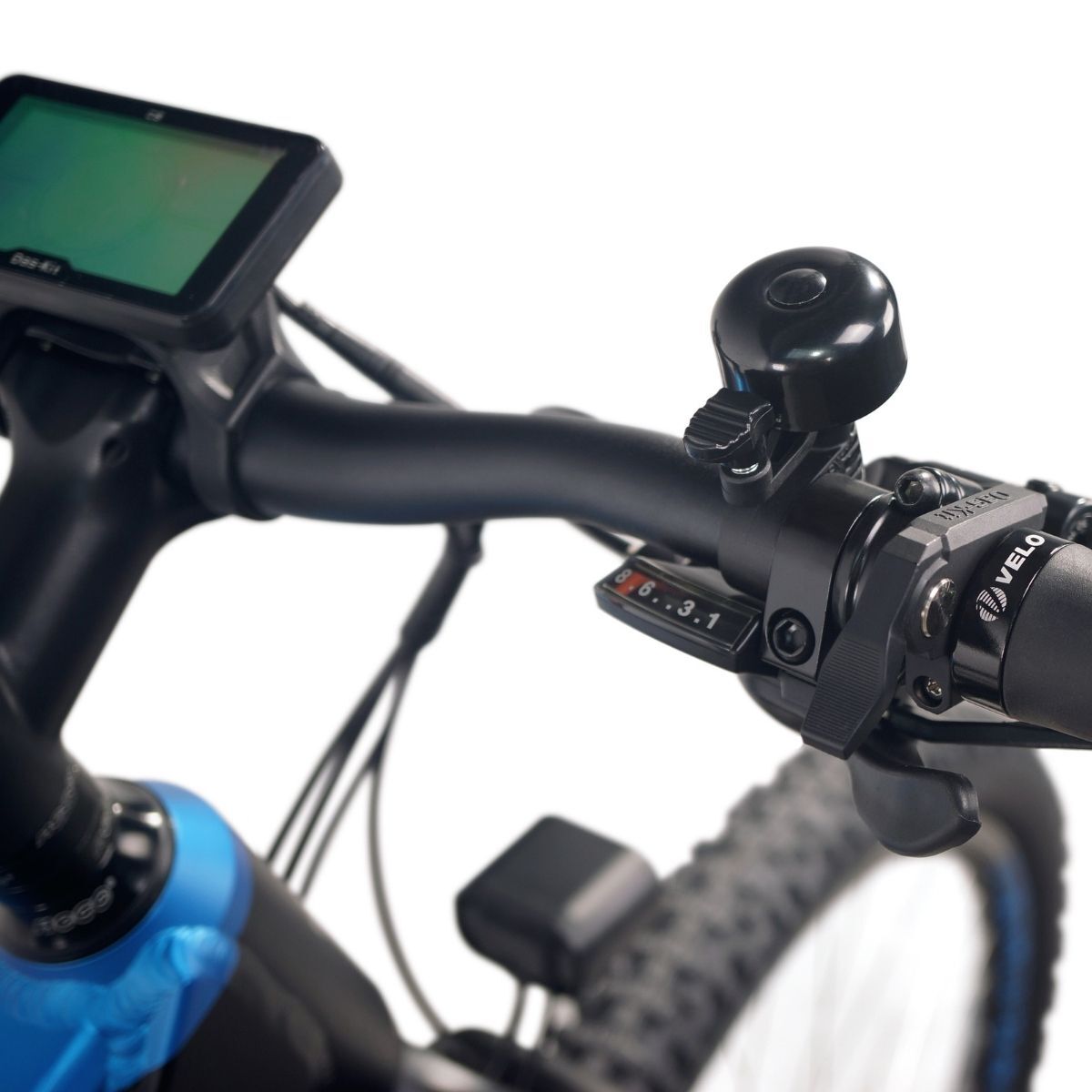

Display: Das-Kit, C8, with USB

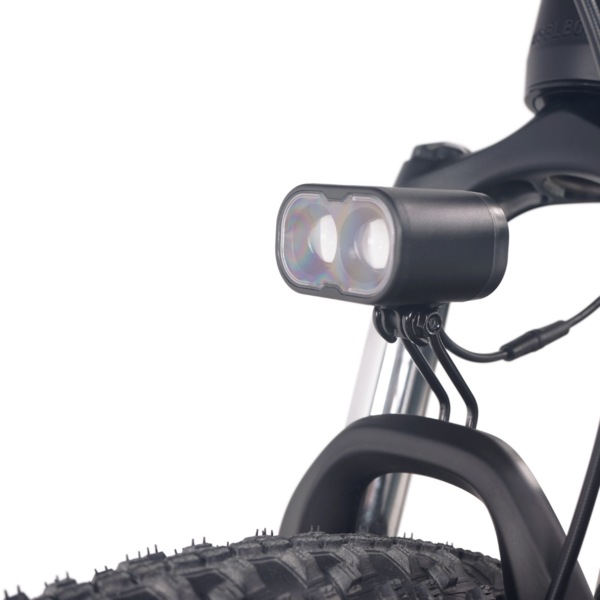

Front Light: DH007Plus, 48V, 70Lux
Distance: Approx. 100-180km depending on assistance level.
Bike parts
Frame: Alu. 6061, 27.5"*480MM

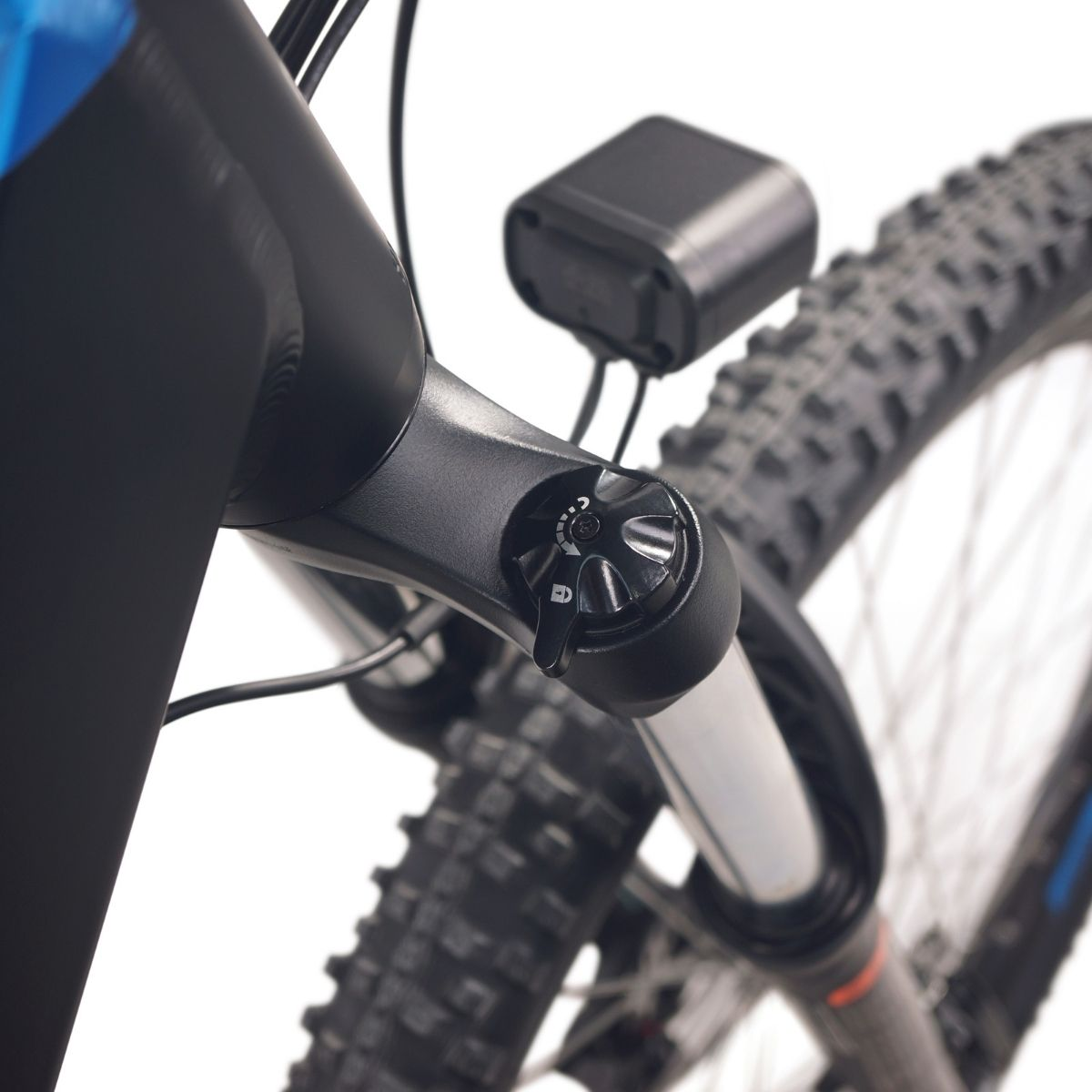

Suspension Fork: Suntour, XCM-HLO-27.5, with hydraulic lock system
Brake: F/R: Das-Kit Hydraulic Disc Brakes, DK-100，F: 180mm rotor R: 180mm rotor
Freewheel: LY, 8 Speed, 11-32T, Silver
Tire: Schwalbe, Black Jack, 26"*2.1, Black / Schwalbe, Smart Sam, 27.5"*2.35, Black / Schwalbe, Smart Sam, 29"*2.35, Black

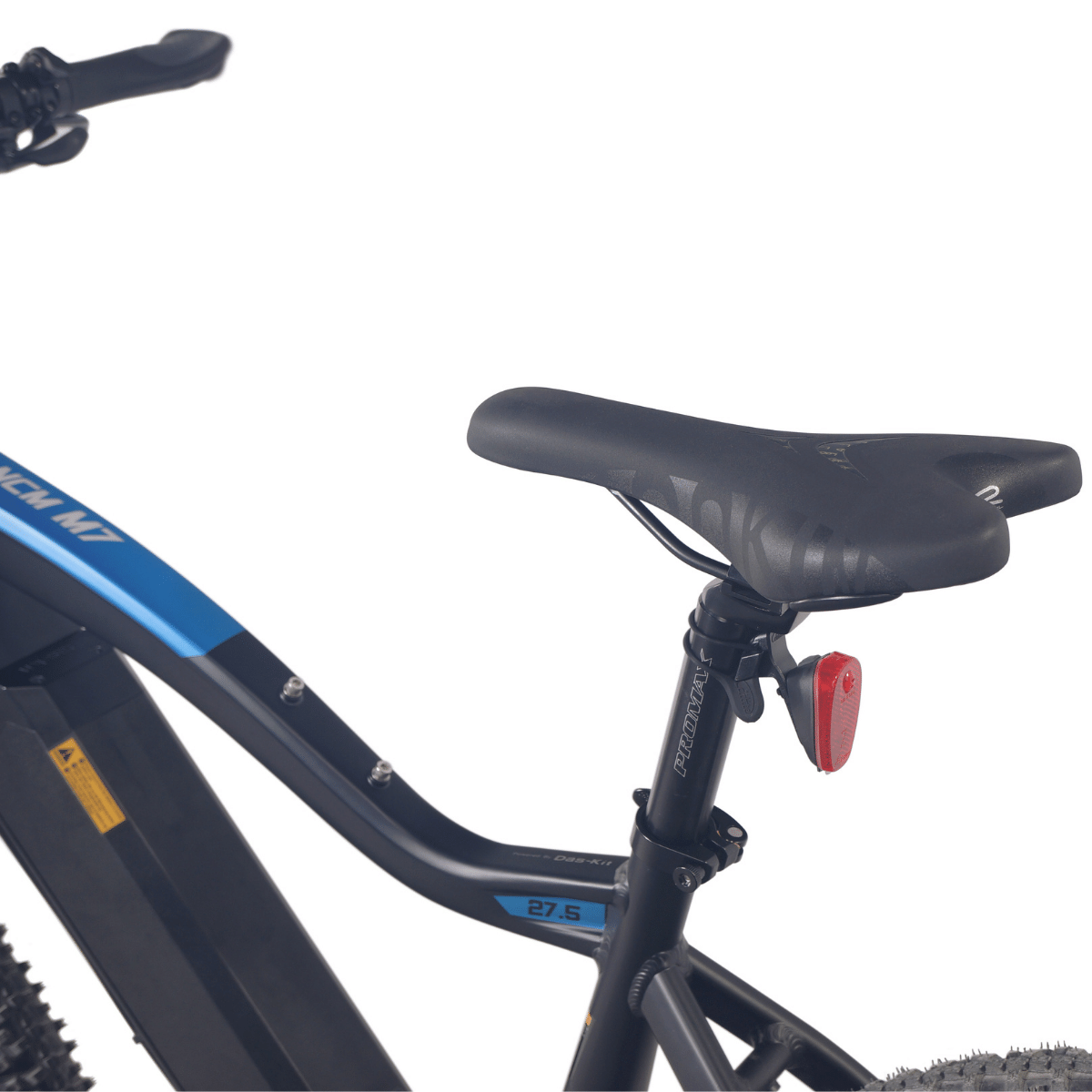

Saddle: Selle Royal, Lookin-A200UR, Black
Stem: Promax, Alu.MA-471
Crank: Das-Kit, 52T
Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

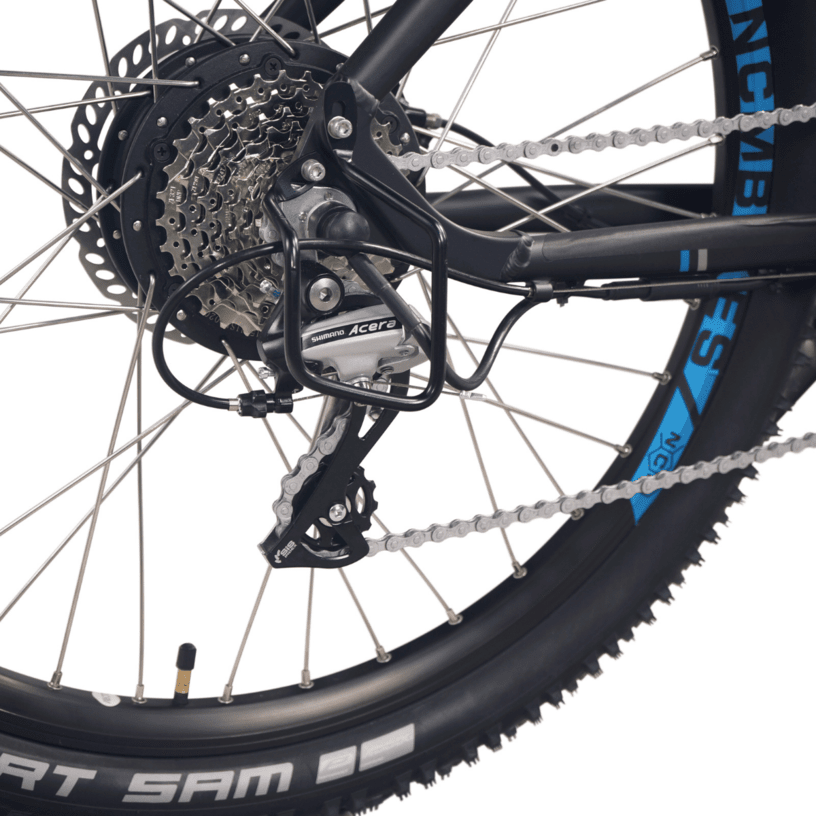

Rear Derailleur: Shimano, Acera, RD-M360
Chain: KMC, Z8.3RB, Silver
Warranty
1 year warranty on all electronic parts (including battery, motor, controller, display, and lights)
2 year warranty on the bike frame
Apart from manufacturing defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but may be replaced on a case-by-case basis within the first 6 months.
