NCM Munich Electric Trekking Bike, E-Bike, 250W-500W, 36V 13Ah 468W [White 26]

NCM Munich Electric Trekking Bike, E-Bike, 250W-500W, 36V 13Ah 468W [White 26]

Limited Stock!

Price	$1499
	Collect 1499 Everyday Rewards points Log in to MyDeal to link your card
Colour	Choose... Please select an option
Size	Choose... Please select an option
Peak Power	Choose... Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee for our product quality, & warranty.

Item Specification

Shipping Weight:32.00 kg

Product weight: 24.00 kg

Battery Information

DEHAWK R3S-3613H, 36V 13AH, Li-Ion High Power cells, 468 WH,

Range approx. 50-70km, ECO mode approx. 90km

Electric parts

Display: Das-kit, L6B (3.0 VR), LCD, 6 levels of assistance, 6km / h traction help / push assistance

Controller: Das-kit, CT4 controller, 36V 14A

Motor: Das-kit X15, 36V 250W-500W, 25 km/hr, rear motor

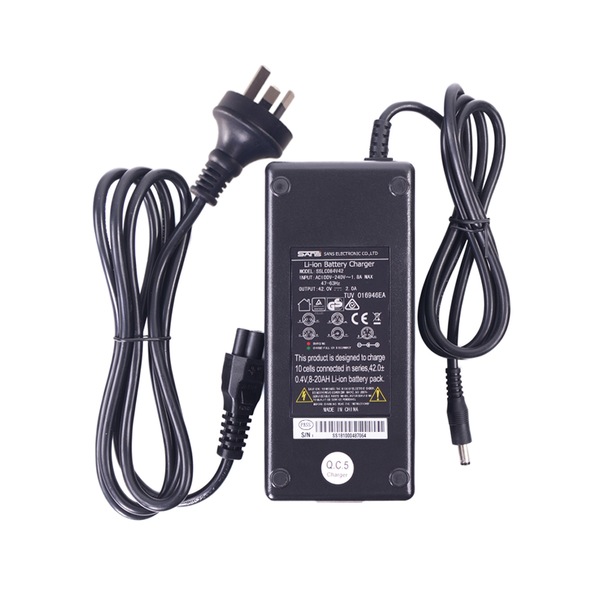

Charger:SANS 36V 2A included (round plug) DC362DE (EESS Number: E2022081360)

Front light: LED, KENDO by Spanninga 20 LUX, powered directly by the battery

Taillight: LED, LINEO by Spanninga StVZO approved, battery operated with 2 x AA 1.5V

Bike parts

Frame: Aluminum 6061, 26 "* 440MM, white

Fork:ARIA ZOOM 187D, 26 "with suspension

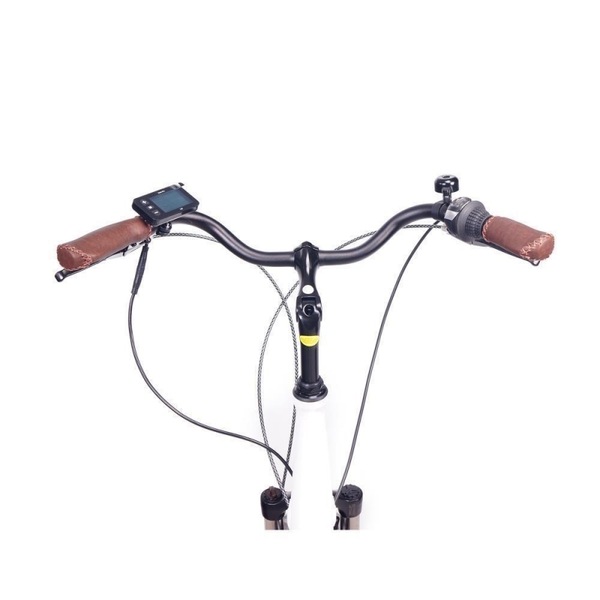

Handlebar:Stem: Promax MQ-527, aluminum (adjustable), handlebar: FQ, FQ-NR-14, width 595mm

Brake levers: Tektro, L: EL555-RT with brake cut to engine, R: CL530-TS

Brakes: Vor./Hin .: Tektro MD-M280 Disc Brakes, Mechanical

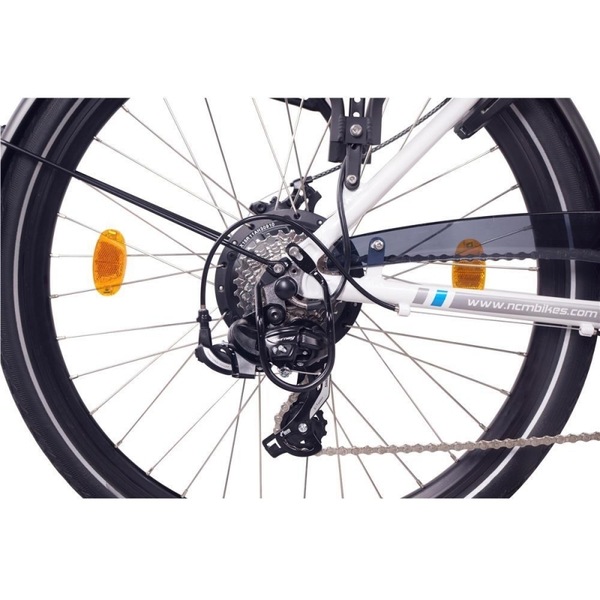

Derailleur:Shimano, Tourney, SL-RS45-7R, 7 speed

Crankset: TL, ICA170ABK, 165mm, aluminum. 44T

Circuit: Shimano, Tourney, SL-RS45-7R, 7-speed

Hollow rim:Width: 21mm and diameter: 570mm

Pinion: LY, LY-1007CFN, 7x Screw Ring, 14-28T

Tire: Schwalbe, Marathon, 26 "* 1.75, black

Saddle: Selle Royal, brown

Seat Post:Promax, Aluminum SP-884 27.2 * 300MM diameter, with suspension

Handles: Selle Royal, JF510 brown

Pedals: Wellgo, B087, black

Max. Permissible total weight: Including driver up to 125kg

Warranty

Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQS.
Apart from manufacturing defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

Disclaimer: Once you receive the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.

Warranty

All our e-bikes come with 12 months warranty on all electronic parts (including battery, motor, controller, display) and also 2 year warranty on the bike frame.

Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.

An outgoing goods inspection is always carried out before the goods are delivered, but we recommend that you inspect the delivered goods after you recieve them. Should you notice any damage, please contact us as soon as possible so that we can discuss the next steps with you.

If you notice any packaging and/or transport damage on delivery, we ask you to have this confirmed in writing by the carrier upon delivery and to notify us. We recommend that you keep the damaged packaging as evidence wherever possible.

Returns Policy

We assess each refund and/or return enquiry on a case by case basis. Depending on the case you may be entitled to a replacement or refund.

Once the product has been received, we will either inspect your goods or investigate any claimed defect or, where we believe it is applicable, provide a remedy in relation to your goods. If we do not believe a remedy is applicable upon inspecting your goods (for example, where we believe the goods have been misused, or there was a failure to use in accordance with manufacturer's instructions, used it in an abnormal way or there has been a failure to take reasonable care), we will reject your claim and return your goods to you.

You must cover the cost of return shipping in order to receive goods we have rejected on inspection, and we will provide you with instructions on how to make this payment.
