Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee for our product quality, & warranty.
Do you want to avoid traffic jams and still arrive quickly and safely at your destination? Then our E-Trekking and City Bikes are just the thing for you. Roadworthiness, comfort and elegance are the main features of our NCM Milano Plus Electric Trekking Bike.

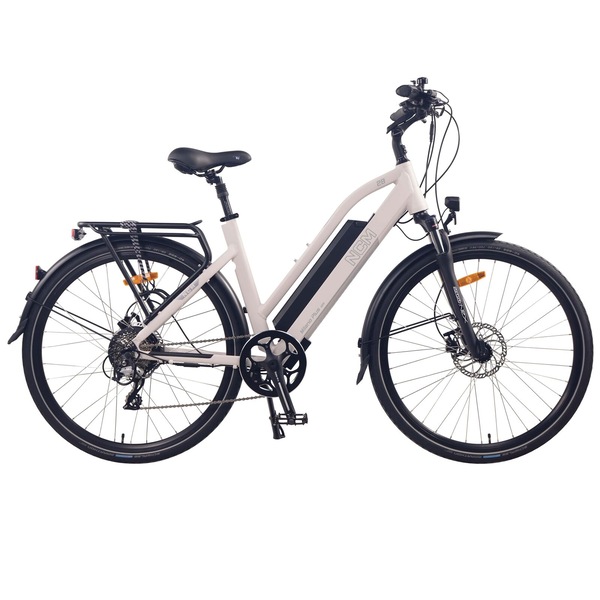

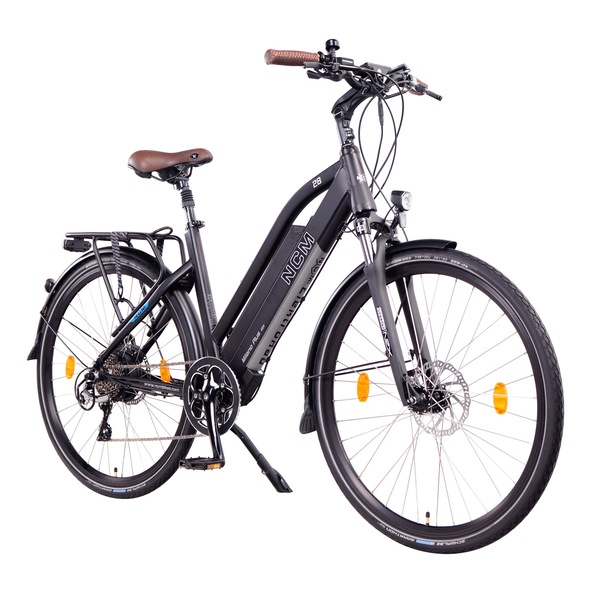

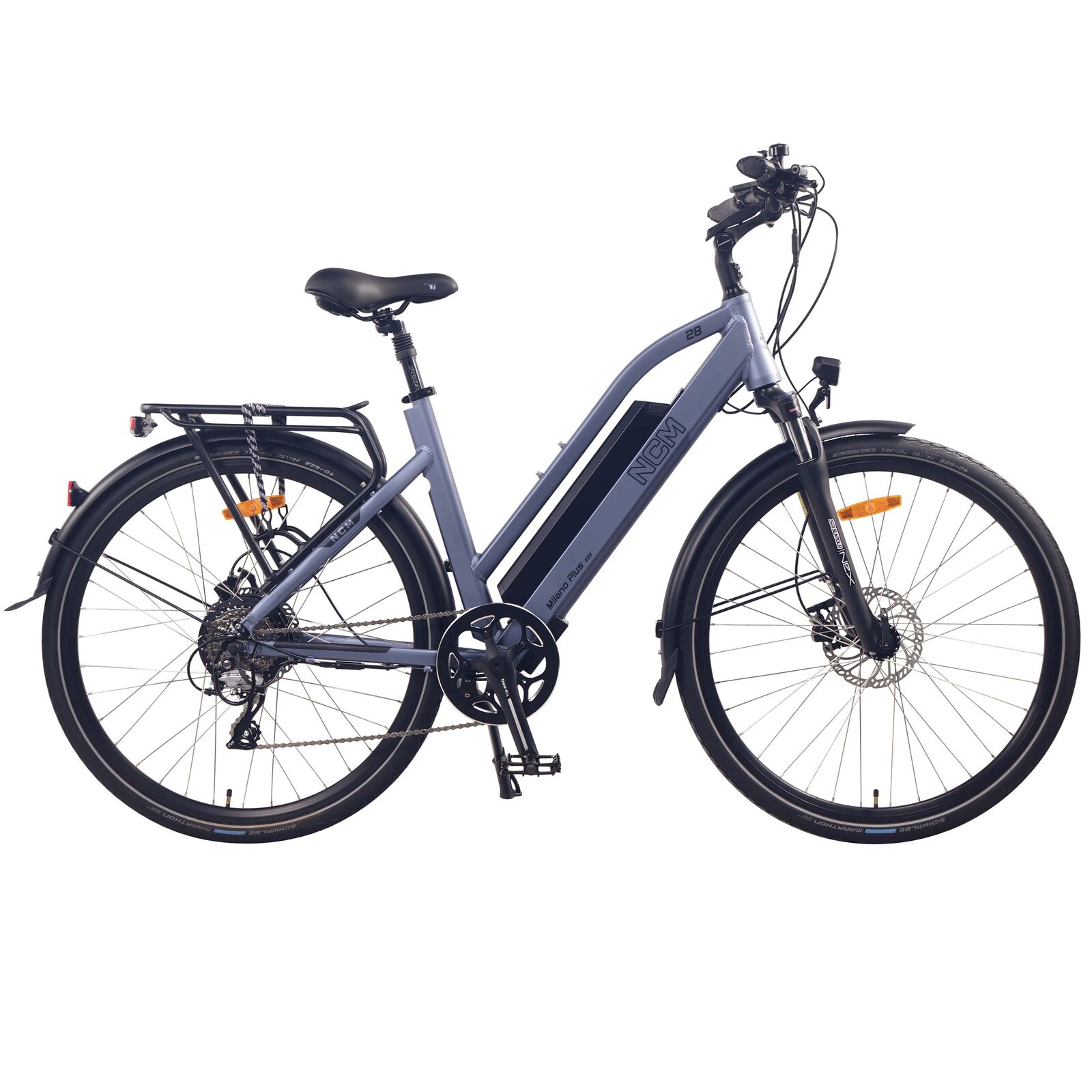

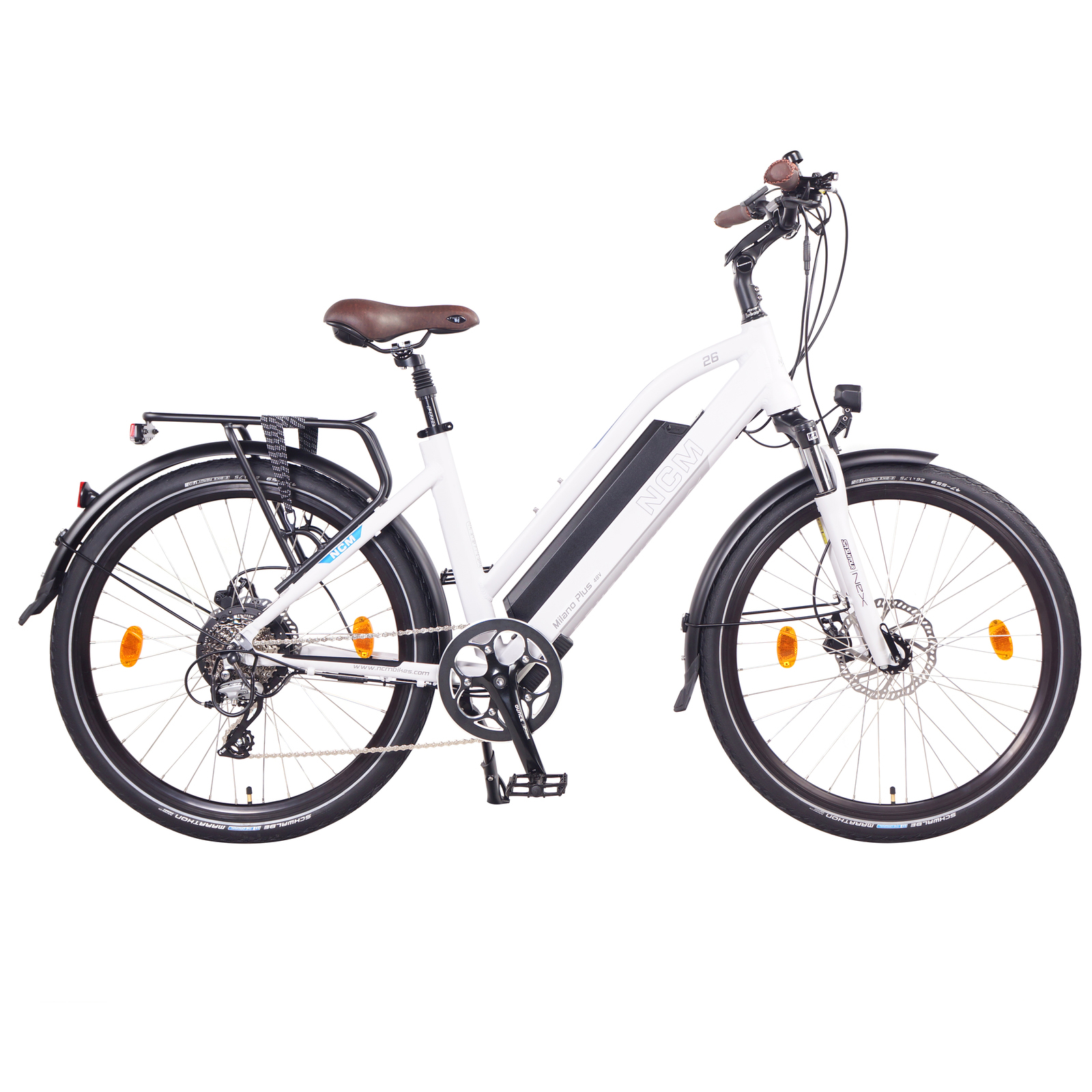

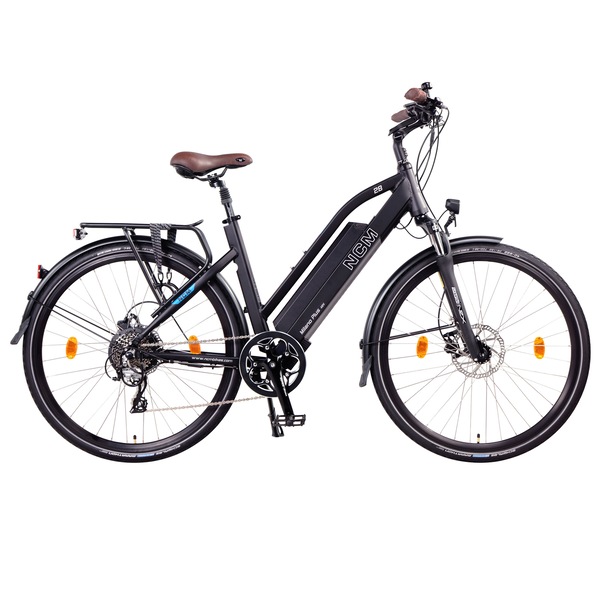

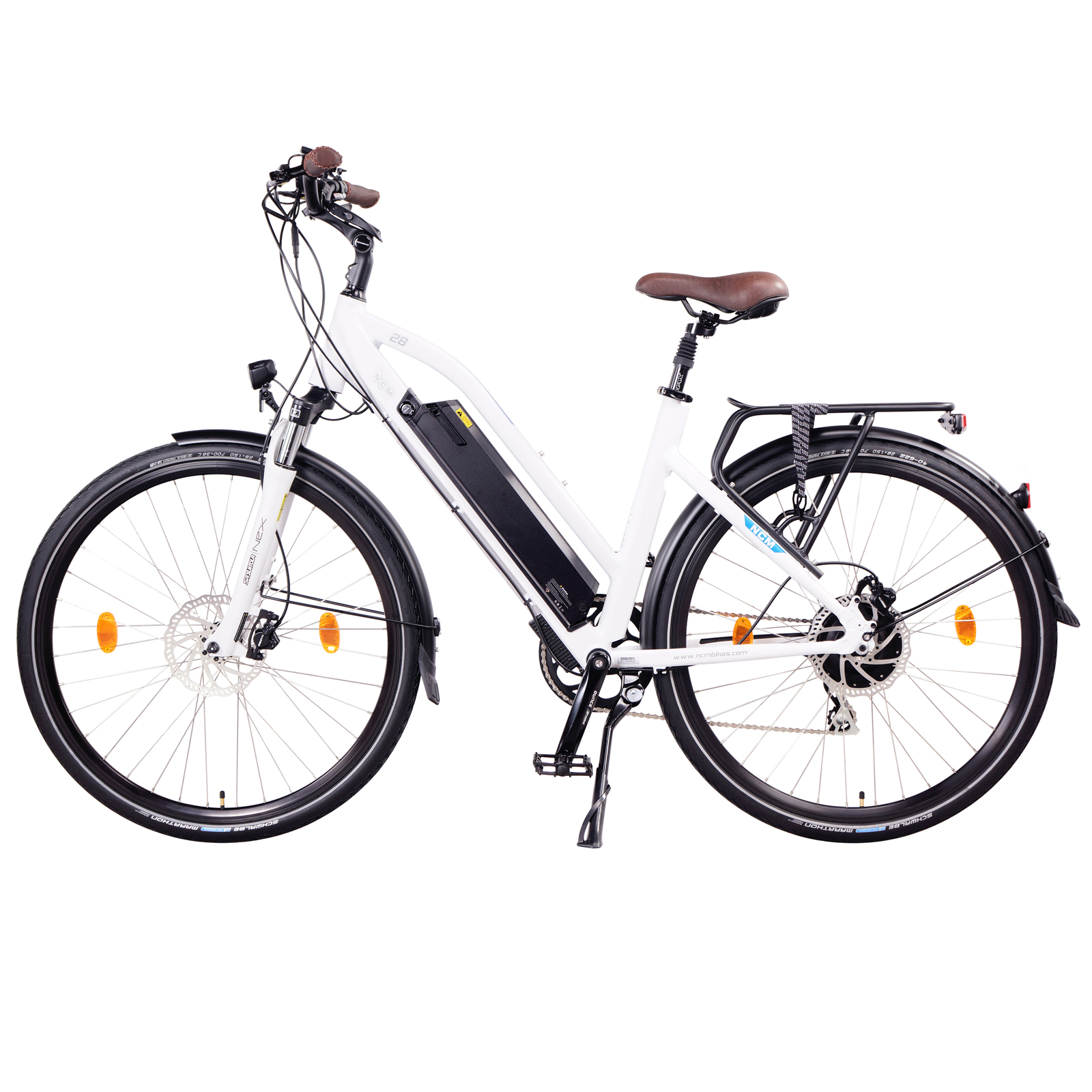

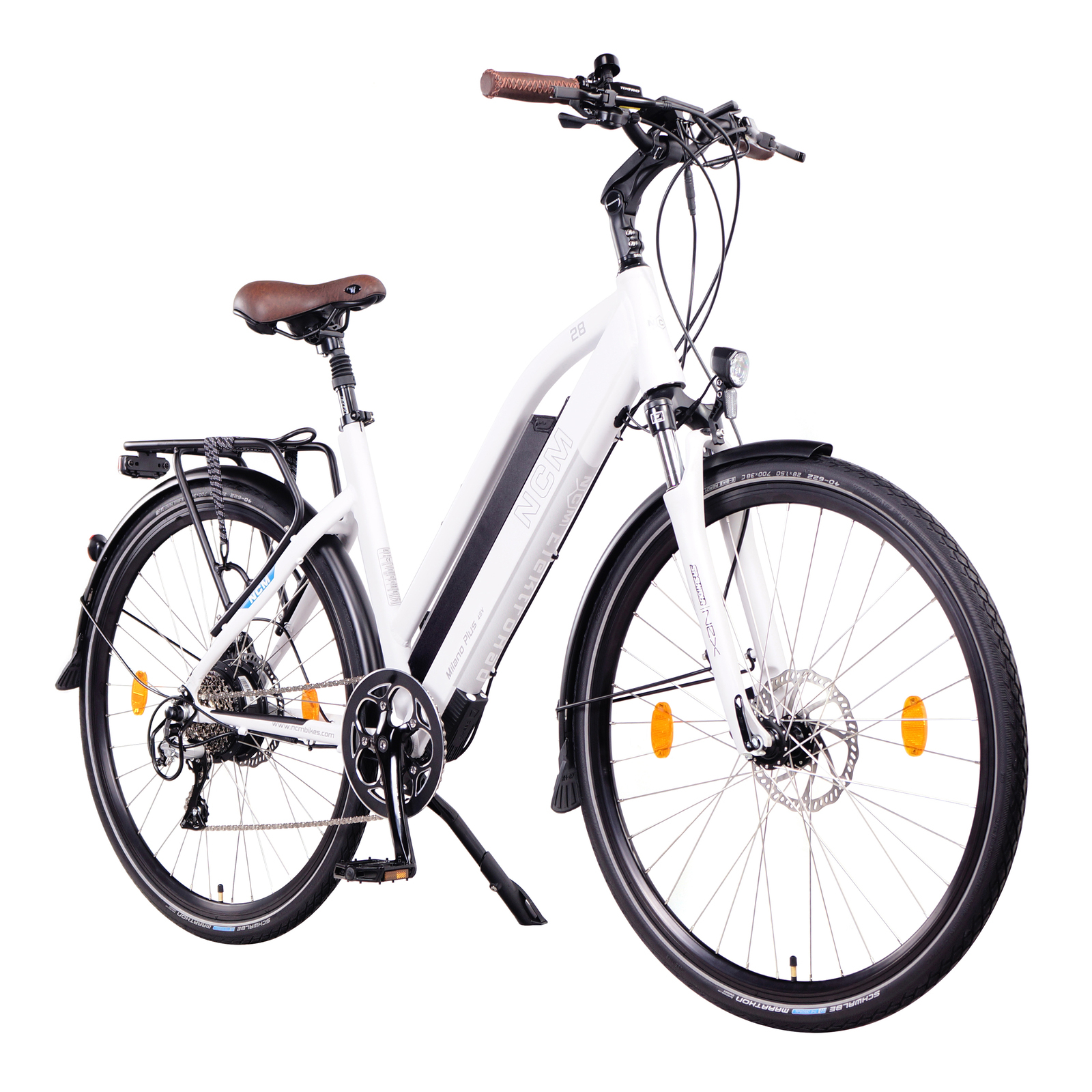

Inspired by the Fashion Capital of Europe the NCM Milano Plus is designed to ride as elegant as it looks. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat post for improved comfort. The low top tube, makes the ebike sturdy and strong yet comfortable and easy to mount whilst providing additional protection to the battery. This Electric Bicycle is fully equipped for your daily commutes. Whether you are trying to get to work on time, while being sweat free, or need to rush to your favourite place in style, NCM Milano Plus lets you cover your daily journeys with ease. The upgraded 768wh battery will last till 150km and a built-in 5V USB port lets you charge your mobile phone on the go.
Key Features
- Ergonomic bicycle Grips
- Comfortable sitting posture
- All important controls are easily accessible
- Supplied with 48V to deliver a high output power
- Up to 500W Peak motor power
- Over 768Wh capacity for a longer distance
- Up to 150 km Battery Range (depending on the conditions)

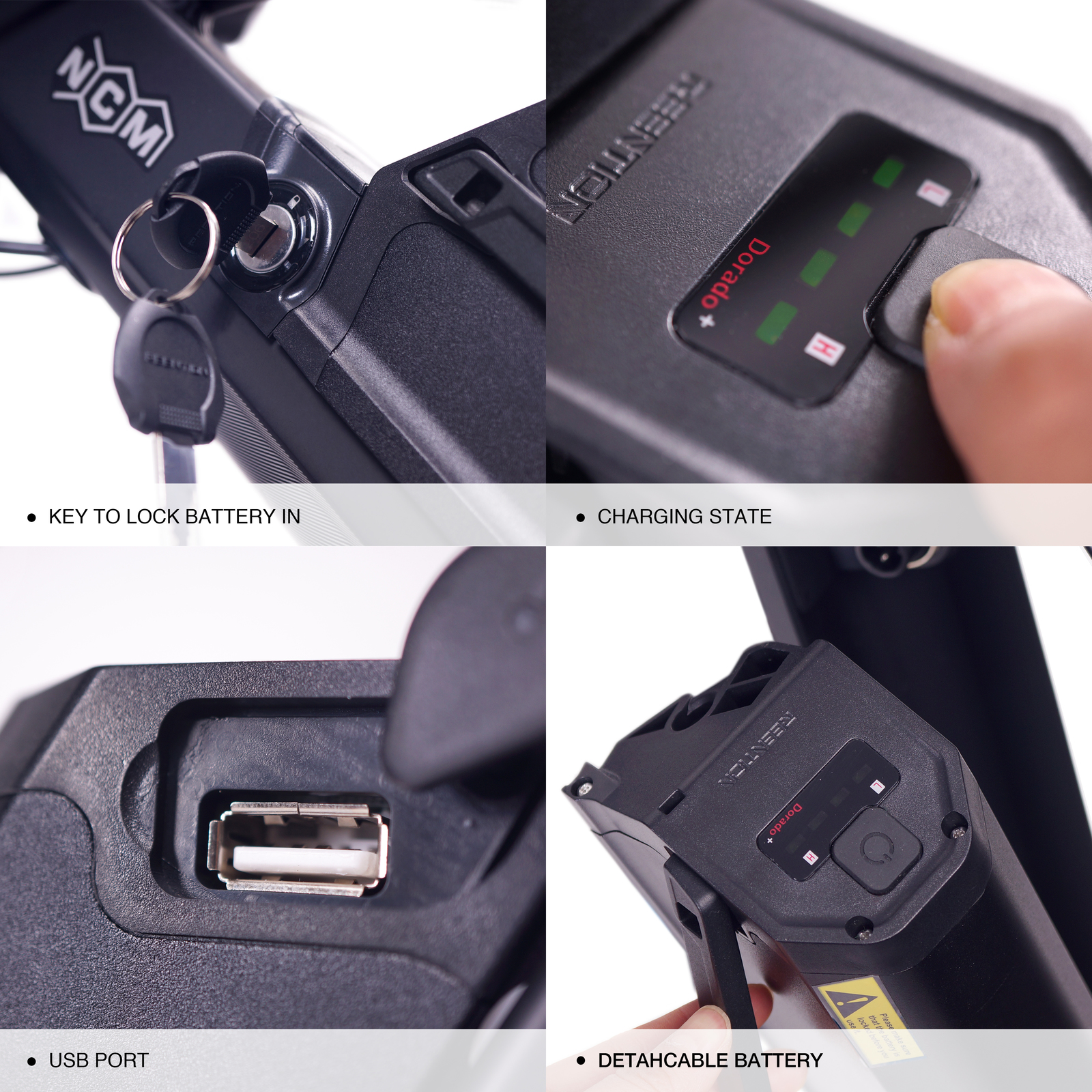

- easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
General Information

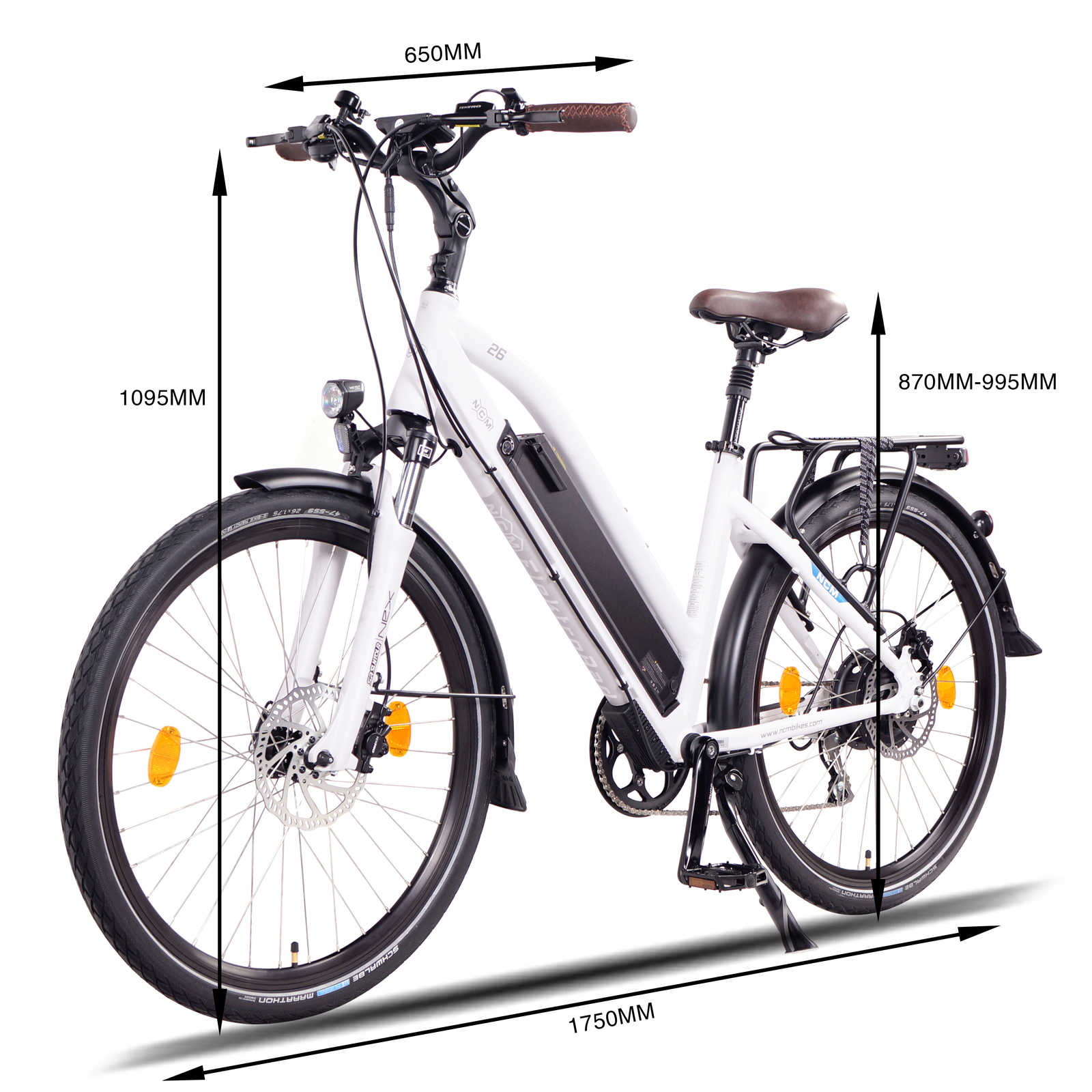

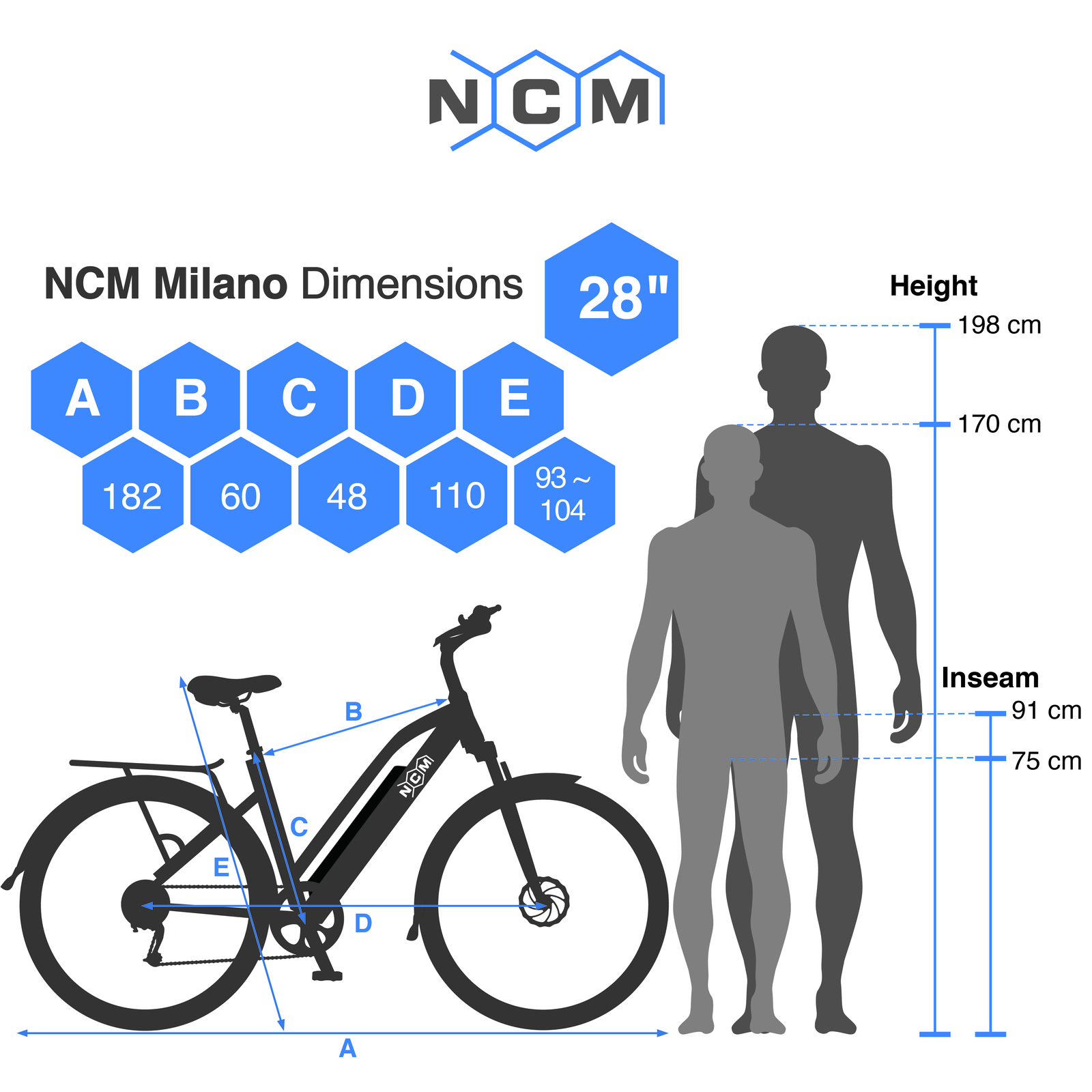

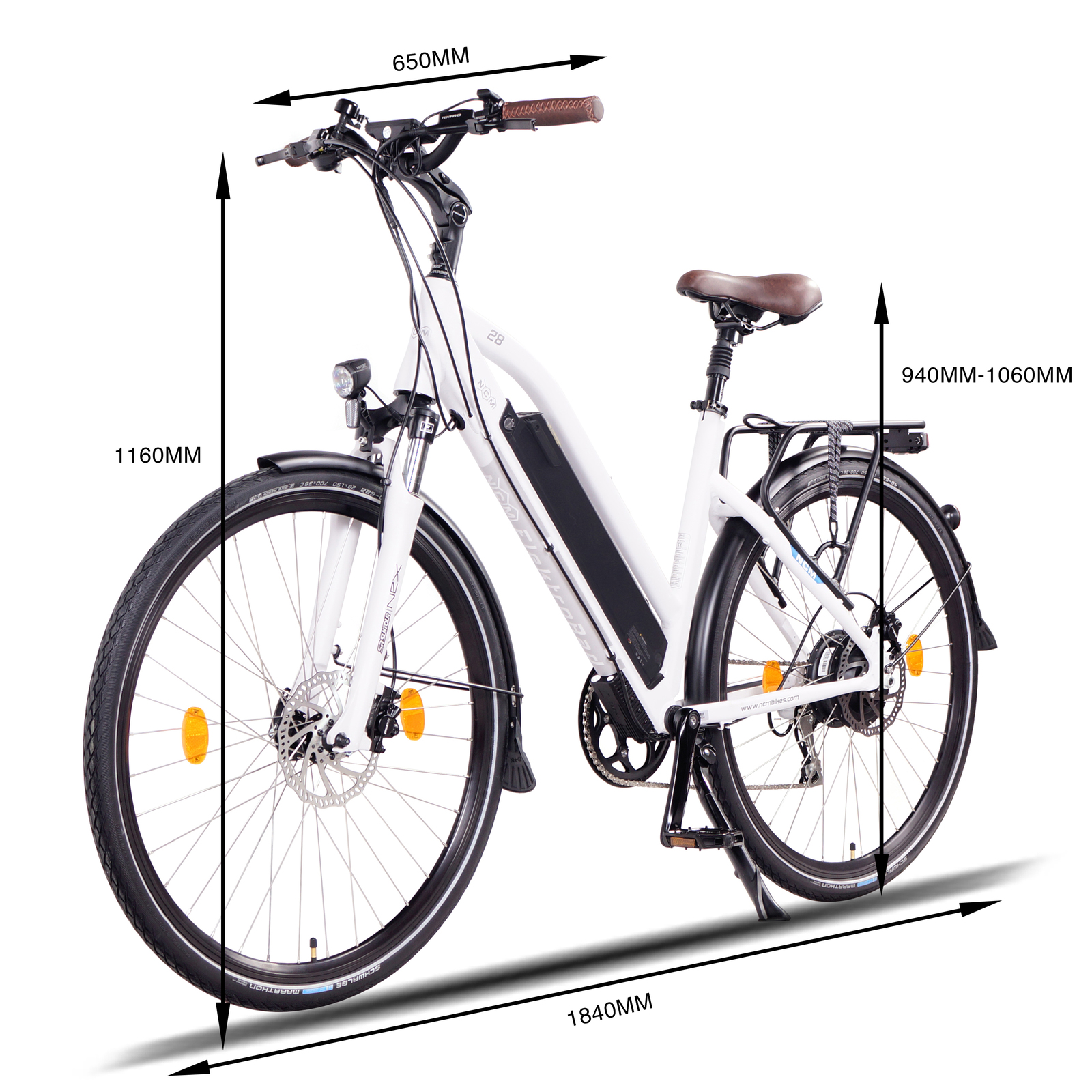

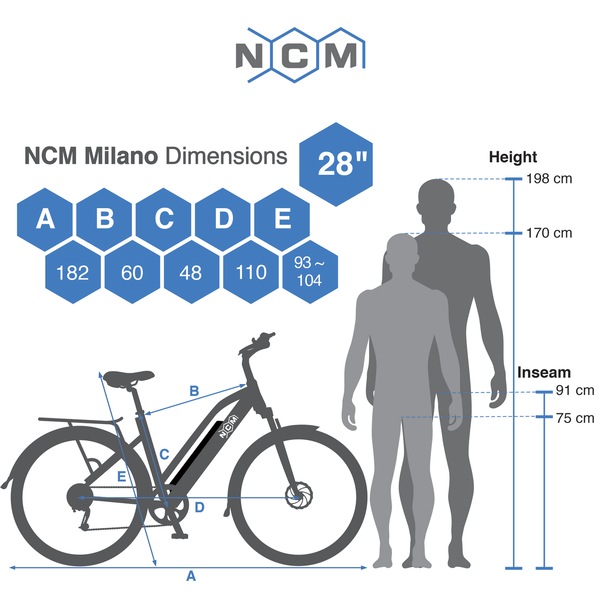

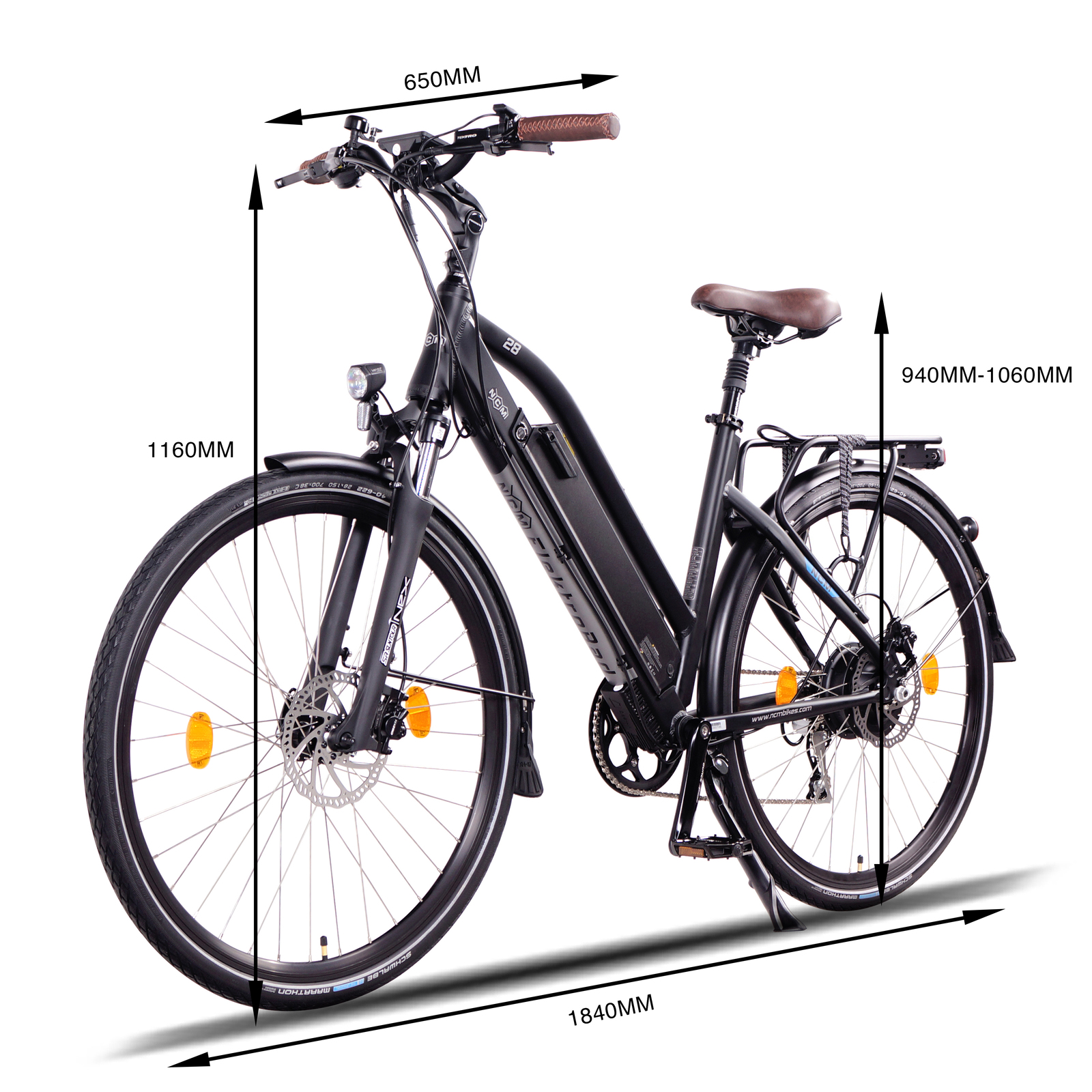

Weight: 26”= 27kg/ 28”= 27kg
Type: E-Trekkingbike
Wheel size: 26” / 28"
Load capacity: Max. 125kg
Maximum speed: 25km/h
Battery Information
Lithium-ion Battery
Model: i5-4816P
Ratings: DC 48V, 16Ah, 768Wh
Electric parts

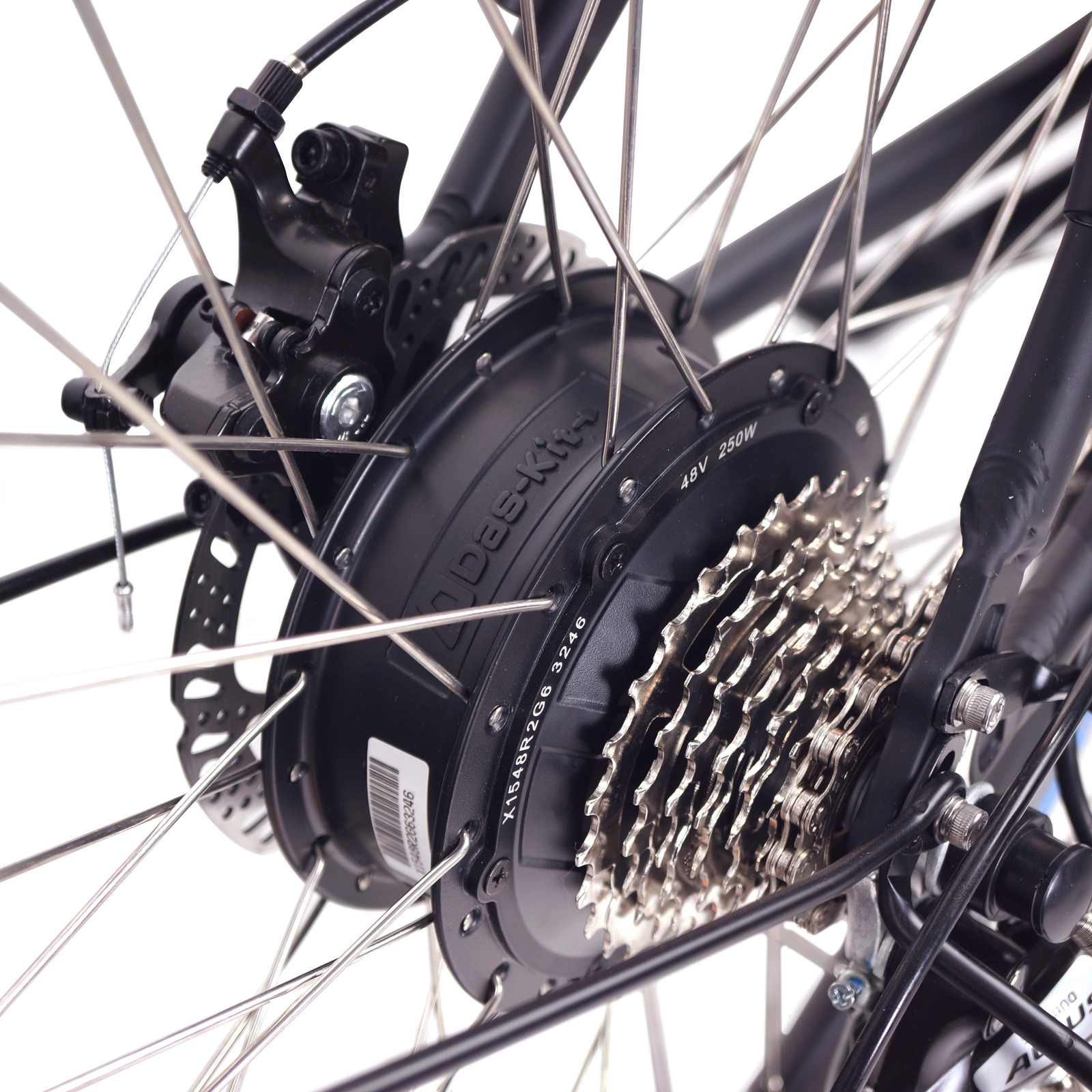

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W-500W, 25km/h
Controller: Das-Kit, CT5-I5, 48V 15A

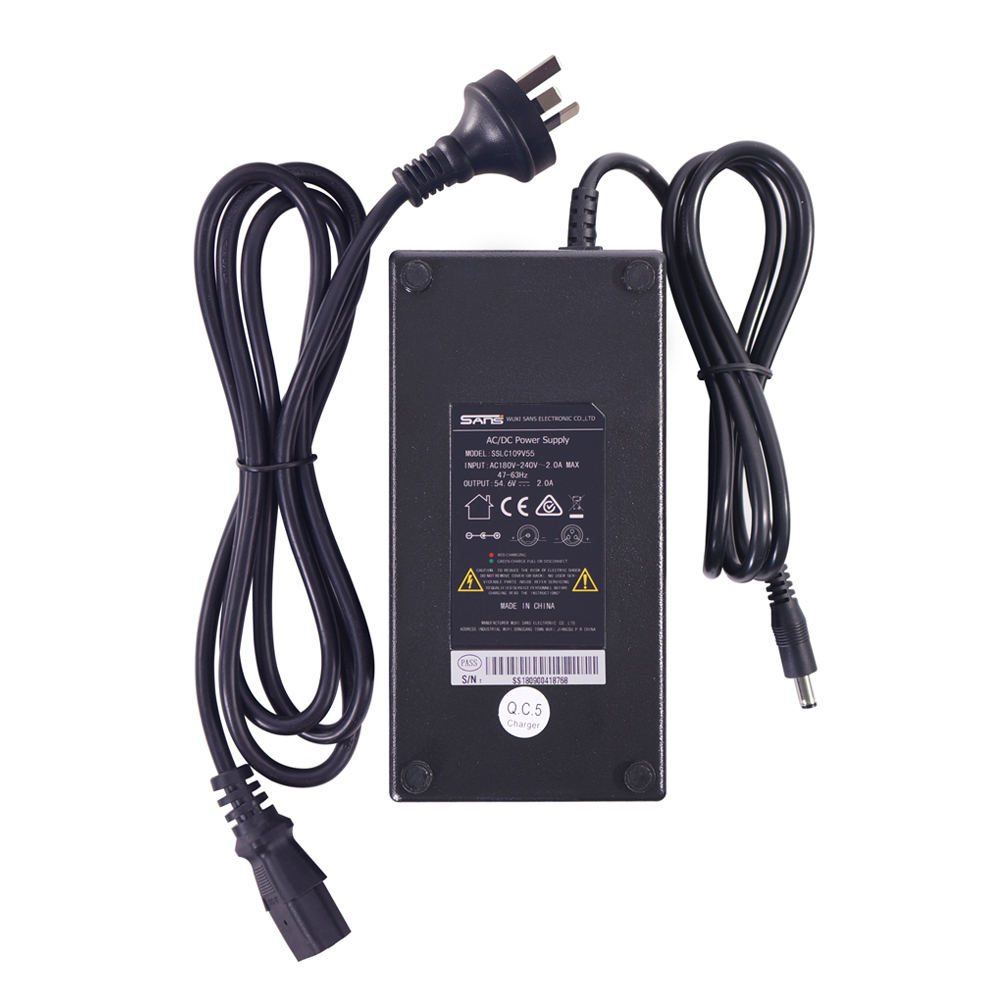

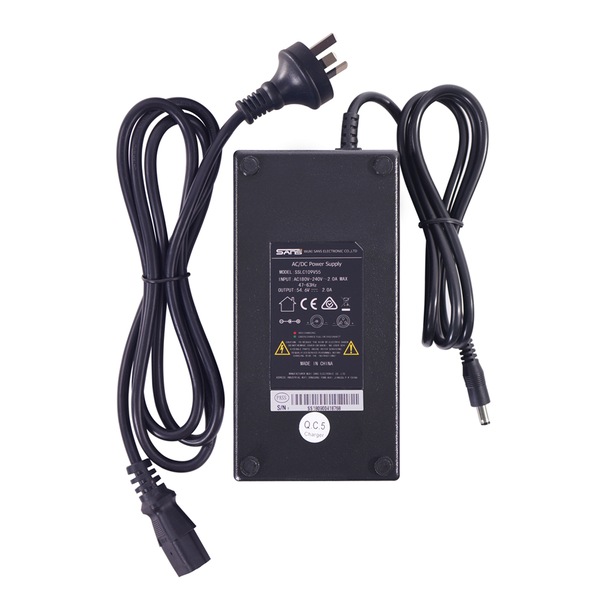

Charger: 48V 3A included (round plug) DC483DE (EESS Number: E2022081360)
Battery: DEHAWK I5-4816H,48V 16AH, 768WH, with USB port
Average range: 70-150km depending on assistance level
Display: LCD Das-Kit C7 display with many functions, 6km/h walk assist
Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga, Solo 2xAA
Bike parts
Frame: Alu. 6061, 26"*457MM /28"*480MM
Handelbar: Promax MA579 adjustable
Fork: Suntour, NEX 26” / 28”
Brake Levers: Tektro, with brake sensors on both sides
Brakes F/R: Tektro hydraulic Disc Brakes

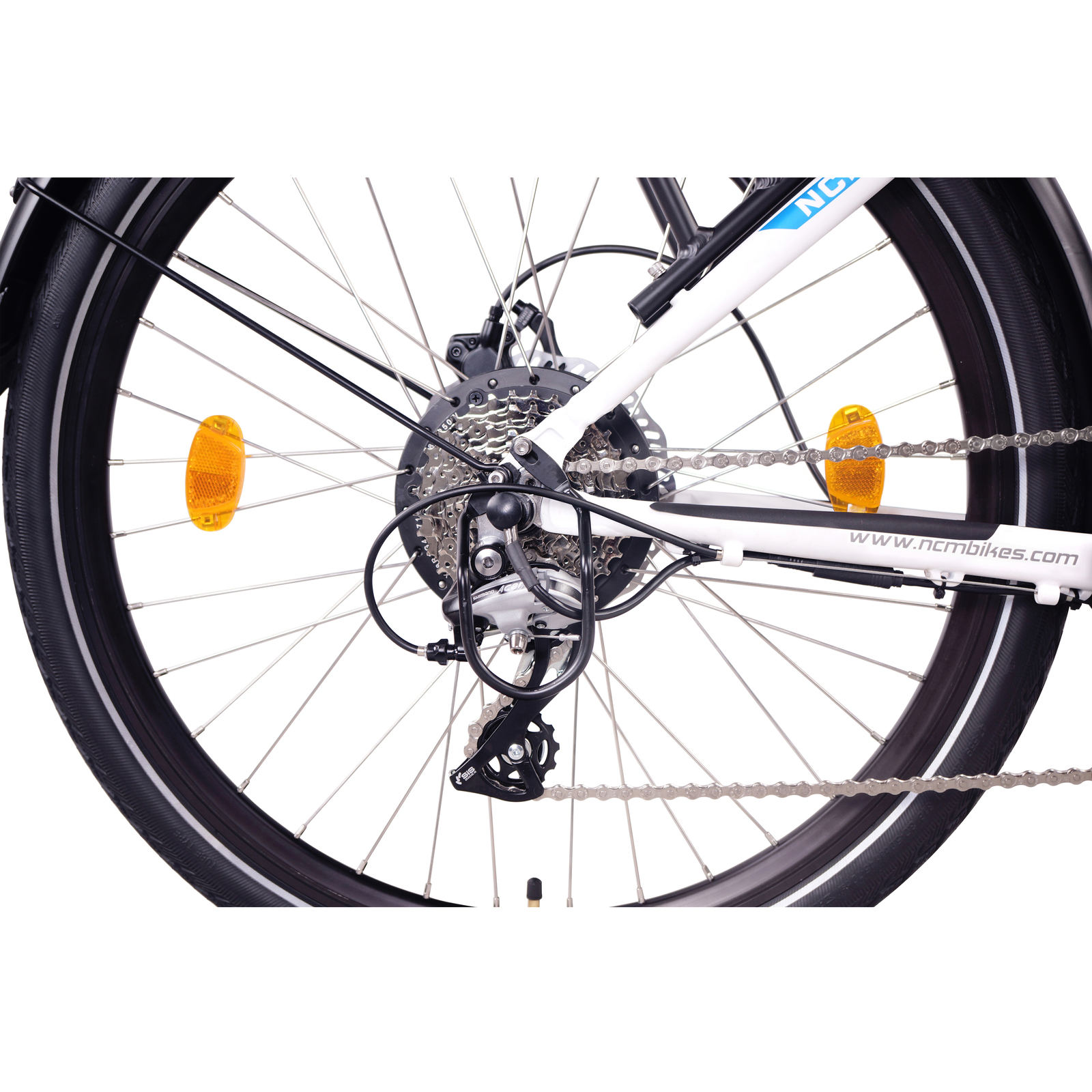

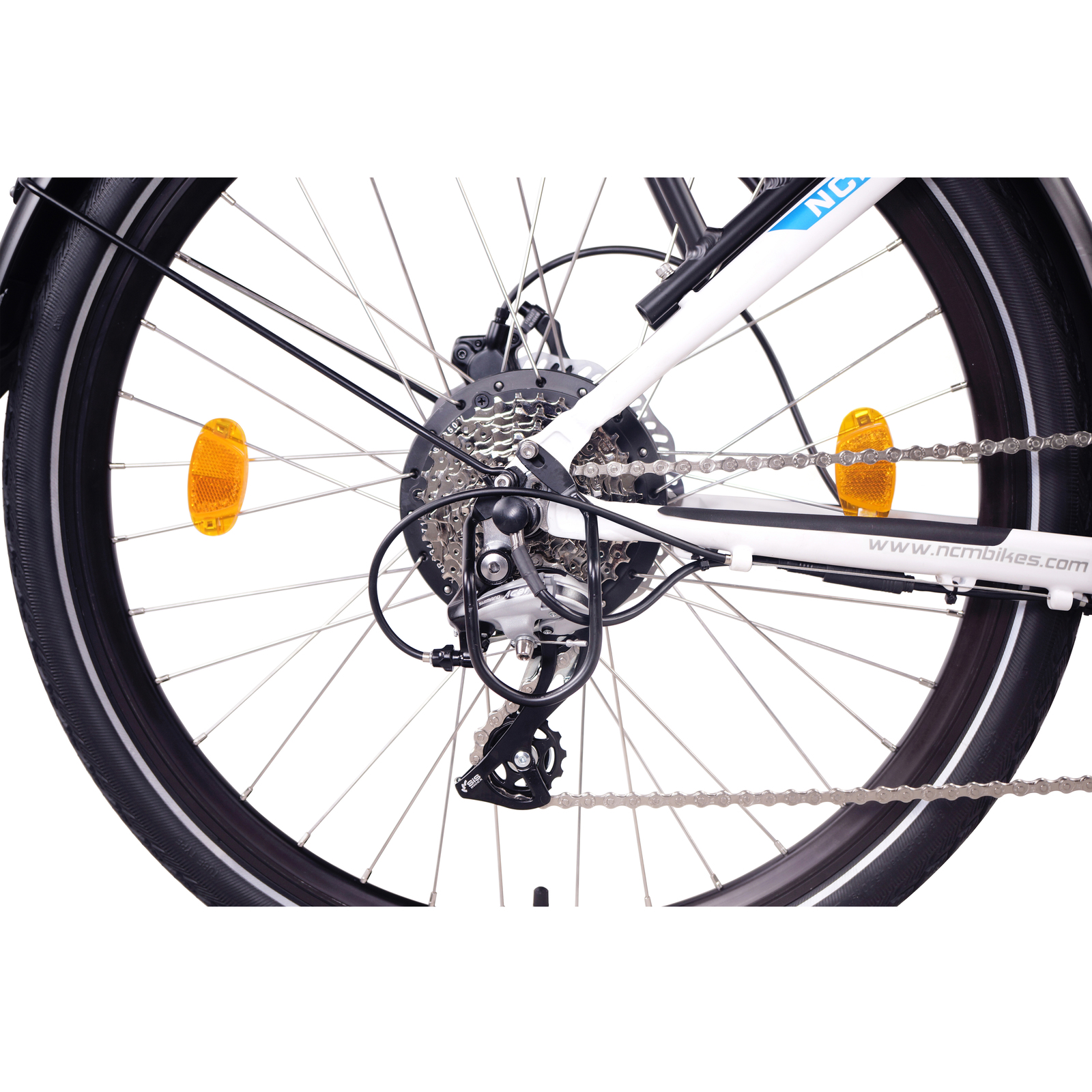

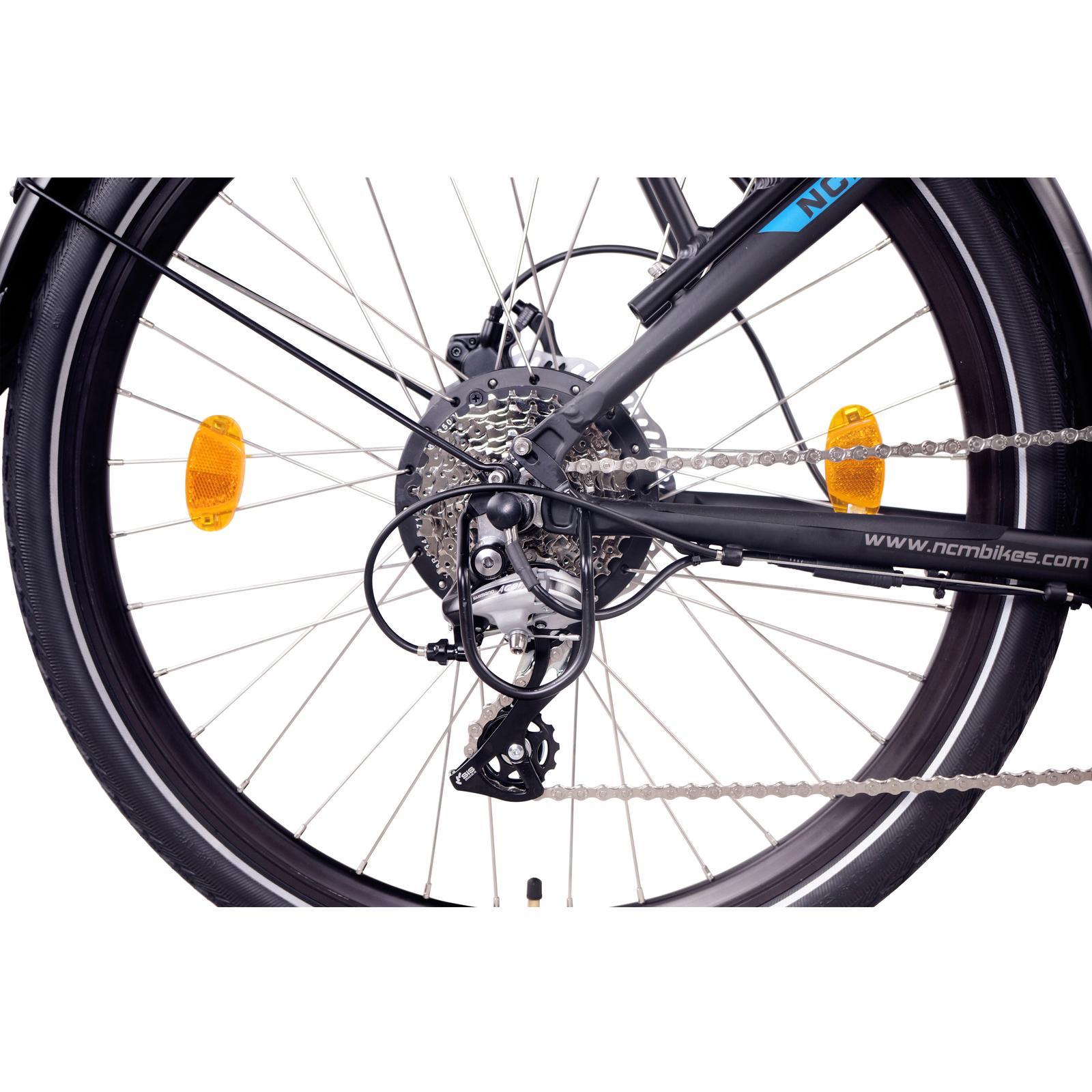

Chain derailleur: Shimano, Altus M310, 8 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Acera M360, 8 speed
Pinion: 8-speed screw ring, 11-32T
Tyre: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black

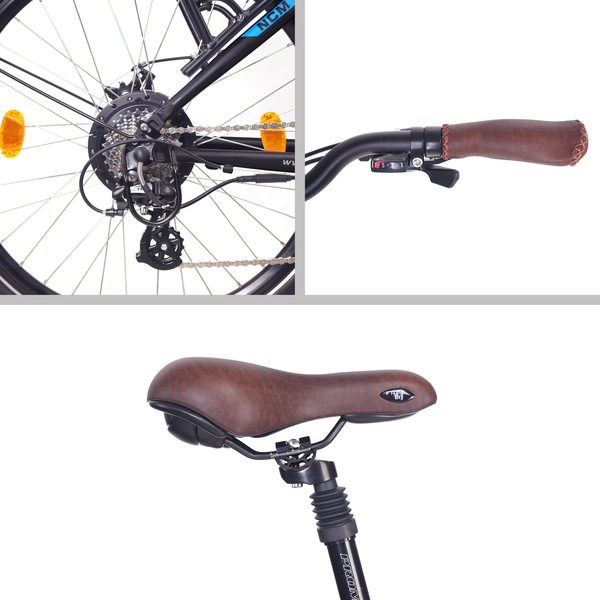

Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black
Warranty
- Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQS.
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact Leon Cycle on 0390695443.
Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.
