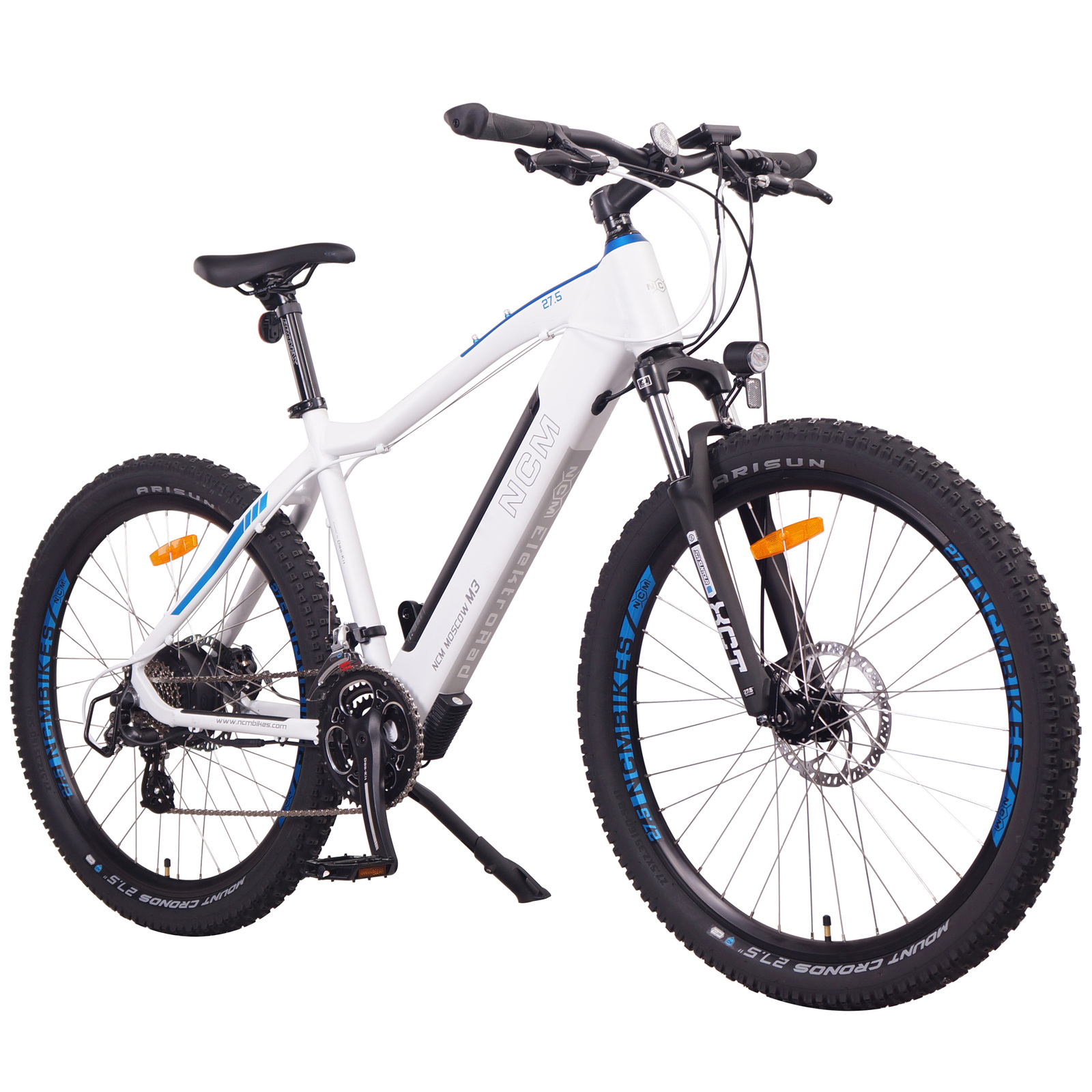

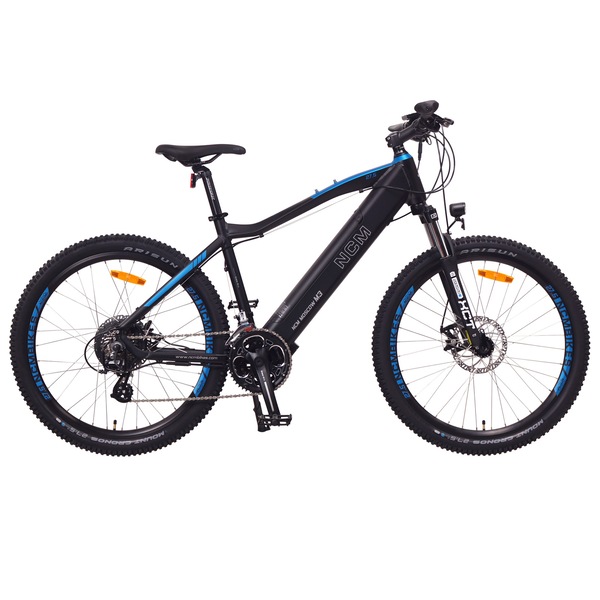

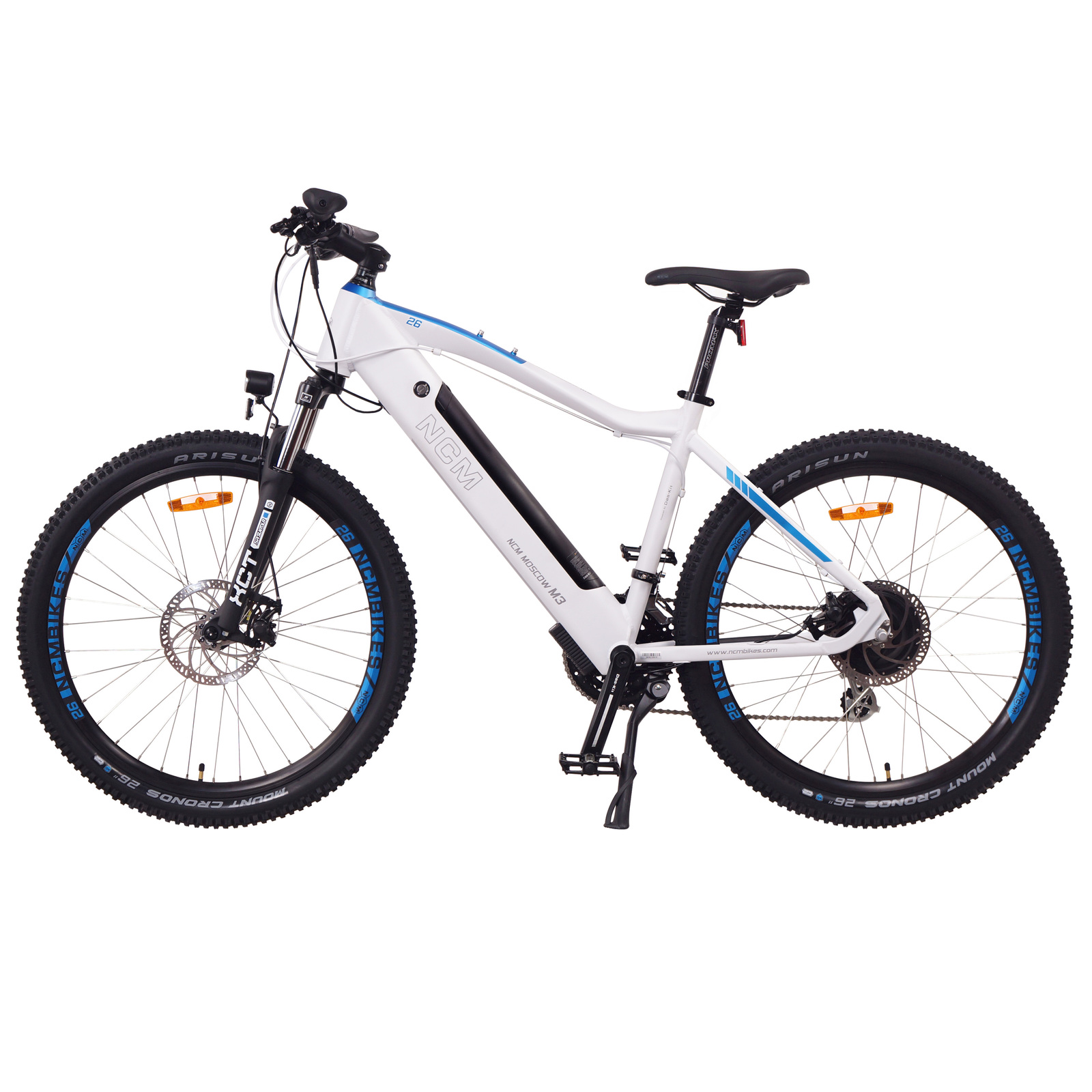

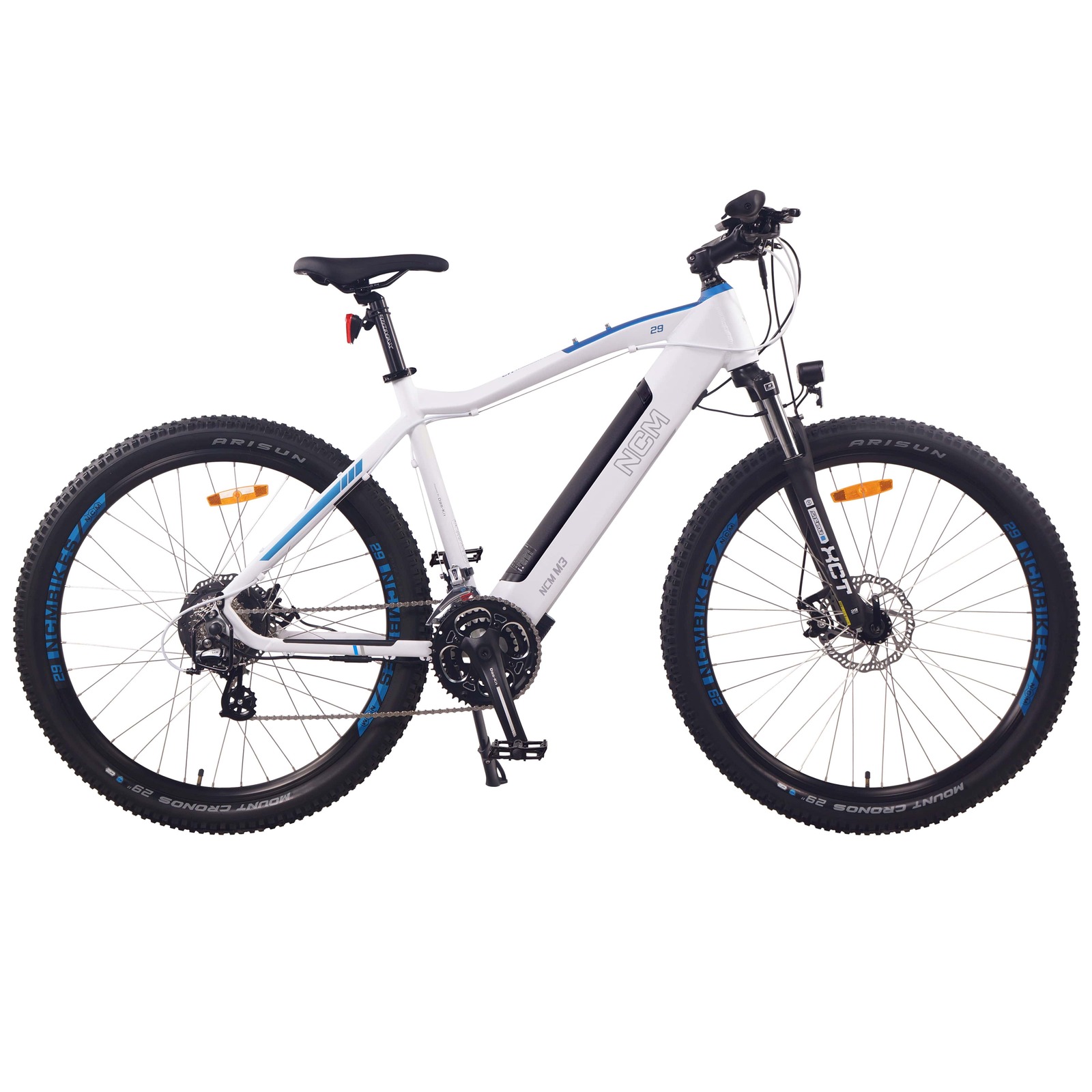

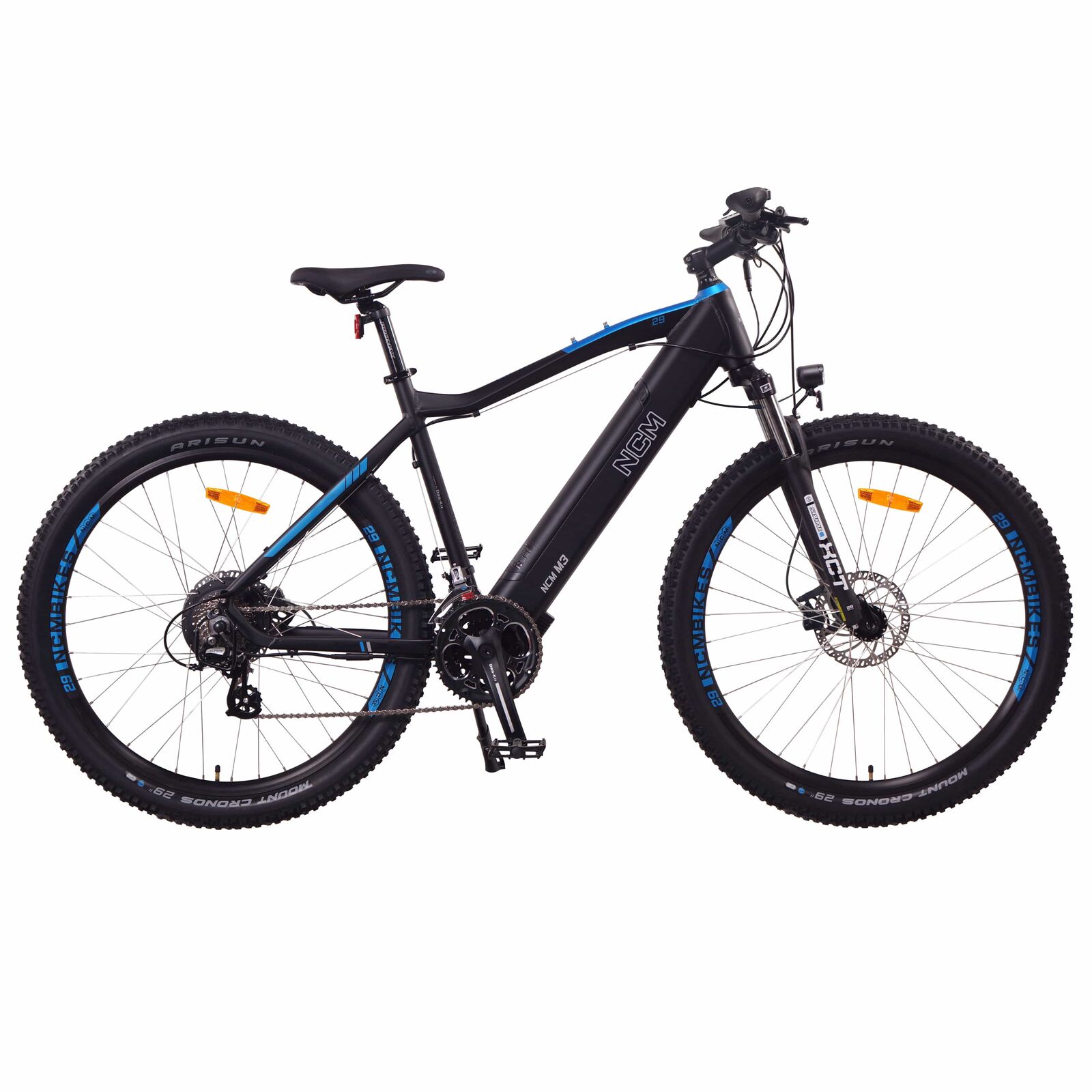

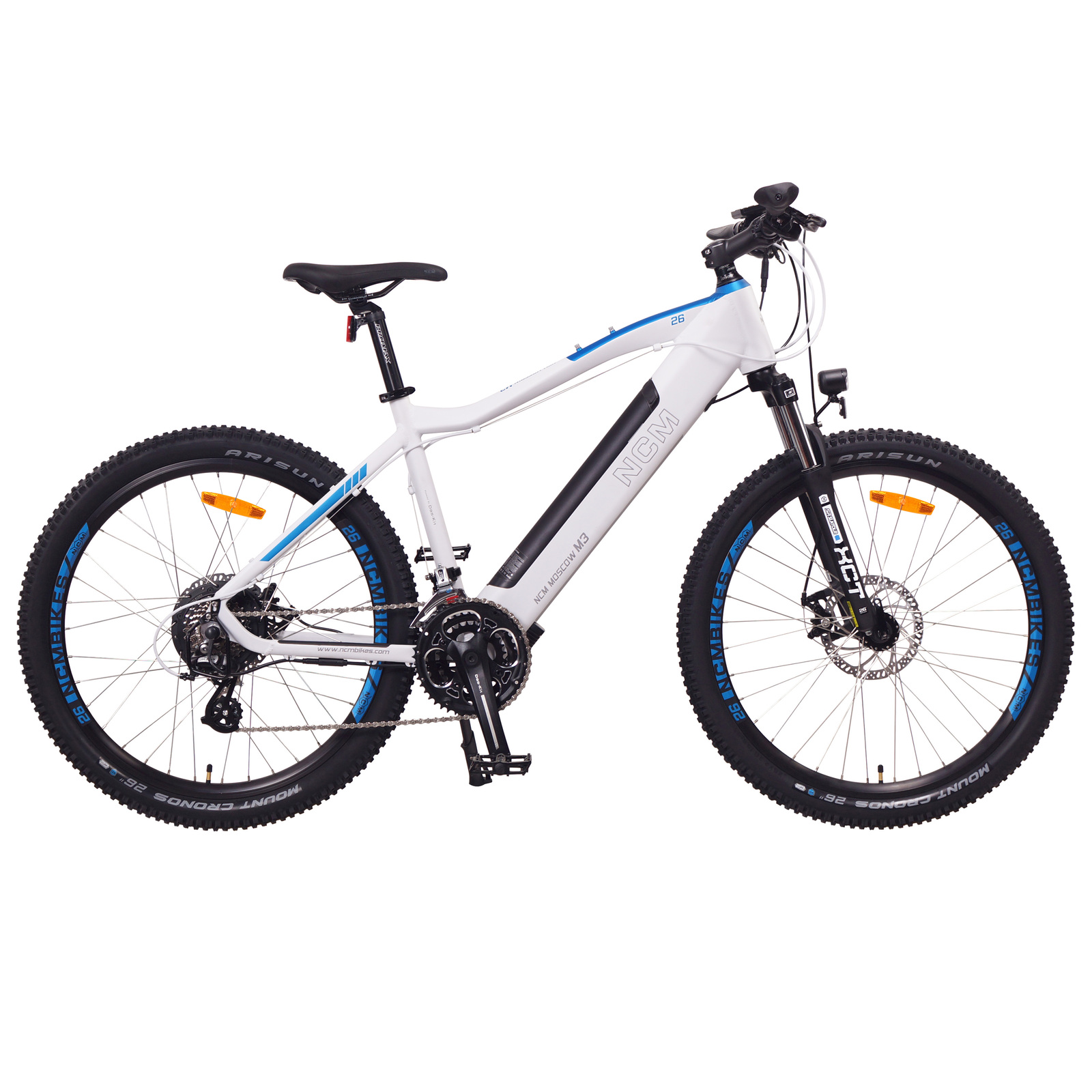

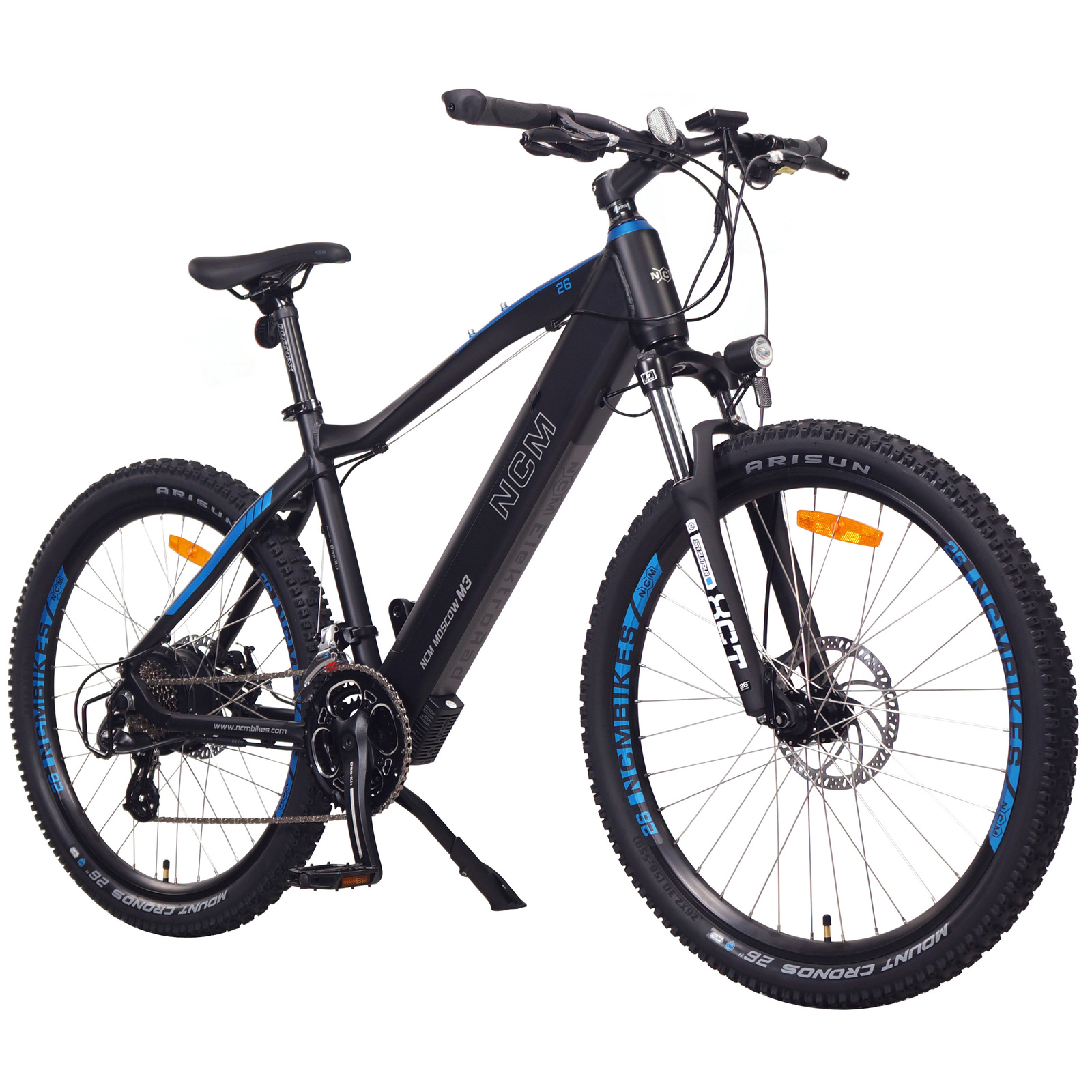

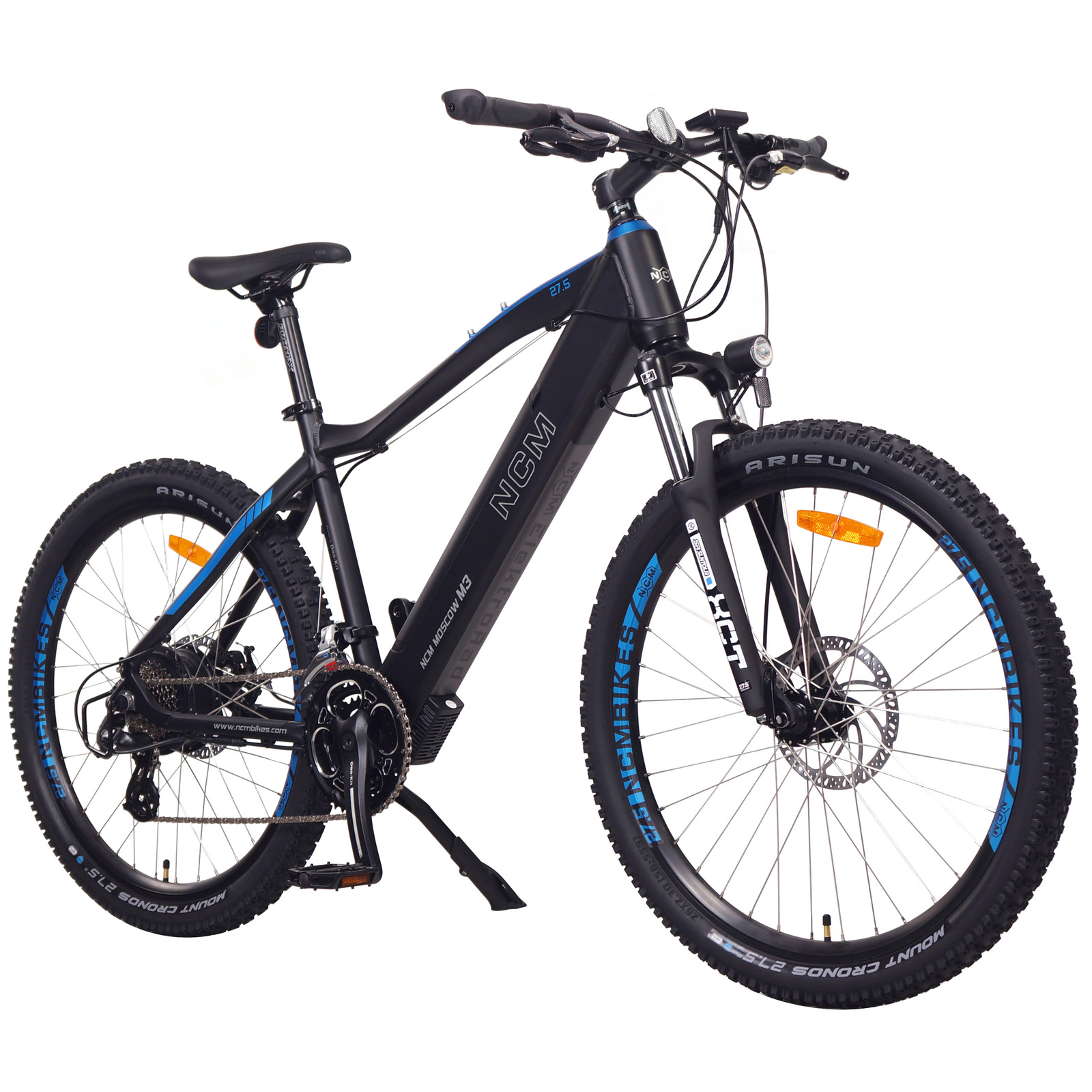

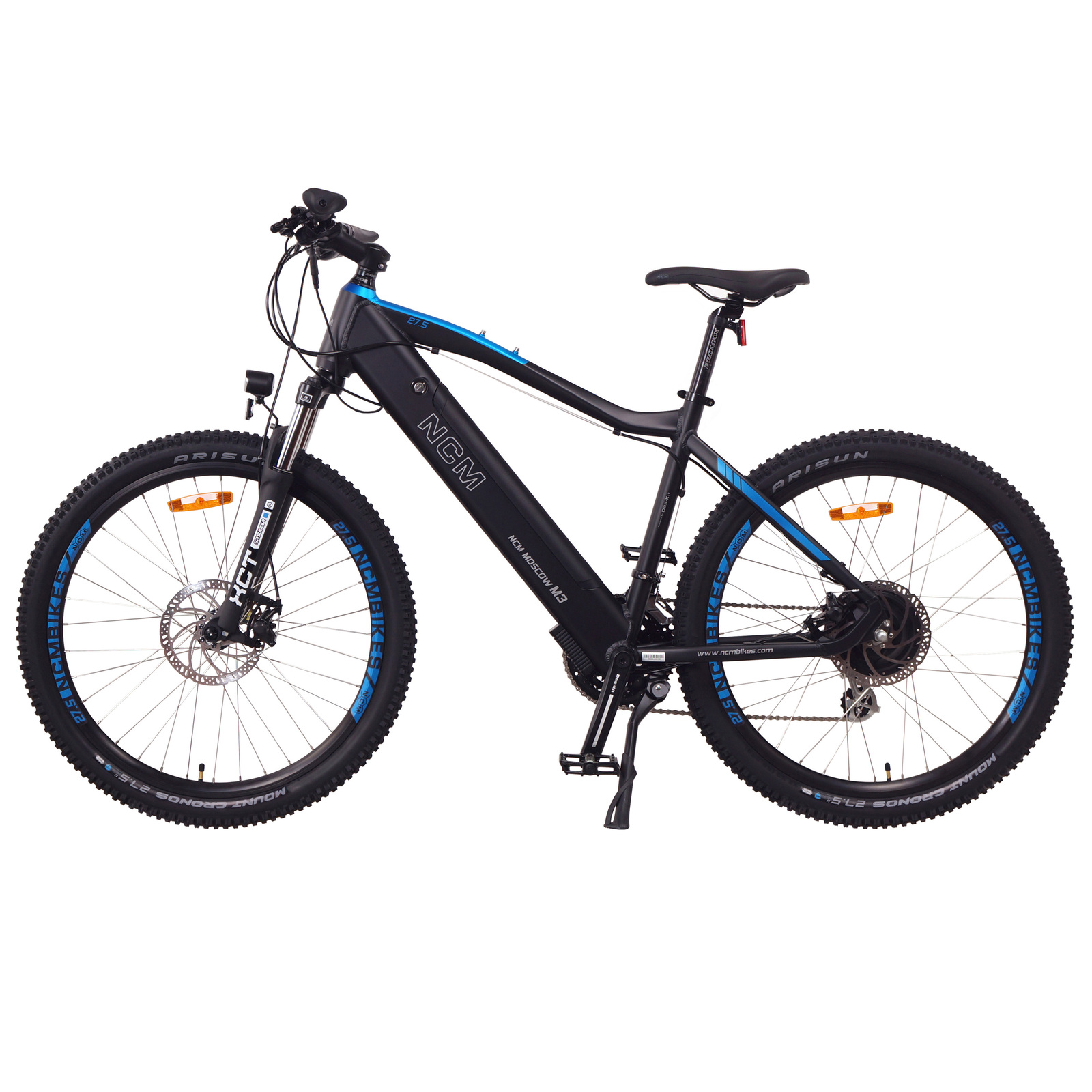

NCM M3 Electric Mountain Bike, E-Bike, 250W-500W, E-MTB, 48V 12Ah, 576Wh Battery [Black 26"]

Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee for our product quality, & warranty.

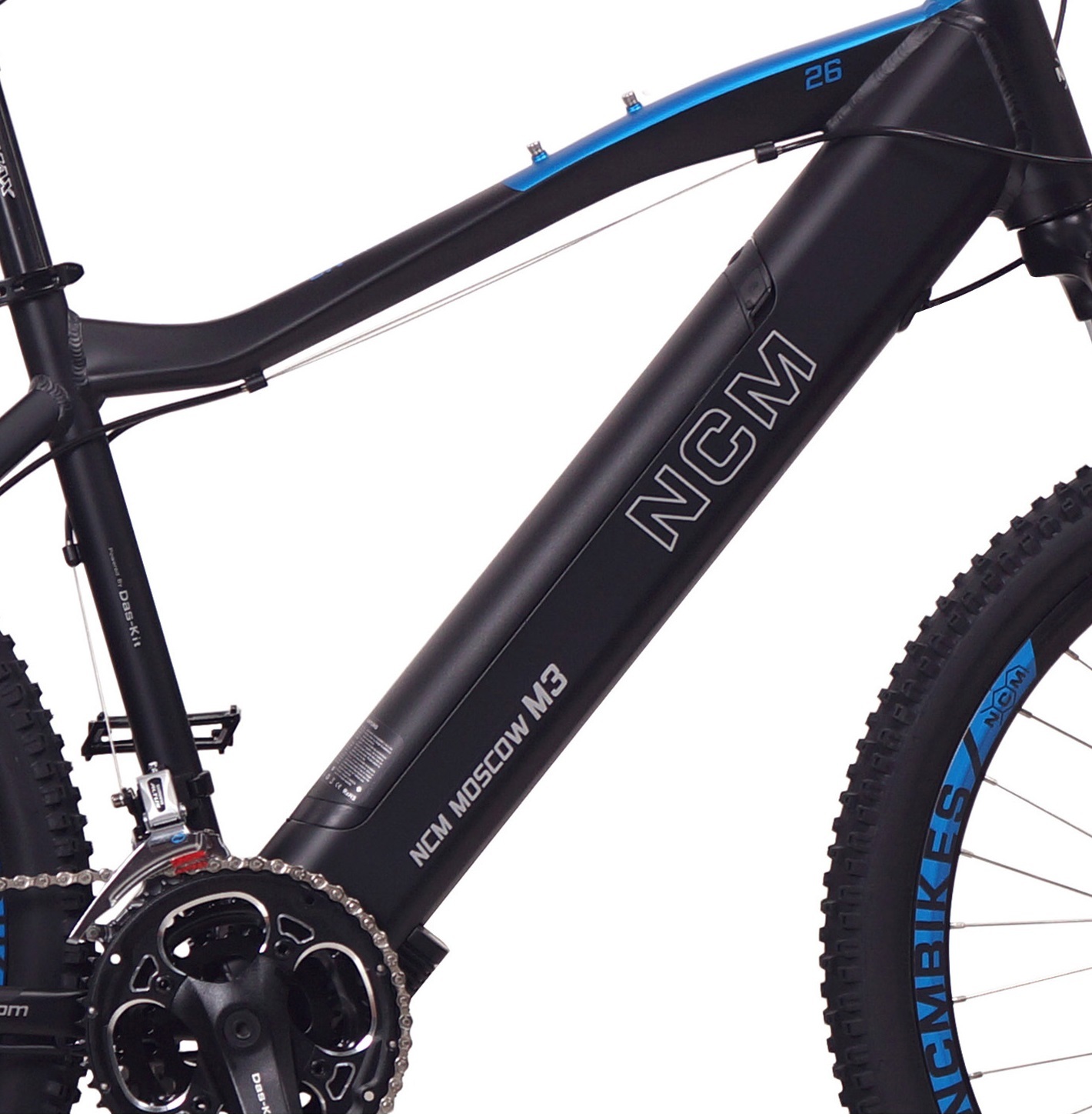

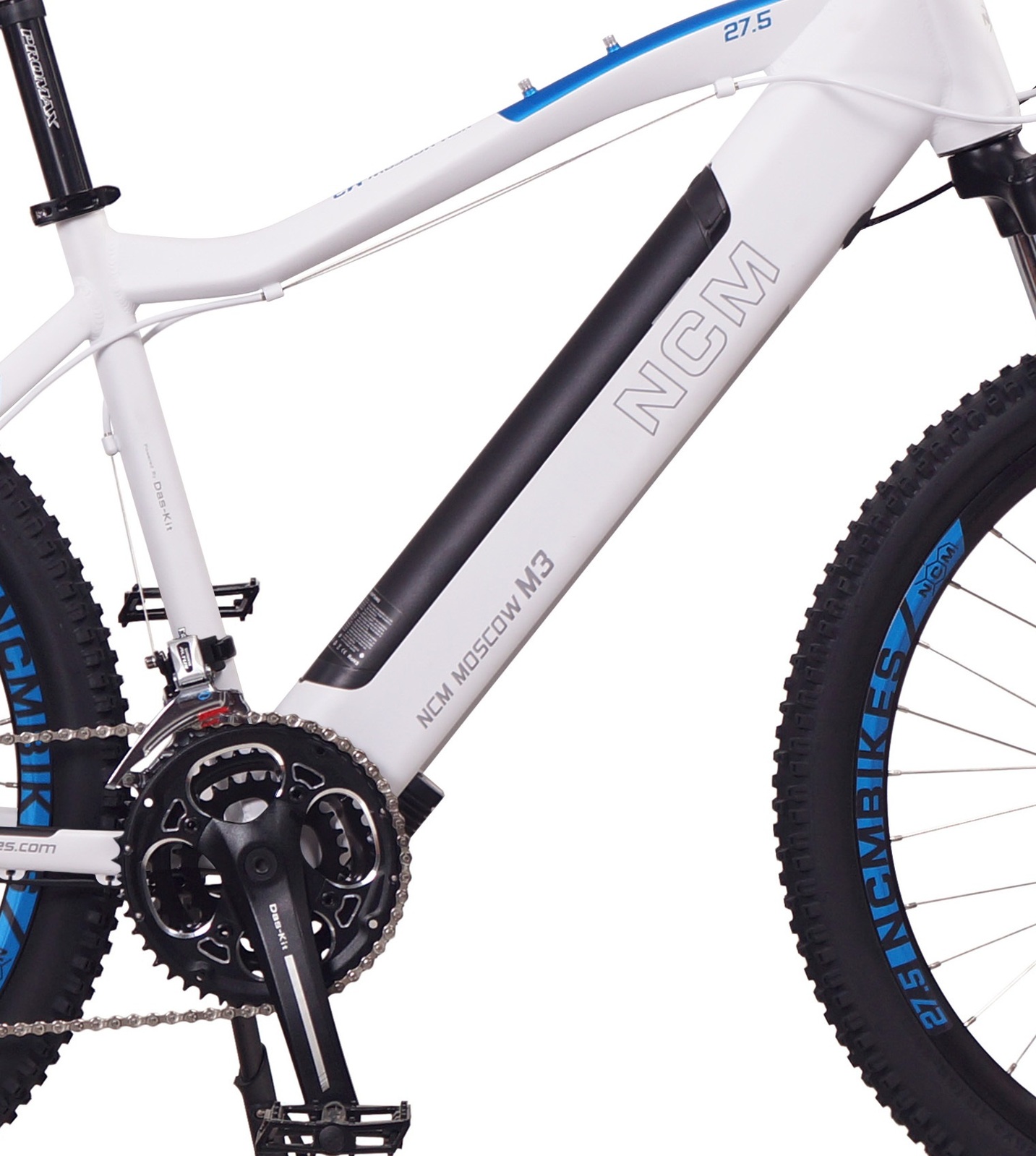

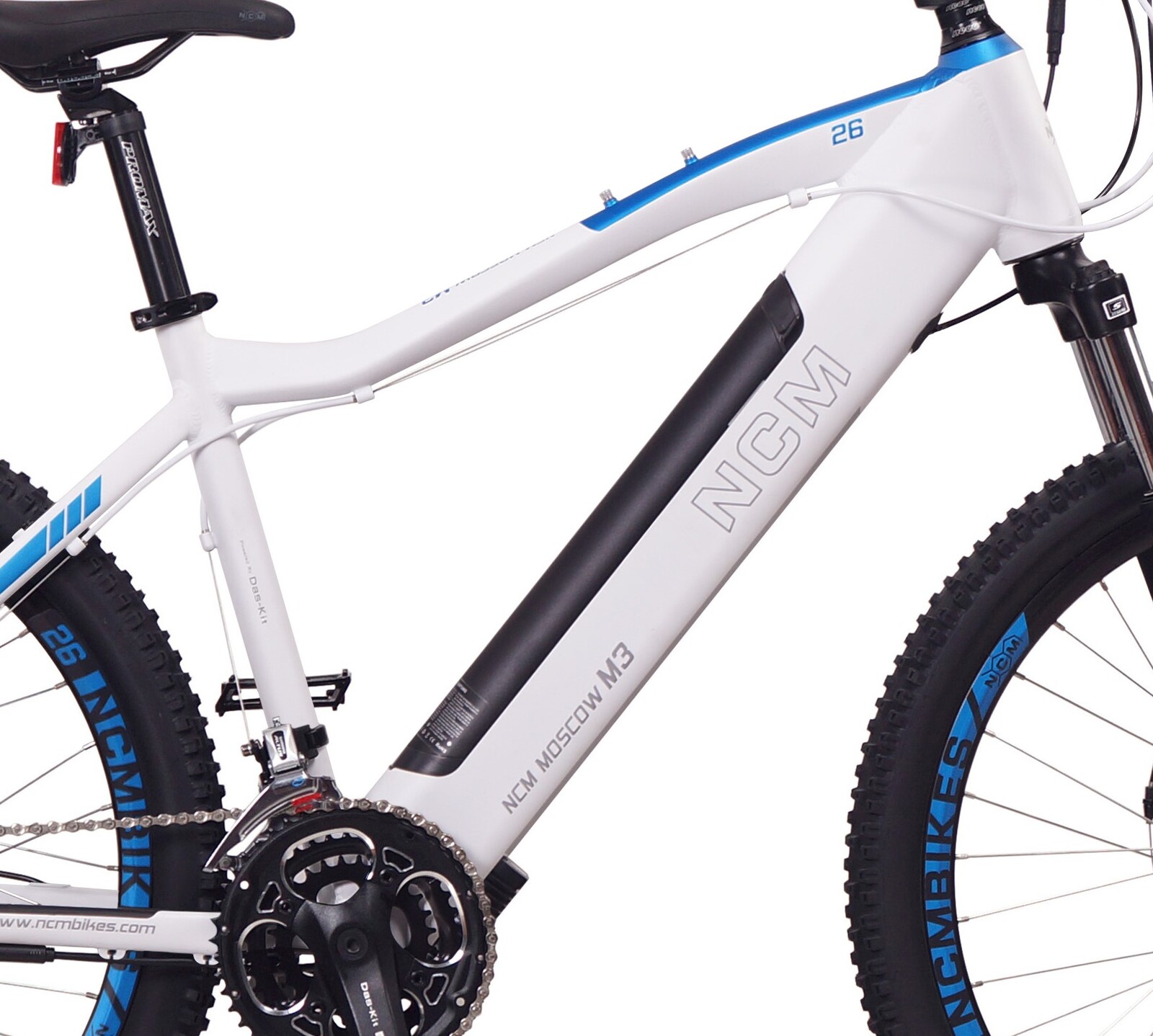

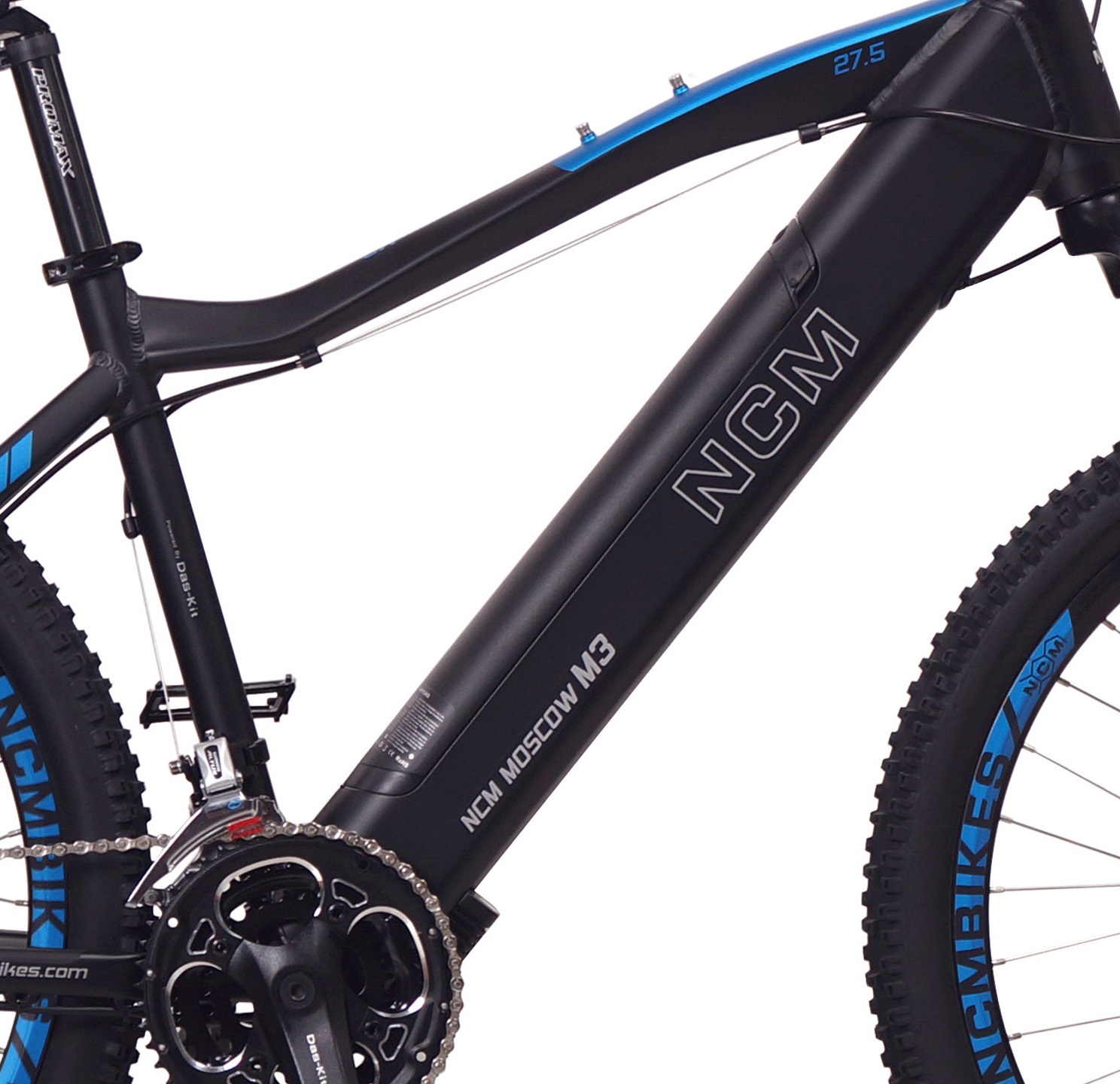

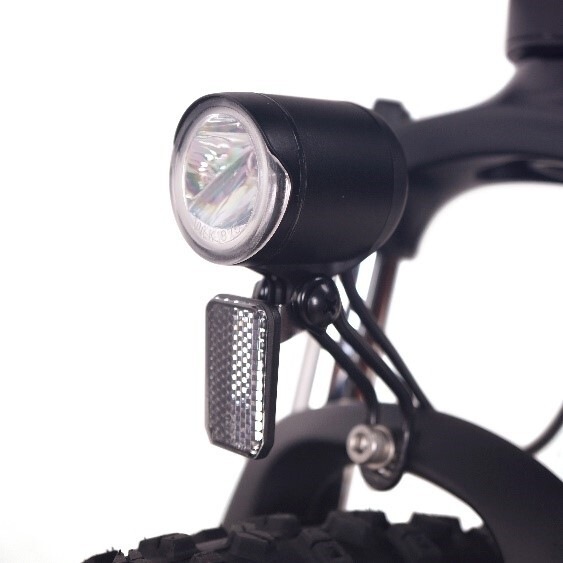

Compared to old Moscow, Moscow M3 Electric Mountain Bike is built with a reinforced integrated battery and lightweight black battery cover to save weight and to make it easier to carry. Additionally, this e-bike finally comes with a custom front light to enhance visibility and is easier to spot in traffic. Rugged and capable, the Moscow M3 still keeps all the features of a high-performance electric mountain bike. Thanks to their maneuverability, agility, and ruggedness, no trail is too rough or hill too steep.

The Moscow M3 comes with a Das-Kit motor producing 500W Peak Power and a 48V, 13Ah, 624Wh long-lasting battery that will give you reach up to 110km per charge. This depends on rider weight, terrain, and riding style. High quality bike components allow for great performance and control on and off-road. With multiple levels of pedal assist, the only thing that will take your breath away is certainly not the climb, but the view you see when you reach your destination. Strength and power are the characteristics that describe our E-MTBs most accurately and are also reflected in their design. With sizes from 26 to 29 inches, we offer everyone the opportunity to experience this feeling of freedom.

General Information

Weight: 26"=27kg / 27.5”= 28kg / 29”= 29kg
Type: E-Mountain bike
Wheel size: 26" / 27.5” / 29”
Load capacity: Max. 125kg
Maximum speed: 25km/h

Battery Information:

Lithium-ion Battery
Model: i5-4813H
Ratings: DC 48V, 13Ah, 624Wh

Electric Parts

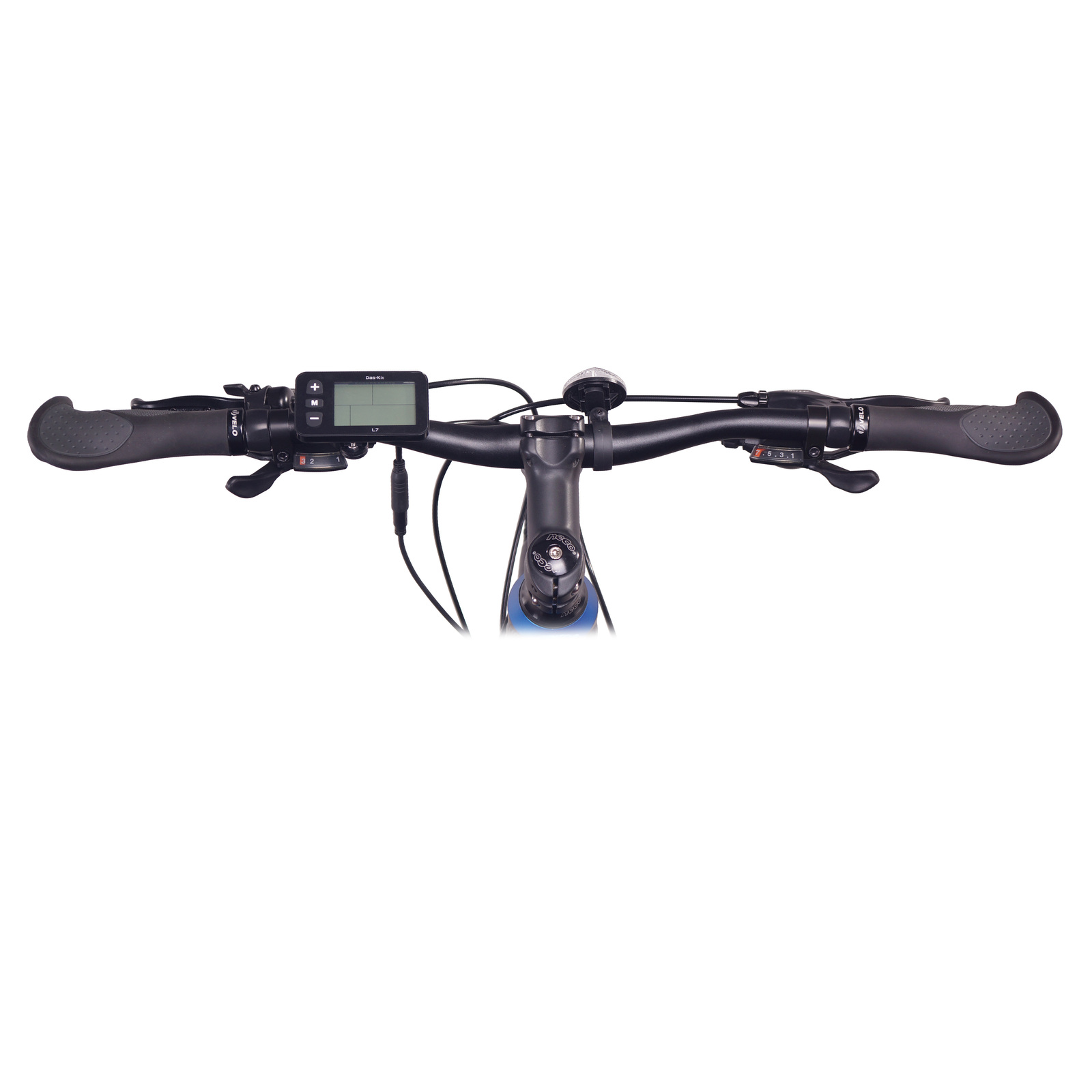

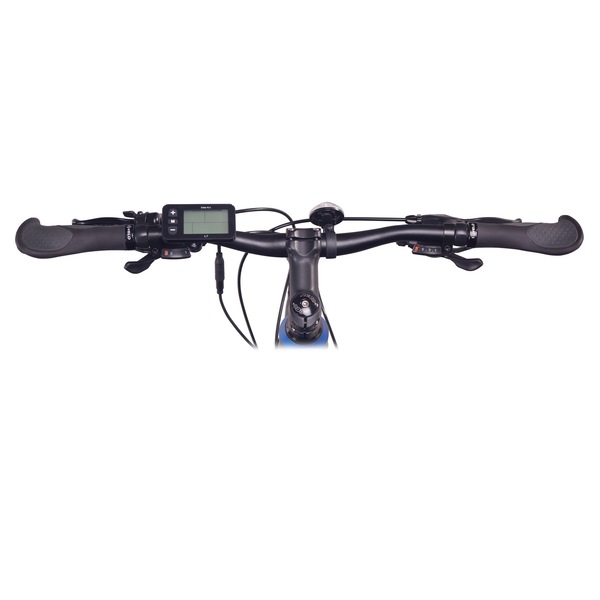

Display: Das-Kit, L7B, LCD, 6 Assistant levels, up to 4mp/h power assist walk
Controller: Das-Kit, CT5-I5, 48V 15A
Charger: Inclueded DC482AU 48V 2A with round plug (EESS Number: E2022081360)
Motor: Das-Kit, X15, 48V 250W-500W, 25km/h, rear motor wheel
Battery: i5-4813H, 48V 13Ah, 624Wh High Power Cells,
Li-NCM-18650 incl. USB port
(charging mobile devices with 1A)
Distance approx. 40-120km depending on assistance level.
Front/Rear Light: Have to be purchased separately. Not included. Front/Rear reflector incl., cat's eye

Bike Parts

Frame: Aluminium 6061, 27,5“ 480MM / 29"*520MM,
Fork: Suntour, XCT-27.5 / 29”
Brake Lever: Tektro, with brake sensor on the right side

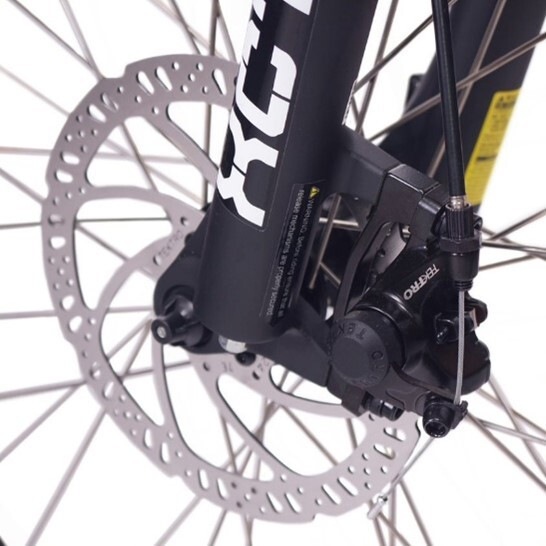

Brakes: F/R: Mechanical Tektro Disc Brakes
Crank: Shimano, Altus M311
Front Derailleur: Shimano,Altus
Rear Derailleur: Shimano,Altus
Tire: Schwalbe, SMART SAM 2.25
Saddle: VELO designed by NCM, black
Seat Post: Promax
Grip: VELO, ergonomic, black/grey (synthetic)
Pedal: Wellgo. B087, black

Warranty

• Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQs.
• Apart from manufacturing defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
• Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​
