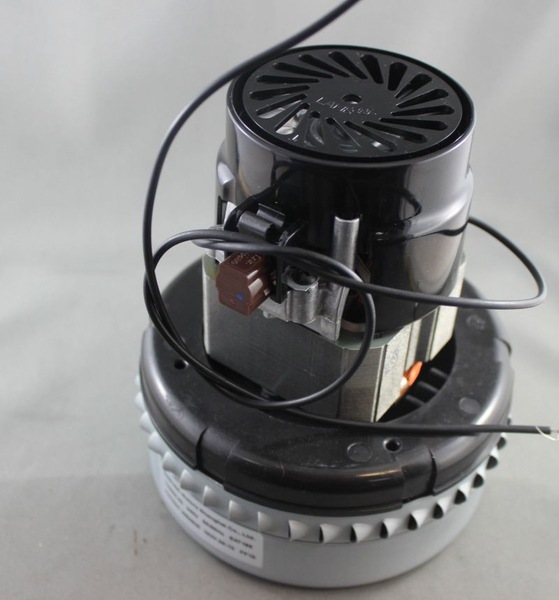

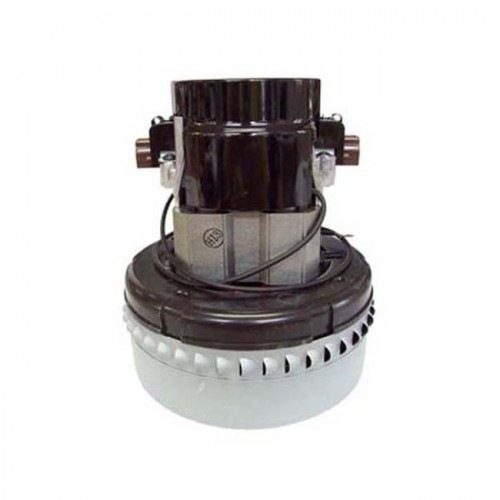

AMETEK 1000W 2 STAGE BYPASS VACUUM MOTOR
TO FIT:
PACVAC COMMERCIALS BACKPACKS (Superpro 700 duo)
WERTHEIM SEM1200, WDS1600
PULLMAN PVW160, PVW300, PVW450, PVW1000, AS59, AS400, ASL10 (AS10), CB15, A31b Janitor, CB15, CB60, CB80
KERRICK 290C, 270J
SILENT MASTER SM1 DUCTED SYSTEM
CLEANSTAR WET 'N' DRY COMMERCIAL RANGE (VC15L, VC30L, VC60L, VC90LP)
ASTROVAC CP120L, DP1200B
PREMIER CLEAN NV150
ELECTRON (EVS): EL1500
VALET VL300
HAKO SHADOWVAC
AMETEK PART # 119656
HEIGHT: 172MM
DIAMETER: 145MM
BASE HEIGHT: 69MM
APPROXIMATE MEASUREMENTS ONLY
WARRANTY RETURNS
If an item is deemed faulty by the manufacturer your item will either be replaced or repaired. Any postage costs incurred will be covered by us.
It is important to note that if a product fails to meet your expectations, it does not necessarily mean it is defective. Expectations of product performance may vary from person to person. You will be responsible for postage if there is no fault with the product and you wish to return it, unless it is very different from the description or wrongly recommended to you by us.
You also will be responsible for associated postage and repair costs if your claim is declined because the fault is determined to have occurred as a result of improper use of the product.
Tools, accessories and consumables including dust bags and filters, floor tools, extension cords unless defective in manufacture, are not subject to warranty.
In order to prolong the life of accessories and consumables, regular care and maintenance is recommended.
All items are thoroughly inspected before being sent out to customers to ensure a high level of quality in all products you purchase from us.
In accordance with the Australian Competition and Consumer Commission, if the product has a minor fault, we are required to repair the fault and send it back to you. If we believe the fault cannot be repaired, you will be sent a replacement product that matches your original purchase. If we are unable to repair or replace your faulty item, you will be refunded the total of your purchase amount.
We endeavor to rectify the matter within a reasonable timeframe.
The motor works fine. However, the hard plastic ring with 4 holes for attachment is not as good as my original which was made of cast. The four screws soon cut the plastic. I have used glue to hold the screws. Also, the length of the motor is slightly increased making it quite difficult to fit into my old vacuum cleaner which is a Fairfax model SCPD6, style VCFX 2. I have managed to fit it with a 4-5 mm cardboard shim to allow the motor to fit inside its case. I do appreciate being able to get a replacement motor as the bearing in the top cradle had failed in the original. Again, thanks. Gordon
Jul 10, 2023
