MIMOSA GATEWAY MIMO POE OUT
Mimosa G2 Gateway 802.11n 2x2:2 MIMO PoE Out

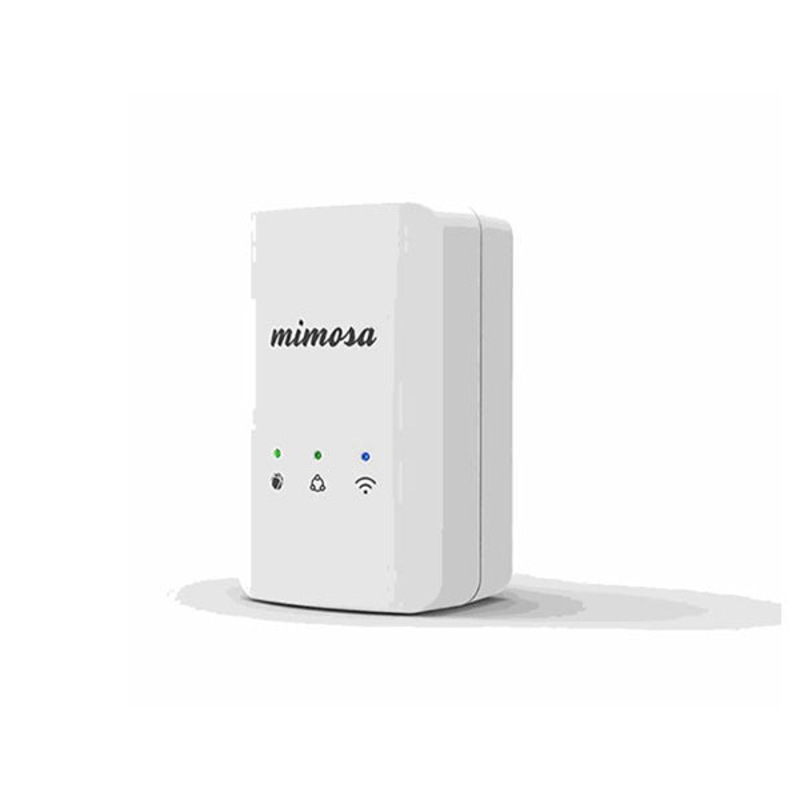

The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery. Designed to easily install directly into an AC wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices. Offering superior indoor Wi-Fi range, the Cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices
FAETURES
Two GigE Ports: WAN - 10/100/1000-BASE-T LAN - 10/100/1000-BASE-T
Power Over Ethernet (PoE) Out: 48V PoE on WAN port for Mimosa C5 devices
Pre-configured: Plug and go for quick installation Pre-printed Wi-Fi login information
Channel Management: Auto selection of best channel Automatic interference avoidance
Auto Mode: Automatically configure Range Extender (repeater) and Wired Extension (AP mode)
Management Services: -Mimosa Cloud monitoring:
-Disable Configuration from LAN
-Management Access Control Lists
-SNMP v1, v2c, v3
-Syslog
SSID Support: -Predefined Home & Guest Guest isolation
-Up to 4 SSID
Routing: -NAT, DHCP Server, Stateful Packet
-Inspection Firewall, Port Forwarding, Static Routes
Tunneling/Authentication: -WPA/WPA2 Personal (PSK)
-WPA/WPA2 Enterprise (802.1x)
-AES, TKIP, WEP 64/128
Security: -WPA/WPA2 Personal (PSK)
-WPA/WPA2 Enterprise (802.1x)
-AES, TKIP, WEP 64/128
QoS: EDCA WMM pre-configured 4 level QoS, Rate limiting, WMM Power Save
SPECIFICATIONS
Performance:
Max Throughput: 300 Mbps PHY
Client Capacity: 100
Wireless Protocols: 802.11n
Modes -Router + WiFi
-Wireless Range Extender (repeater)
-Wired WiFi Extension (AP mode)
-PoE Passthrough
Radio:
MIMO & Modulation: 2x2:2 MIMO OFDM up to 64-QAM
Bandwidth: 20/40 MHz channels
Frequency Range: 2400 - 2484 MHz restricted by country of operation
Max Output Power: 16 dBm
Sensitivity ( MCS 0 ): -84 dBm @ 40 MHz
-88 dBm @ 20 MHz
Antenna:
Type: Internal
Pattern: Omni
Power:
Max Power Consumption :14W
System Power Method: Wall Plug-in
Physical:
Dimensions: -Width: 57 mm (2.24 ”)
Height: 42 mm (1.65”)
Length: 92 mm ( 3.62”)
Weight: 0.147 kg (5.22 ounces)
Enclosure Characteristics: Compact Wall-plug designed with UV stabilized plastic
Mounting: Wall plug-in with interchangeable country specific clip
Environmental:
Operating Temperature: 0°C to +40°C (32°F to +104°F)
0°C to +40°C (32°F to +104°F) 5% to 95% non-condensing
Storage Temperature -25°C to +65°C (-13°F to +149°F)
PACKAGE CONTENT
1 x Mimosa Gateway Mimo Poe Out
