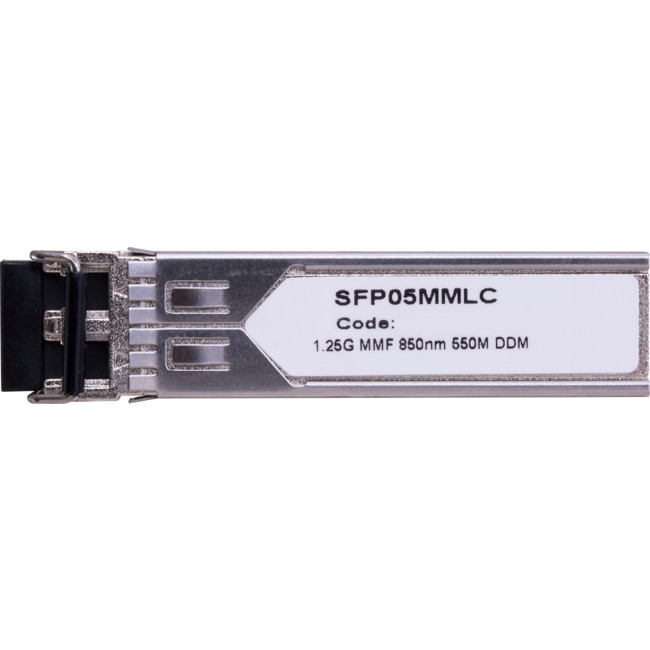

SFP05MMLC 1.25G Sfp mm Lc 550M Module Dual Fibre 850Nm 850Nm Vcsel Laser and Pin Photodetector

SFP05MMLC 1.25G Sfp mm Lc 550M Module Dual Fibre 850Nm 850Nm Vcsel Laser and Pin Photodetector

Limited Stock!

Price	$32.95
	Collect 96 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Overview

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 550m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL lasertransmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Features

Up to 1.25Gbps data links

850nm VCSEL laser and PIN photodetector

Compliant with SFP MSA and SFF-8472 with Duplex LC receptacle

Digital Diagnostic Monitoring: Internal Calibration or External Calibration

500m transmission with 50/125µm MMF

300m transmission with 62.5/125µm MMF

Compatible with RoHS

+3.3V single power supply

Operating case temperature:

Applications

SDH and SONET system
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Optical and Electrical Characteristics

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength		830	850	860	nm	_
SpectralWidth (RMS)		_	_	0.85	nm	_
Average Output Power	Pout	-9.5	_	-3	dBm	1
Extinction Ratio	ER	9	_	_	dB	_
Optical Rise/Fall Time (20%~80%)	tr/tf	_	_	0.26	ns	_
Data Input Swing Differential	VIN	400	_	1800	mV	2
Input Differential Impedance	ZIN	90	100	110	O	_
TX Disable	Disable	_	2.0	_	Vcc	V	_
Enable	_	0	_	0.8	V	_
TX Fault	Fault	_	2.0	_	Vcc	V	_
Normal	_	0	_	0.8	V	_
Receiver
Centre Wavelength		770	_	860	nm	_
ReceiverSensitivity	_	_	_	-18	dBm	3
ReceiverOverload	_	-3	_	_	dBm	3
LOS De-Assert	LOSD	_	_	-20	dBm	_
LOS Assert	LOSA	-30	_	_	dBm	_
LOS Hysteresis	_	1	_	4	dB	_
Data Output Swing Differential	Vout	700	_	900	mV	4
LOS	High	2.0	_	Vcc	V	_
Low	_	_	0.8	V	_

Notes:
1. The optical power is launched into MMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER =1x10-12.
4. Internally AC-coupled.

Weight: 0.15
