The Archer VR400 unlocks the full potential of your internetconnection by providing combined dual band Wi-Fi speeds of up to 1.2Gbps, including 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, eliminating lag and buffering from your online experience. Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.
The latest VDSL2 technology allows the Archer VR400 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+. The Archer VR400 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.
With multiple inputs, the Archer VR400 provides you with a variety of options when connecting to the Internet. As a backup, the EWAN port allows the Archer VR400 to accept connections from cable and fiber modems via Ethernet cable.Additionally, the USB port supports 3G/4G dongle connections.
Three high-performance external antennas help the Archer VR400 create an expansive home network. Advanced Beamforming technology* automatically locates wireless devices and forms targeted, highly efficient wireless connections.
*Archer VR400 only supports Beamforming Technology at 5GHz band.
To help your wired devices achieve peak performance, the router's Gigabit Ethernet port operate 10× faster thanstandard Ethernet. Connecting an external drive to the USB 2.0 port allows you to share files, photos, music, and video with any device on the network.
Set up the Archer VR400 in minutes thanks to its intuitiveweb interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.

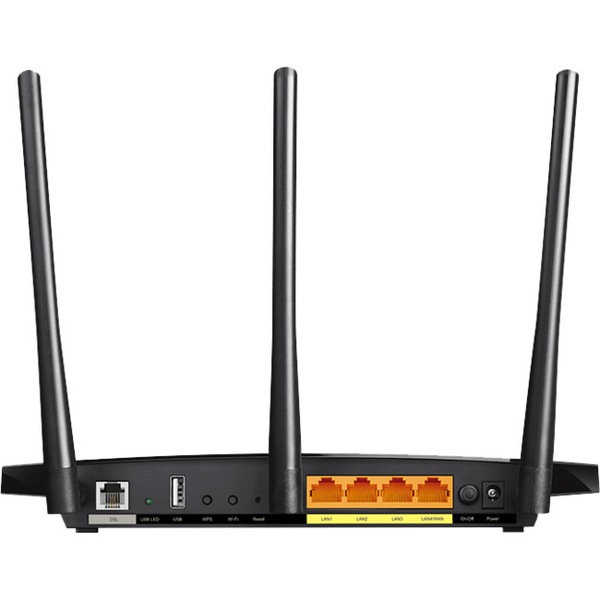

| HARDWARE FEATURES | Interface | - 3 × RJ45 LAN Ports
- 1 × RJ45 LAN/WAN Port
- 1 × RJ11 Port
- 1 × USB 2.0 Port
|
|---|
| Button | - WPS Button
- Wireless On/Off Button
- Power On/Off Button
- Reset Button
|
| Power Supply | 12V/1.5A |
| IEEE Standards | - IEEE 802.3
- IEEE 802.3u
- 802.3ab
|
| VDSL2 Standards | - ITU G.993.2, Up to 17a prole (POTS)
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
|
| ADSL Standards | - Full-rate ANSI T1.413 Issue 2
- ITU-T G.992.1 (G.DMT)
- ITU-T G.992.2 (G.Lite)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
|
| ADSL2 Standards | - ITU-T G.992.3 (G.DMT.bis)
- ITU-T G.992.4 (G.lite.bis)
|
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions (W×D×H) | 243mm × 160.6mm × 32.5mm |
| Antenna Type | 3 × fixed external antennas |
| Compatibility | - NBN - Fibre to the Node (FTTN) - DSL Modem Router Mode
- NBN - Fibre to the Building (FTTB) - DSL Modem Router Mode
- NBN - Fibre to the Premises (FTTP) - Wireless Router Mode
- NBN - Fibre to the Home (FTTH) - Wireless Router Mode
For further information on NBN connections please visit: |
| WIRELESS FEATURES | Wireless Standards | - 5GHz: IEEE 802.11a/n/ac
- 2.4GHz: IEEE 802.11b/g/n
|
|---|
| Wireless Speeds | - 5GHz: 867Mbps
- 2.4GHz: 300Mbps
|
| Transmit Power | - 5GHz: <23dBm (EIRP)
- 2.4GHz: <20dBm (EIRP)
|
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
| SOFTWARE FEATURES | Quality of Service | ATM QoS, Bandwidth Control |
|---|
| Security | NAT Firewall, Access Control, IP and MAC Address Binding |
| Operating Modes | VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router |
| Management | Web Based Configuration (HTTP), Remote Management, Command Line Interface, SSL for TR-069, SNMP V1/2C, Web Based Firmware Upgrade, Diagnostic Tools |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
| Protocols | Supports IPv4 and IPv6 |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC - Up to 8 PVCs |
| Advanced Functions | Parental Control, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP V1/V2 (Optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing | Support Samba (Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem |
| Guest Network | 2.4GHz guest network, 5GHz guest network |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| Beamforming | 5GHz |
| Environment | Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
|---|
| Storage Temperature | −40°C ~ 70°C (−40°F ~ 158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| OTHERS | Certification | CE, RoHS |
|---|
| Package Contents | - AC1200 Wireless VDSL/ADSL Modem Router Archer VR400
- External Splitter
- RJ11 DSL Cable
- RJ45 Ethernet Cable
- Power Adapter
- Quick Installation Guide
|
| System Requirements | - Microsoft Windows XP/7/8/8.1/10, MACOS, NetWare, UNIX or Linux
- Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
- Subscription with an Internet Service Provider (for Internet access)
|
