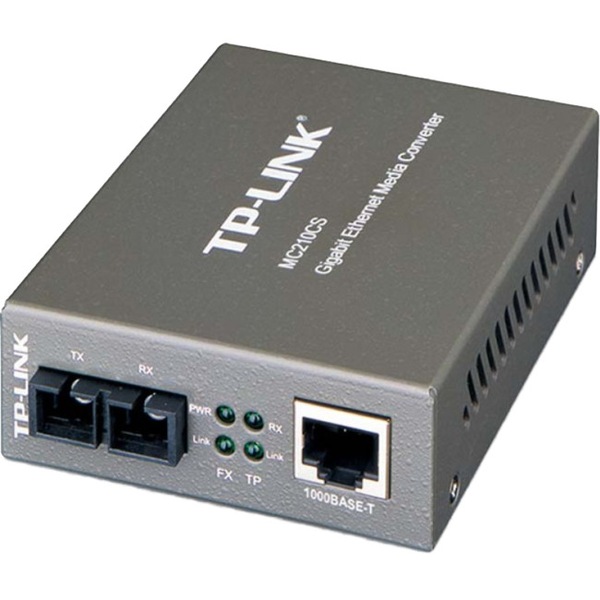

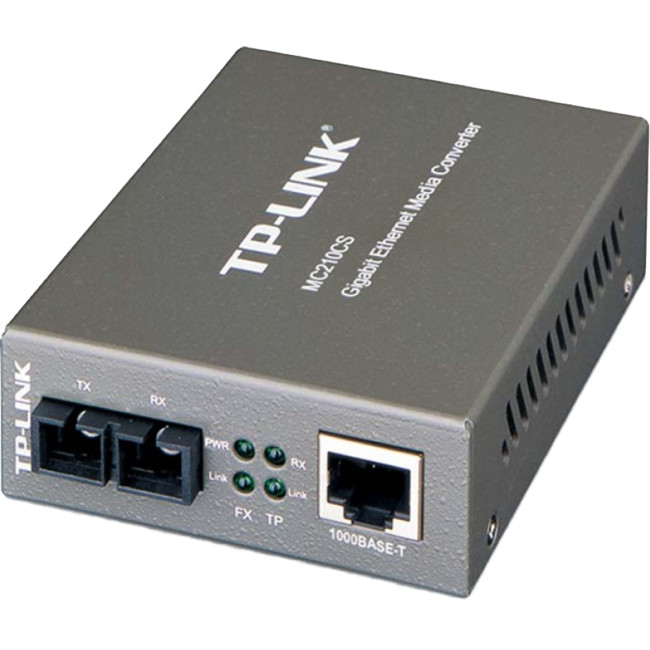

MC210CS Gigabit Single-Mode Media Converter

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cableutilising the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19″ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Provides switch configuration of Force /Auto transfer mode for FX port
  • Extends fiber distance up to 15km

Features
  • Works at 1000Mbps in Full-Duplex mode for both TX portand FX port
  • Supports auto MID/MID-X for TX port
  • Link Fault Passthrough and Far End Fault minimises the loss caused by link failure timely
  • Provides switch configuration of Force / Auto transfer mode for FX port
  • Extends fiber distance up to 15km
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply

Specifications

Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
  • Full Duplex Flow Control (IEEE 802.3x)
  • Extends fiber distance up to 15km
Ports
  • 1 × 1000M SC/UPC port
  • 1 × 1000M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 1000BASE-FX Single-mode Fiber
Network Media 1000BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100O STP (maximum 100m)
LED Indicators PWR, LINK, RX
Dimensions (W×D×H) 94.5mm × 73.0mm × 27.0mm (3.7″ × 2.9″ × 1.1″)
Power Supply External Power Adapter
Max Power Consumption 5.5W
Safety & Emission FCC, CE, RoHS
Environment
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Storage Temperature: −40°C ~ 70°C (−40°F ~ 158°F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Weight: 0.454
