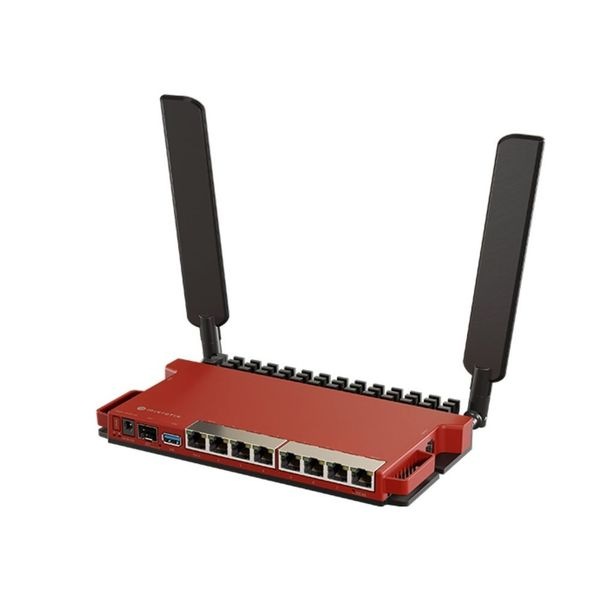

MIKROTIK L009UIGS 2HAXD IN POE IN OUT 8XGBE
L009 is more than just a router. This product line is up to 4 times faster than Mikrotik RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 2.4 GHz ax dual-chain wireless.
There are three main reasons to choose the Mikrotik L009: better performance, more features, and some interesting quality-of-life improvements. Let’s start with the raw power and performance improvements.
Mikrotik L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole ad block on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.
Mikrotik L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.
All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration!
At the heart of it all we have a speedy Marvell Peridot Switch chip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. That means – countless configurations with no bottlenecks!
The 2.4 GHz dual-chain wireless connectivity is also much stronger now. The Generation 6 Wifi6 or the ax standard wireless offers up to 90% higher speed in the 2.4 GHz spectrum! Not to mention the overall signal stability. It can handle more clients with better responsiveness.
Mikrotiks new enclosure is a spectacular innovation on its own. It’s the same form-factor you might have seen with our highly sought-after Mikrotik RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But here’s the fun part: with a simple set of accessories, you can fit up to four of these routers in a single 1U rackmount space.
SPECIFICATIONS
Architecture: ARM 64bit
CPU: IPQ-5018
CPU core count: 2
CPU nominal frequency: 800 MHz
Switch chip model: 88E6190
RouterOS license: 5
Operating System: RouterOS v7
Size of RAM: 512 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Certification & Approvals:
Certification: CE, FCC, IC, EAC, ROHS
IP: 20
Wireless capabilities:
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 4
Wireless 2.4 GHz chip model: IPQ-5018
Wireless 2.4 GHz generation: Wi-Fi 6
Wi-Fi speed: AX600
Ethernet:
10/100/1000 Ethernet ports: 8
Number of 1G Ethernet ports with PoE-out: 1
Fiber
SFP ports: 1 (2.5G supported)
Peripherals:
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1.5
Powering:
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 24-56 V
Max power consumption: 45 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 24-56 V
PACKAGE CONTENTS
1 x Mikrotik L009Uigs 2Haxd In Poe In Out 8Xgbe
