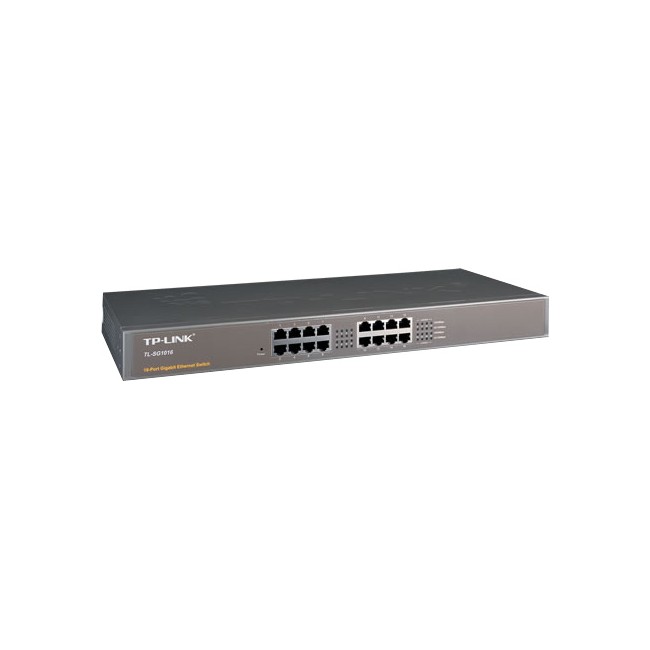

TP-LINK TLSG1016 16 Port Gigabit Network Switch Metal Rack Mount 10/100/1000M All Ports Support

TP-LINK TLSG1016 16 Port Gigabit Network Switch Metal Rack Mount 10/100/1000M All Ports Support

Hurry! 5 items left!

Price	$116
	Collect 348 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Features

TL-SG1016 16-Port Gigabit Rackmount Switch Unmanaged

What This Product Does

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for cross over cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

HARDWARE FEATURES	Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface	16 × 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Power Supply	100-240V AC, 50/60Hz
Power Consumption	Maximum: 9.26W (220V/50Hz)
Dimensions (W×D×H)	440mm × 180mm × 44mm (17.3″ × 7.1″ × 1.7″)
PERFORMANCE	Switching Capacity	32Gbps
Packet Forwarding Rate	23.8Mpps
MAC Address Table	8K
Jumbo Frame	10KB
QoS	802.1p/DSCP QoS* *Only for V12 and later versions
Green Technology	Yes
Transfer Method	Store-and-Forward
ENVIRONMENT	Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	−40°C ~ 70°C (−40°F ~ 158°F)
Operating Humidity	10%~90% non-condensing
Storage Humidity	5%~90% non-condensing
OTHERS	Certification	FCC, CE, RoHS
Package Contents	16-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
Warranty	Limited 3-Year Warranty
