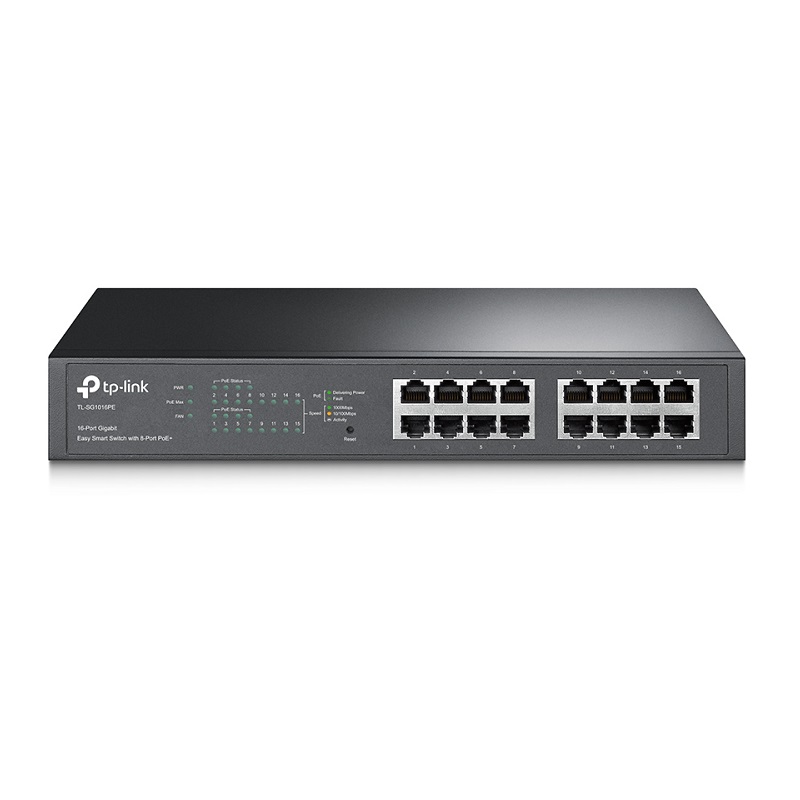

TP-Link TL-SG1016PE 16-Port Gigabit Smart Switch with 8-Port PoE+ Rack Mountable

TP-Link TL-SG1016PE 16-Port Gigabit Smart Switch with 8-Port PoE+ Rack Mountable

Be the first to review this product

Limited Stock!

Price	$212.22
	Collect 212 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+

Features:

16x 10/100/1000Mbps RJ45 ports
Equipped with 8x PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 150 W,* up to 30 W per port
Works with IEEE 802.3af/at compliant devices
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

Learn more about TP-LINK PoE technology >?

Specifications:

HARDWARE FEATURES

Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface :16x 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity :1
Physical Security Lock :Yes
PoE Ports (RJ45) :Standard: 802.3 af/at compliant
PoE Ports: Port 1 to Port 8
PoE Power Budget: 150 W
Dimensions ( W x D x H ) :11.6x7.1x1.7 in (294x180x44 mm)
Mounting :Rack Mountable/ Desktop
Max Power Consumption :8.8 W (220 V/50 Hz with no PD connected)
172.26 W (220 V/50 Hz with 150 W PD connected)
Max Heat Dissipation :30.01 BTU/h (220 V/50 Hz with no PD connected)
587.41 BTU/h (220 V/50 Hz with 150 W PD connected)

PERFORMANCE

Switching Capacity :32 Gbps
Packet Forwarding Rate :23.8 Mbps
MAC Address Table :8K
Packet Buffer Memory :4.1 Mbit
Jumbo Frame :10 KB

SOFTWARE FEATURES

Quality of Service :Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features :IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE :PoE Management
Extend Mode
PoE Auto Recovery
Management :Web-based GUI
Easy Smart Configuration Utility
Transmission Method :Store-And-Forward

OTHERS

Certification :FCC, CE, RoHS
Package Contents :TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements :Microsoft® Windows® for running Utility
Environment :Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing

SKU: SWI-TPL-SG1016P
