TP-LINK TLSF1016D 16 Port Ethernet Switch / Hub Desktop 10/100M 16 PORT ETHERNET SWITCH /

TP-LINK TLSF1016D 16 Port Ethernet Switch / Hub Desktop 10/100M 16 PORT ETHERNET SWITCH /

Hurry! 3 items left!
Price
$39
Collect 39 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (3) has been reached.

Overview

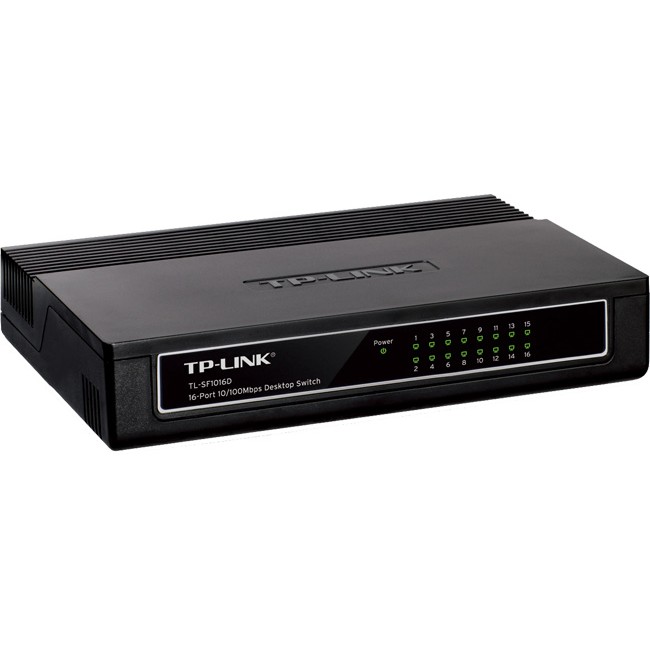

TL-SF1016D TP-LINK 16-port Unmanaged 10/100M Desktop Switch

TL-SF1016D 16-port 10/100 Mbps Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TP-LINK TL-SF1016D 16-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improveyour old network to a 100 Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.


FEATURES
  • 16-port 10/100M Fast Ethernet Desktop Switch.
  • Supports MAC address self-learning and auto MDI/MDIX.
  • Supports IEEE 802.3x flow control for Full Duplex modeand backpressure for half-duplex mode.
  • Supports MAC address auto-learning and auto-aging.
  • LED indicators for monitoring power, link, activity.
  • Plastic case, desktop or wall-mounting design.
  • External Power Adapter supply.

Specifications
SPECIFICATIONS

Standards and ProtocolsIEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
  • Wire-speed Performance
  • MAC Address Auto-Learning and Auto-aging
  • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth3.2Gbps
MAC Address Table1k
Forwarding Rate
  • 10BASE-T: 14880pps/port
  • 100BASE-TX: 148800pps/port
Transmission MethodStore-and-Forward
Ports16 × 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
  • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ù STP (maximum 100m)
LED IndicatorsPower, Link/Act (1~16)
Safety & EmissionFCC, CE
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature −40°C~70°C (−40°F~158°F)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Dimensions (W×D×H)200mm × 142mm × 40mm (7.9″ × 5.6″ × 1.6″)
PowerExternal Power Adapter

Weight: 0.678

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.
GTIN: 6935364020293
