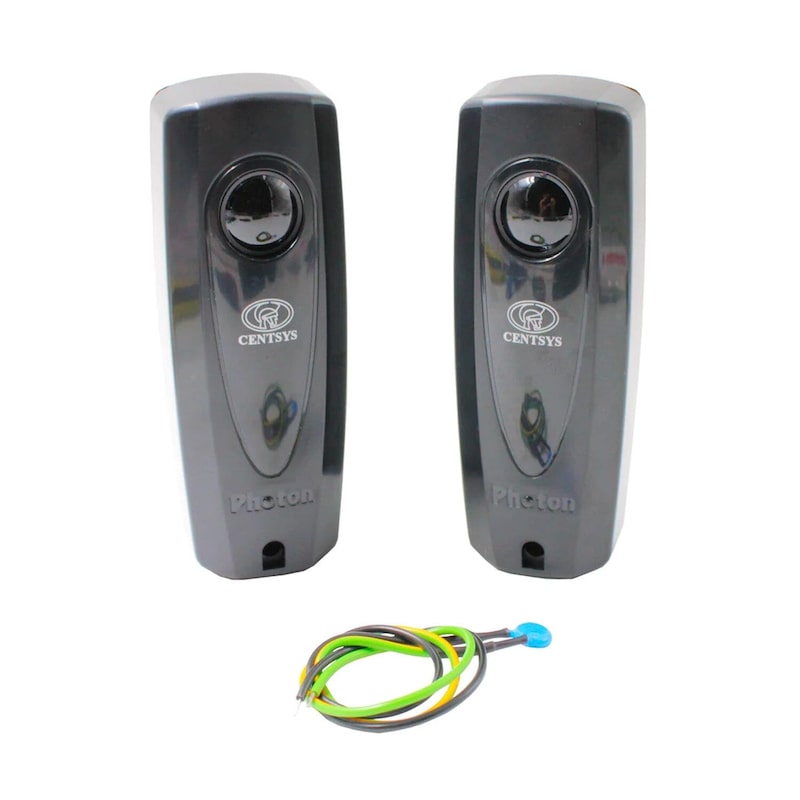

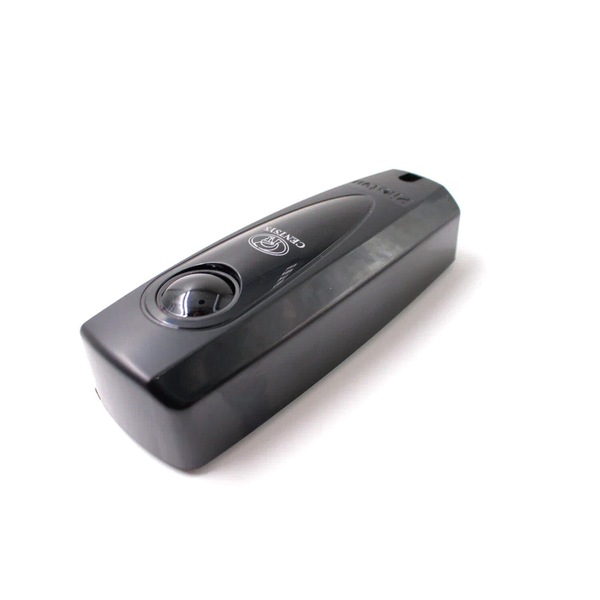

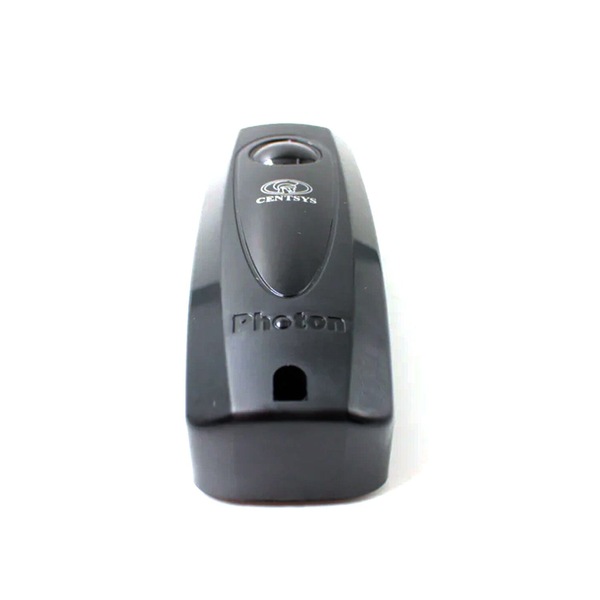

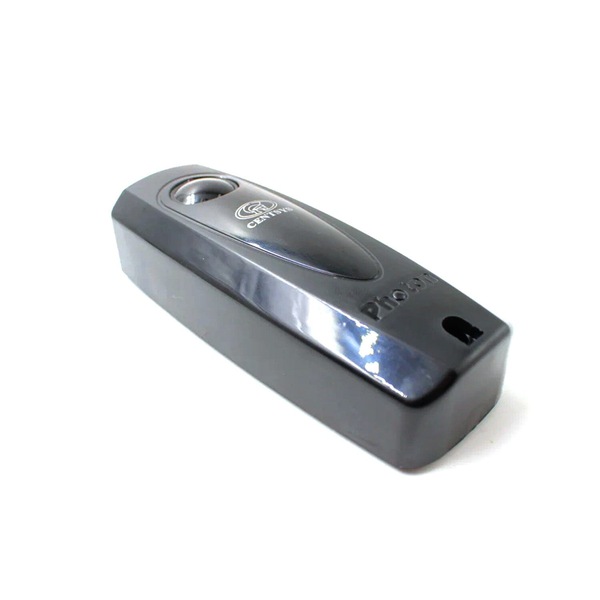

Genuine Nova Centsys Photon II Infrared Gate Safety PE Beams

Genuine Nova Centsys Photon II Infrared Gate Safety PE Beams

Be the first to review this product

Price	$159
	Collect 477 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Safety has never been so quick and easy €“ thanks to wireless technology! Introducing CENTSYS€™ Photon II infrared gate safety PE beams with a wireless transmitter. Photon II makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter there€™s no need to tunnel under the driveway. Simply align, attach and you€™re away!

Brochure

Manual

Features:

Transmitter is wireless and battery-operated saving time and money.
Two year battery life using two AA Alkline batteries (included).
30 metre operating range €“ ideal for almost any entrance gate.
Fully ant-proof and weather-resistant enclosure for greater reliability.
Transmitter provides audible feedback for easy setup and battery-low indication.
Low power consumption throughout the system for greater efficiency.
Installer Mode with audible feedback makes alignment a dream.
Elegant slimline construction €“ only 50mm wide.
Compatible with Intruder-detection Alarms for enhanced perimeter security3.

Includes:

1 x Pair Wireless Beams
1 x Harness
Batteries

Compatibility:

D2 Turbo (Sliding)
D3 (Sliding)
D5 (Sliding)
D5 Evo (Sliding)
D10 (Sliding)
D10 Turbo (Sliding)
A10 (Sliding)
R3 (Rotary Arm)
R5 (Rotary Arm)
Vantage 400 (Swing)
Vantage 500 (Swing)
Vector 400 (Swing)
Vector 500 (Swing)
Vert-X 300 (Swing)

Specifications:

Power Supply Transmitter	2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product
Receiver	12 - 24V AC 12 - 30V DC
Receiver Power Consumption	30mA @ 12V DC
Transmitter Battery Life	Minimum 2 years
Battery Low Indication	Audible Beep
Specified Operating Distance	10m
Alignment	Automatic €“ 1m² @ 10m (circular area - assumes parallel surface)
Output Contact	Fail-safe, N/C and N/O, potential free contact
Output Contact Rating	3A @ 30V DC Non-inductive
Operating Temperature	-15°C - +65°C
Operating Humidity	0 - 90° Non-condensing
Housing Material	0 - 90° Non-condensing
Degree of Protection	IP54

GTIN: 9352891016891
