Dormakaba Transom Closer EN3 90deg Hold Open Timber Combi Pack RTS85T

Dormakaba Transom Closer RTS85T EN3 90deg Hold Open Timber Combi Pack
RTS853T90

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

Includes:

• 1 x Dormakaba 85W Cover plate to suit steel and wooden door frames - Satin stainless steel (10000051A)

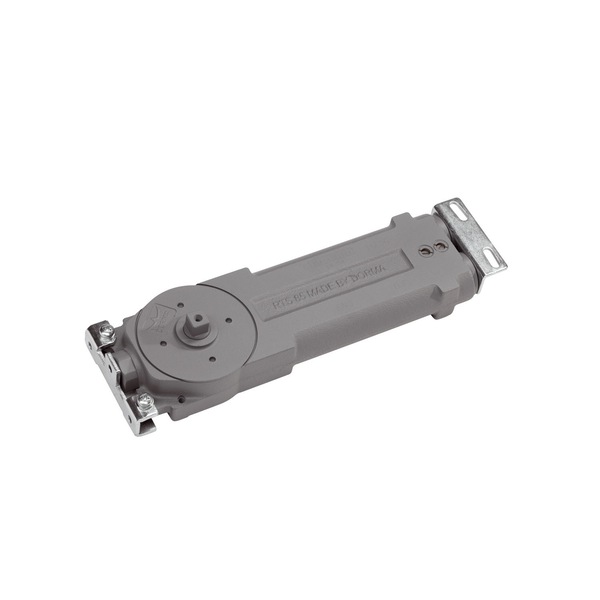

• 1 x Dormakaba Transom Door Closer Body RTS 85 EN3 HO (85322101)
• 1 x Dormakaba Bottom Pivot 8550 (85210005)
• 1 x Dormakaba Closer Arm (65310300)

The Dormakaba RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. A complete line of accessories is available to accommodate virtually any door and frame configuration. Certified to ISO 9001.

Dorma RTS85 EN4 Transom Closer
85322101

Features:

• For single and double action doors
• Backcheck function as standard
• Wide range of accessories for almost every configuration
• Concealed in the door frame

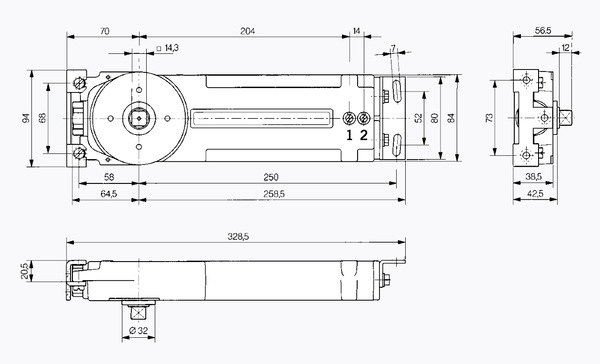

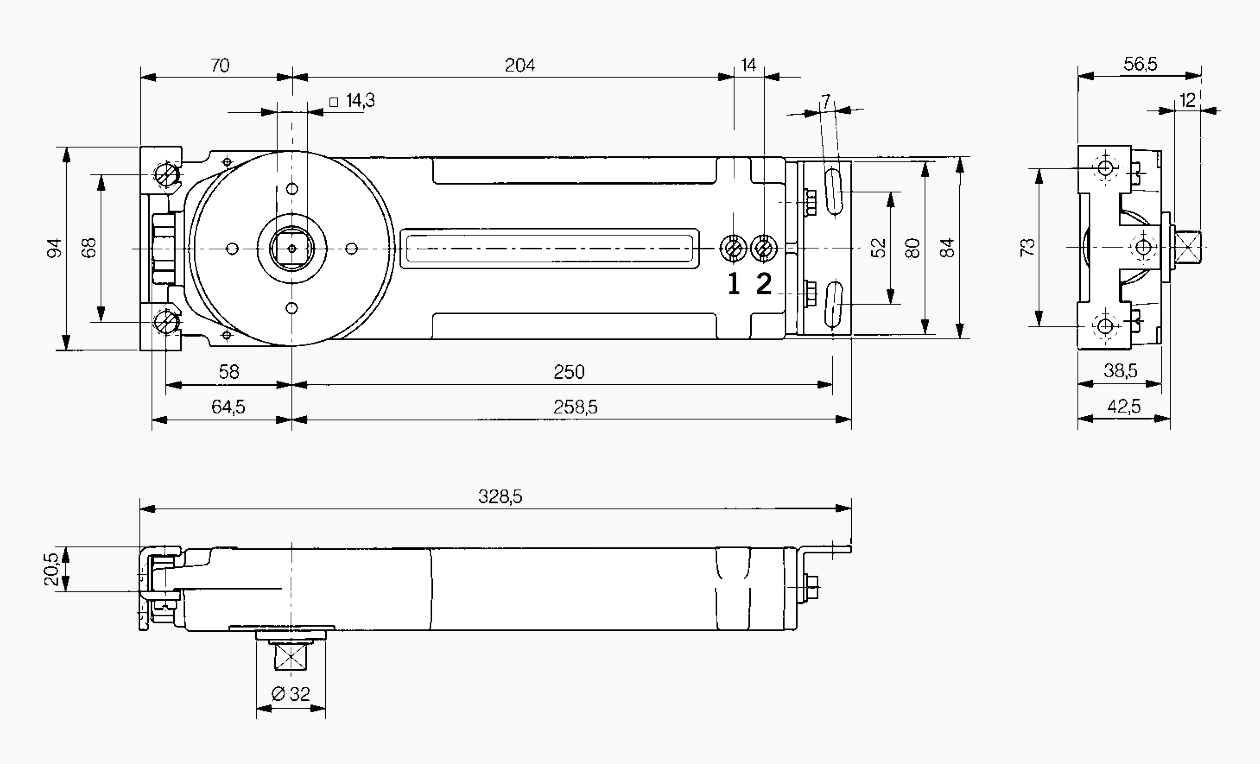

Specifications:

• Closing Force: EN3
• Internal doors up to and external doors: up to 1100mm
• Closing speed variable by valve adjustment: Yes
• Final closing speed variable by valve adjustment: Yes
• Backcheck: Yes
• Hold Open: 90 Degrees
• Length: 323mm
• Width: 90mm
• Height: 38mm
• Weigth: 4.8kg

Dormakaba RTS85W Transom Coverplate Satin Stainless Steel
10000051A

Specifications:

• Satin Stainless Steel Cover plate
• Suits Dormakaba TS85 transom closers
• To suit steel and wooden door frames

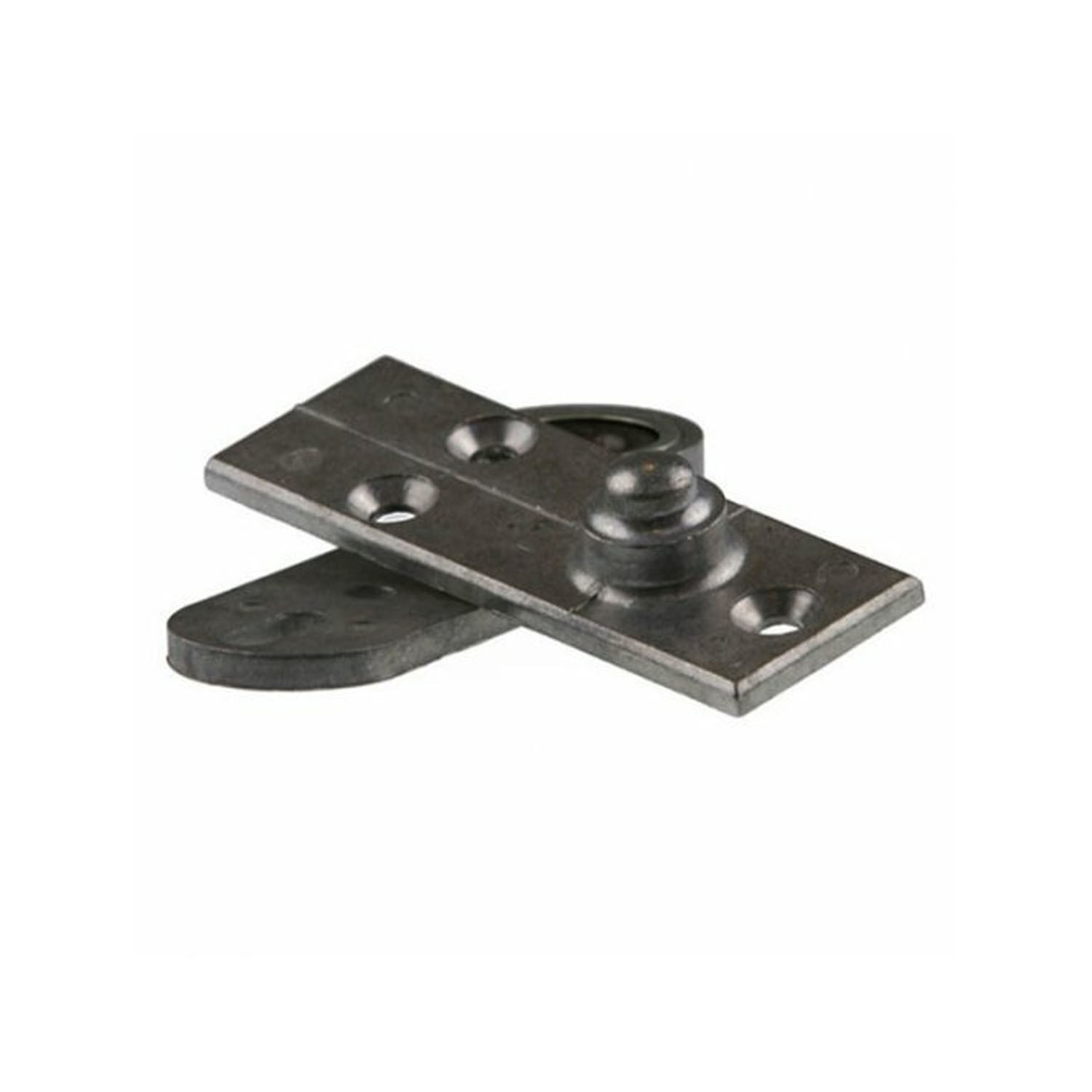

Dormakaba 8550 Transom Closer Pivot Timber
65310300

Features:

• The Dormakaba RTS85 floor pivot suits side-load installation
• Used on timber doors, floor portion is fitted directly to the floor

Specifications:

• Suits Bottom Rails with Channel:
  • Depth: 18-20mm
  • Height: 27mm

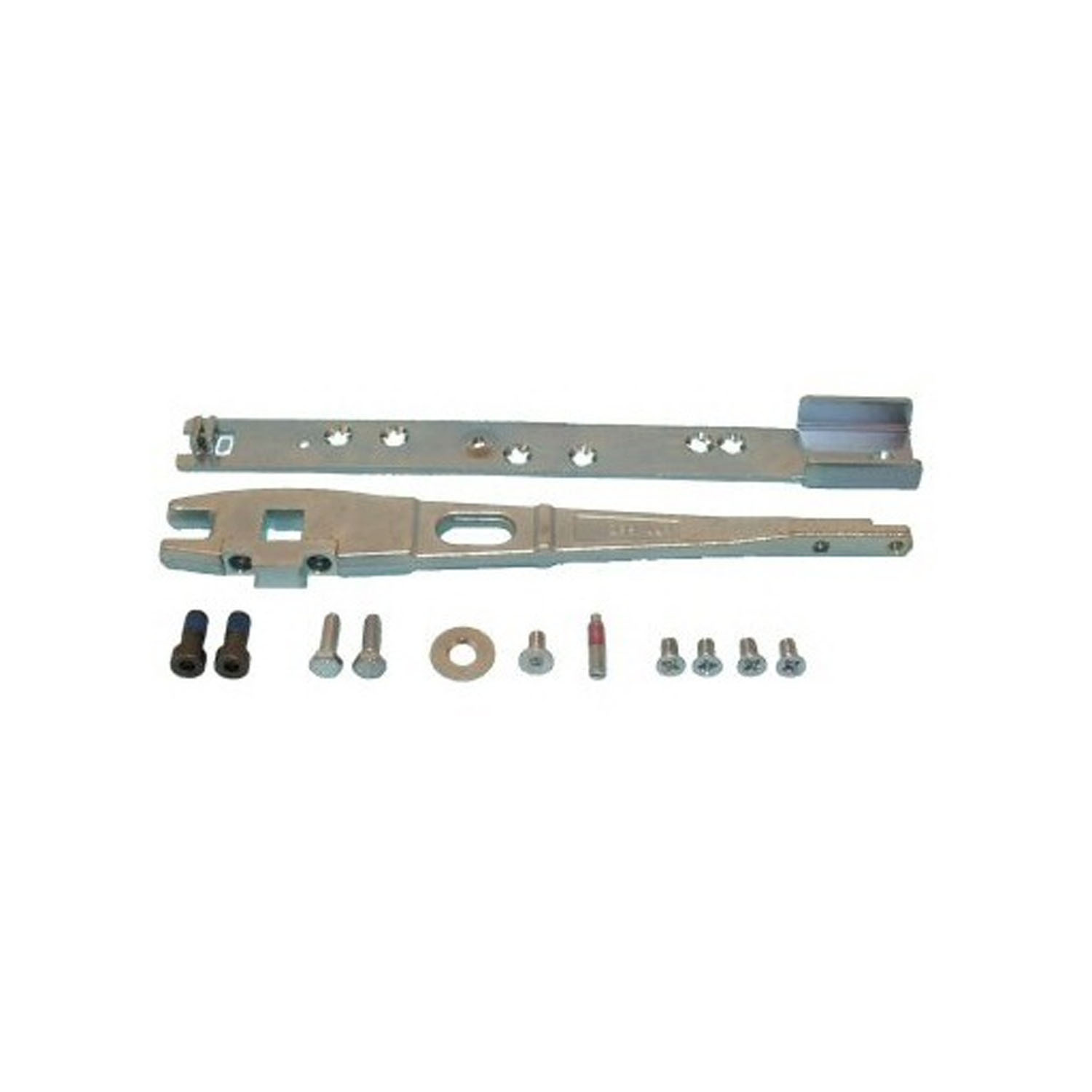

Dormakaba Transom Closer Arm w/ Bracket
85210005

A standard side load top arm for use with Dorma concealed transom door closers. The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
