Dormakaba Transom Closer EN3 NHO Timber Combi Pack RTS85T

Dormakaba Transom Closer EN3 NHO Timber Combi Pack
RTS85T

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

Includes:

• 1 x Dormakaba RTS85W Transom Coverplate Satin Stainless Steel (10000051A)
• 1 x Dormakaba Transom Door Closer Body RTS 85 EN3 (85311101)
• 1 x Dormakaba Transom Closer Arm w/ Bracket (85210005)
• 1 x Dormakaba 8550 Transom Closer Pivot Timber (65310300)

The Dormakaba RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. A complete line of accessories is available to accommodate virtually any door and frame configuration. Certified to ISO 9001.

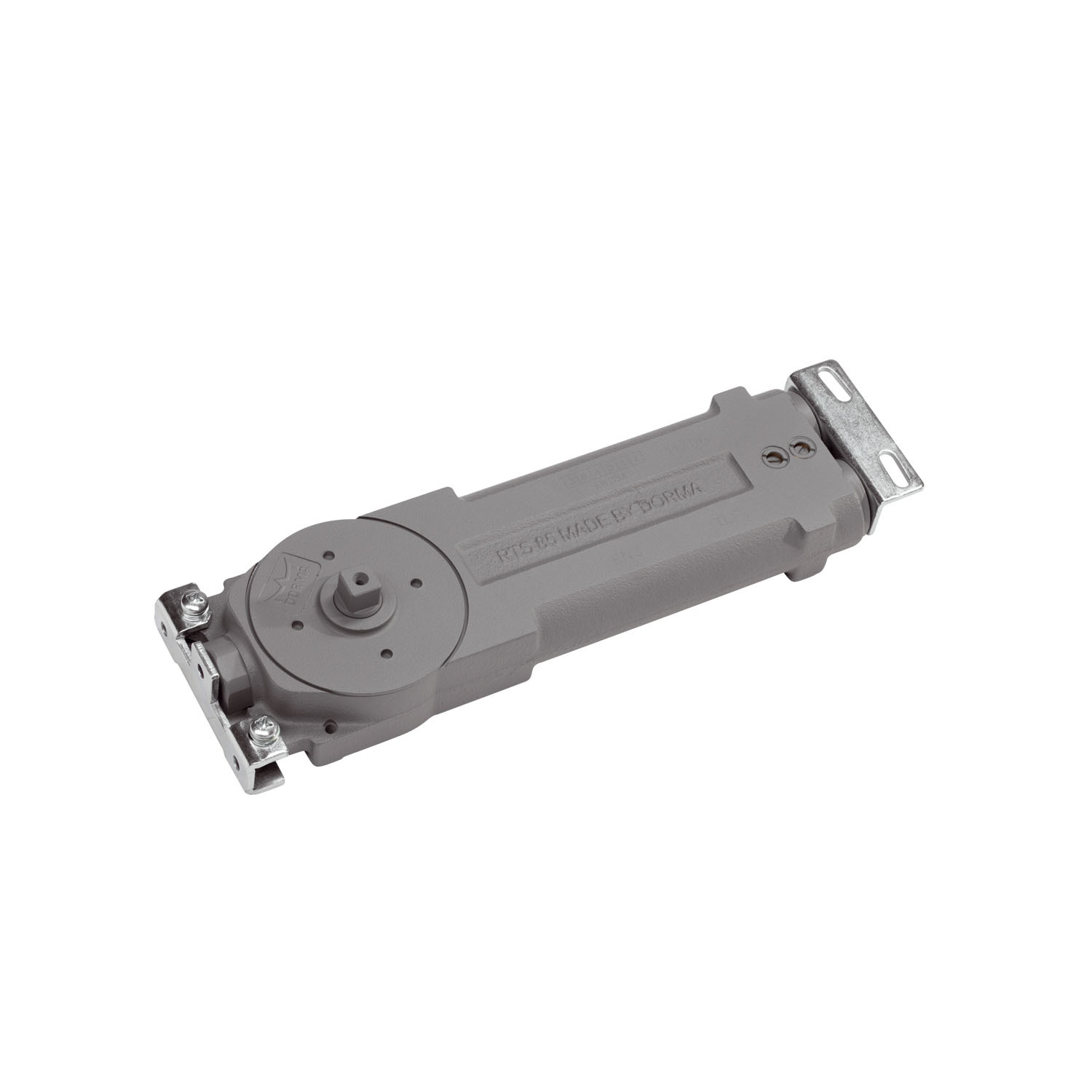

Dormakaba Transom Door Closer EN3 Non Hold Open Body Only
RTS85

Features:

• Ideal for shopfitting
• Suitable for both single and double action doors
• With valve adjustable closing speed and closing action, and mechanical controlled backcheck

Specifications:

• Length: 323mm
• Width: 90mm
• Height: 38mm
• Weight: 4.7kg
• Max. Opening Angle: 130 degrees
• Door Width: 950mm
• Leaf Weight: 110kg

Dormakaba RTS85W Transom Coverplate Satin Stainless Steel
10000051A

Specifications:

• Satin Stainless Steel Cover plate
• Suits Dormakaba TS85 transom closers
• To suit steel and wooden door frames

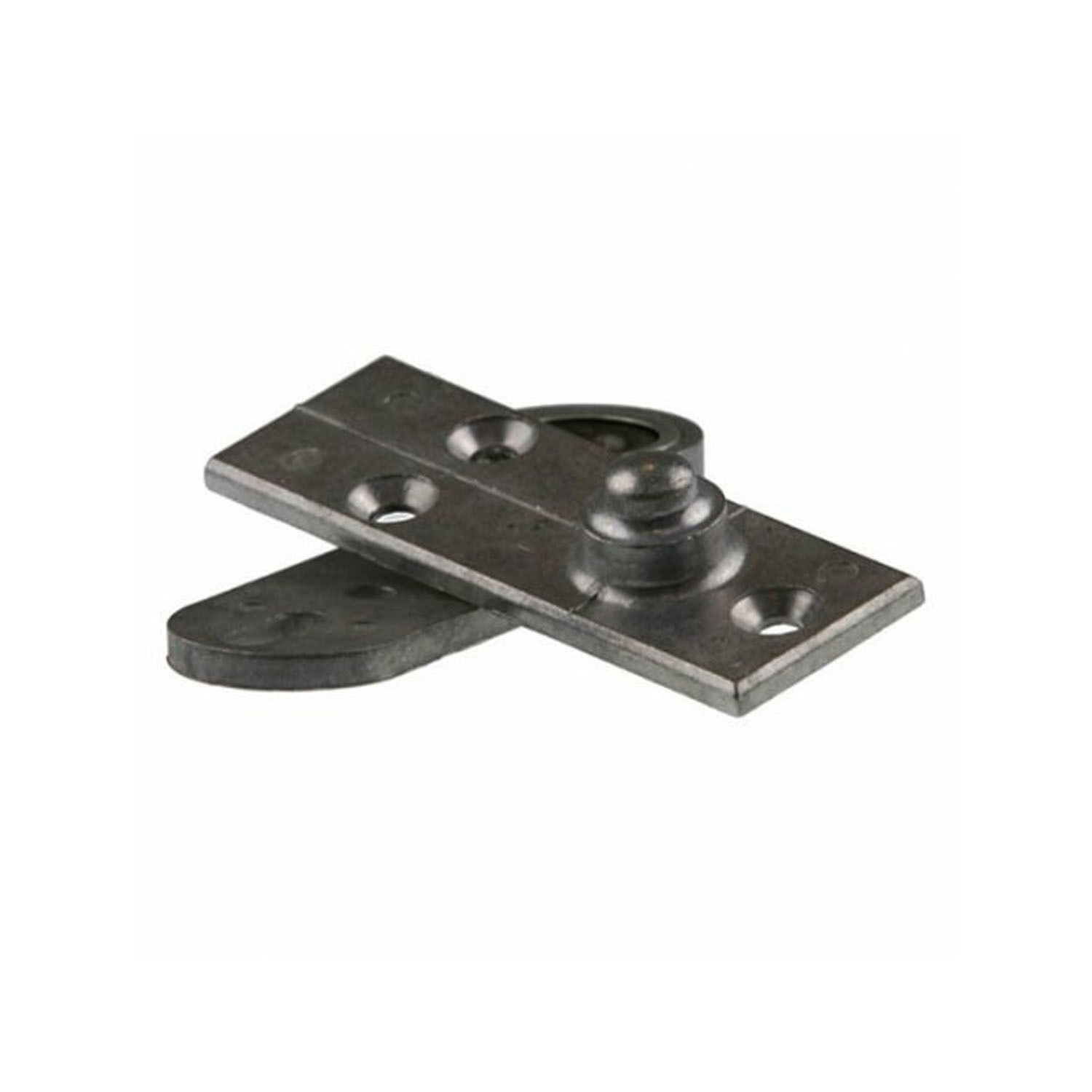

Dormakaba 8550 Transom Closer Pivot Timber
65310300

Features:

• The Dormakaba RTS85 floor pivot suits side-load installation
• Used on timber doors, floor portion is fitted directly to the floor

Specifications:

• Suits Bottom Rails with Channel:
  • Depth: 18-20mm
  • Height: 27mm

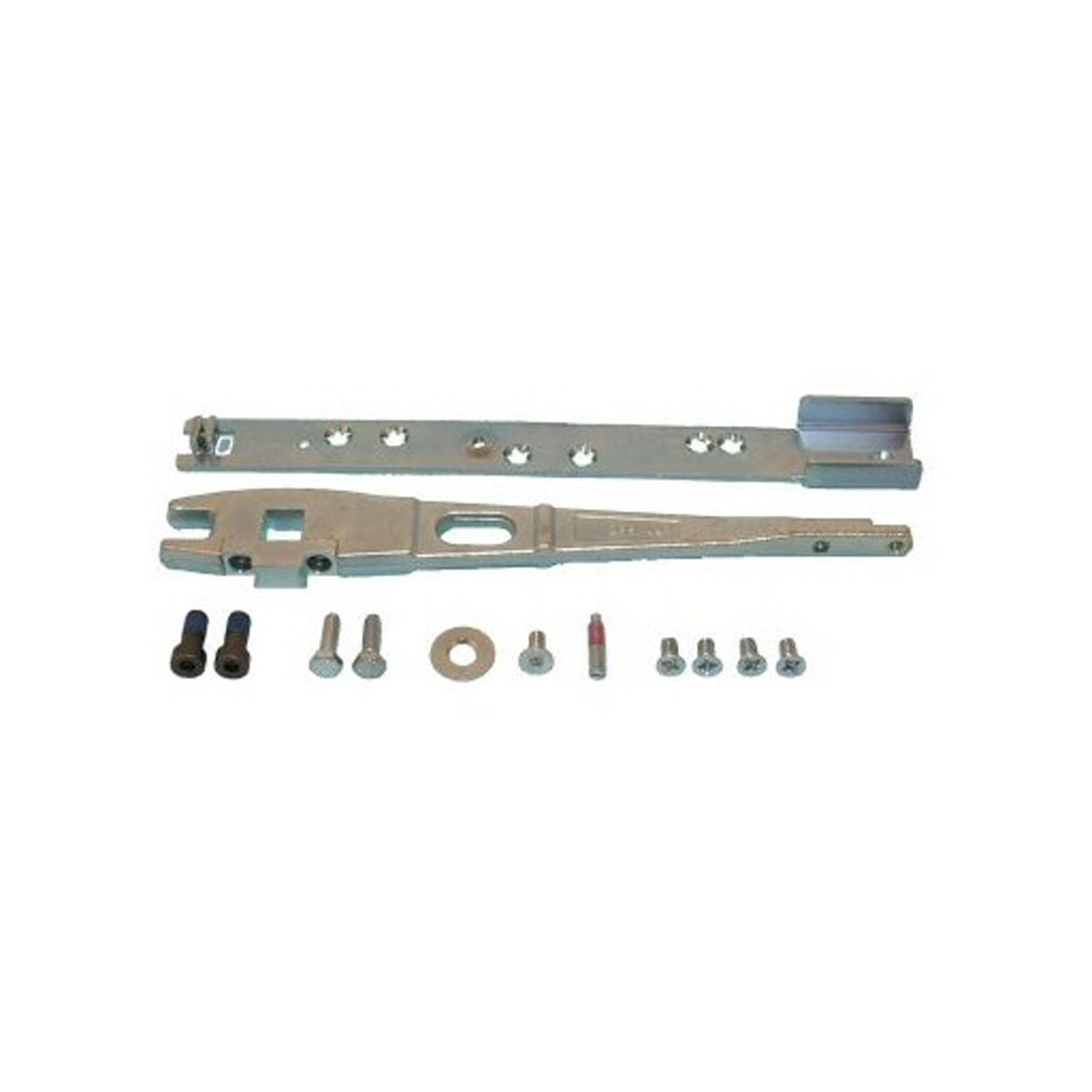

Dormakaba Transom Closer Arm w/ Bracket
85210005

A standard side load top arm for use with Dormakaba concealed transom door closers. The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
