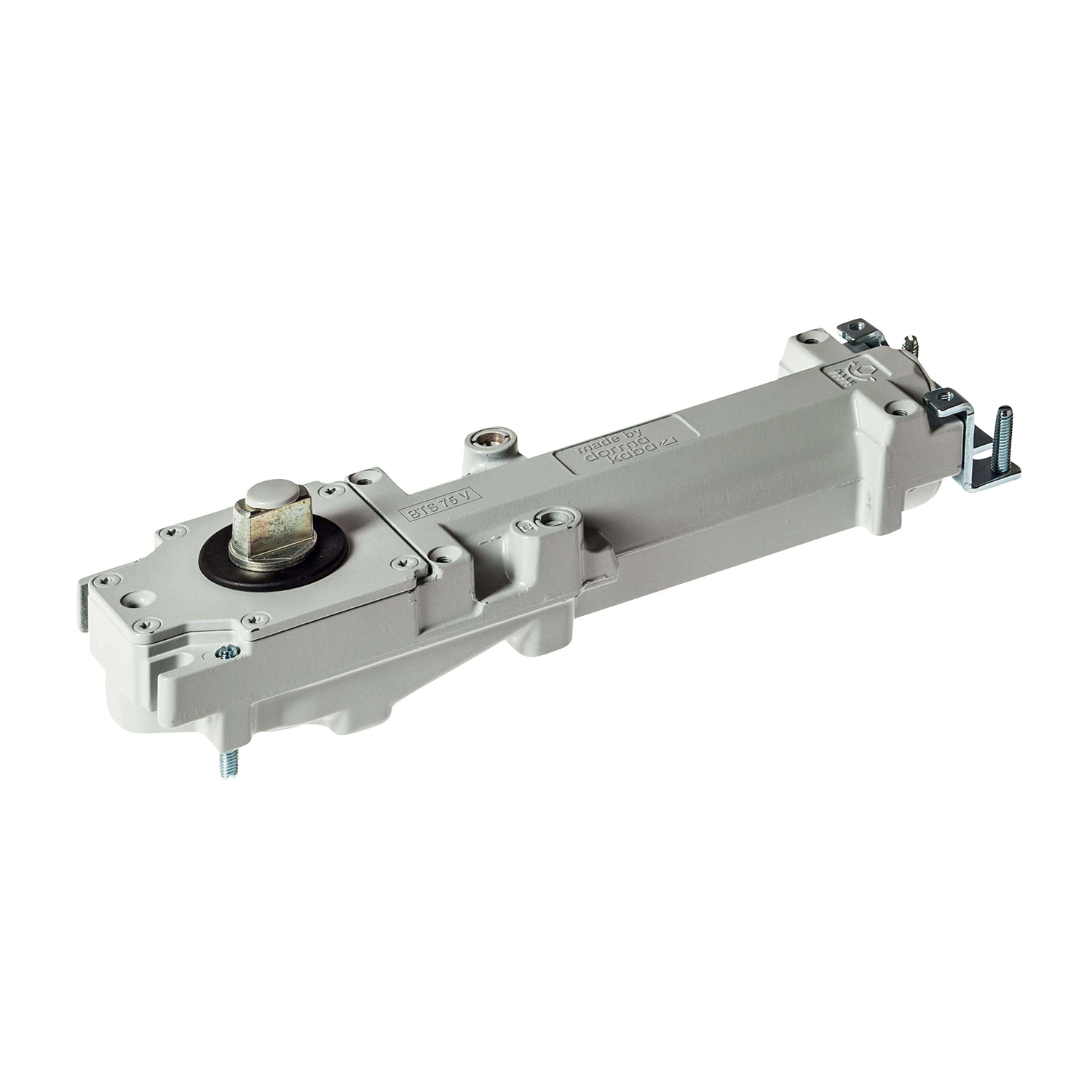

Dormakaba Door Closer BTS75V-HO Universal Floor Spring Body Only Hold Open

Dormakaba Door Closer Universal Floor Spring Body Only Hold Open
BTS 75 V HO

Includes: Body only. cover plate and accessories not included.

Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building.

Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door.

Features:

• Highly adaptable floor spring suitable for all standard single-, and double-action doors with widths up to 1100 mm, with its closing force individually regulated by means of an adjustment screw.
• Certified manufacture to ISO 9001.
• Universal application range
• Whether standard, narrow or wide, whether LH, RH, or single or double-action – the Dormakaba BTS 75 V door spring is designed for all types of doors. A comprehensive program of accessories ensures that it can be used successfully with a wide variety of door constructions and floor coverings.
• Maximum reliability and quality
• Thanks to a wide range of functions which can be individually selected to suit different requirements, Dormakaba BTS 75 V floor springs offer maximum reliability and quality.

Specifications:

• Length: 285mm
• Width: 82mm
• Height: 50mm
• Max. leaf weight: 120kg
• Spring strength (EN): 1-4
• Hold open: Yes
