ATA Smart Solar Power Gate/Garage System

ATA Smart Solar Power Gate/Garage System

Hurry! 7 items left!

Price	$924
	Collect 2772 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Solar Manual

With the advance of solar technology, it makes great sense to save money, reduce your carbon footprint, and simplify the complexity of some installs.

Your garage door or gate opener can be powered continually using the sun€™s energy through ATA's SmartSolar Ready Solar Power system. The system€™s efficient design requires only a single solar panel per opener, and incorporates a battery system so your opener works at night or during bad weather.

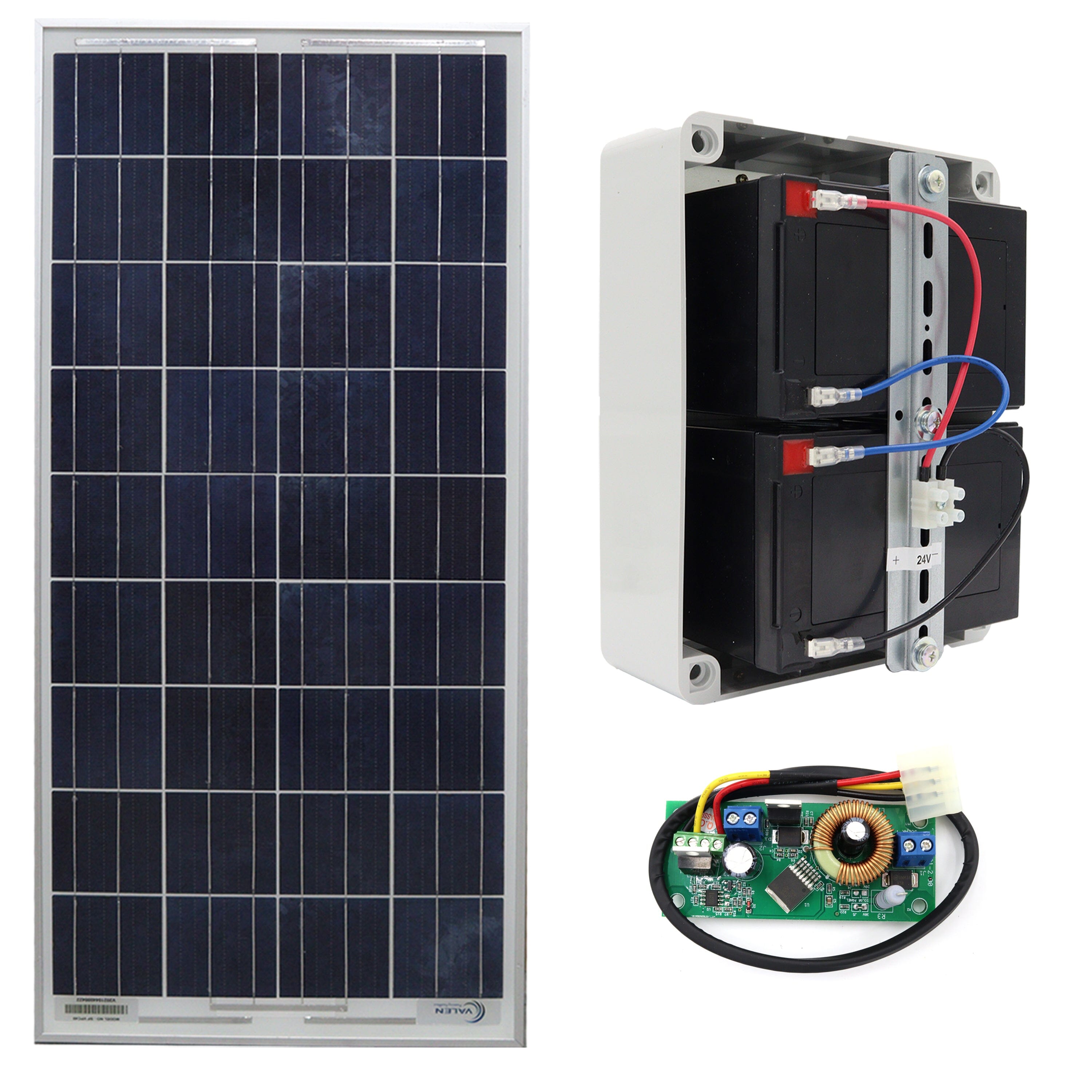

Includes:

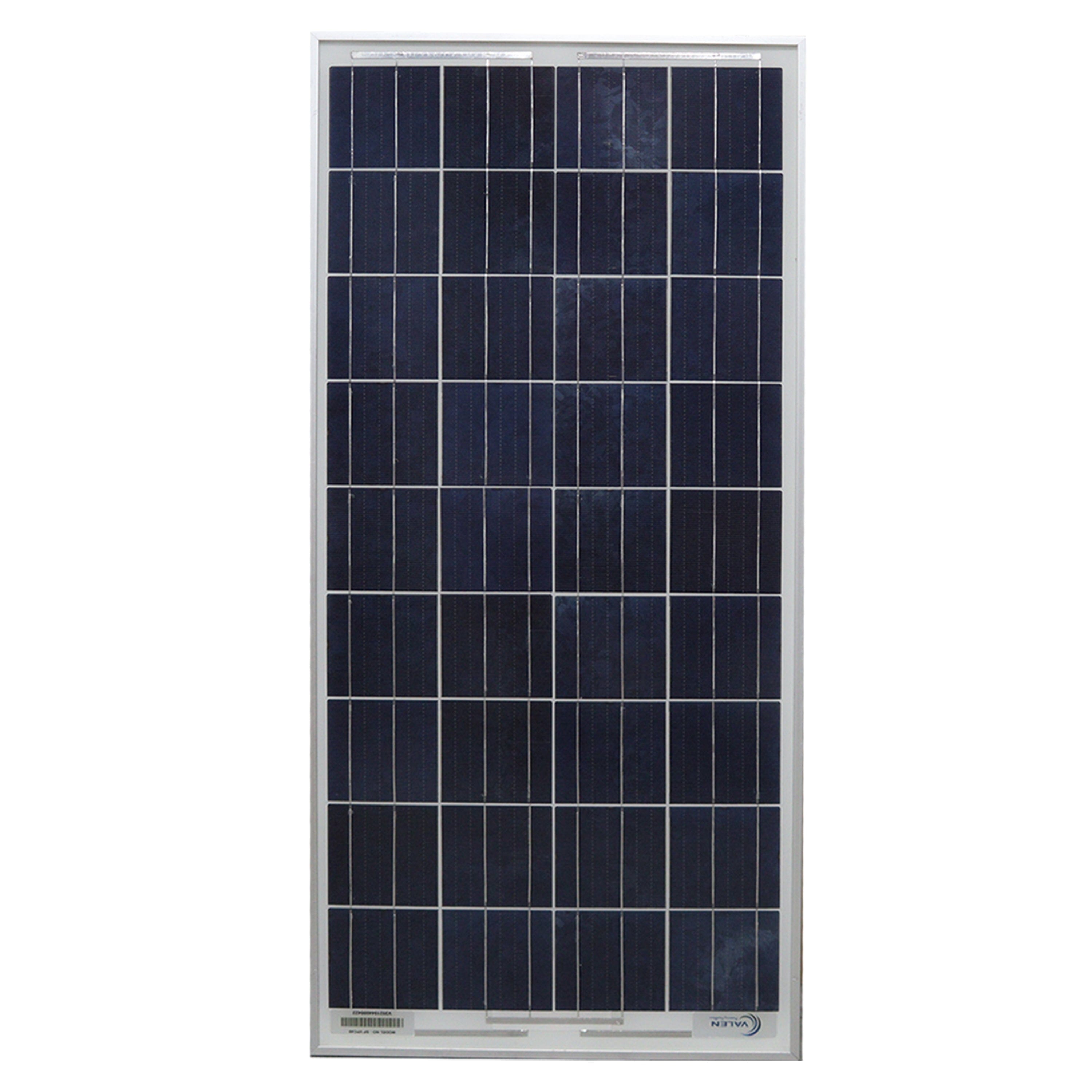

1 x Solar Panel - 30 WATT STP030-12/Lb

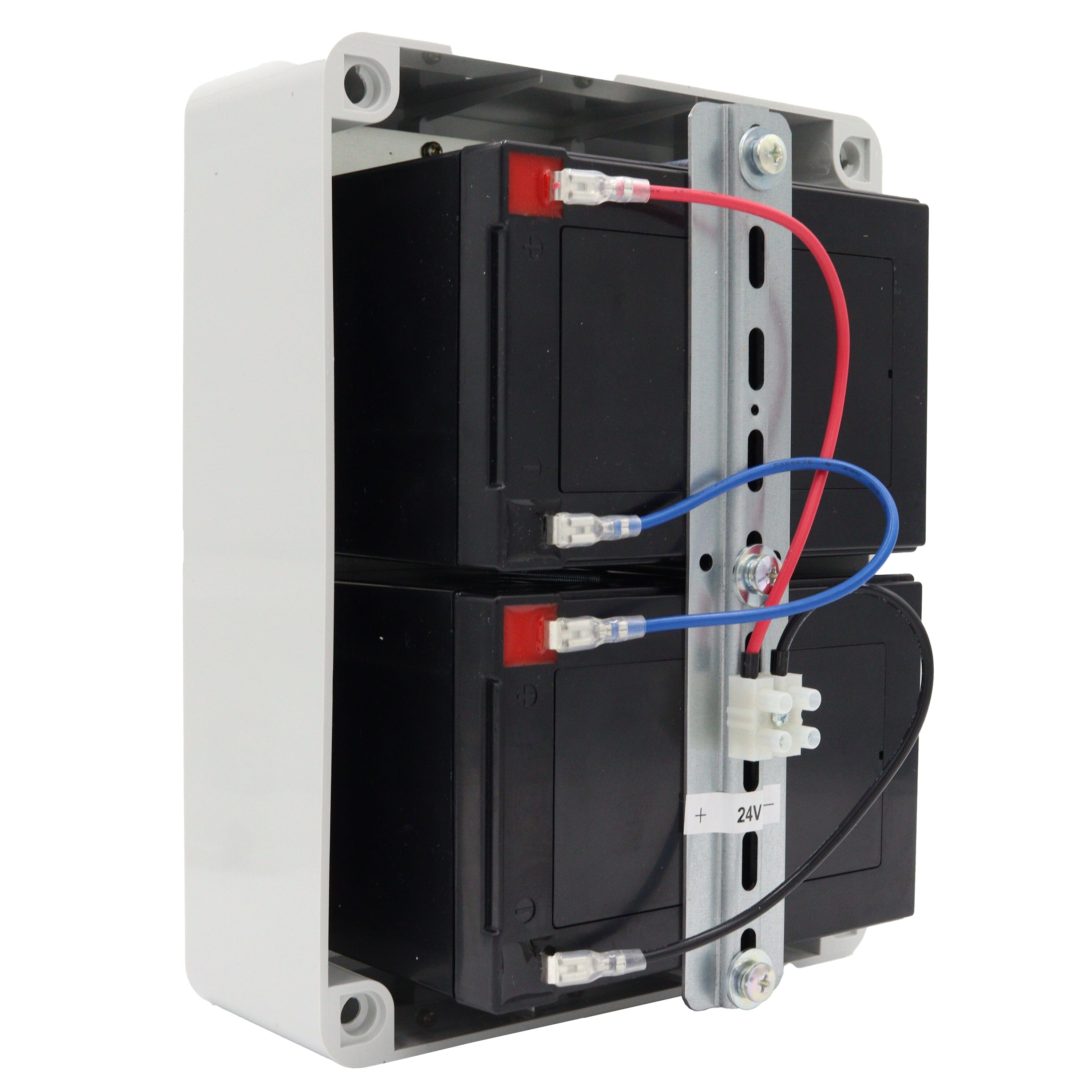

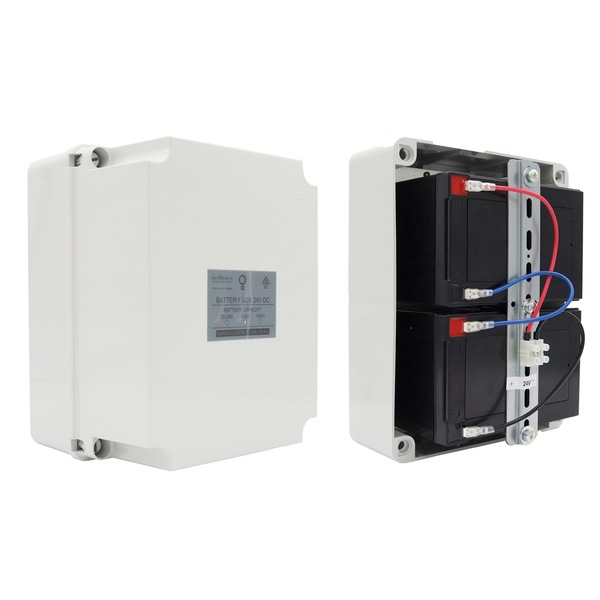

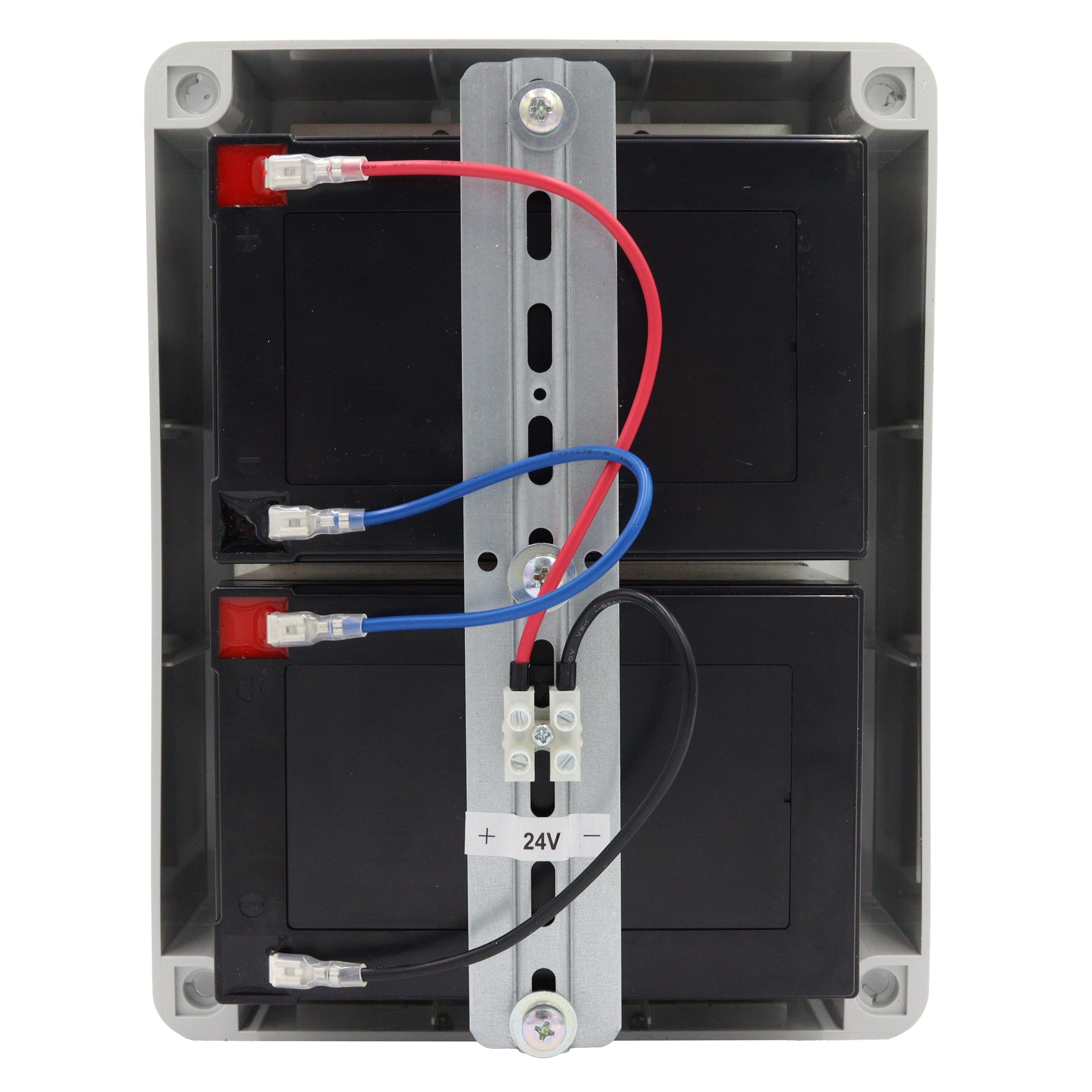

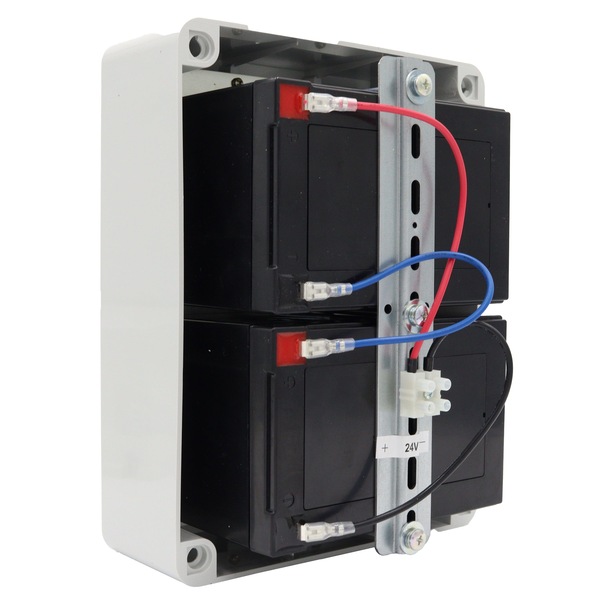

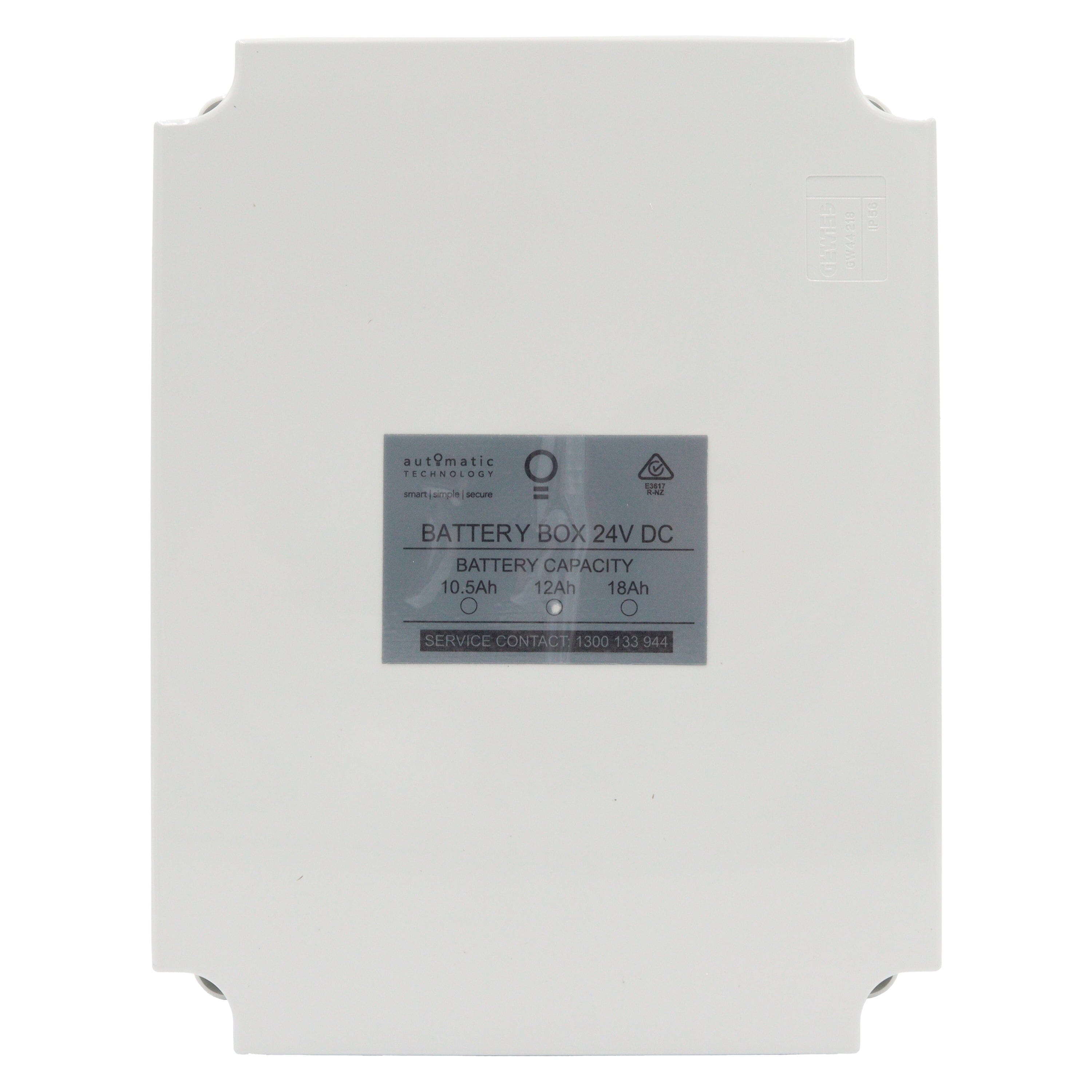

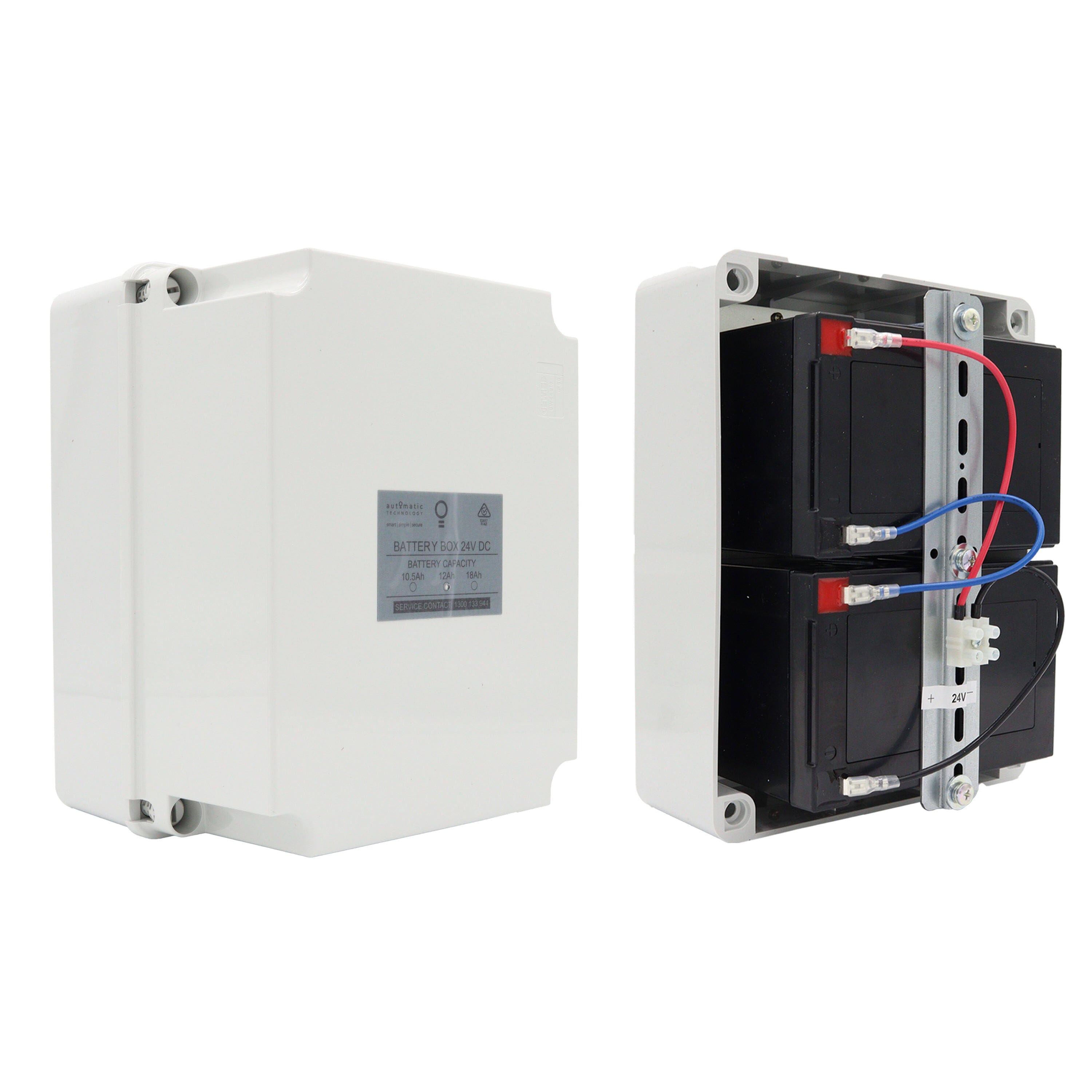

1 x Battery Pack (2 X 12 Ah) - Includes Weatherproof Box

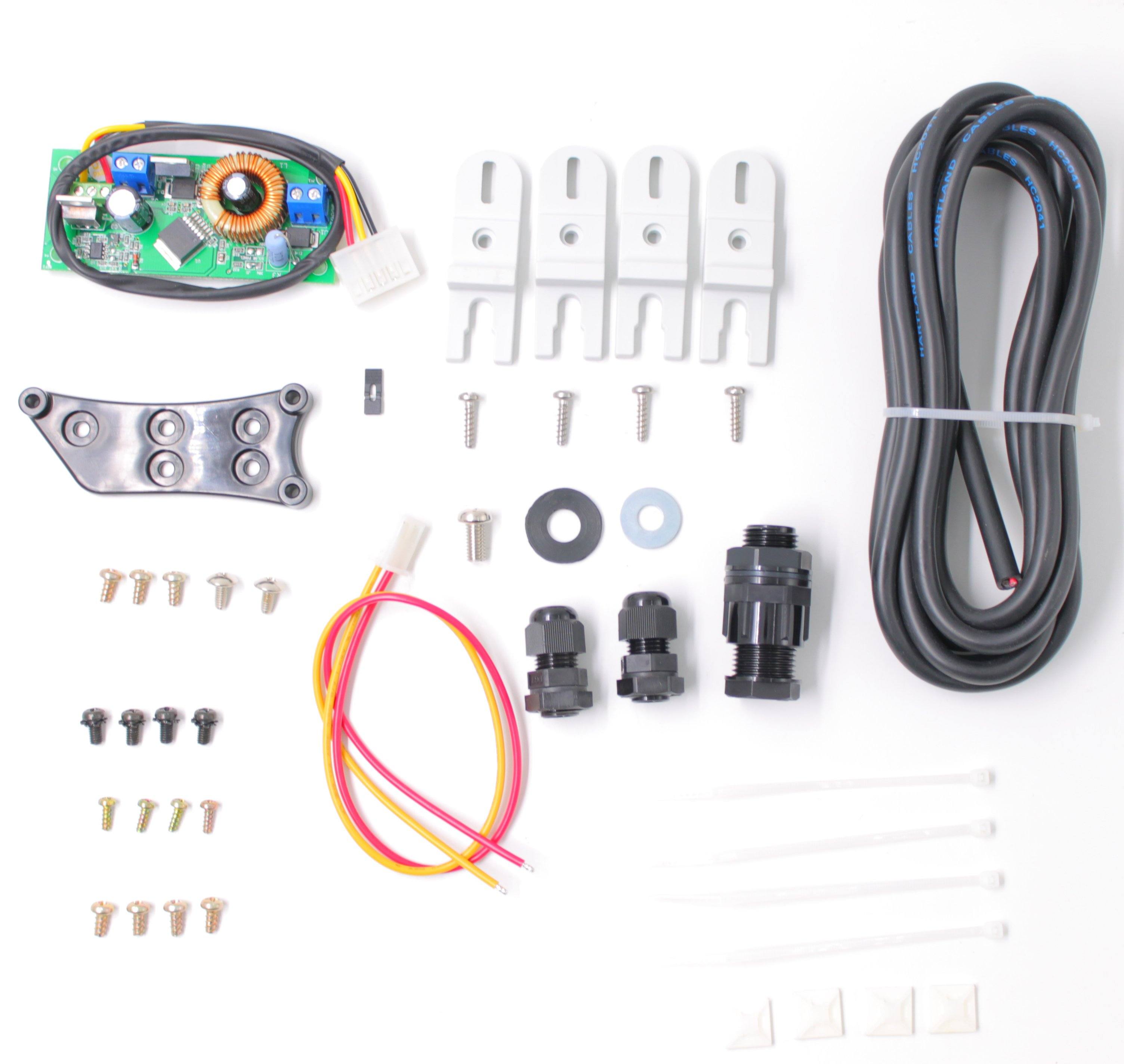

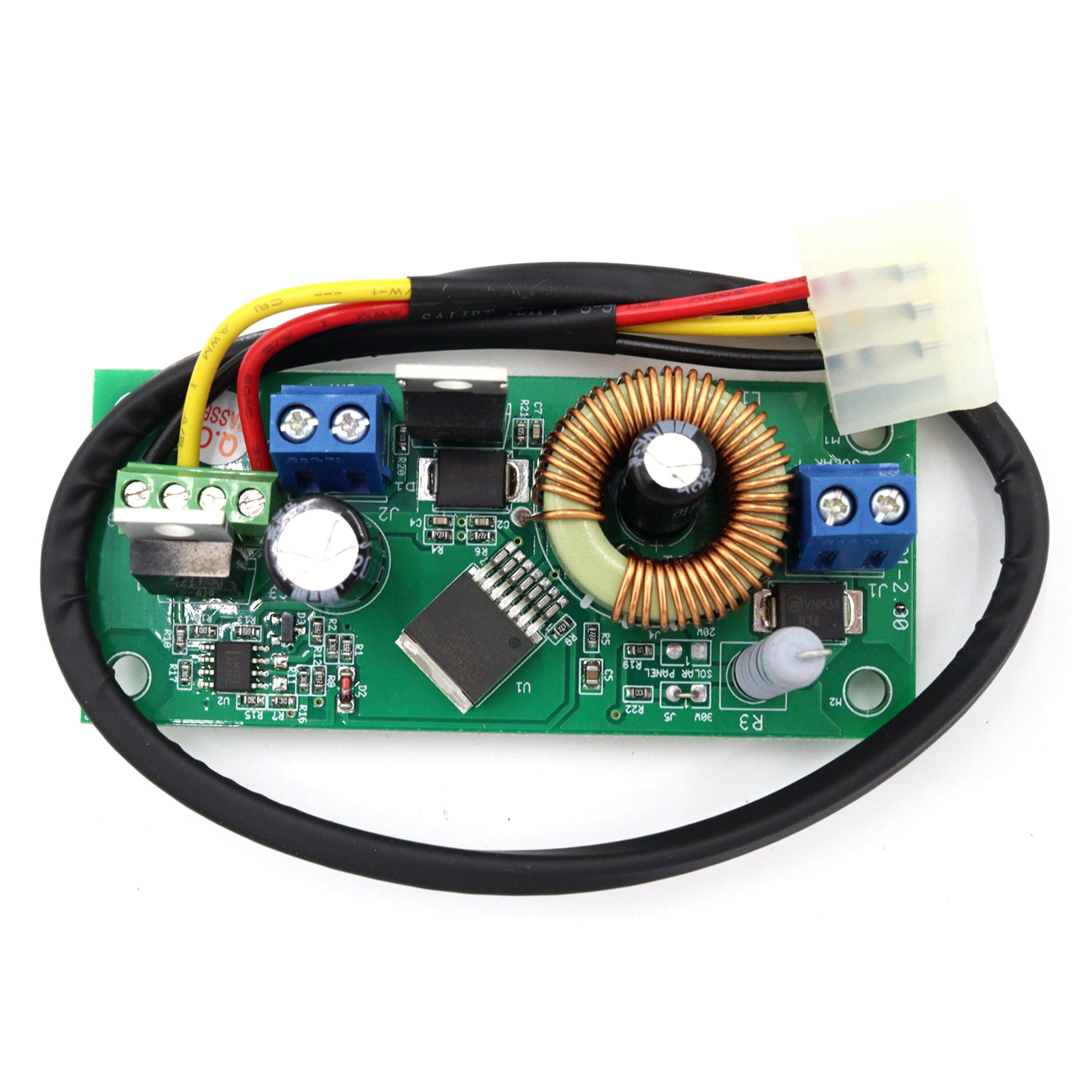

1 x Charger Board (With Harness)

1 x Accessory Pack

1 x Installation Instructions

*Warranty Disclaimer

*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer's website or in your user manual

Compatible With:

GDO-6 EasyRoller® Gen2
GDO-8 Shed Master®
GDO-9 Enduro Gen2
GDO-9 Dynamo Gen2
Elite Swing Gate (with DCB-05)
DCB-05 Gate Control System
NeoSlider NES-500/NES-800
GDO-10v2/v2L2/v3 Toro®

SmartSolarV2 Technical Specifications*	Garage Door	Sliding Gate	Swing Gate
Load Voltage	24	24	24
Load Continuous Current	3 - 5A	5A	5 - 10A
Number of Cycles per Day	10	10	10
Average Cycle Time (Opening and Closing)	40 seconds	90 seconds	72 seconds
Max. Standby Current Without P.E. Beams With P.E. Beams With 2 x P.E. Beams	100mA 180mA -	100mA 180mA -	100mA 180mA 260mA
Average total consumption current per day Without P.E. Beams With P.E. Beams With 2 x P.E. Beams	2.75 - 3Ah 4.66 - 4.8Ah -	3.7Ah 5.55Ah -	3.4 - 4.4Ah 5.31 - 6.3Ah 7.23 - 8.23Ah
Average total consumption current per hour Without P.E. Beams With P.E. Beams With 2 x P.E. Beams	0.11 - 0.13A 0.194 - 0.2A -	0.16A 0.23A -	0.14 - 0.18A 0.22 - 0.26A 0.3 - 0.343A
Recommended storage battery capacity / voltage	10.5Ah/24v	12Ah/24V	12 - 18Ah/24V
Wire Gauge and Length from Battery to Charger board (max)	18AWG, 3m	18AWG, 3m	18AWG, 3m
Solar panel average rated output generation time per day (winter months)	4 hours	4 hours	4 hours
Solar Panel Output voltage / current	18V / 1.19A	18V / 1.75A	18V / 1.75A

Please Note International shipping is not available

GTIN: 9352891014910
