DOSS BVB4100PHD Push Pin BNC HD Video Balun Mini Passive Tool-Less Push Pin Terminals Allow Easy
3x

DOSS BVB4100PHD Push Pin BNC HD Video Balun Mini Passive Tool-Less Push Pin Terminals Allow Easy

Price
$10.95
Collect 30 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (57) has been reached.


The DOSS Range of UTP Video Baluns allow you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable.

The passive (non-amplified) baluns allow transmission of realtime CCTV video signals over cost-effective Unsheilded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Baseband (composite) signals of any type are supported.

It is compatiable with all HD-TVI, HD-CVIand AHD analog camera.

Applications
  • Security Monitoring System
  • Multimedia Network Teaching System
  • Medical Monitoring Display System
  • Industrial Automation Control System
  • Banking, securities, financial information display system
  • Remote Network Server Monitoring
  • Department Store Security
  • Casino Security
  • Hospitals, Airports and banks
  • School Campuses

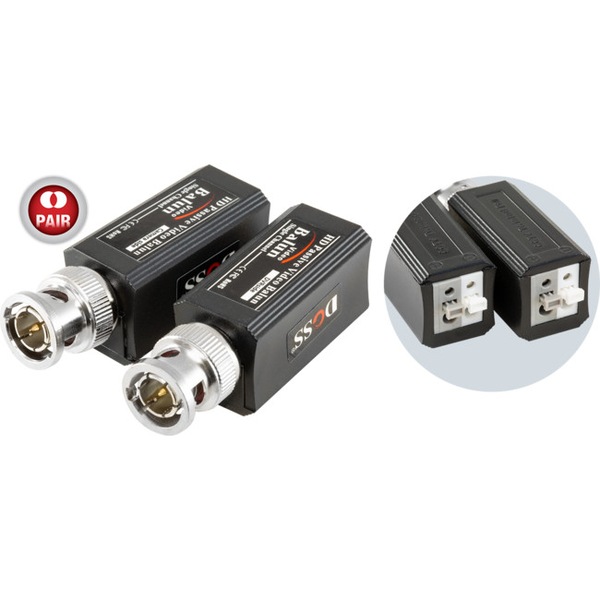

BVB4100PHD MINI PASSIVE BNC HD VIDEO BALUN PUSH PIN TERMINAL

Male BNC of BVB4100PHD allows connection directly to thecamera or DVR. Tool-less push pin terminals allow easy and quick connection of UTP cable output. Working in pairs, the BVB4100P eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 400m (1300ft). The BVB4100PHD is also compatible with other Video Balun products from DOSS.

The superior interference rejection and low emissions ofthe BVB4100PHD allow signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existingcable infrastructure. The BVB4100PHD has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

_

Basic Usage

Advanced Usage


click for larger image

_

Features
  • Compatiable with all HD-TVI, HD-CVIand AHD analog camera
  • Single Channel Passive Video Transceiver
  • Full-motion colour video signal up to 400m (1300ft) and
    monochrome (B&W) up to 600m (1950ft) via UTP cat5e/6
  • NTSC, PAL & SECAM video format compatible
  • Real-time transmission
  • No power required
  • Two push-pin terminals; tool-less installation
  • Male BNC connector
  • Exceptional interference rejection
  • Built-in TVS (Transient Voltage Suppressors) for surgeprotection
  • Lightning protection design Grade III
  • 50 dB crosstalk and noise immunity
  • Compact size and easy installation
  • ABS engineering plastic housing

Specifications
Applied Devices CCTV cameras, monitors, DVR, switchers,IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG)

Color: 400m (1300ft)
B&W: 600m (1950ft)
Common-mode /
Differential-mode rejection
15kHz to 5MHz 60dB typical
Impedance Coax, Male BNC 75 unbalanced
UTP, Push pin terminal 100 balanced
Attenuation 1.5dB Max typical
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 ±20
DC Loop Resistance 18 per 100m (52 per 1,000ft)
Differential Capacitance 62 pF/m max (19 pF/ft max)
Power No external power required
Connector Video input/output Male BNC connector
Video input/output Push pin terminal
Protection Surge Protection Renewable solid state surge protection
Video Input 2KV(common mode),
10/700µs IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output 2KV(different mode),
10/700µs IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions (L*W*H) 42.4*17.8*17.4mm (BNC connector)
Net Weight 20g
Environmental Operating Temperature -20°~ 70°C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40°~ 150°C

_

_


Weight: 0.037
