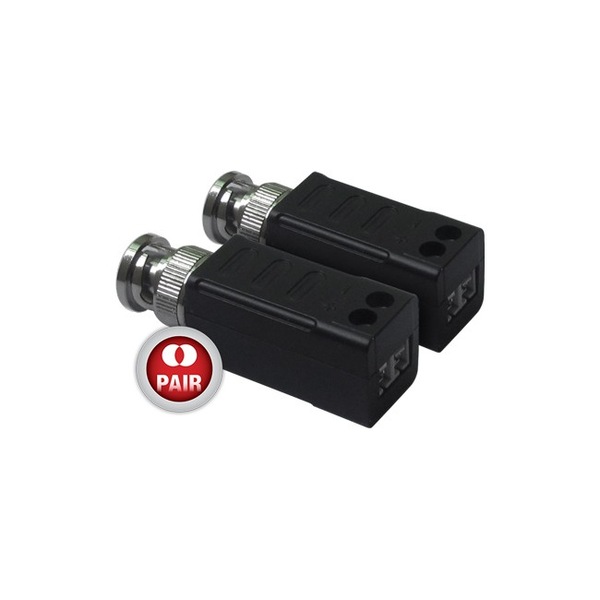

The Doss BVB4102SHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via Unsheilded Twisted Paired(UTP) cable. It is compatible with all HD-TVI, HD-CVI and AHD analog cameras.
BNC plug of the BVB4102SHD allows connection directly to the camera or DVR. Screw terminals of the BVB4102SHD allows easy connection of UTP cable output. Used in pairs, the BVB4102SHD eliminates costly and bulky coaxial cable.
We recommend to use it with wiring from 24AWG through 22AWG. Individually shielded pairsshould be avoided as they reduce the operating range of the systems drastically.
Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||
Video | Video Format | PAL, NTSC, SECAM | |
Operating Frequency | DC to 42MHz | ||
Max Distance | HD-TVI720P: 190m | HD-CVI720P: 440m | AHD720P: 300m |
HD-TVI 1080P:190m | HD-CVI 1080P: 220m | AHD960P: 200m AHD 1080P:220m | |
Common-mode/Differential-mode rejection | 15KHz to 42MHz60 dB type | ||
Impedance | Coax, Male BNC75 unbalanced | ||
UTP, two screwtermianl100 balanced | |||
Attenuation | 1.5 dB typ Max | ||
Wire Type | Network Wiring | One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |
Category Type | 2 or better | ||
Impedance | 100 ± 20 ohms | ||
DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||
Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||
Power | No external power required | ||
Connector | Video input/ output | BNC Plug | |
Videoinput/ output | Tool-less Screw terminal block | ||
Protection | Surge Protection | renewable solid state surge protection | |
Video Input | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | ||
Video Output | 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | ||
Mechanical | Housing | ABS engineering plastic | |
Body Color | Black | ||
Dimensions(L*W*H) | 42.4*17.8*17.4mm (BNC connector excluded) | ||
Net Weight | 20g | ||
Environmental | Operating Temperature | −20°C~70°C | |
Relative Humidity | 0~95% (non-condensing) | ||
Storage Temperature | −40°C~150°C |
