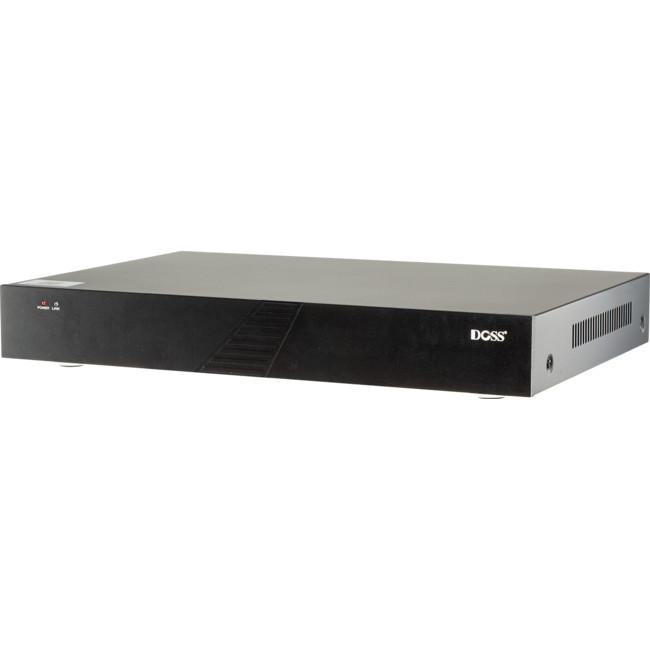

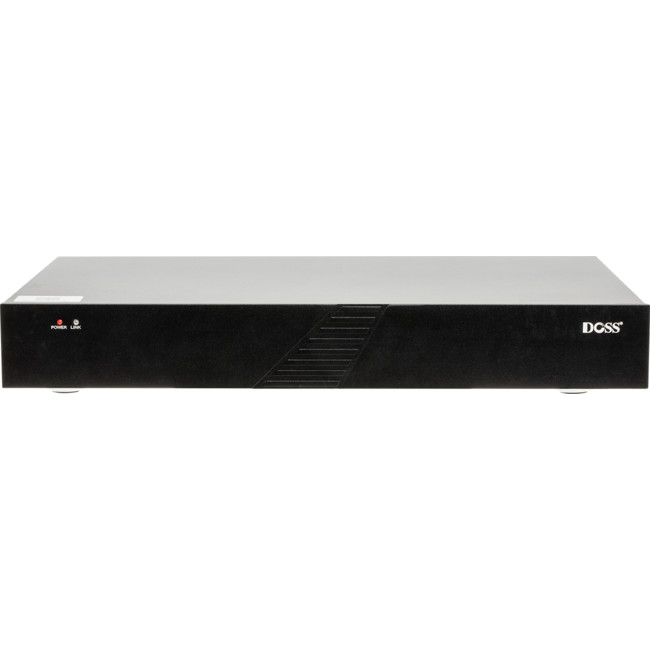

DOSS NVR8IQ4KV3 8Ch 8 PoE Iq Analysis 4K NVR H.265 2Xhdd Fisheye Compatible Fisheye Camera

_

• Supports up to 4K camera resolution
• Compatible with fisheye camera
• 100M/1000M Ethernet Port
• 8CH full real-time network video access, 1U NVR case
• H.265/H.264 dual-stream decoding, embedded linux operation system
• Support sync video recording, remote monitoring, backup
• HDMI output, support 2160P HD preview
• Support 12 times amplification preview and playback video, 8CH standard PoE
• Standard ONVIF, RTSP, GB28181 protocol
• Support DDNS, EMAIL, UPnP, NTP, P2P,etc
• Support FSAN SMART IPC (Target counting, object left/lost, area detection, line crossing detection)
• Support grouping disk quota, and disk inventory two storage pattern, distribute different video storage capacity or cycle according to different channels
• Support IPC centralized management, including IPC parameters configuration, import and export information, information real time acquisition and upgrade, etc
• Support channel grouping, preview round touring
• Network detection(network flow monitoring, network wireshark, network clear)
• Max 8CH sub-stream record sync playback and multi-channel sync play backward
• The new UI interface, support a key to open the video recording , Instant playback
• Dual password authentication and zero channel function

Notes: Please note there are two network cards built into the NVR. If you use the NVR POE for your IP camera, when you add the IP camera to the NVR, you need to change the IP camera address to different subnet range. Forexample, NVR is Lan1, the IP address will like 192.168.1.189, and all other IP cameras directly connected to the NVR should be set to the address like 192.168.2.xxx;

When you add any ONVIF protocol camera to the NVR, please make sure you have changed the IP address of the ONVIF camera before you add it to the NVR, Lan 2 subnetif connects to NVR directly, Lan 1 subnet if it has own power or connects to POE switch. It is also required to add user name and password info for each ONVIF camera in NVR channel settings, even you have no password set in the camera itself, as NVR has no permission to change ONVIF IP camera address and couldn't access the camera without login credentials. _

_

_

The Doss IP NVRs are now smarter with baked in Intelligence features. On top of all that, they also now support higher resolution cameras!

Here's what's new with the IQ NVR range:

• New Graphical User Interface
  The layout and usability on the new NVRs have been greatly improved over their predecessor, making navigating and finding what you want a much easier experience.
  , which also supports the local detection features fortarget counting, object detection, object left/lost, line cross detection, scene change, motion detection, video loss,privacy mask & video tampering. The new Doss range of the 4MP and 8MP IP cameras support these IQ features.

  Specs

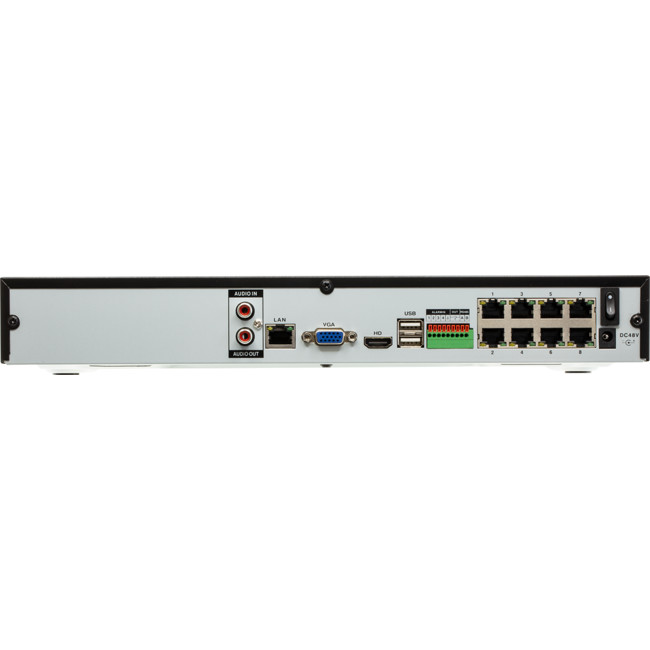

  Rear Interface

  • RJ45 LAN Port
  • 8x POE RJ45 POE ports for cameras, total 80W POE
  • VGA output
  • HDMI Output
  • Terminal block for alarm input/output
  • Terminal block for RS485
  • RCA audio/mic input
  • RCA audio/speaker output
  • 2x USB2.0 ports for mouse and external drives
  • DC Power Input

  Specifications

  VIDEO
  Network Video input	8CH
  Network video input bandwidth	80Mbps
  Video compression	H.265/H.264 /MJPEG
  Video output	HDMIoutput 3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ
  Video bit rate	16-16000Kbps
  Video resolution	4K/5MP/3MP/1080p/960p/720p/D1/VGA/4CIF/DCIF/2CIF/CIF/QC IF
  Image display	1/4/6/8/9/16
  Snapshot	Support timing snapshot, manual snapshot, JPEG format
  Intelligent detection	Motion detection, video loss, video tampering, support FSAN SMART IPC intelligentfunction
  AUDIO
  Audio compression	_ G.711U
  Audio input	1CH (IPC complex audio input)
  Audio output	1CH [RCA port]
  Bidirectional talk	/
  VIDEO RECORDING AND PLAYBACK
  Video frame rate	1-30 FPS
  Record method	Manual/external alarm/MD/timing/intelligent analysisalarm
  Playback ability	Support 1CH 4K/5MP/3MP; 4CH1080P 8CH sub-stream record sync playback
  Playback mode	Instant playback,Local video, local image, External file playback
  Video search	Time, calendar, event search, channel search(ANR,regular video, motion detection video, alarm video, intelligent detection video)
  Video playback	Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds,fast play(1-256X), slow play(1-1/32X), frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time bar precise Aussie Stock All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate. No PO Boxes or Parcel Lockers At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses. In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address. Delivery times We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times. Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.
