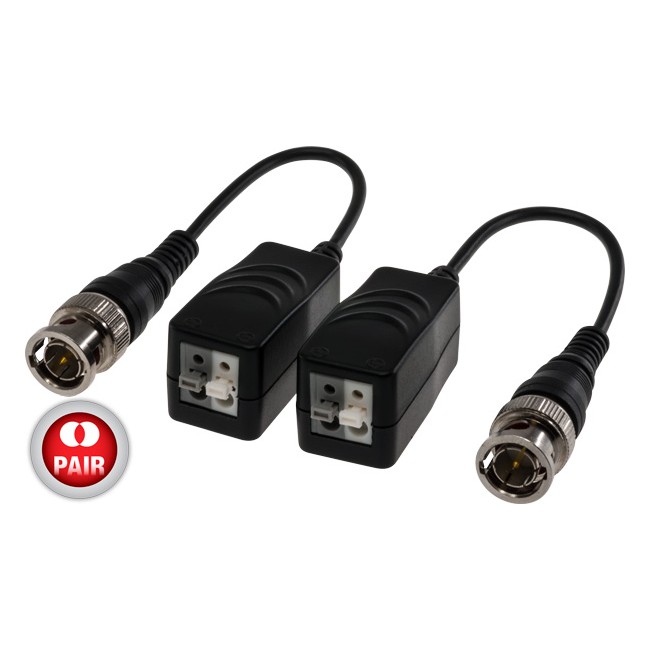

The BVB4201PLHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported. It is compatiable with all HD-TVI, HD-CVIand AHD analoge camera.
The BVB4201PLHD has a mini-coax pigital lead which allowsquick mounting onto fixed cameras and in-camera mounting in most dome cameras. Push-pin terminal block allows tool-less connection of UTP cable output. Used in Pairs, the BVB4201PLHD eliminates costly and bulky coxial cable.
The superior interference rejection and low emissions of the BVB4201PLHD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power cirucuits. It has buit-in surge suppressor to protect video equipment against damaging voltage spikes.
We recommend to use it with wiring from 24AWG through 22AWG. Individually shielded pairsshould be avoided as they reduce the operating range of the systems drastically.
Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||
Video | Video Format | PAL, NTSC, SECAM | |
Operating Frequency | DC to 42MHz | ||
Max Distance | HD-TVI720P: 190m | HD-CVI720P: 440m | AHD720P: 300m |
HD-TVI 1080P:190m | HD-CVI 1080P: 220m | AHD960P: 240m AHD 1080P: 220m | |
Common-mode/Differential-mode rejection | 15KHz to 42MHz60 dB type | ||
Impedance | Coax, Male BNC75 unbalanced | ||
UTP, two push-pins100 balanced | |||
Attenuation | 1.5 dB typ Max | ||
Wire Type | Network Wiring | One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |
Category Type | 2 or better | ||
Impedance | 100 ± 20 ohms | ||
DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||
Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||
Power | No external power required | ||
Connector | Video input/ output | Male BNC connector | |
Videoinput/ output | Tool-less Push-pin terminal block | ||
Protection | Surge Protection | renewable solid state surge protection | |
Video Input | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | ||
Video Output | 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) | ||
Mechanical | Housing | ABS engineering plastic | |
Body Color | Black | ||
Dimensions(L*W*H) | 38.4*18.6*19.5mm (BNC connector excluded) | ||
Net Weight | 40g | ||
Environmental | Operating Temperature | −20°C~70°C | |
Relative Humidity | 0~95% (non-condensing) | ||
Storage Temperature | −40°C~150°C |
