5V 1CH Flip-Flop Latch Relay Module Bistable Self-locking Trigger Switch Board

5V 1CH Flip-Flop Latch Relay Module Bistable Self-locking Trigger Switch Board

Price	$24.14
	Collect 24 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

1 Channel DC 5VSelf-lockingRelay Module(version 1) :
Working voltage: DC 5V
Working current: 60-70MA
Standby current: 0.1mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger

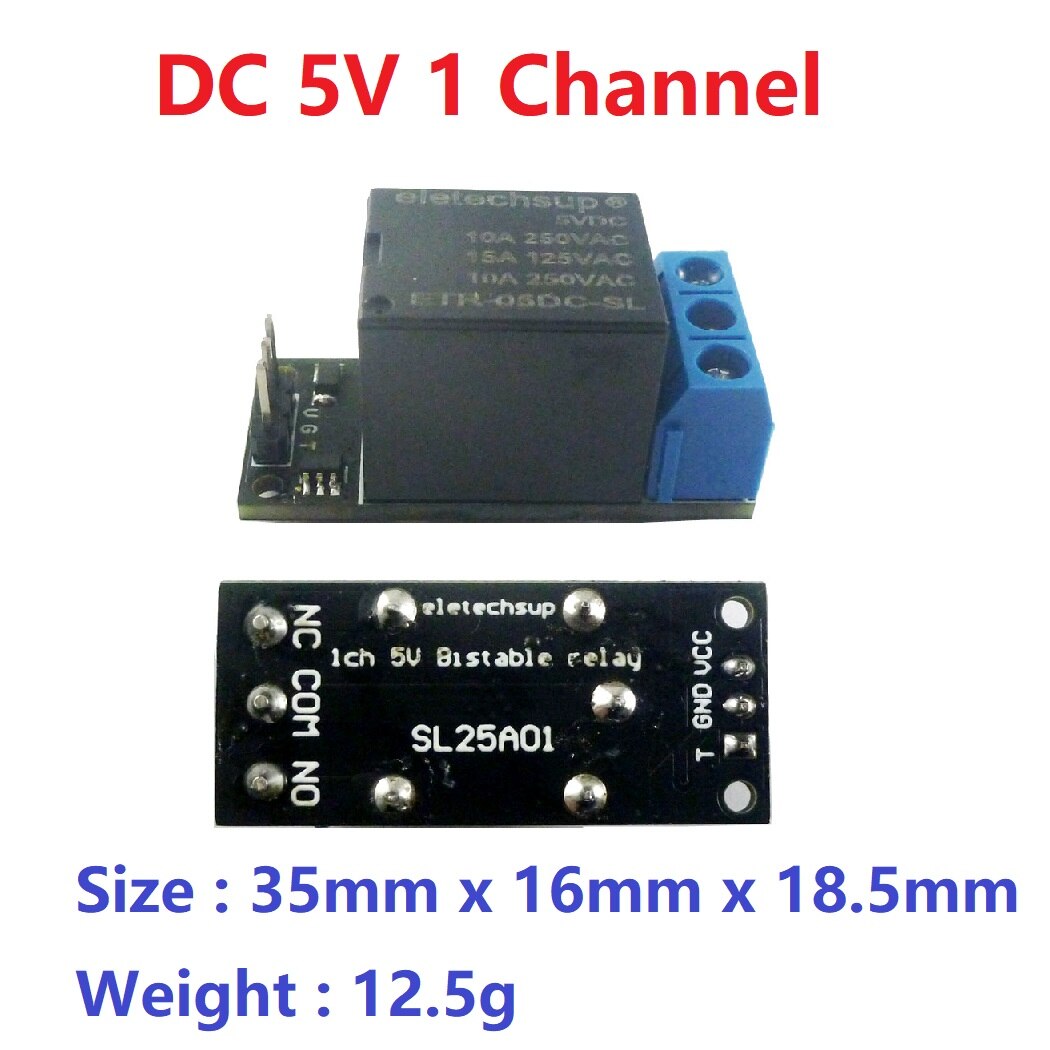

Size: 35mm * 16mm * 18.5mm (L * W * H),Very small size
Weight: 12.5 g

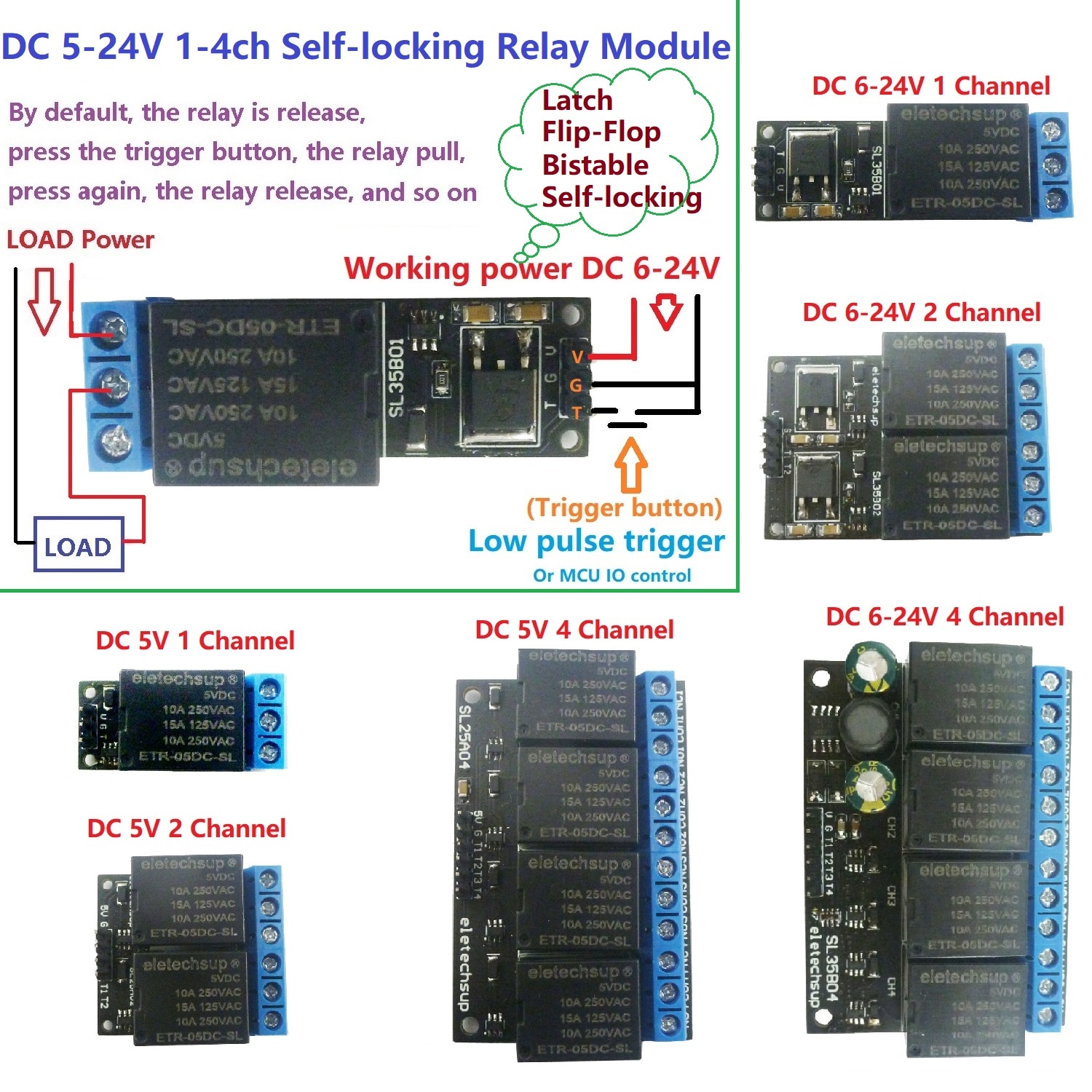

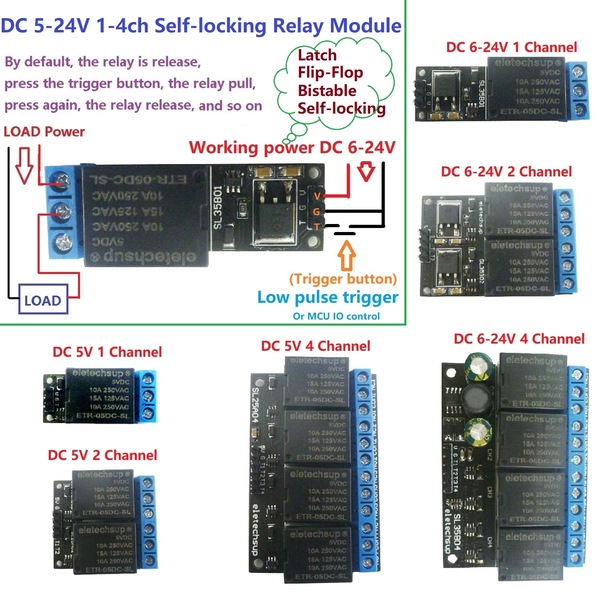

USE 1:

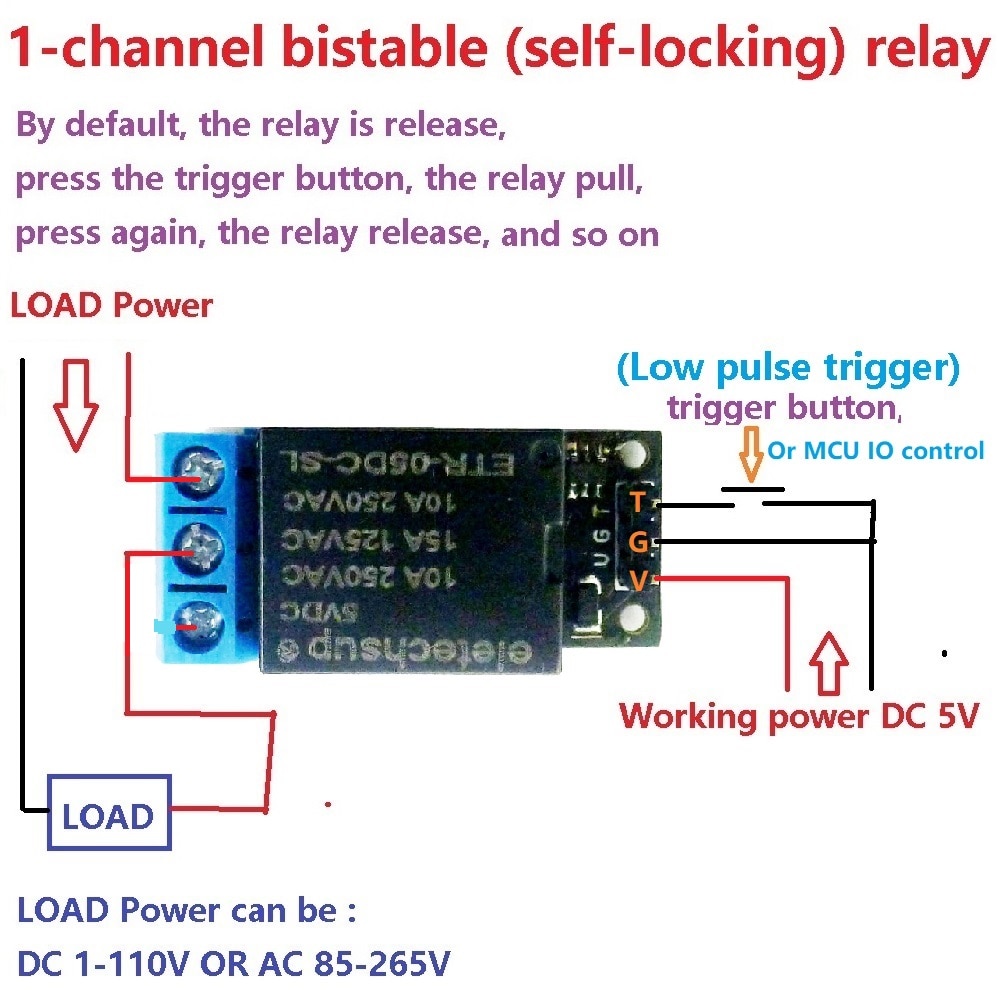

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.
USE 2:
By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, thethird low-pulse, the relay pull, and so on.

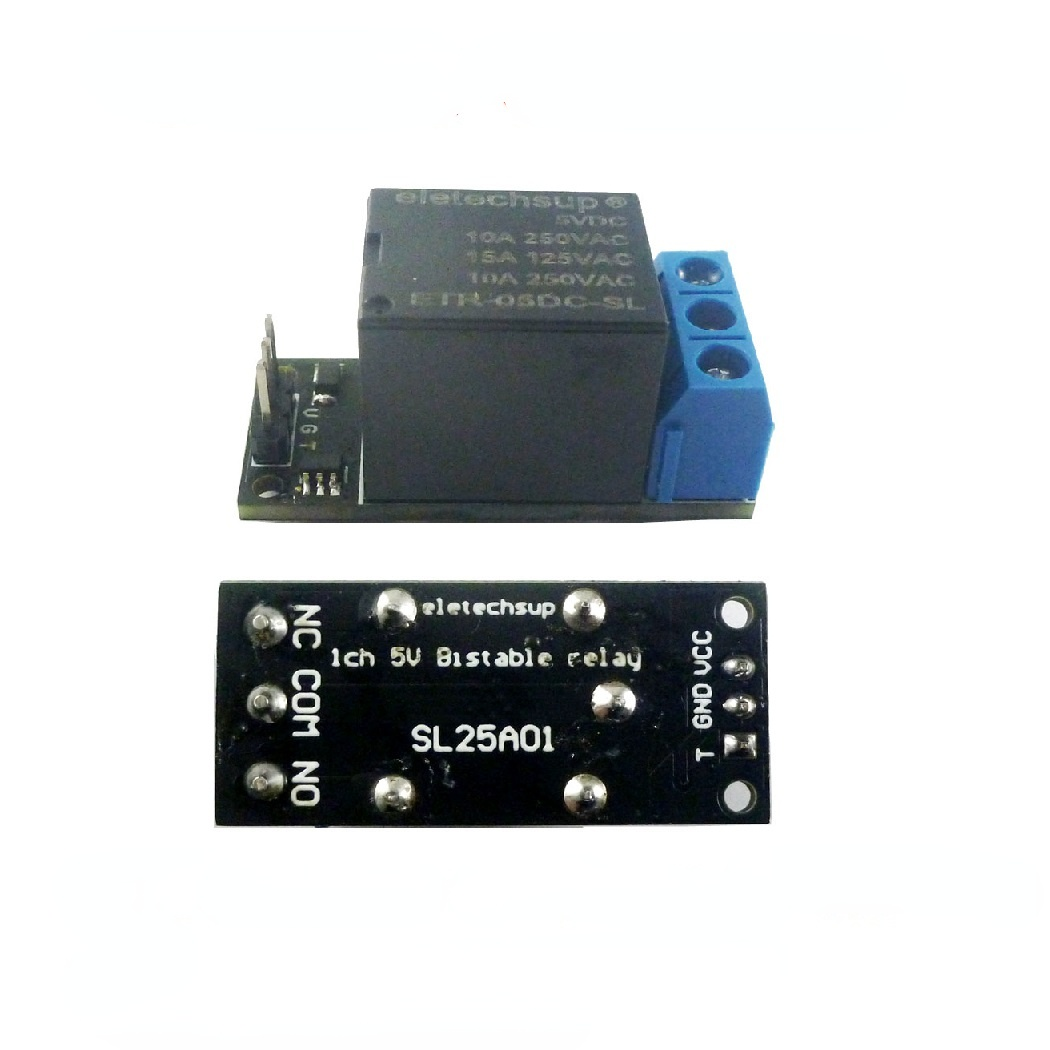

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T (T1/T2/T3/T4): Low pulse trigger
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:

Automotive electronics
Motor/PLC/LED
Smart Home/Home automation
Emergency lighting
MCU development board
Toy car

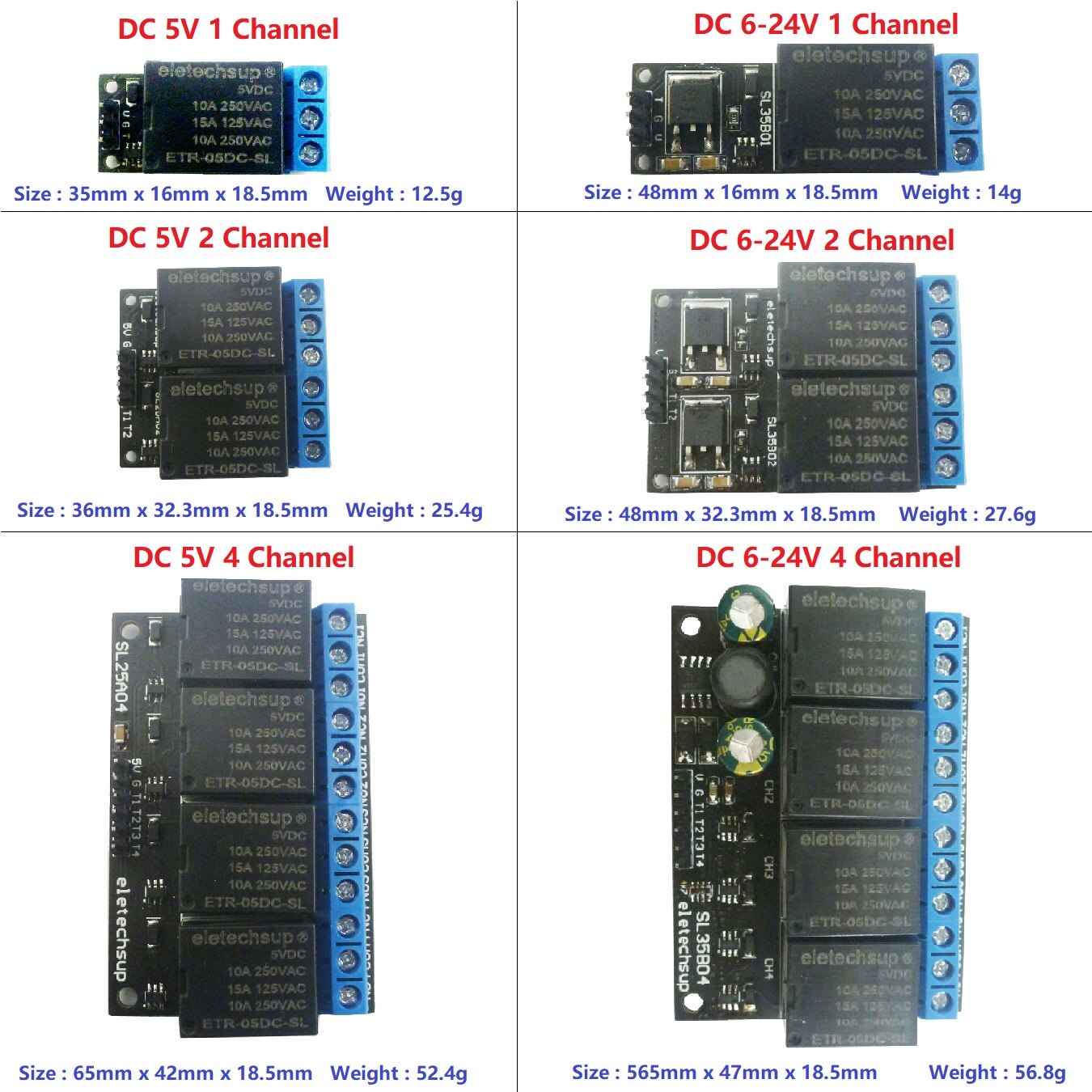

Packing list:1 pcs1/2/4 Channel DC 5V/12VSelf-lockingRelay Module
Please select the version you need

GTIN: 774048926812
