32ch Box DC 12V RS485 Modbus RTU Relay Board 485 Bus Remote Control Switch

32ch Box DC 12V RS485 Modbus RTU Relay Board 485 Bus Remote Control Switch

Price	$145.59
	Collect 290 Everyday Rewards points 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

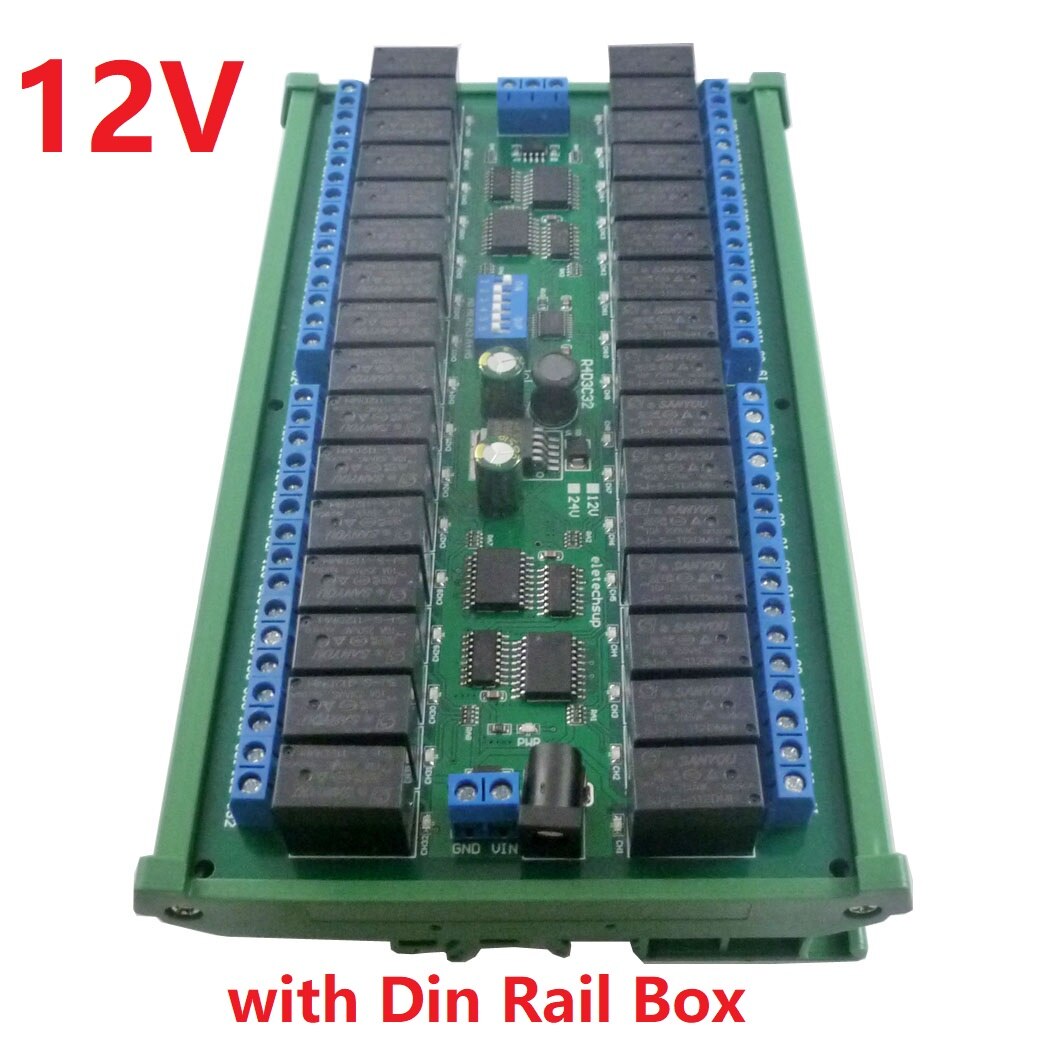

1: 12V (12V version)
2: (12V version) Standby current (all relays closed) 8MA, all 32 relay open 1050mA
3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: MODBUS RTU command
5: Under the ''Delay'' command ,the maximum delay is 255 seconds
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter.
7 Under the MODBUS command mode, it can support up to 64 devices in parallel

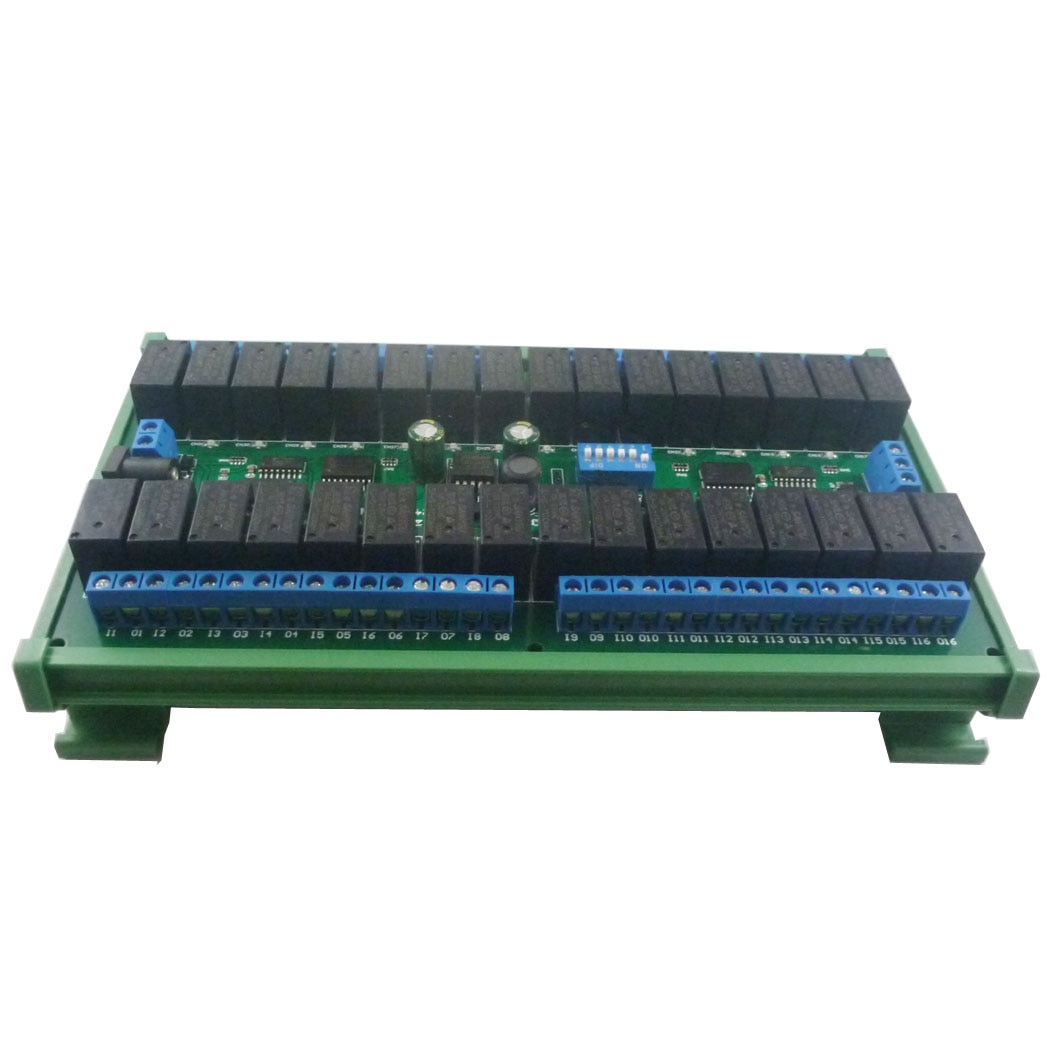

8 Size: 195 * 115 * 43mm(with DIN Rail Box)
9 Weight: 475g(with DIN Rail Box)
10 Maximum load: 10A / 250VAC, 10A / 125VAC

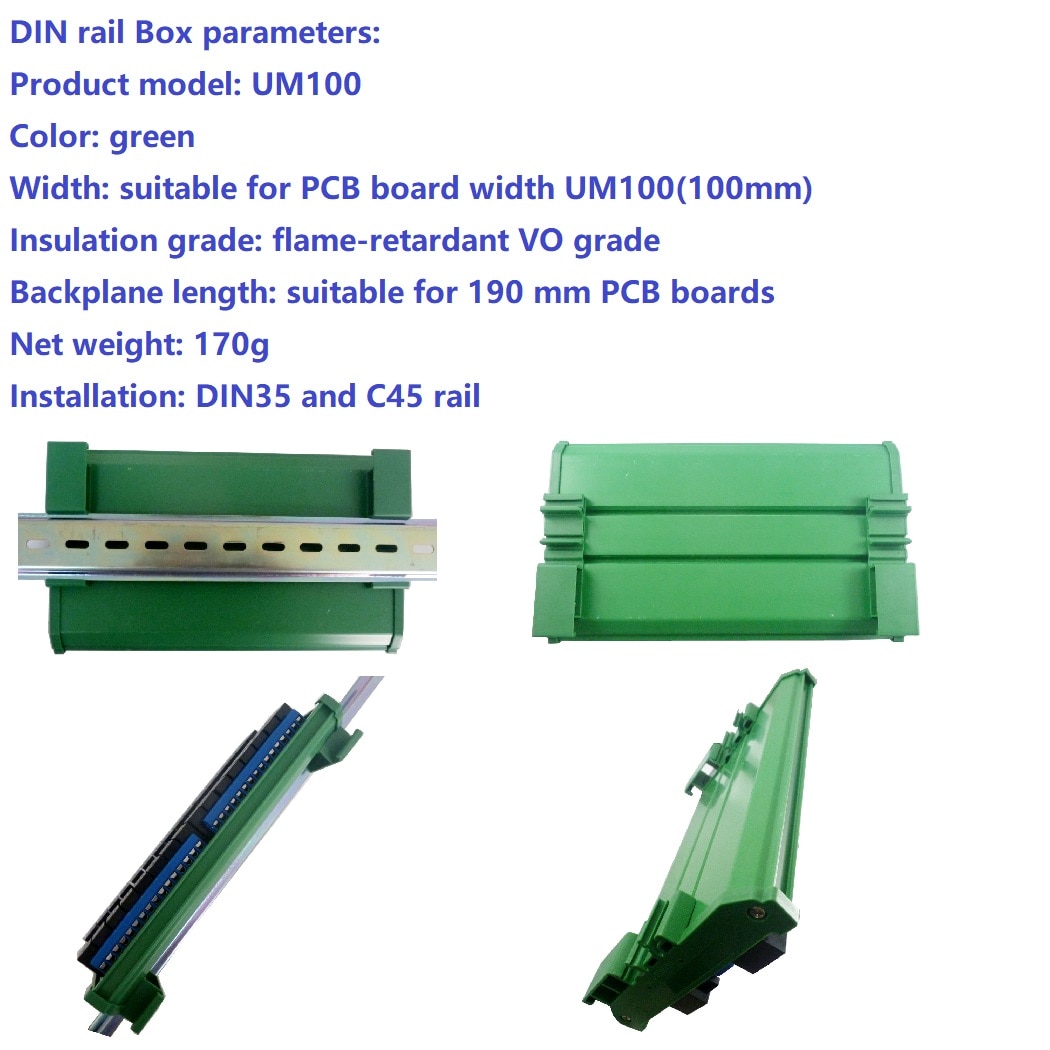

DIN rail Box parameters(DIN Rail Box Version):
Product model: UM100
Color: green
Width: suitable for PCB board width UM100(100mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 190 mm PCB boards
Net weight: 170g
Installation: DIN35 and C45 rail

Application??

Automated industry PLC
Smart Home,Home Automation ,Wiser Home;
IP PTC Camera
Security Monitoring
Identification system;
Motor FW & BW
LED Home lighting
Door Lock
diy electronic
Typical applications:
MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control

Package inlcuded:1 x DC 12V 32 Channels Rail RS485 Modbus RTU Relay Module
