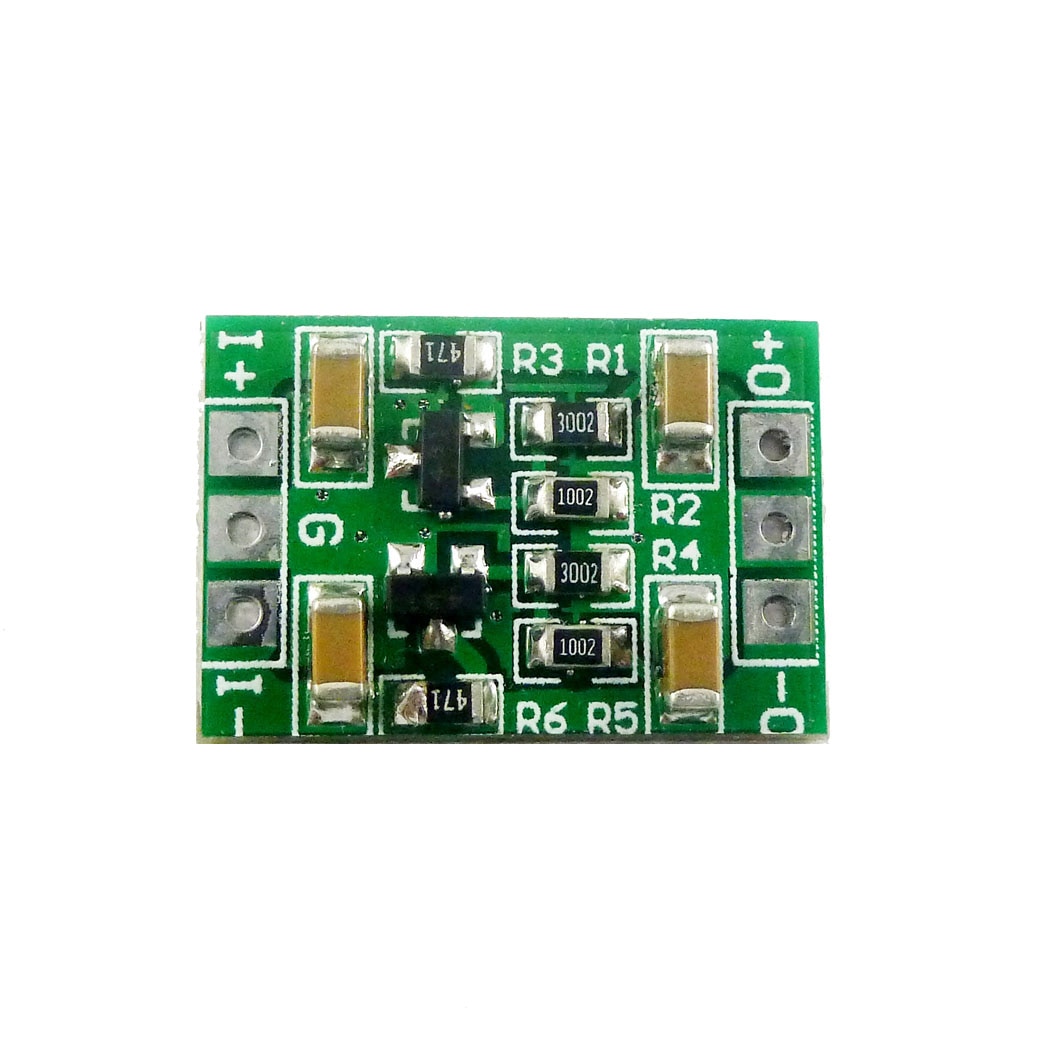

10V TL341 High Precision Voltage Reference Module for OPA ADC DAC ARM STM32 MCU

10V TL341 High Precision Voltage Reference Module for OPA ADC DAC ARM STM32 MCU

Price
$23.57
Collect 23 Everyday Rewards points
Plus get 2x points on every order when you spend $100+
Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Size
Shipping
Free Shipping

24-48 hour dispatch
Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA
Quantity
Maximum item limit (20000) has been reached.

Description:
?

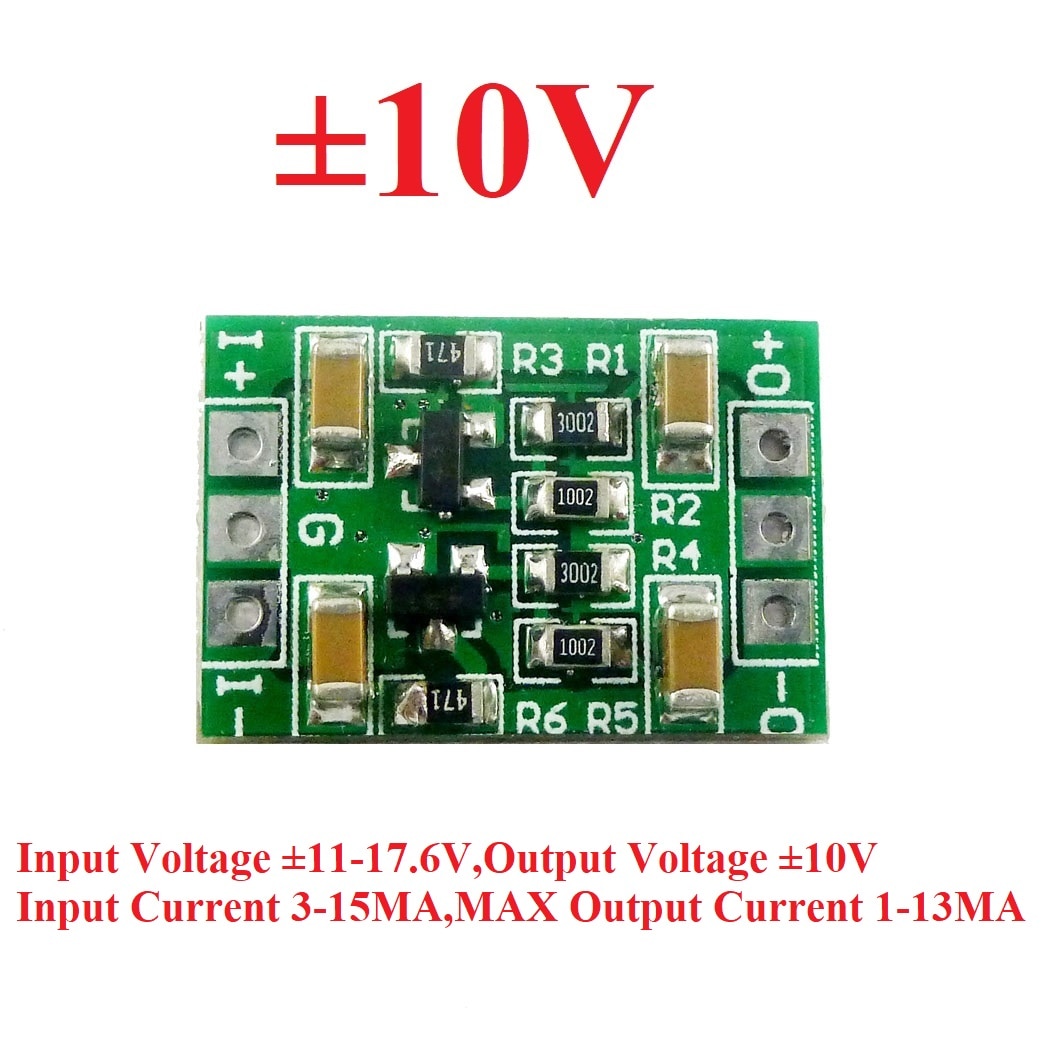

��10 V :
Input Voltage ��11-17.6V,Output Voltage ��10V
Input Current 3-15MA,MAX Output Current 1-13MA

Accuracy : ��1%
Operating temperature range : -40~+125 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.
Size : 19*13*2.8mm
Weight : 0.9g

Note:

1 This is a voltage reference source, and its output current is small and cannot be used as a power supply.
2 If the input voltage is too small or the output current is too large, the output will be distorted
3 If the input voltage is too large, the module will heat up

Applications??

Operational Amplifier : LM324 LM358 AD101 AD201 Etc.
ADC : ADC0809 MAX160 AD7705 Etc.
DAC :DAC0832 PCF8591 TL5615 MPC4822 TL5610
Replace AD584 LM399? LM4040? MC1403 LM326 AD637 AD584
Audio equipment?
RS232 RS485 RS422 Bus
LCD power supply
Instrumentation equipment
Wifi/Router/Ethernet devices

Packing list: 1 PCS TL431 voltage reference Module

Estimated Delivery Time Frame: 12-20 business days
