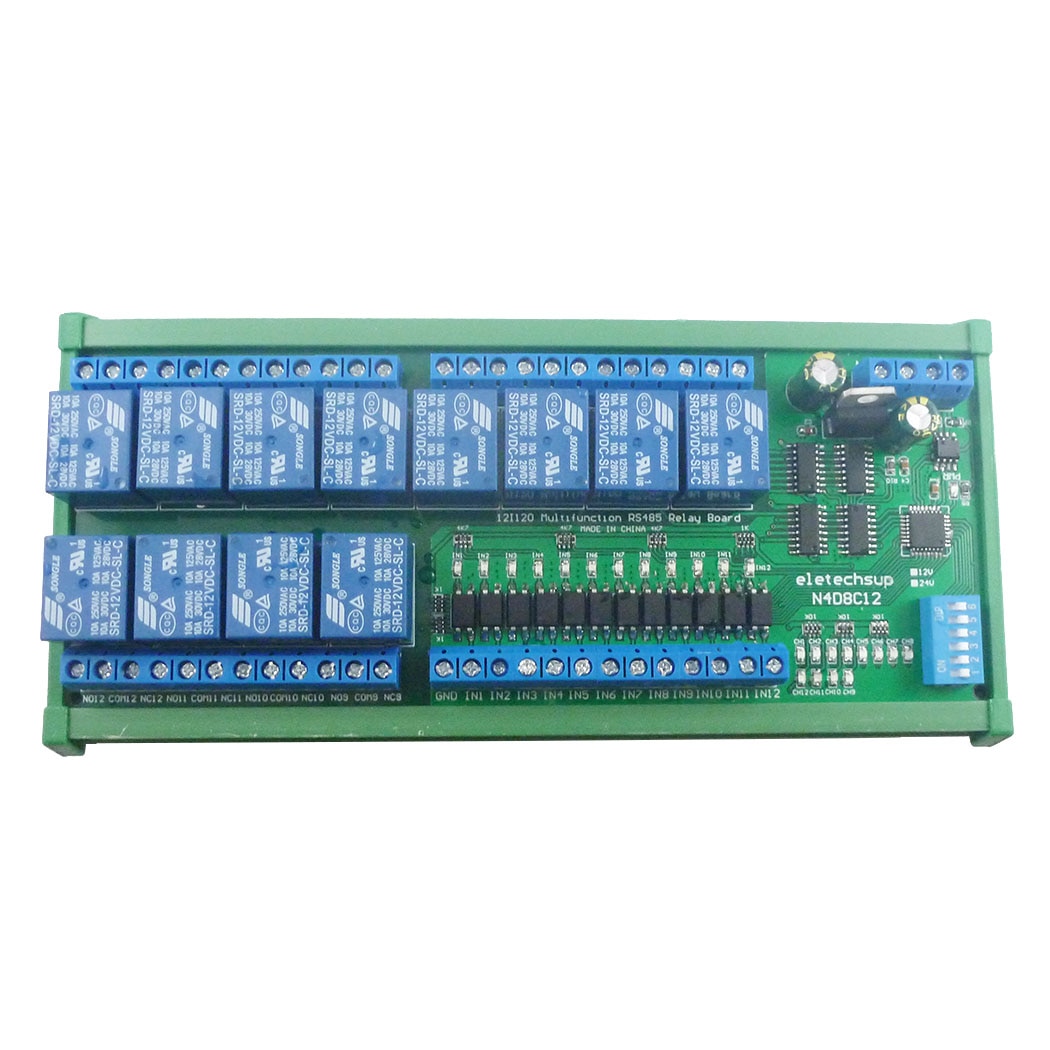

12ch 12V Input Output UART RS485 Relay Module Modbus RTU DIN35 C45 Rail Box-1#

12ch 12V Input Output UART RS485 Relay Module Modbus RTU DIN35 C45 Rail Box-1#

Price	$60.43
	Collect 180 Everyday Rewards points Score 3x points on every order Ends 11:59pm 16/02/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 27/02/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code JJE49

Quantity

Add to wishlist

Description:

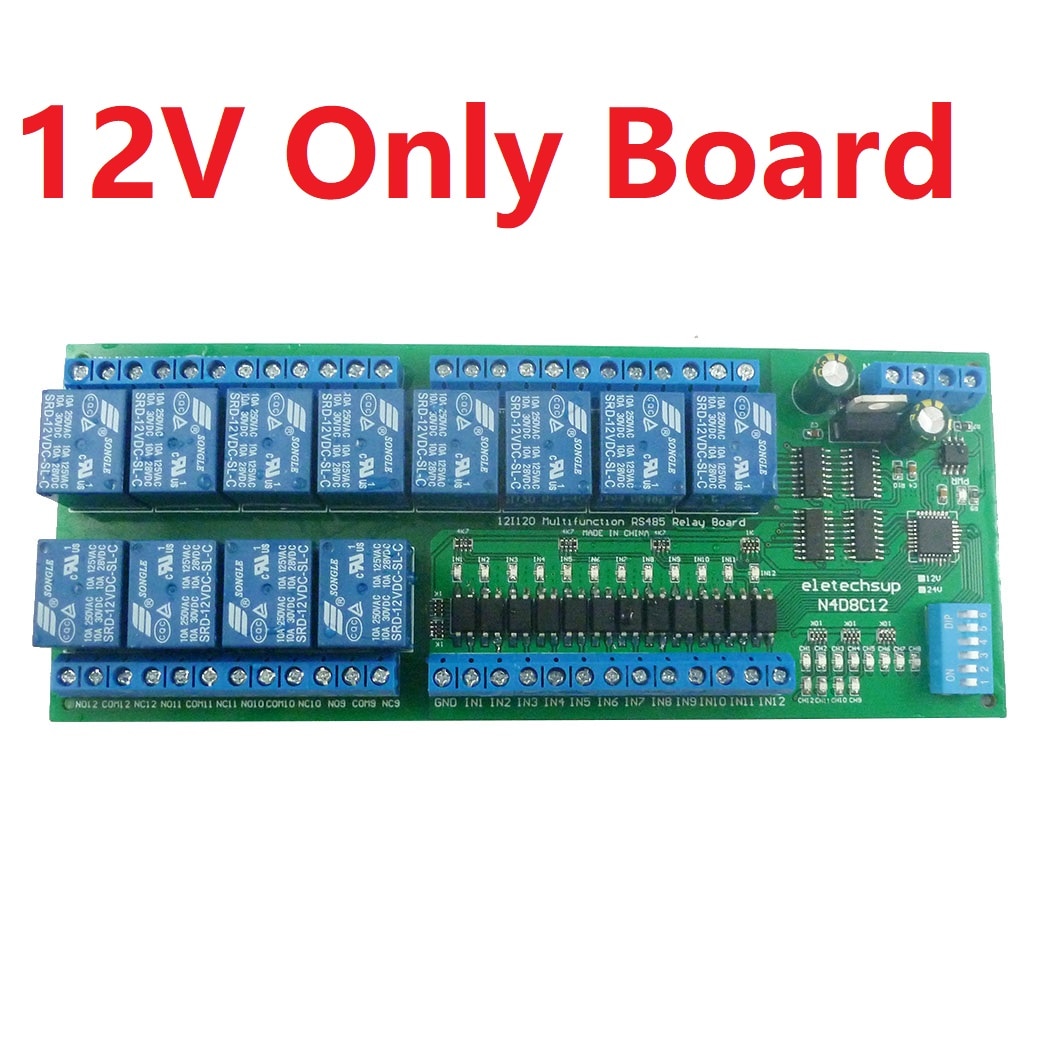

1: DC 12V (12V Version)
2: Standby current (all relays closed) 14MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 226MA

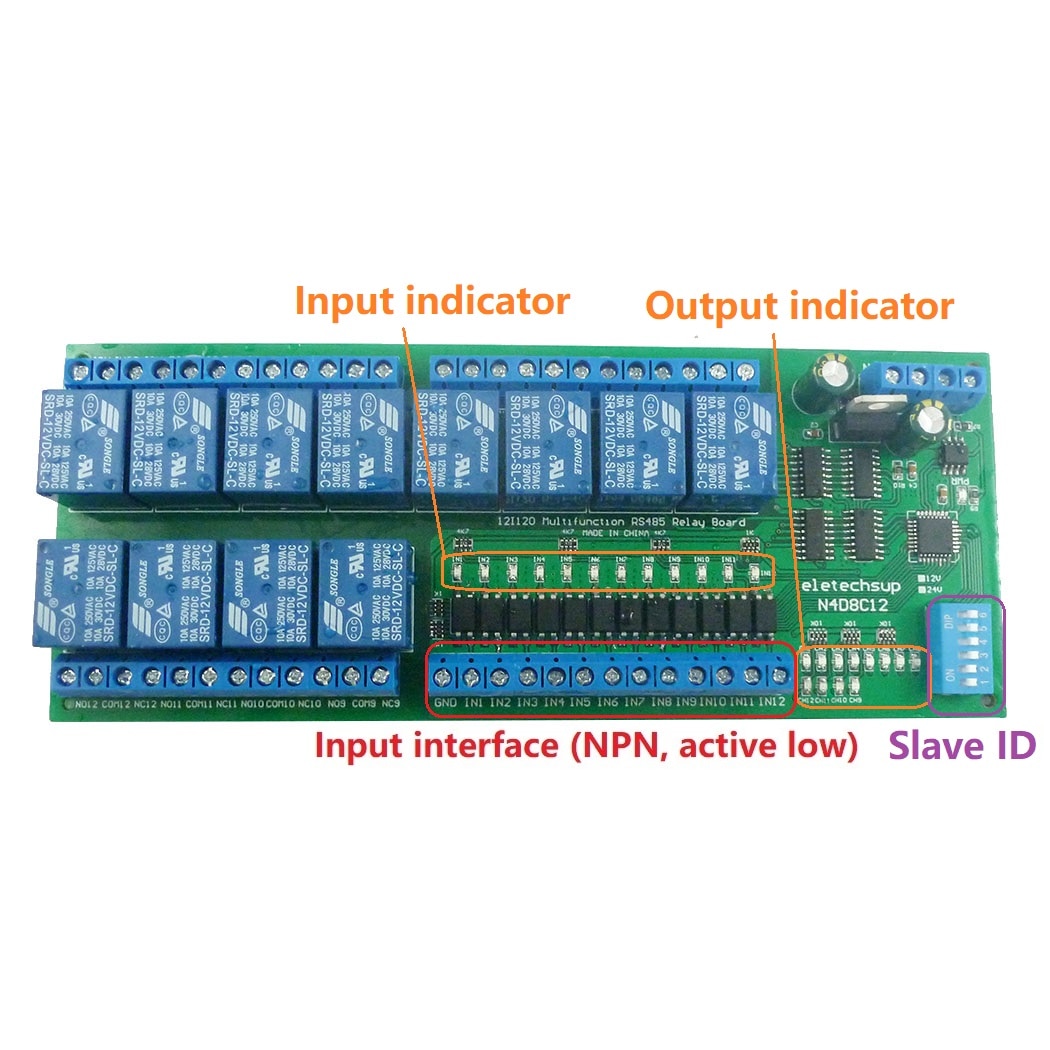

3 12 photoelectric isolation Input ports (NPN? low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4: ''open'' ''close''? ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''''Interlock between two channels'' 7 Commands
5: MODBUS RTU command, Support 03 06 16 function code
6: Under the ''Delay'' command ,the maximum delay is 255 seconds;

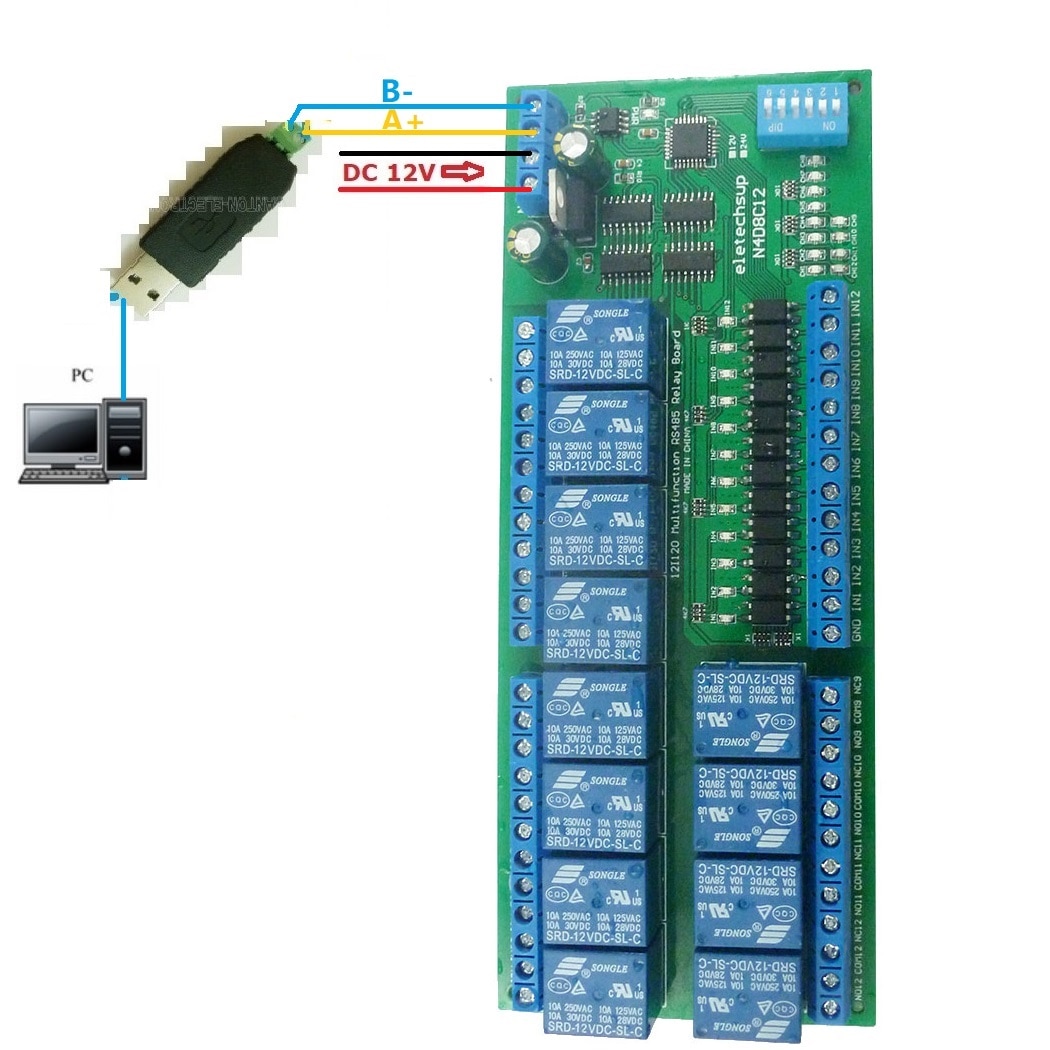

7 MODBUS commands can be made serial HyperTerminal (serial assistant)? OR ''Modbus Poll'' Enter;
8 Under the MODBUS command mode, it can support up to 64 devices in parallel
9 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
10? Size: 180 * 72 * 20mm(Only PCB Board)
11 Weight: 190g(Only PCB Board)

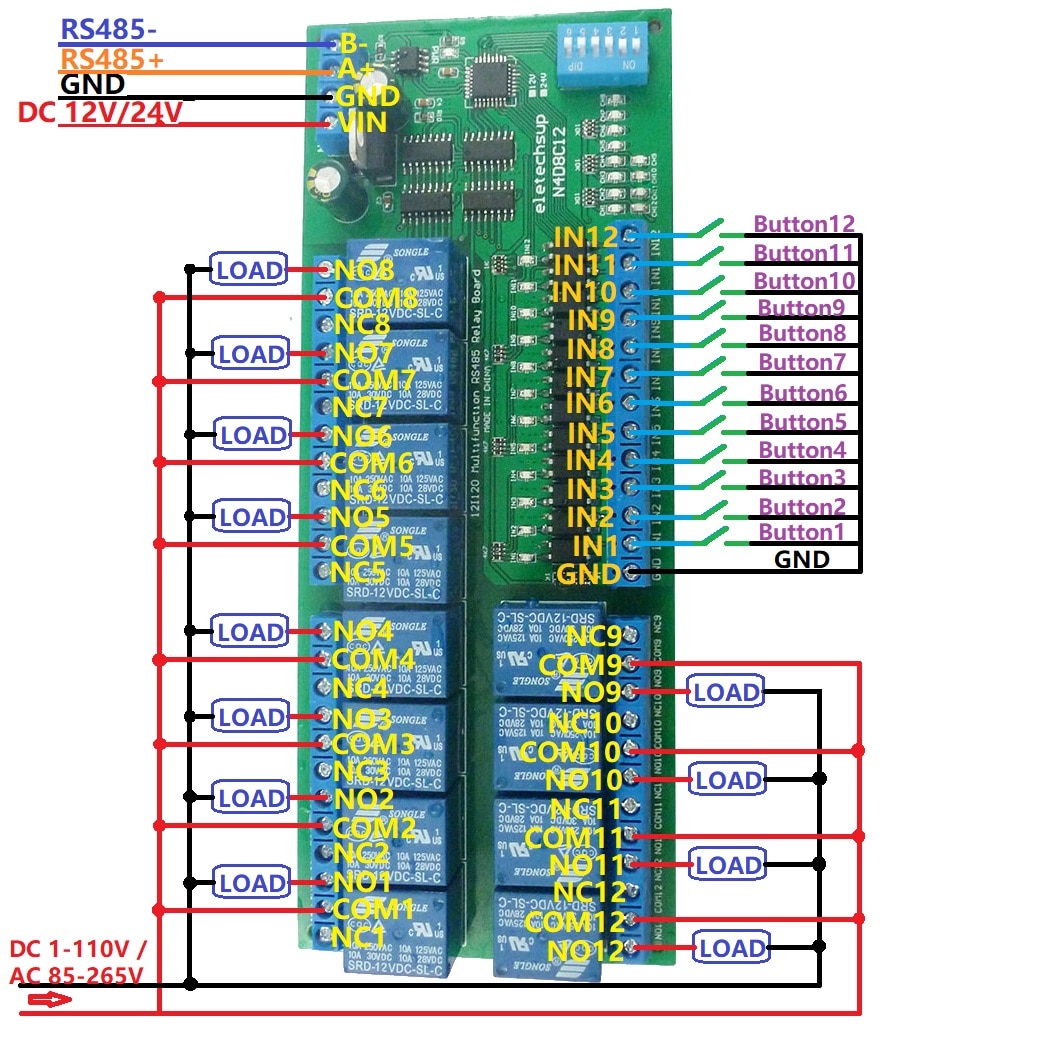

12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Application??
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control
Configuration Software

Package inlcuded:1PCS DC 12V 12 Input & 12 Output RS485 Relay Module
