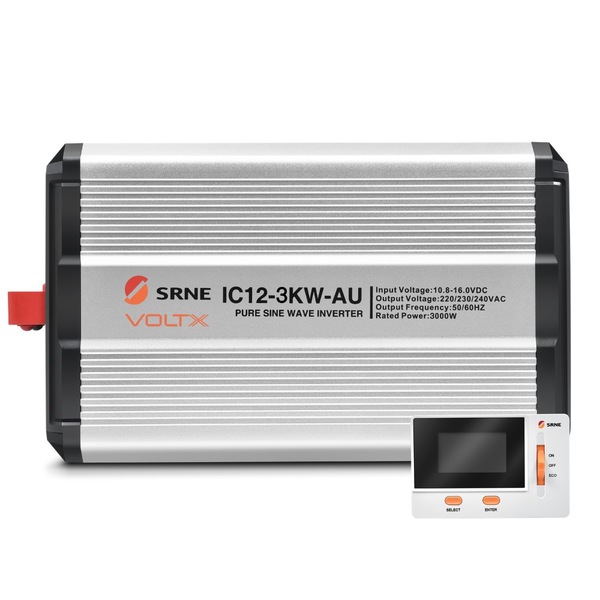

VoltX 12V 3KW Pure Sine Wave Inverter + LCD Display

VoltX 12V 3KW Pure Sine Wave Inverter + LCD Display

Price
$869
Collect 869 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (313) has been reached.

Product 1: VoltX 12V 3KW Pure Sine Wave Inverter

  • Specifications

    • Rated Output Power: 3000W
    • Rated Output Power VA: 3000VA
    • Withstand Instantaneous Impact Power: 6000W
    • Rated Output Voltage: 220VAC/230VAC/240VAC(±3%)
    • Output Frequency: 50/60HZ(±0.2%)
    • Output Wave: Pure sine wave
    • Output Harmonic Component: THDV > 3% (pure resistance load)
    • Load Power Factor: 0.2-1 (load power ≤ output continuous power)
    • Rated Input Voltage: 12VDC
    • Input Voltage Range: 10.8~16.0VDC
    • Rated Output Efficiency: 0.87
    • Maximum Output Efficiency: > 91.5% (30% overload)
    • Standby Current: <0.24A
    • No-load Current: <1.45A
    • USB Interface: Dual USB output, 5VDC/2A
    • ON/OFF/ECO Mode: ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
    • ECO Starting Power: <30W
    • ECO Interval Time: 1min
    • TTL Interface: Non-isolated TTL communication, power supply 12.5V/200mA
    • Indicator: Green - normal operation; Red - fault
    • External Switch Contact Interface: Switch on or off by control equipment such as external relay and mechanical switch
    • Protection Function: Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
    • Operating Ambient Temperature: -20℃~60℃
    • Storage Ambient Temperature: -35℃~80℃
    • Relative Humidity: ≤95%
    • IP Grade: IP20
    • Heat-dissipating Method: Natural heat dissipation + intelligent air cooling
    • Noise Level: ≤60dB
    • Warranty: 3 Years

  • Dimensions & Weight

    • Dimensions: 409 x 249 x 120mm
    • Mounting Hole Spacing: 374 x 141mm
    • Fixed Hole Position: 5mm
    • Net Weight: 8.0kg

    Product 2: VoltX LCD Display

  • Specifications

    • Input Voltage: 5V-12V
    • Stand-by Power Consumption: >0.1W
    • Operation Power Consumption: >0.36W
    • Communication Baud Rate: 1200-11520bps (9600bps by default)
    • Communication Mmethod: RS485
    • Communication Interface: RJ45
    • Operating Temperature: -35℃ ~+65℃
    • IP Grade: IP32
    • Altitude: ≤3000M

  • Dimensions & Weight

    • Dimensions: 79 x 52 x 32mm
    • Net Weight: 90g

    Tips: The items in this bundle will be shipped separately, the packages may arrive at different times, please be patient and wait.
    GTIN: 9355348041651

    Estimated Delivery Time Frame: 3-12 business days
