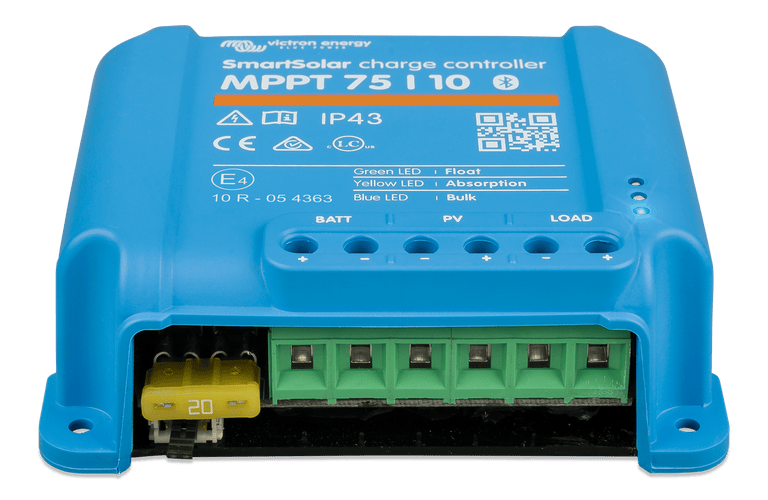

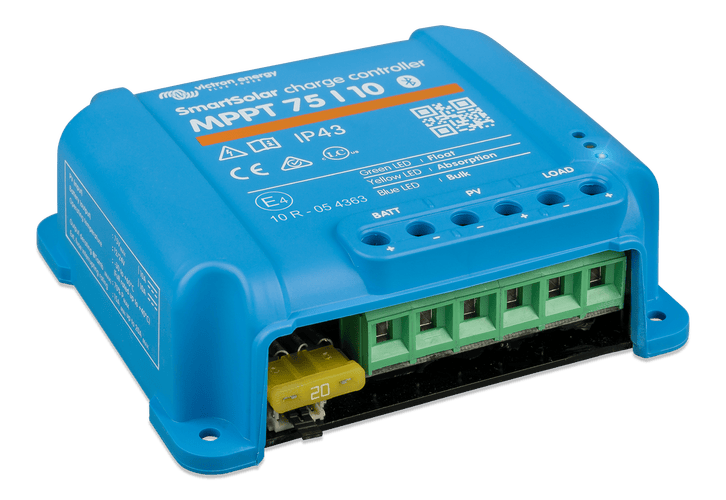

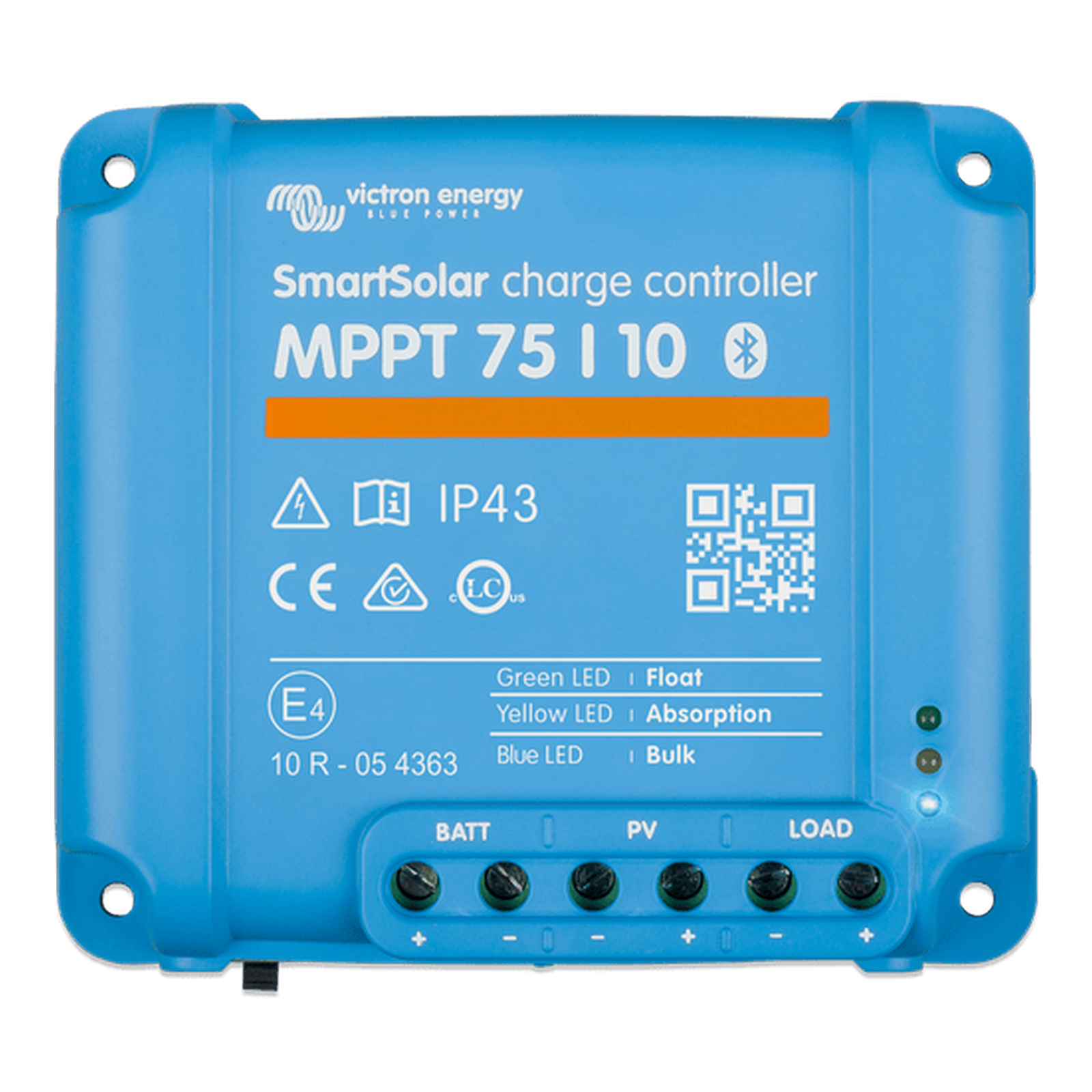

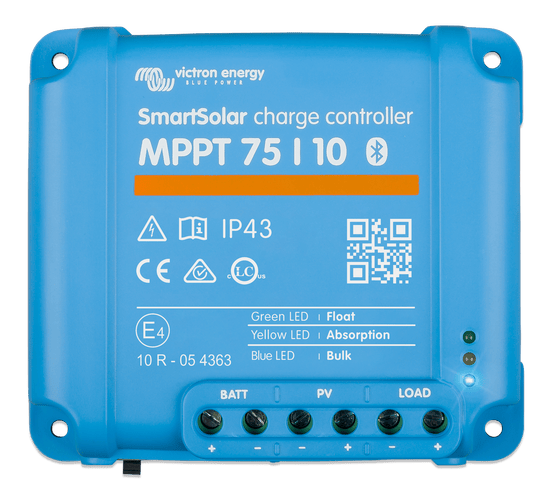

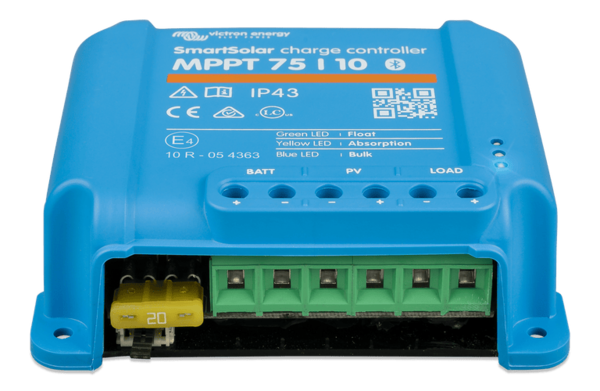

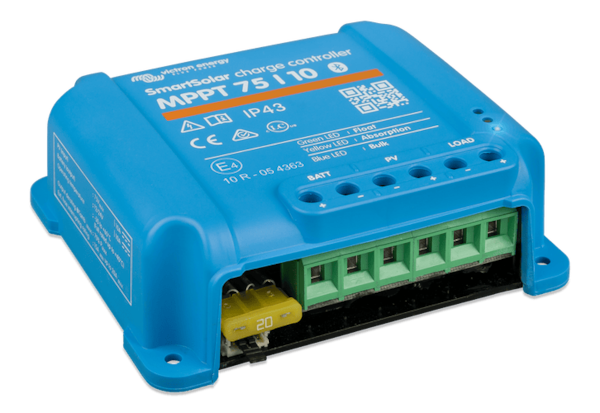

Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller

Elevate your solar system's efficiency with the Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller. This compact and advanced controller is designed to maximize the performance of your solar panels, offering an easy and efficient way to manage your solar energy.

Bluetooth Smart: Effortless Solar Management

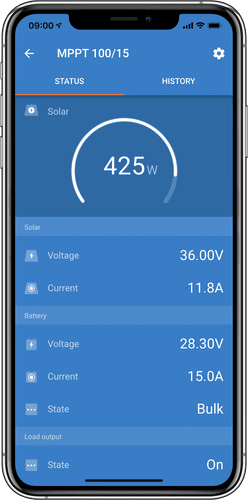

With the integrated Bluetooth Smart technology, managing your solar energy system is a breeze. This feature allows for wireless setup, monitoring, updating, and synchronization of your SmartSolar Charge Controllers, providing a user-friendly interface through your smartphone or tablet.

VE.Direct: Reliable Wired Data Connectivity

The VE.Direct port offers a robust wired data connection to Cerbo GX and other GX devices, PCs, or similar devices. This direct connectivity ensures efficient data sharing and device integration, optimizing your solar energy system's performance.

Ultra-fast MPPT: Enhanced Energy Harvest

Utilize our ultra-fast Maximum Power Point Tracking (MPPT) technology to significantly increase your energy harvest—by up to 30% over PWM charge controllers and by up to 10% over slower MPPT controllers. This technology is ideal for environments with cloudy skies and fluctuating light intensity, ensuring you capture the maximum solar energy available.

Load Output: Intelligent Battery Protection

The load output feature prevents battery over-discharge by disconnecting the load when the battery voltage drops to a predetermined level. This intelligent battery management algorithm optimizes operation and protects your battery's health and longevity.

Battery Life: Prolonged Battery Longevity

Our innovative Battery Life algorithm promotes efficient charging of your solar charge controller, avoiding harmful cycles between partially charged and fully discharged states. This strategy ensures a near-full recharge approximately once every week, extending your battery's life.

Programmable Battery Charge Algorithm: Tailored Charging Solutions

Visit our software section for details on customizing your battery charge algorithm. This flexibility allows you to tailor the charging process to your specific needs, ensuring optimal performance of your solar system.

Day/Night Timing and Light Dimming

Explore additional functionalities such as day/night timing and light dimming through our software. These advanced features provide enhanced control over your solar system, allowing for further optimization of energy use.

Internal Temperature Sensor: Accurate Charge Adjustment

The built-in internal temperature sensor accurately compensates for absorption and float charge voltage according to temperature fluctuations, ensuring your battery is charged efficiently and safely under all conditions.

Optional External Battery Voltage and Temperature Sensing

Enhance your system's monitoring capabilities with optional accessories like the Smart Battery Sense or a BMV-712 Smart Battery Monitor. These devices communicate vital battery voltage and temperature information to your SmartSolar Charge Controllers via Bluetooth, optimizing your solar energy system's efficiency.

Advanced Charging Features
Adaptive 3-Stage Battery Charging

The sophisticated 3-stage charging process, consisting of Bulk, Absorption, and Float stages, ensures efficient and thorough battery charging. This adaptive approach adjusts the Absorption stage duration based on the battery's discharge level, maintaining batteries at a healthy voltage and ensuring they remain fully charged.

  • Bulk Stage: Delivers maximum charge current for rapid battery charging.
  • Absorption Stage: Switches to constant voltage, gradually reducing current to avoid overcharging.
  • Float Stage: Keeps batteries at a lower voltage to preserve their charged state, especially when solar power is not available at night.
Flexible Charge Algorithm and Equalization Charging

The VictronConnect App offers a choice of 8 pre-set charge algorithms or a fully programmable charge algorithm, allowing for complete customization of charge voltages, stage durations, and charge current. Additionally, equalization charging can be activated for specific lead-acid battery types to ensure all cells are balanced, promoting battery health and longevity.

Invest in the Victron 12/24V 10A SmartSolar MPPT 75/10 Bluetooth Solar Charge Controller for a smart, efficient, and customizable approach to solar charging, ensuring your solar system operates at its maximum potential.

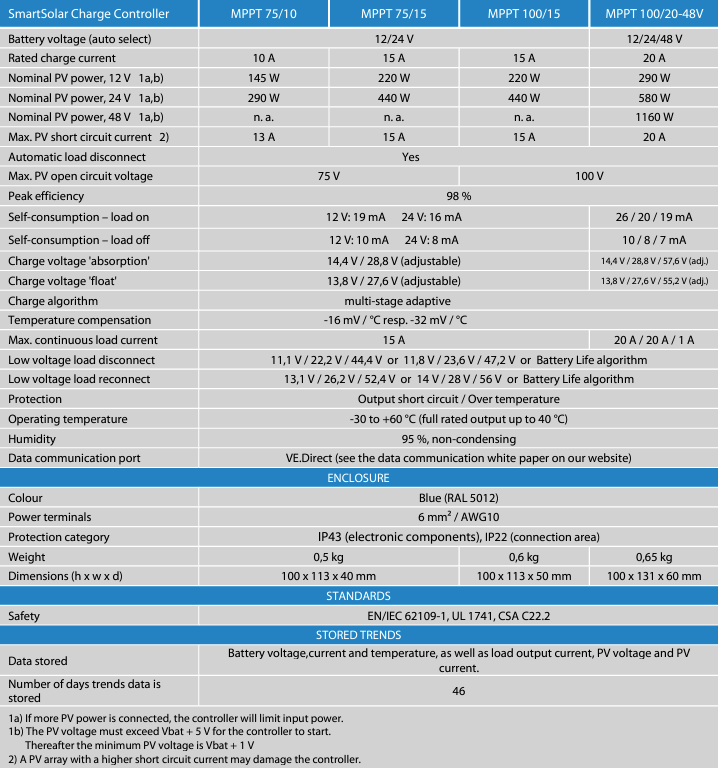

Specifications:

Specifications
Solar Charge Controller MPPT 75/10
Battery voltage (auto select) 12/24 V
Rated charge current 10 A
Nominal PV power, 12 V 145 W
Nominal PV power, 24 V 290 W
Nominal PV power, 48 V n.a.
Max. PV short circuit current 13 A
Automatic load disconnect Yes
Max. PV open circuit voltage 75 V
Peak efficiency 98%
Self-consumption – load on 12 V: 19 mA
24 V: 16 mA
Self-consumption – load off 12 V: 10 mA
24 V: 8 mA
Charge voltage 'absorption' 14.4 V / 28.8 V (adj.)
Charge voltage 'float' 13.8 V / 27.6 V (adj.)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 15 A
Low voltage load disconnect 11.1 V / 22.2 V / 44.4 V or 11.8 V / 23.6 V / 47.2 V or Battery Life algorithm
Low voltage load reconnect 13.1 V / 26.2 V / 52.4 V or 14 V / 28 V / 56 V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Enclosure
Colour Blue (RAL 5012)

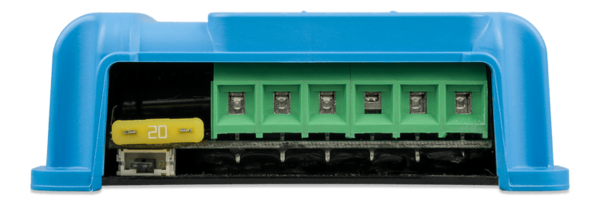

Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.5 kg

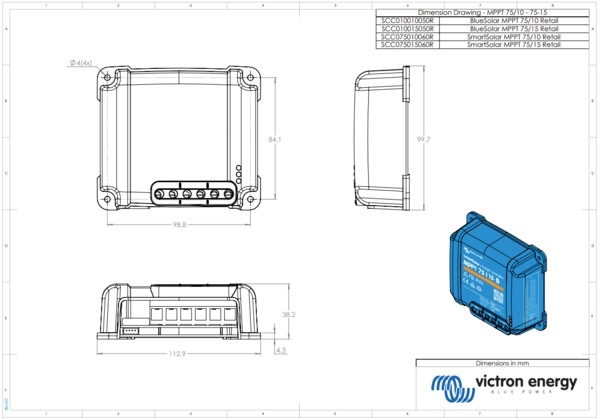

Dimensions (h x w x d) 100 x 113 x 40 mm
Standards
Safety EN/IEC 62109-1, UL 1741, CSA C22.2

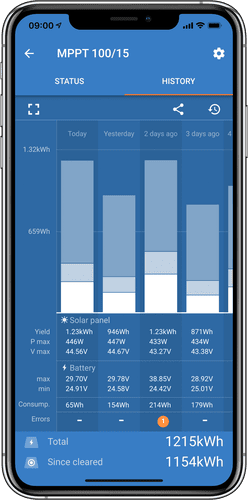

Stored Trends
Data stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Number of days trends data is stored 46

Note:

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter, the minimum PV voltage is Vbat + 1 V.

2. A PV array with a higher short circuit current may damage the controller.

Victron Energy Limited Warranty Policy


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.


During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.


This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.


Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.


Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.


Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.


As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.


Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.


Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.


Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.


For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

GTIN: 8719076040798
