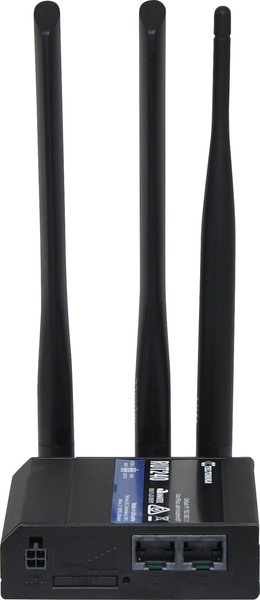

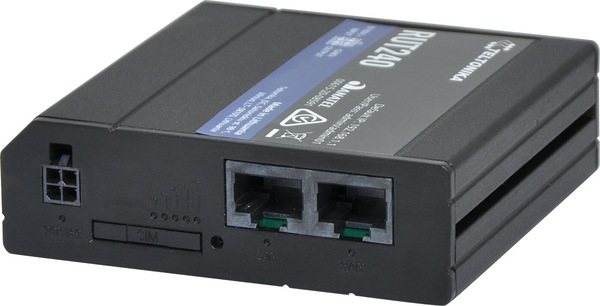

Teltonika RUT240 Compact WiFi LTE Router for Professional Applications

The Teltonika® RUT240 is a compact, cost-effective and powerful industrial LTE router for professional applications. Router delivers high performance for mission-critical cellular communication. Equipped with external SIM holder and signal strength status LEDs, it ensures easy network management. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location. Dimensions: 83 x 74 x 25mm (H x W x D)

Features

• Compact, cost-effective and powerful industrial LTE router for professional applications
• Support LTE Cat 4 up to 150 Mbps
• Automatic switch to available backup connection
• Wireless Access Point with Hotspot functionality
• Teltonika Remote Management System compatible
• Digital Input/Output for remote monitoring and control
• Compact size, easy integration
• Worldwide support

About Teltonika

• Based in Lithuania, Teltonika specialise in high quality industrial strength modem/router technology for use by professional integrators and installers in the field of Internet-Of-Things.
• Their products are renowned for quality, reliability and diverse feature set.
• They are widely used in any IoT application including digital signage, vending, detection systems and general business data provision.

Mobile

• Mobile module: 4G (LTE) - Cat 4 up to 150 Mbps, 3G - Up to 42 Mbps, 2G - Up to 236.8 kbps
• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Black/White list (optional): Operator black/white listMultiple PDN (optional)Possibility to use different PDNs for multiple network access and services
• Band management: Band lock, Used band status display

Wireless

• Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• WiFi: WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
• WiFi security: WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation
• SSID: SSID stealth mode and access control based on MAC address
• WiFi users: Up to 50 simultaneous connections
• Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

Ethernet

• WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
• LAN: 1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

• Routing: Static routing, Dynamic routing (Optional - BGP, OSPF v2, RIP v1/v2)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMNP, MQTT
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forward, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation, DHCP Relayd
• QoS: Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS: Supported >25 service providers, others can be configured manually
• Network backup: VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
• Load balancing: Balance your internet traffic over multiple WAN connections
• NetSnapper (optional): Mobile connection management, data compression VPN client (not available in standard FW)
• SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)

Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• WiFi security: WPA2-Enterprise - PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes, Client separation
• VLAN: Tag based VLAN separation
• Mobile quota control: Set up custom data limits for the SIM card
• WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• GRE: GRE tunnel
• PPTP, L2TP: Client/Server services can run simultaneously
• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
• SSTP: SSTP client instance support

Monitoring & Management

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log
• FOTA: Firmware update from sever, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• TR-069 (optional): OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP trap
• JSON-RPC: Management API over HTTP/HTTPS
• MODBUS: MODBUS TCP status/control
• RMS: Teltonika Remote Management System (RMS)

System Characteristics

• CPU: Atheros Hornet, MIPS 24Kc, 400 MHz
• RAM: 64 MB, DDR2
• FLASH memory: 16 MB SPI Flash

Firmware/Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
• FOTA: Update FW/configuration from server
• RMS: Update FW/configuration for multiple devices
• Keep settings: Update FW without losing current configuration

Firmware Customization

• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: GPL package with built environment provided

Input/Output

• Input: 1 x Digital Input
• Output: x Digital Output
• Events: SMS, EMAIL, RMS

Power

• Connector: 4 pin industrial DC power socket
• Input voltage range: 9 - 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max
• PoE (passive): Passive Poe over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at
• Power consumption: < 5 W

Physical Interfaces

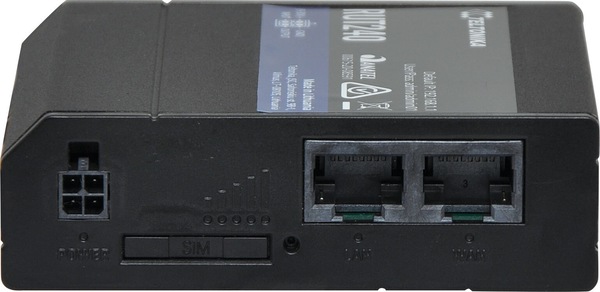

• Ethernet: 2 x RJ45 ports, 10/100 Mbps
• Status LEDs: 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED
• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
• Power: 4 pin DC connector with 1 x Digital input and 1 x Digital output

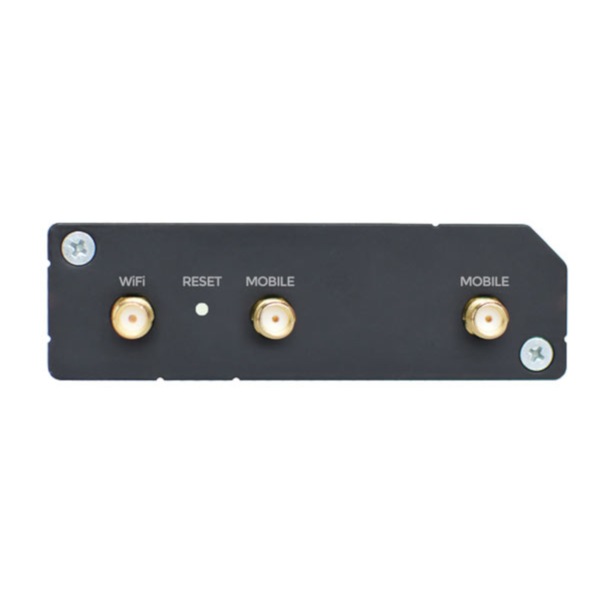

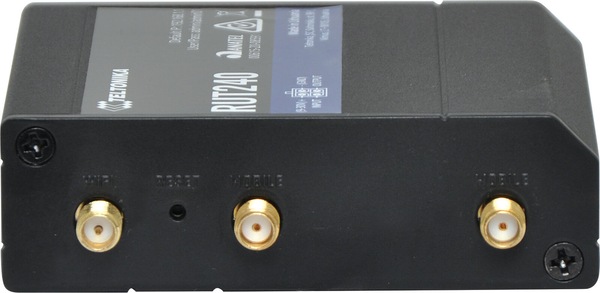

• Antennas: 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
• Reset: Reset/restore to default button

Physical Specifications

• Casing material: Aluminum housing, plastic panels
• Dimensions: 83 x 74 x 25mm (H x W x D)
• Weight: 125 g
• Mounting options: Bottom and sideways DIN rail mounting slots

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30
• MTBF: 310000 h

Regulatory & Type Approvals

• Regulatory: CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance (in progress)
• Operator: Verizon, AT&T
• Vehicle: ECE R10 (E-mark) (planned)

EMI Immunity

• Standards: Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0
• FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
• ESD: EN61000-4-2:2009
• RS: EN 61000-4-3:2006 + A1:2008 + A2:2010
• EFT: EN 61000-4-4:2012
• Surge protection: EN 61000-4-5:2006
• CS: EN 61000-4-6:2009
• DIP: EN 61000-4-11:2004

*Specifications are subject to change without notice.

• We offer 12 months warranty on this product from its date of purchase
