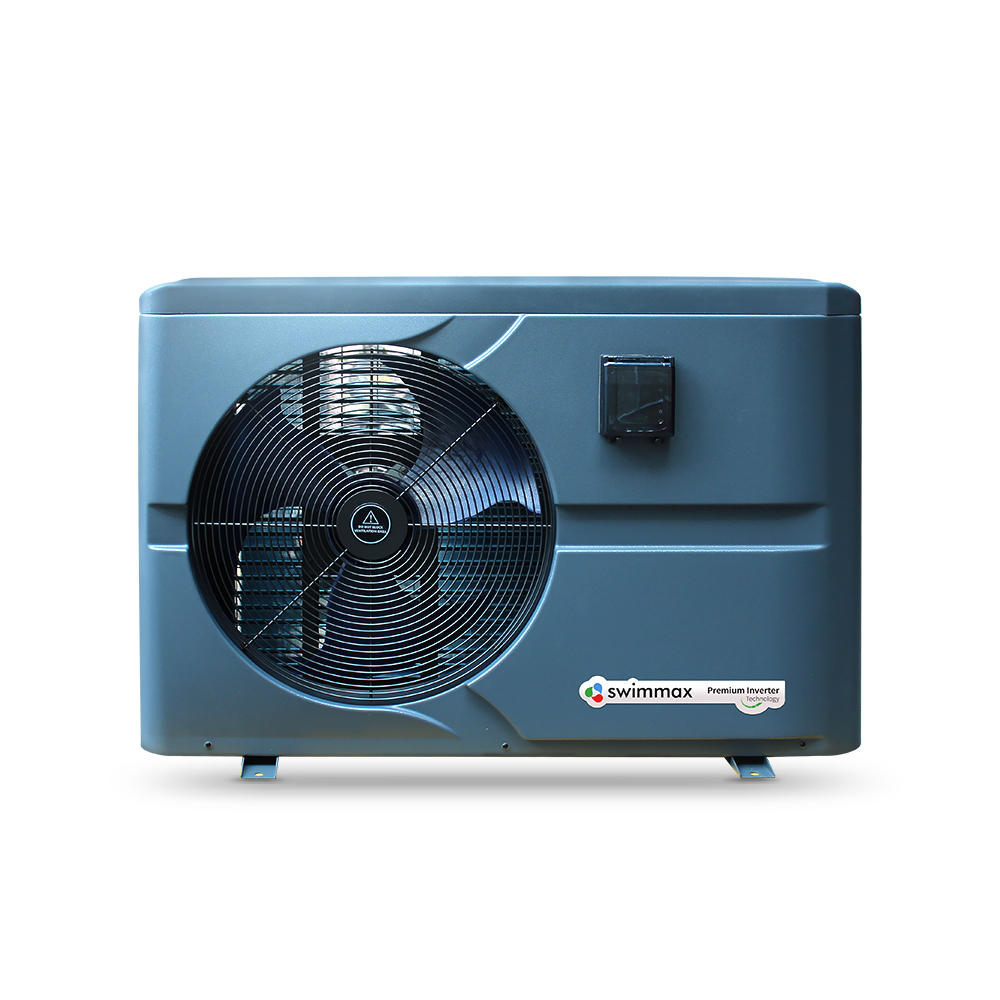

SWIMMAX Inverter 17kw Pool Spa Heating Energy Saving Heat Pump WIFI

SWIMMAX Inverter 17kw Pool Spa Heating Energy Saving Heat Pump WIFI

Hurry! 4 items left!

Price	$4599
	Collect 4599 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Swimmax Inverboost Heat Pumps by Premiere House have everything you’re looking for – or should be looking for – in a swimming pool and spa heat pump that pays for itself. Our powerful Inverboost technology gives competitors a run for their money – thanks to its robust, innovative, and reliable functionality.

Ideal for residential and public swimming pools and spas, our heat pumps showcase an ABS No-Rust Exterior Case that is tough and sleek. This premium inverter unit is recommended for pools and spas with up to 75,000 liters capacity. It also returns at least 17 kW in heat output for only 2.66 kW of electricity input. Swimmax Inverboost Heat Pumps can run silently and economically 24/7 in the cold, quietly operating at only 42 decibels.

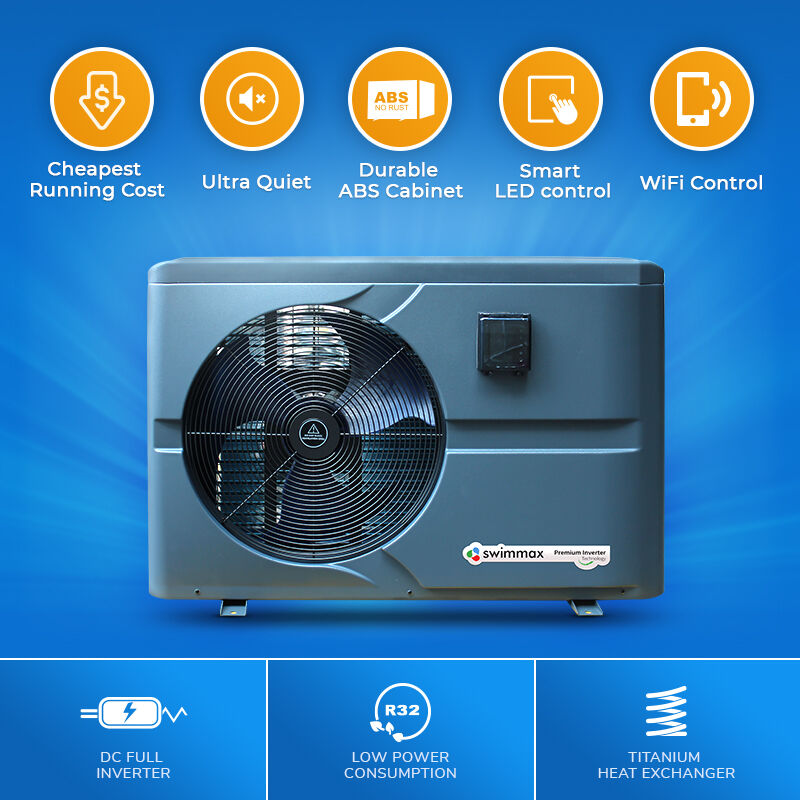

Key Features

Inverboost Technology
Up to 15-30% less power consumption
ABS No-Rust Exterior Case
DC Full Inverter

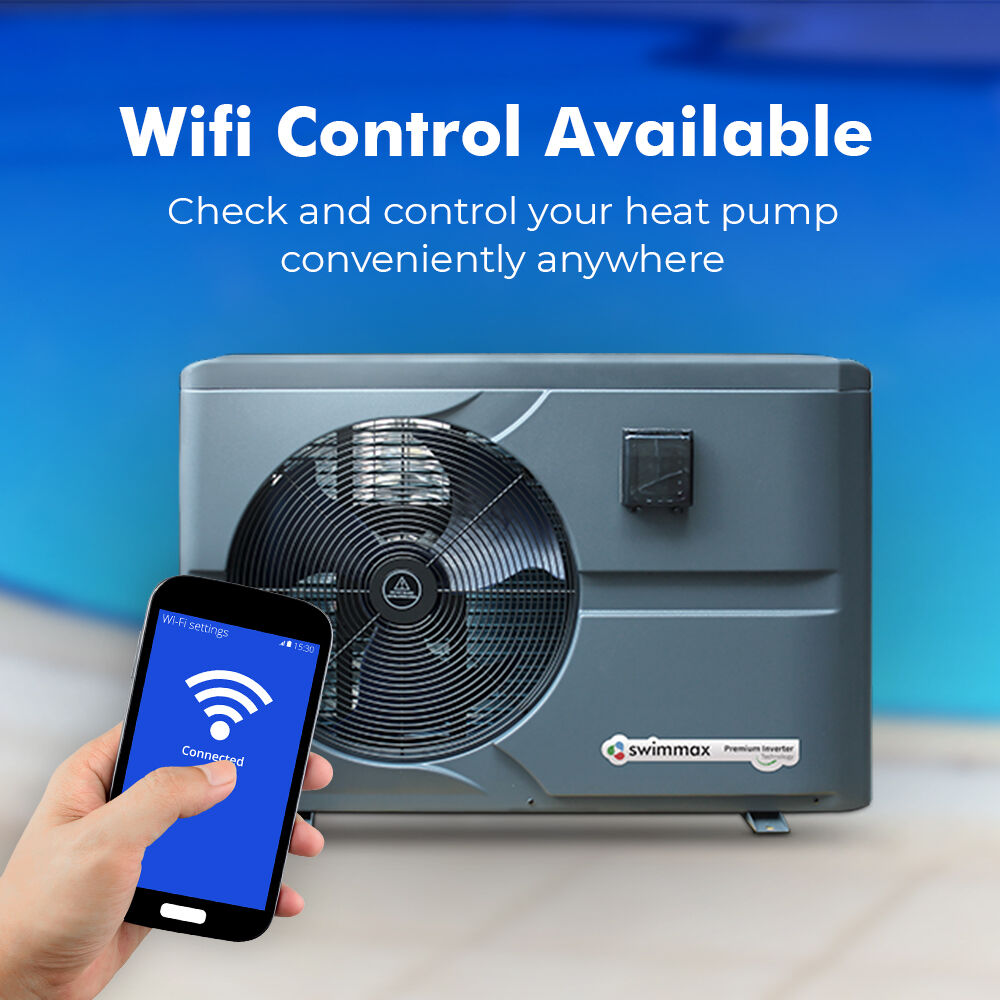

Wi-Fi Control

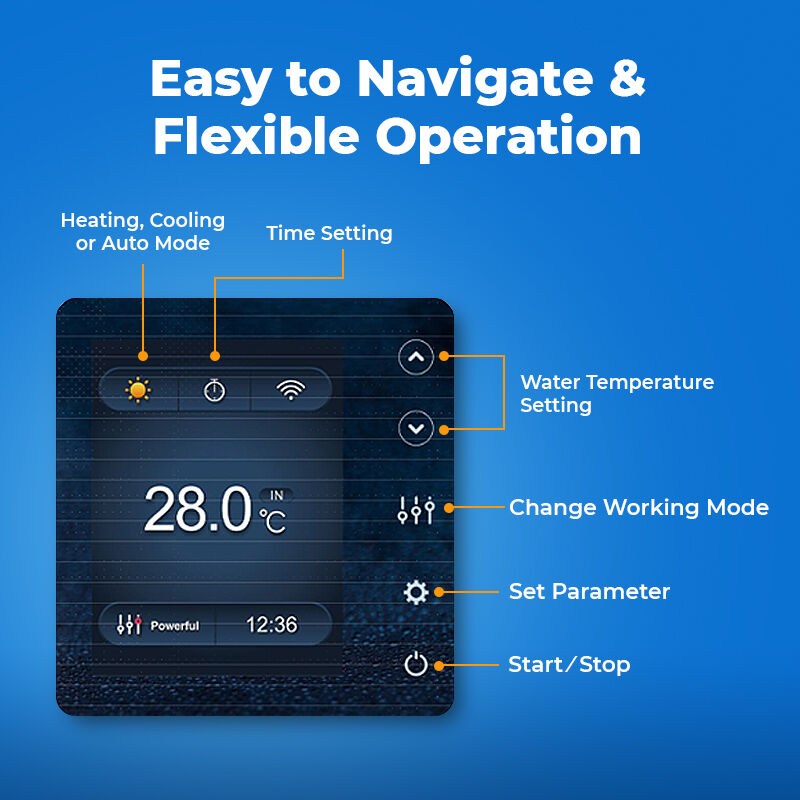

LCD Screen Control
Lower GWP

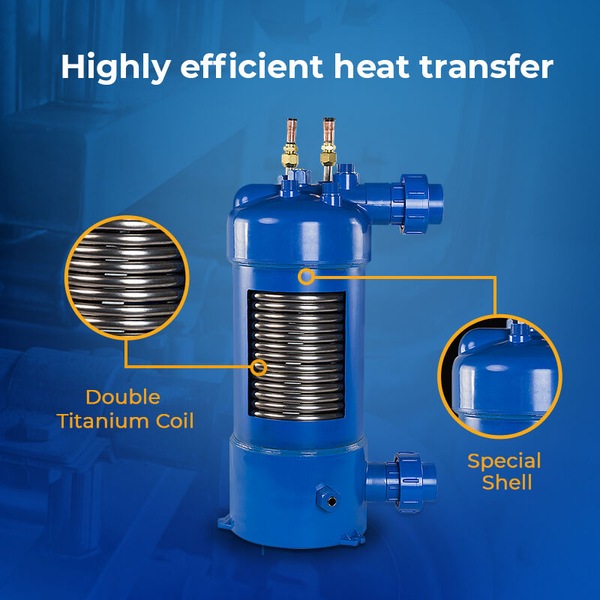

Titanium Heat Exchanger
Automatic Heating and Cooling

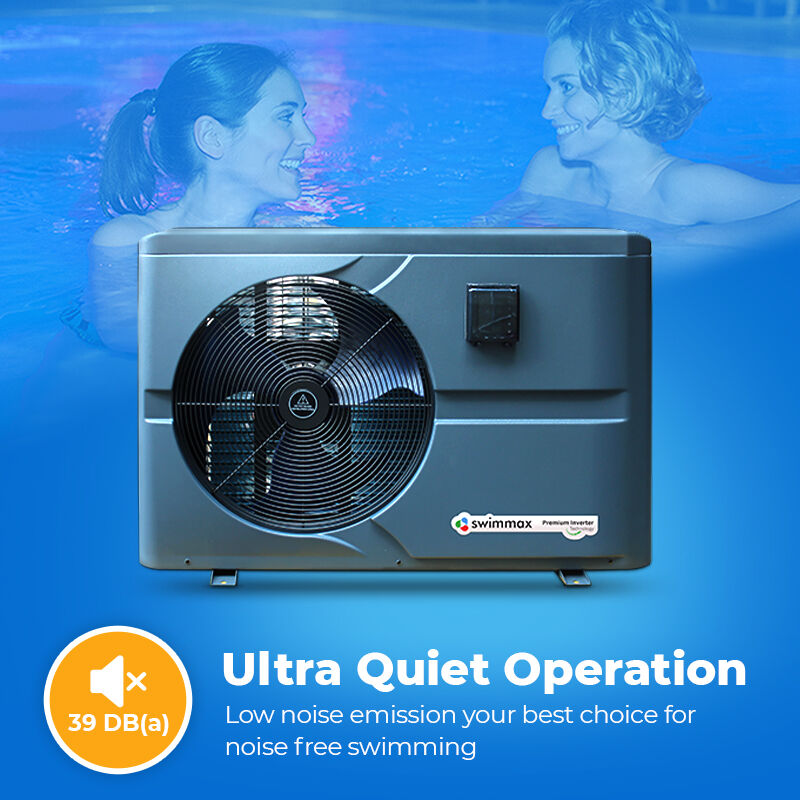

Quiet Operation

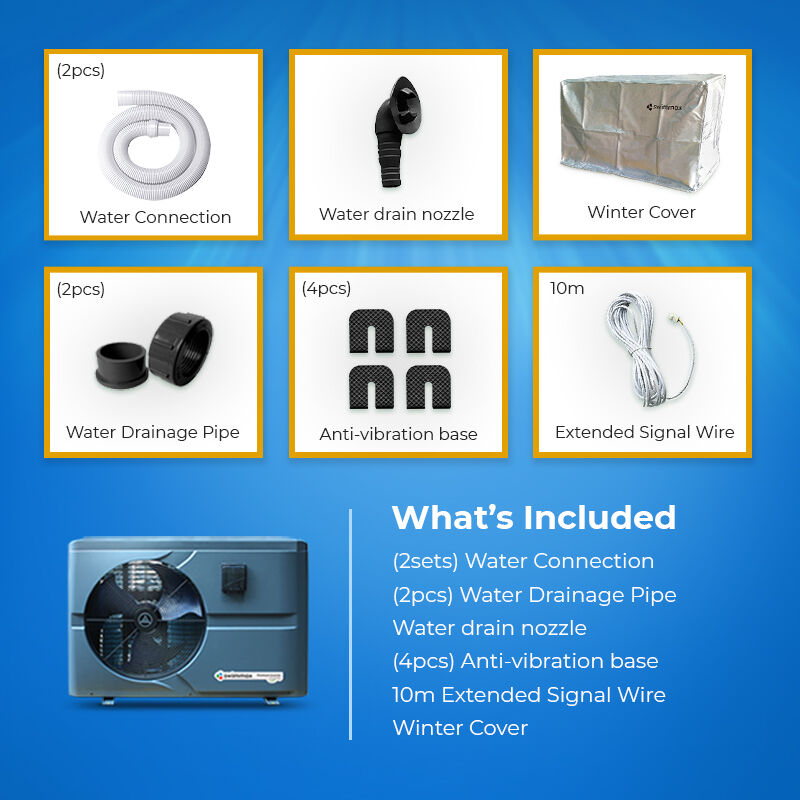

Product Inclusions

17iPS Inverboost Heat Pump
(2x) Barrel unions
10m wire cable - controller
(2x) Water drainage pipes
(2x) Draining plugs
(4x) Anti-vibration feet
Winter cover

Heat Pump Installation

For correct installation, Diversion Valves must be fitted for optimal performance. Diversion valves regulate and balance water flow, aiding in the pump's smooth and efficient operation. You can read the complete Heat Pump Installation Guide and buy a set of diversion kits: 40mm or 50mm.

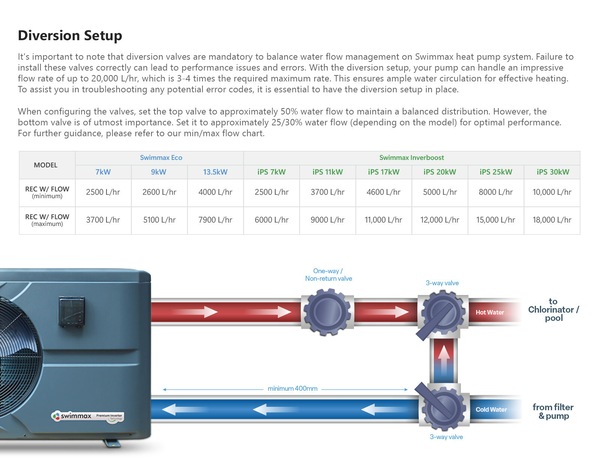

Diversion Setup

Diversion valves are mandatory to balance water flow
Failure to install valves correctly will lead to errors
Your pump will flow up to 20,000 L/HR or 3-4 times the required maximum rate
We are unable to help you troubleshoot error codes without a diversion setup
Set top valve to approximately 50% water flow
Bottom Valve most important. Set bottom valve to approximately 25/30% water flow (depending on the model)
Please refer to min/max flow chart for guidance

Read more about Diversion Installation Setup.

Specifications:

Model	Swimmax 17iPS
Performance at Air 28°C. Water 28°C. Humidity 80%
Input Power/ Heating Capacity	17-3.8 kW
Input Current/ Power consummation	2.83-0.24 kW
COP	16-6
Performance at Air 24°C. Water 26°C. Humidity 70%
Input Power/ Heating Capacity	16.6-3.7 kW
Input Current/ Power consummation	2.66-0.24 kW
COP	15.7-5.8
Performance at Air 15°C. Water 26°C. Humidity 70%
Input Power/ Heating Capacity	11.2-3 kW
Input Current/ Power consummation	2.43-0.42 kW
COP	7.2-4.6
General Info
Compressor Type	Inverter compressor (GMCC Inverter)
Voltage / Power Supply	220~240V / 50Hz or 60Hz /1PH
Rate Current	11.8 A
Minimum Fuse	20AMP – Hard Wired
Max Pool Volume	75,000 L
Water Flow (m3/h)	4.6
Water Pressure	15 Kpa

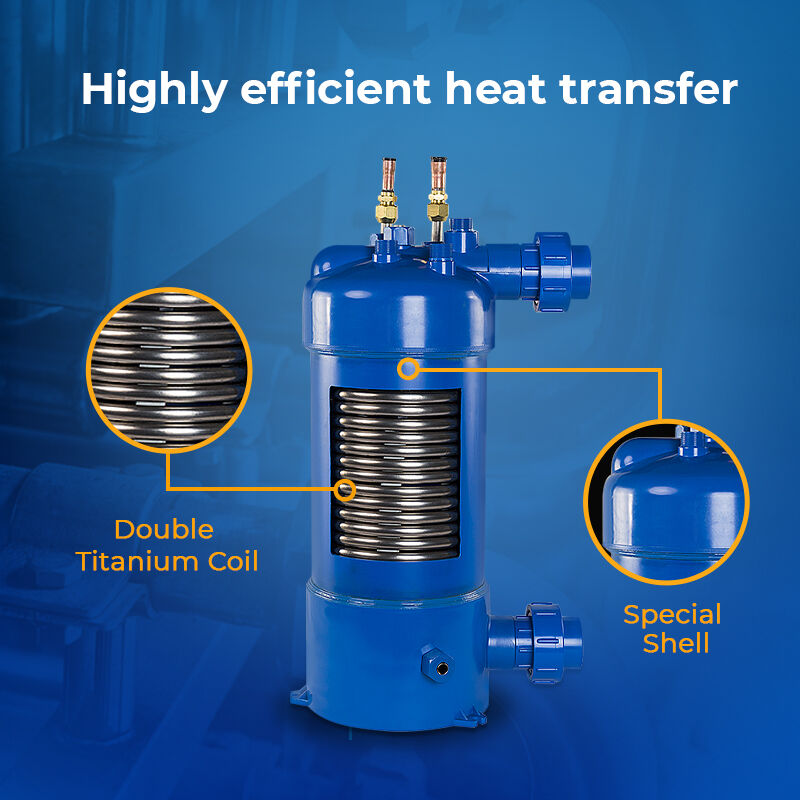

Heat Exchanger	Twist-titanium tube in PVC

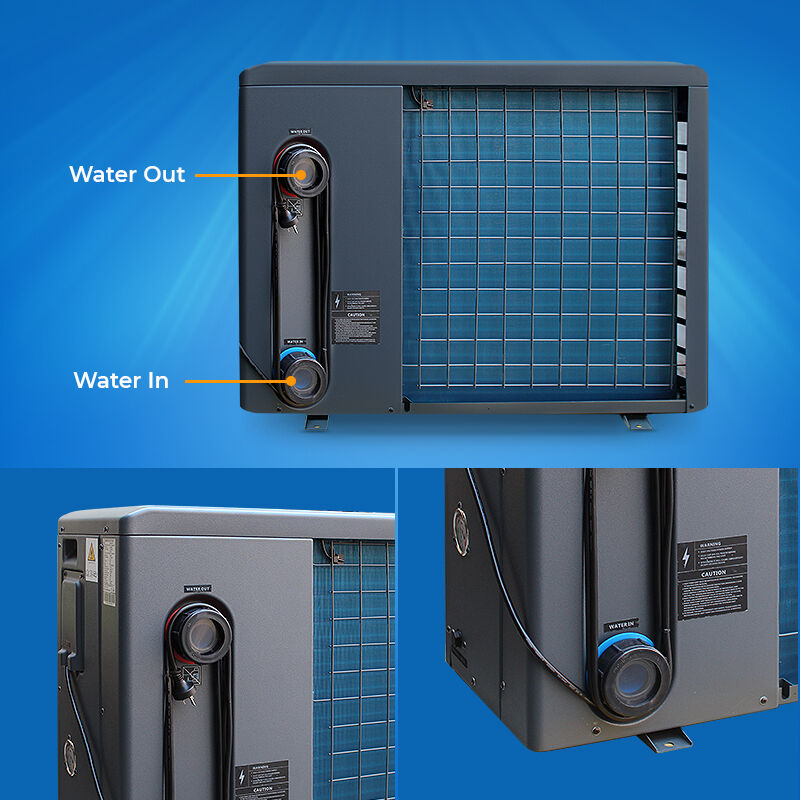

Water Connection	40mm/1.5"HP
Fan Qty	1
Fan Speed	550-850 RPM
Power Input of fan motor	32-110 W
Noise at 10m	≤43 dB(A)
Noise at 1m	41-54 dB(A)
Refrigerant	Eco-friendly R32
Heating mode and Auto mode setting range	6-41℃
Cooling mode ℃ setting range	6-35 ℃
Dimension/Weight
Net weight	98 kg
Gross weight	113 kg

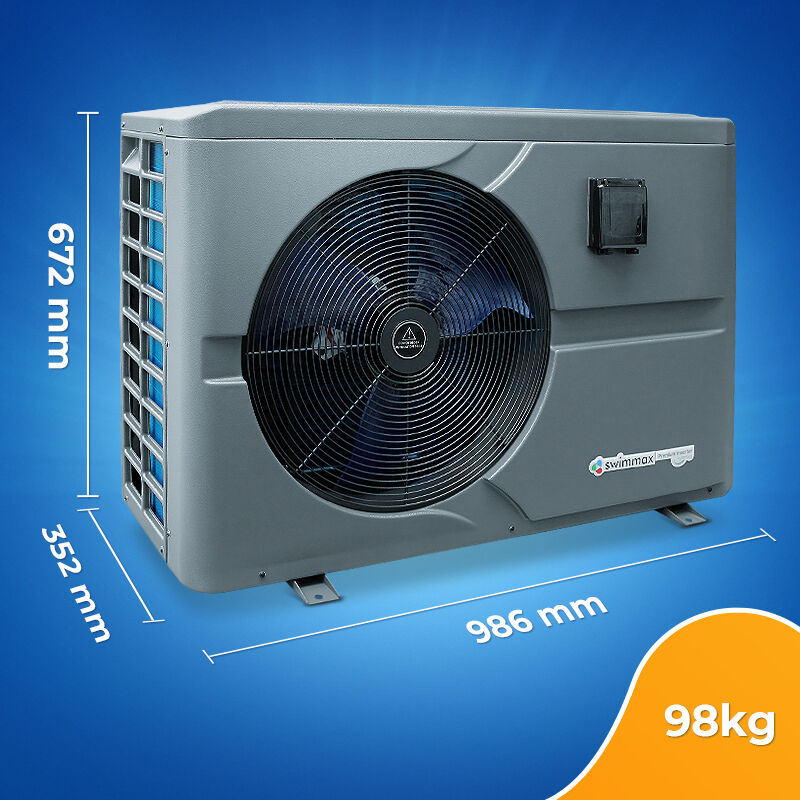

Net dimension (mm)	1060 x 450 x 691
Packing dimension (mm)	1121 x 495 x 848

All Swimmax products are backed by a 1-year onsite and 3-year parts manufacturer warranty. The warranty exceeds the consumer warranties and guarantees under Australian Consumer Law. Warranties are for the original unit owner and authorized resellers in the location where the unit was installed. Premier House warrants all new equipment to be free from defects, including factory-used materials and workmanship, and of acceptable quality and durability in every possible way.

Extended Warranty for $249

2-Year Onsite and 5-Year Parts Manufacturers Warranty Our new extended warranty ONLY applies for items purchased after October 2019 and is specifically noted on your Invoice. It is available up to 90 days after purchase.
The warranty period will commence from the date of purchase from Premier House, and NOT the date of installation or first use.
Whether to repair, replace, or refund a faulty item is at Premier Houses sole discretion.

Return Policy

The item must be returned within 30 days after the buyer receives it.
The buyer is responsible for return postage costs.
You must return items in their original packaging and in the same condition as when you received them. If you don't follow our item condition policy for returns, you may not receive a full refund.
Note: If you are in any way dissatisfied or have any issues with your purchase, please contact us through messages for a resolution before opening a return.

Read the Complete Warranty, Return and Repair Policy
