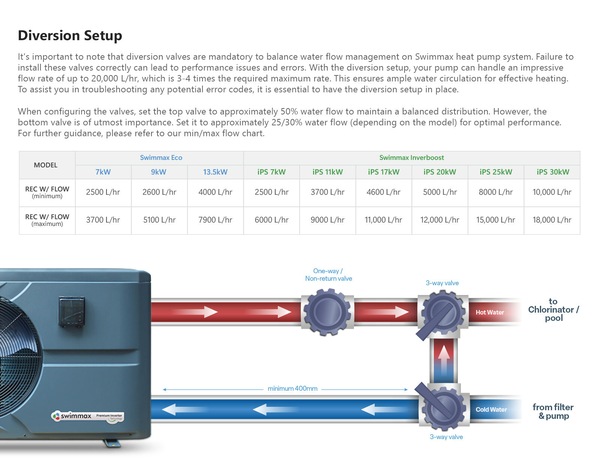

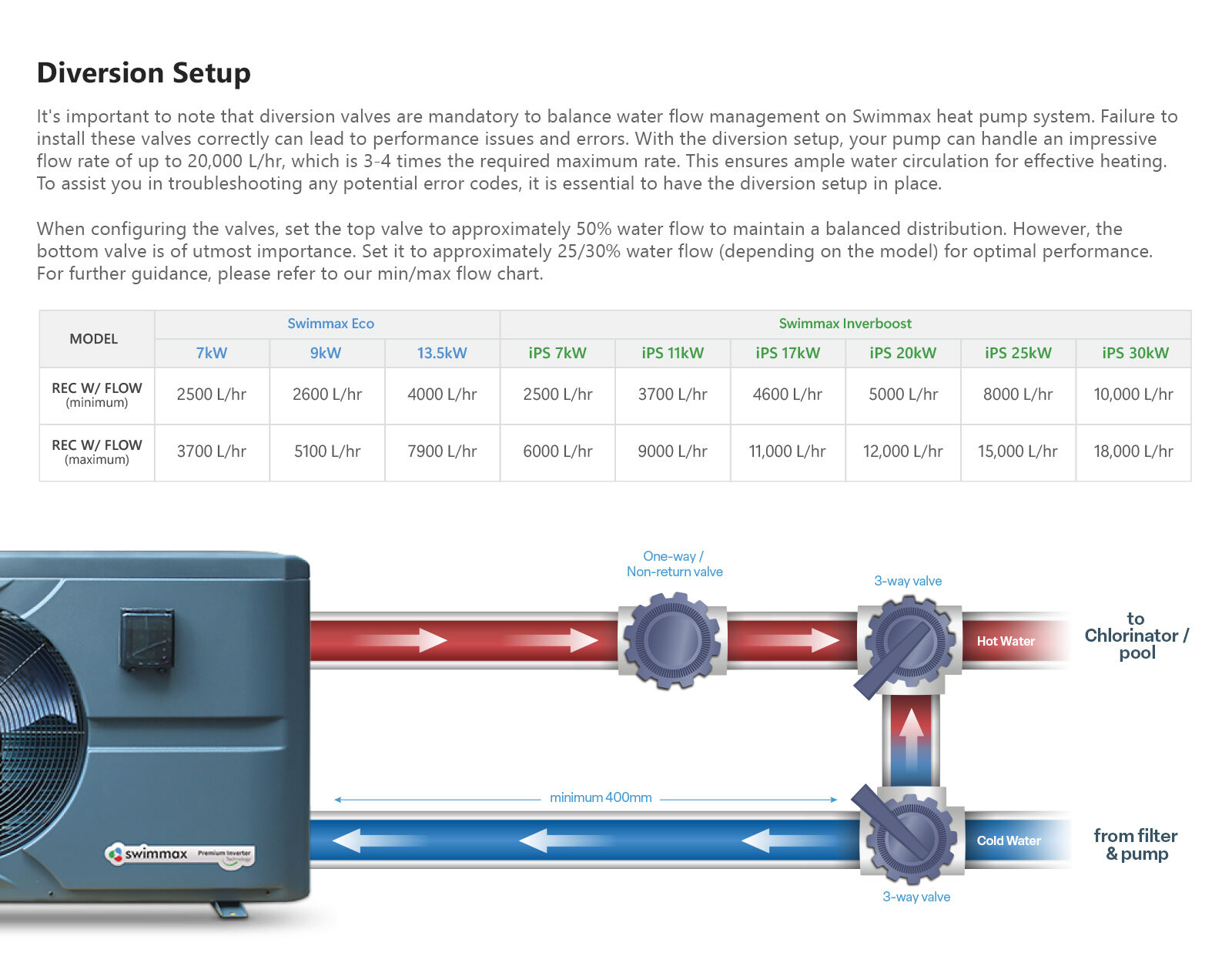

Read more about Diversion Installation Setup.
Model | Swimmax 25iPS |
---|---|
Performance at Air 28°C. Water 28°C. Humidity 80% | |
Input Power/ Heating Capacity | 24-5.9 kW |
Input Current/ Power consummation | 4-0.37 kW |
COP | 16-6 |
Performance at Air 24°C. Water 26°C. Humidity 70% | |
Input Power/ Heating Capacity | 23.8-5.8 kW |
Input Current/ Power consummation | 3.98-0.37 kW |
COP | 15.7-5.8 |
Performance at Air 15°C. Water 26°C. Humidity 70% | |
Input Power/ Heating Capacity | 17.2-4.5 kW |
Input Current/ Power consummation | 3.74-0.63 kW |
COP | 7.2-4.6 |
General Info | |

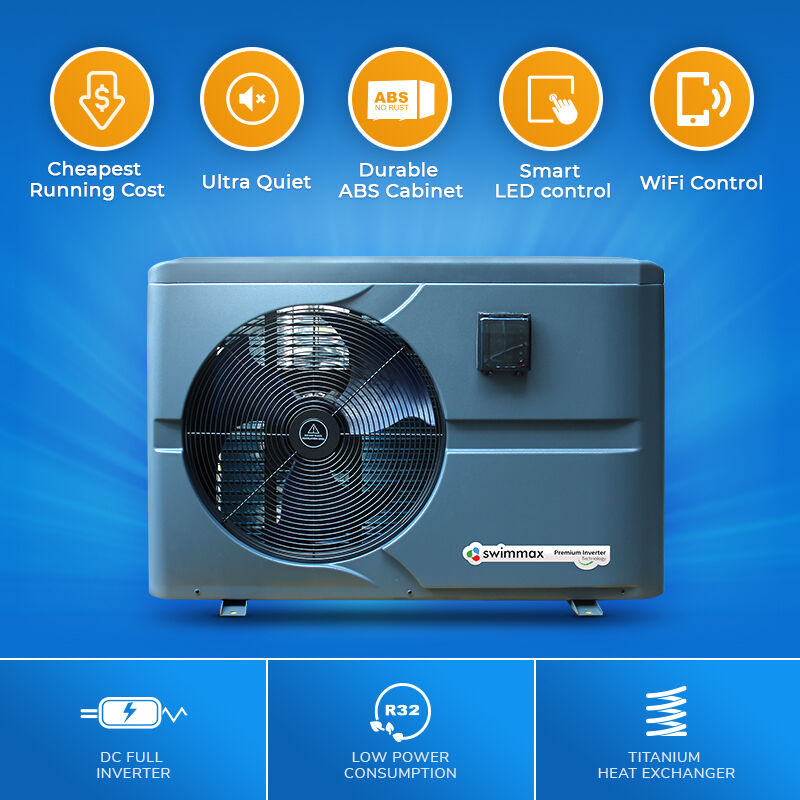

Compressor Type | Inverter compressor (GMCC Inverter) |
Voltage / Power Supply | 220~240V / 50Hz or 60Hz /1PH |
Rate Current | 17.7 A |
Minimum Fuse | 25Amp – Hard Wired |
Max Pool Volume | 110,000 L |
Water Flow (m3/h) | 8 |
Water Pressure | 20 Kpa |

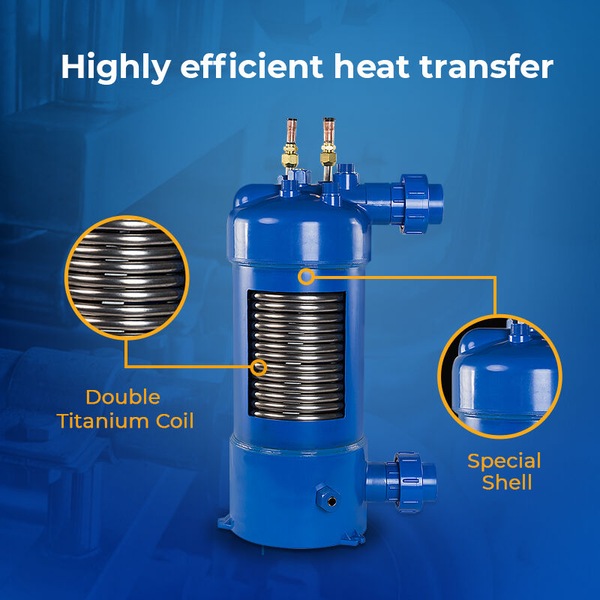

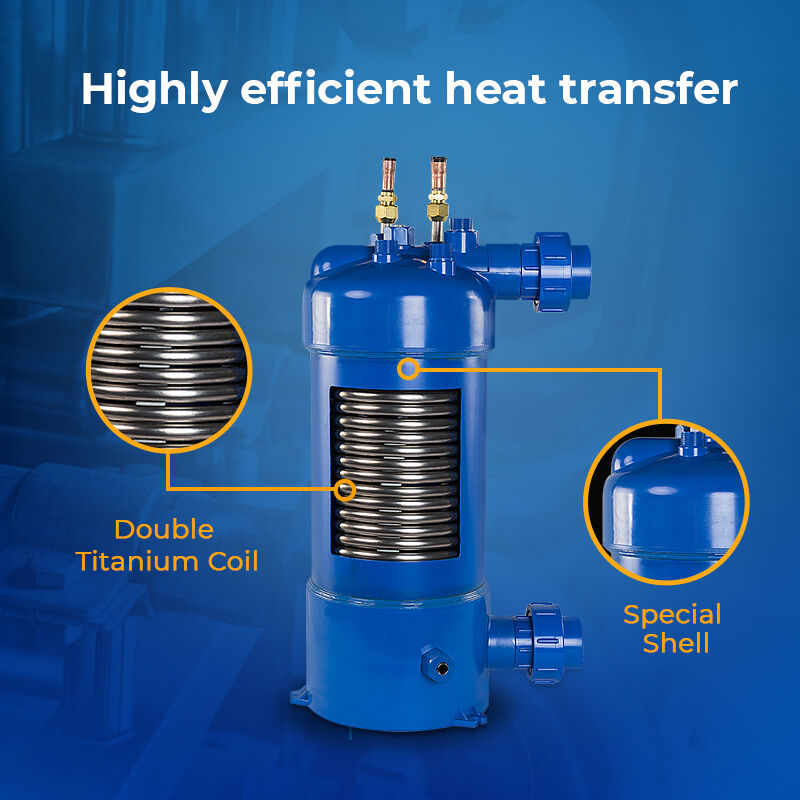

Heat Exchanger | Twist-titanium tube in PVC |

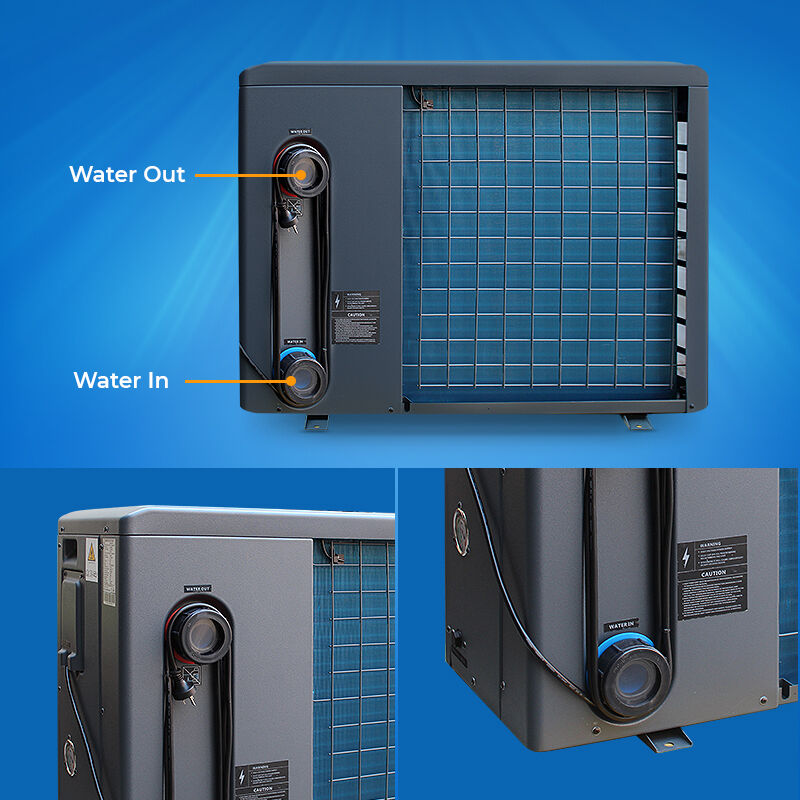

Water Connection | 40mm/1.5"HP |
Fan Qty | 1 |
Fan Speed | 450-650 RPM |
Power Input of fan motor | 35-130 W |
Noise at 10m | ≤46 dB(A) |
Noise at 1m | 42-58 |
Refrigerant | Eco-friendly R32 |
Heating mode and Auto mode setting range | 6-41℃ |
Cooling mode ℃ setting range | 6-35 ℃ |
Dimension/Weight | |
Net weight | 128 kg |
Gross weight | 146 kg |

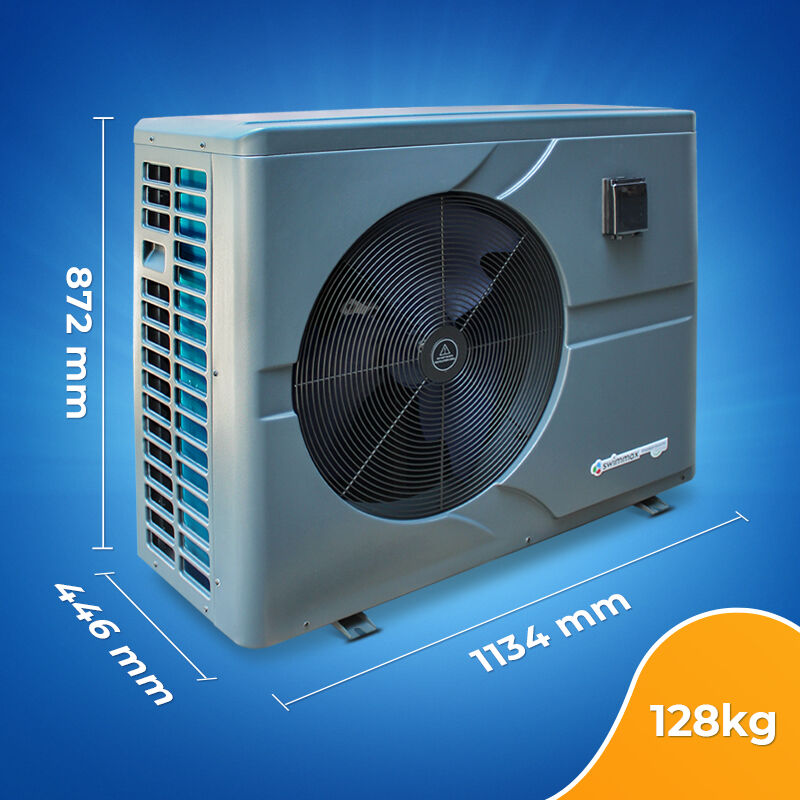

Net dimension (mm) | 1134 x 446 x 872 |
Packing dimension (mm) | 1186 x 495 x 1011 |
