StarTech.com MST30C2HHPD USB-C Dual FHD Docking Station with 60W Power Delivery, HDMI x2, USB-C x2, USB 3.0 x3, RJ45, 3.5mm Audio x1, Support Microsoft Windows, 3yr warranty [MST30C2HHPD]

StarTech.com MST30C2HHPD USB-C Dual FHD Docking Station with 60W Power Delivery, HDMI x2, USB-C x2, USB 3.0 x3, RJ45, 3.5mm Audio x1, Support Microsoft Windows, 3yr warranty [MST30C2HHPD]

Be the first to review this product

Hurry! 1 items left!

Price	$224.68
	Collect 224 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

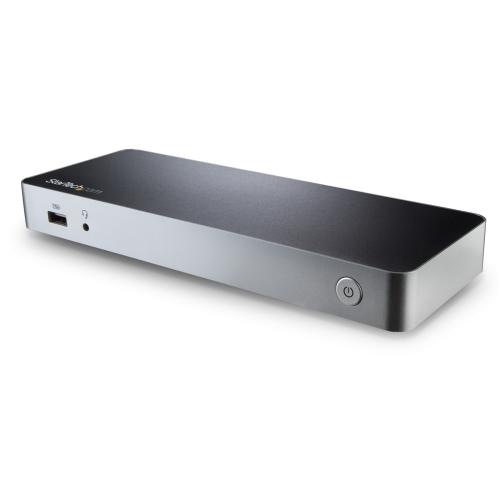

StarTech.com MST30C2HHPD USB-C Dual FHD Docking Station with 60W Power Delivery, HDMI x2, USB-C x2, USB 3.0 x3, RJ45, 3.5mm Audio x1, Support Microsoft Windows, 3yr warranty

Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI or DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible
Laptop Docking Station 60W PD Dual HDMI/DVI No Display Driver SetupFULL FEATURE USB-C DOCK: USB 3.1 Gen 1 5Gbps type-c docking station with dual monitor 1080p HDMI or DVI, 4x USB-A (incl. 1 front fast charge), 1x USB-C, 60W PD, Gigabit Ethernet & 3.5mm headset audio
NEW & EXISTING MONITOR SUPPORT: Dual monitor USB-C dock offers flexible setup w/ support for multiple video output combinations: dual HDMI, HDMI + DVI & Dual DVI w/ incl. HDMI to DVI display adapters
WIDE DEVICE COMPATIBILITY: This USB Type-C MST (Multi Stream Transport) docking station is compatible with Windows USB-C and Thunderbolt 3 (TB3) laptops incl. HP, Lenovo, Dell and Microsoft Surface

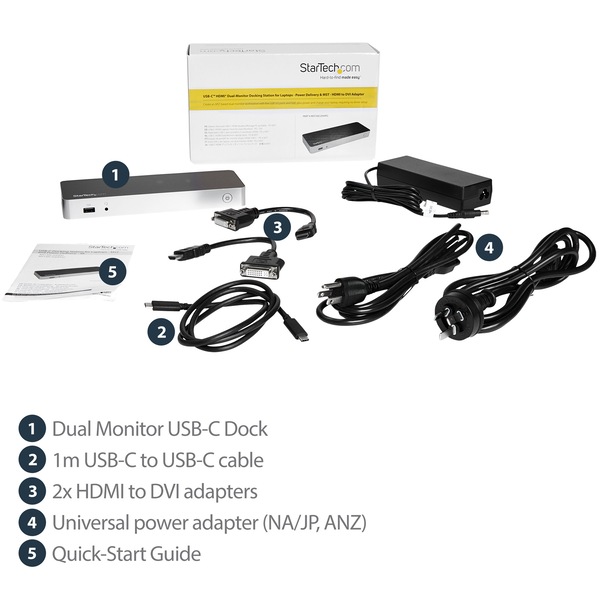

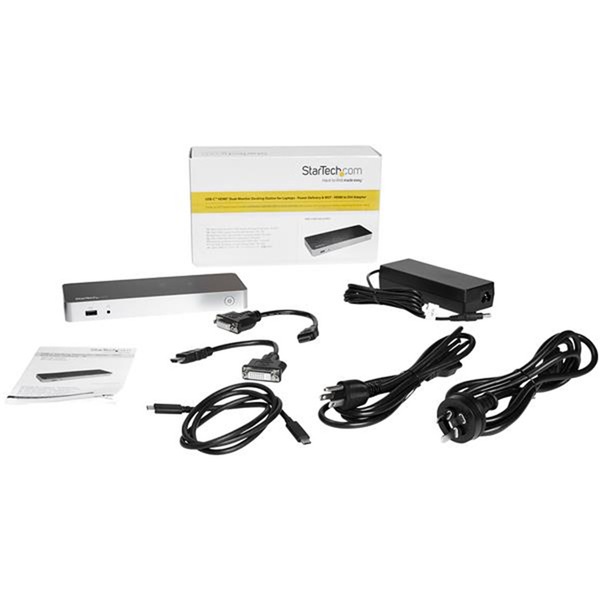

EASY TO SET UP & MANAGE: The plug and play USB-C laptop dock has automatic driver installation, 2x HDMI to DVI adapters, 1m/3.3ft. host cable, front facing power button
60W POWER DELIVERY & CHARGING: This USB-C port replicator with 60W PD powers & charges ultrathin laptops & ultrabooks like Lenovo ThinkPad X1 Carbon, Dell XPS 13, HP EliteBook, Microsoft Surface Pro 7
CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

Product ID: MST30C2HHPD

Create a Dual-Monitor Workstation
The USB-C dock lets you connect dual monitors with flexible options. Connect to:
2x HDMI?or 2x DVI displays at 1920 x 1200p @ 60Hz
1x HDMI + 1x DVI display
You can also connect a single 4K HDMI display.
Connect More Devices
Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.
This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.
60W Charging Power
The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.
Fast, Easy Setup
The?dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.

HARDWARE
4K Support
Yes
Bus Type
USB-C
Chipset ID
VIA/VLI - VL813
MegaChips - STDP4320
Realtek - RTL8153
C-Media - CM6533
Texas Instruments - TPS65983
Displays Supported
2
Fast-Charge Port(s)
Yes
Industry Standards
USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2 with MST
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
PERFORMANCE
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
1920 x 1200p @ 60Hz (HDMI/DVI - Dual Monitors)
4096 x 2160p @ 24Hz (HDMI - Single Monitor)
3840 x 2160p @ 30Hz (HDMI - Single Monitor)
1920 x 1200p @ 60Hz (DVI - Single Monitor)
PXE
Yes
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes

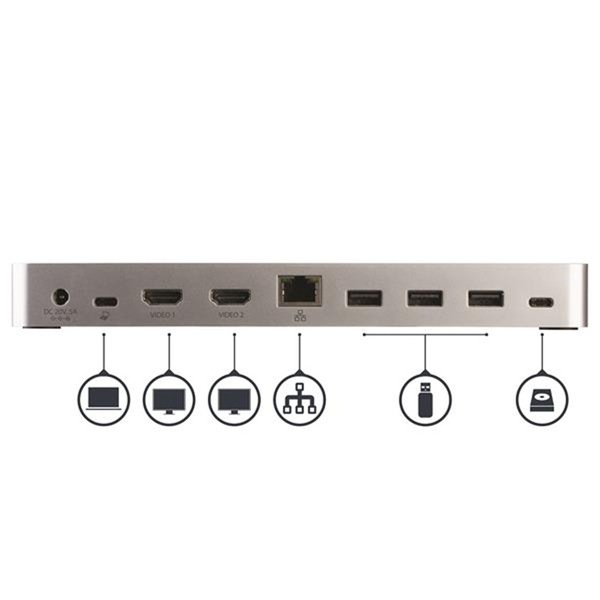

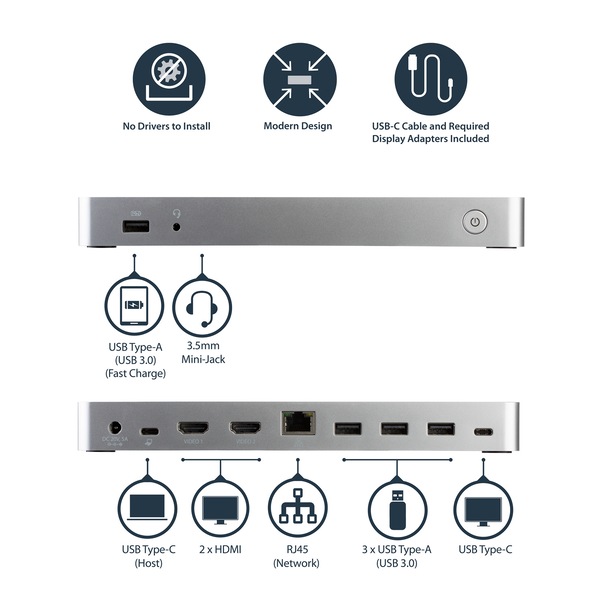

CONNECTOR(S)
Connector Type(s)
2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
2 - HDMI (19 pin) Female
1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
3 - USB Type-A (9 pin) USB 3.0 Female
1 - RJ-45 Female
1 - 3.5 mm Mini-Jack (4 Position) Female
SOFTWARE
OS Compatibility
Windows® 7, 8, 8.1, 10
SPECIAL NOTES / REQUIREMENTS
Note
Ensure your laptop's drivers, firmware, and operating system are up to date prior to using the docking station.
For a dual-monitor configuration, the Windows laptop must support MST.
A 4K-capable HDMI display is required to achieve 4K resolution
Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
This docking station provides up to 60W of Power Delivery to charge your laptop. Some laptops may have specific charging requirements such as the full 60W for charging. In the event that your laptop is not charging, simply unplug any peripheral accessories attached to the dock's USB-C port (on back of dock) and the USB 3.0 (Type-A) charging port (on front of dock) during charging. This will ensure the full 60 W of power is available for charging your laptop.
System and Cable Requirements
A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP Alt Mode)
POWER
Center Tip Polarity
Positive
Input Current
2 A
Input Voltage
100 ~ 240 AC
Output Current
5 A
Output Voltage
20V DC
Plug Type
N
Power Consumption (In Watts)
100 W
Power Delivery
60W
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
5%~95% RH (Non-condensing)
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Plastic

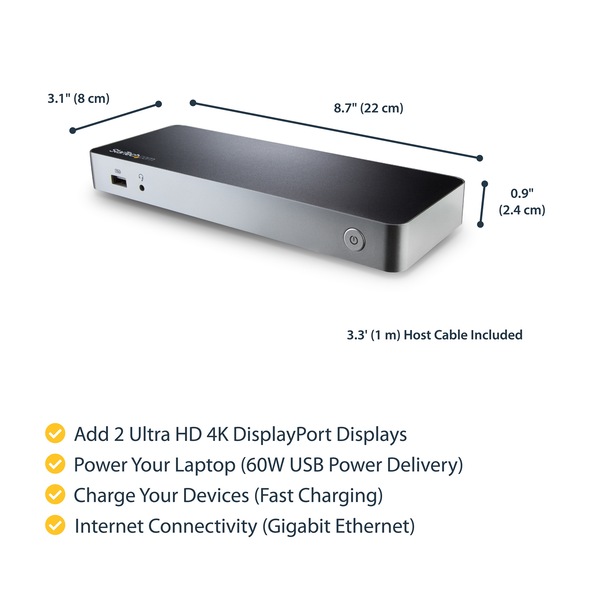

Product Height
0.9 in [24 mm]
Product Length
8.7 in [220 mm]
Product Weight
9.1 oz [258 g]
Product Width
3.1 in [80 mm]
PACKAGING INFORMATION
Shipping (Package) Weight
3.1 lb [1.4 kg]
- MPN: MST30C2HHPD

GTIN: 065030868334
