StarTech.com USB-C & USB 3.0 Dual 4K Docking Station, with 60W Power Delivery, [DK30C2DPPD]

StarTech.com USB-C & USB 3.0 Dual 4K Docking Station, with 60W Power Delivery, [DK30C2DPPD]

1 Review

Best Price in the Last 14 Days

Hurry! 6 items left!

Price	WAS $341.91 'WAS' price is the previous lowest price in the last 14 days. $278.58 Save $63.33
	Collect 278 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

StarTech.com USB-C & USB 3.0 Dual 4K Docking Station, with 60W Power Delivery, DP x2, HDMI x2, USB-C x2, USB 3.1 x3, RJ45 x1, support Apple Intel & M1 / ChromeOS / Microsoft Windows, 3yr warranty

Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.
Key Features

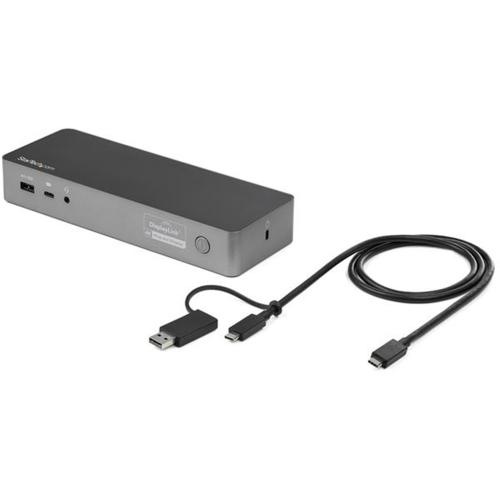

- Universal docking station for USB-C and USB-A laptops with unique 1 meter universal host cable (USB-C to USB-C with built-in USB-A adapter).
- Create a dual 4K 60Hz workstation with flexible video output options: Dual DisplayPort, Dual HDMI, or DisplayPort + HDMI.
- USB-C dock is fully USB-IF certified to meet top industry standards for USB 3.1 Gen 1, USB Type-C and Power Delivery; additionally VESA DisplayPort and DisplayLink certified to ensure optimal video connections.

Hardware
4K Support Yes
Bus Type USB-C, USB 3.0
Chipset ID DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E
Displays Supported 2
Fast-Charge Port(s) Yes
Industry Standards USB Power Delivery Specification Rev. 3.0
USB Battery Charging Specification Rev. 1.2, DisplayPort 1.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface USB 3.0
K-Lock Slot Kensington Standard Slot (K-Slot)
Performance
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 2x HDMI - 4096 x 2160p @60Hz, 2x DisplayPort - 4096 x 2160p @60Hz, 1x HDMI + 1x DisplayPort - 4096 x 2160p @60Hz, 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz, Lower resolutions are also supported. For example, if the max is 4096 x 2160p (4K), it also supports 3840 x 2160p (4K), 2560 x 1600p and 2560 x 1440p.
PXE: Yes
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connectors
Input: USB-C (or USB Type-A with adapter)

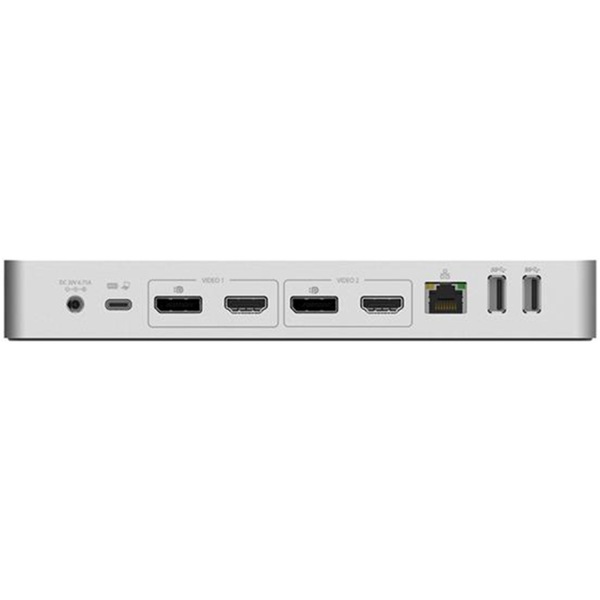

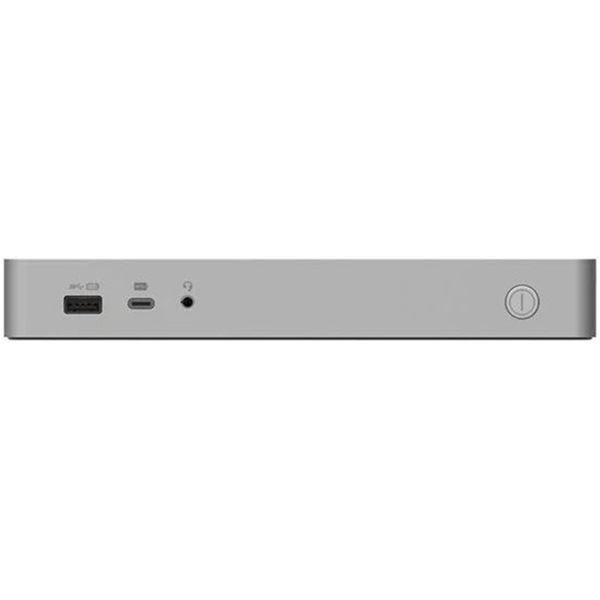

Output: 2x DisplayPort (20 pin) Female, 2x HDMI (19 pin) Female, 1x USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female, 1x USB 3.0 A (Fast-Charge, 9 pin) Female, 2x USB Type-A (9 pin) USB 3.0 Female, 1x Ethernet Gigabit Female, 1x 3.5 mm Mini-Jack (4 Position) Female
Power:
Center Tip Polarity: Positive
Input Current: 2.5 A
Input Voltage: 100 - 240 AC
Output Current: 6.75 A
Output Voltage: 20V DC
Plug Type: N
Power Consumption (In Watts): 135 W
Power Delivery: 60W
Power Source: AC Adapter Included
Environmental:
Humidity: 0~95% RH
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Requirements:
System and Cable Requirements:
USB-C enabled computer with an available USB Type-C port, or a USB-3.0 enabled computer with an available USB Type-A port
Windows 7, 8, 8.1, 10
macOS 10.11 - 10.12, 10.14 - 10.15
Chrome OS v55+
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
4K resolution is supported on all 4 video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolutions
If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
The dock connects to the USB Type-C port or the USB Type-A port on your laptop.
Package Contents:
1x Docking Station
1x USB-C Cable (with Attached USB-C to USB-A Adapter)
1x Universal Power Adapter (NA/JP, ANZ)
1x Quick-Start Guide
- MPN: DK30C2DPPD

GTIN: 065030879958
