USB C Multiport Adapter - Dual 4K DP - Windows

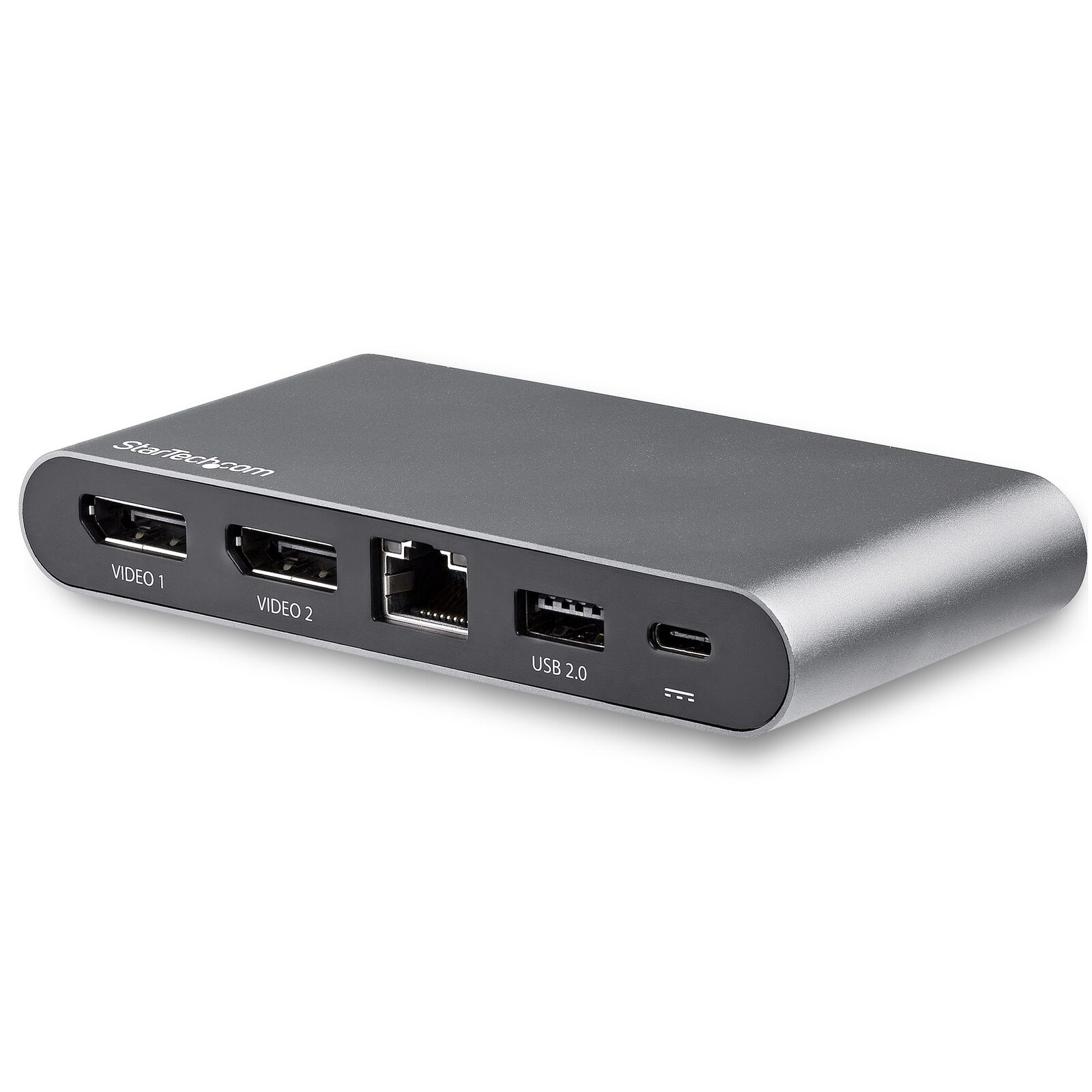

Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.
Reliable 100W Power Delivery Passthrough
The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.
Multi-Stream Transport for Driverless Displays
The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.
Packaging Information
Package Height: 42 mm [1.7 in]
Package Length: 20.8 cm [8.2 in]
Package Width: 14.5 cm [5.7 in]
Shipping (Package) Weight: 300 g [10.6 oz]
Performance
Auto MDIX: Yes
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz
Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz
Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Physical Characteristics
Color: Black
Material: Plastic
Product Height: 1.9 cm [0.7 in]
Product Length: 12 cm [4.7 in]
Product Width: 60 mm [2.4 in]
Weight of Product: 150 g [5.3 oz]
Power
Laptop Charging via Power Delivery: 85W
Power Consumption (In Watts): 15W
Power Delivery: 100W
Power Source: Bus Powered and Host USB-C Power Adapter
Prominence
Description CDW 75 - 1st Line: StarTech.com Mini USB C Dock - 4K Dual Monitor DP Multiport Adapter - PD
Software
OS Compatibility: Windows® 7, 8, 8.1, 10
Chrome OS
Special Notes / Requirements
Note: A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) : For a dual-monitor configuration the host laptop must support MST. : In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps. : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode. : The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. : The multiport adapter provides limited Android support (no MST support). : The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power). : Through support of USB Power Delivery 3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power). : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. : Video output capabilities are dependent on the video card and hardware specification of your connected laptop. : Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop.
Hardware
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Fast-Charge Port(s): No
Displays Supported: 2
Chipset ID: VIA/VLI - VL102
VIA/VLI - VL170
VIA/VLI - VL817
MegaChips - STDP4320
RealTek - RTL8153
Bus Type: USB-C
4K Support: Yes
Environmental
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 0~95% RH (Non-condensing)
Connector(s)

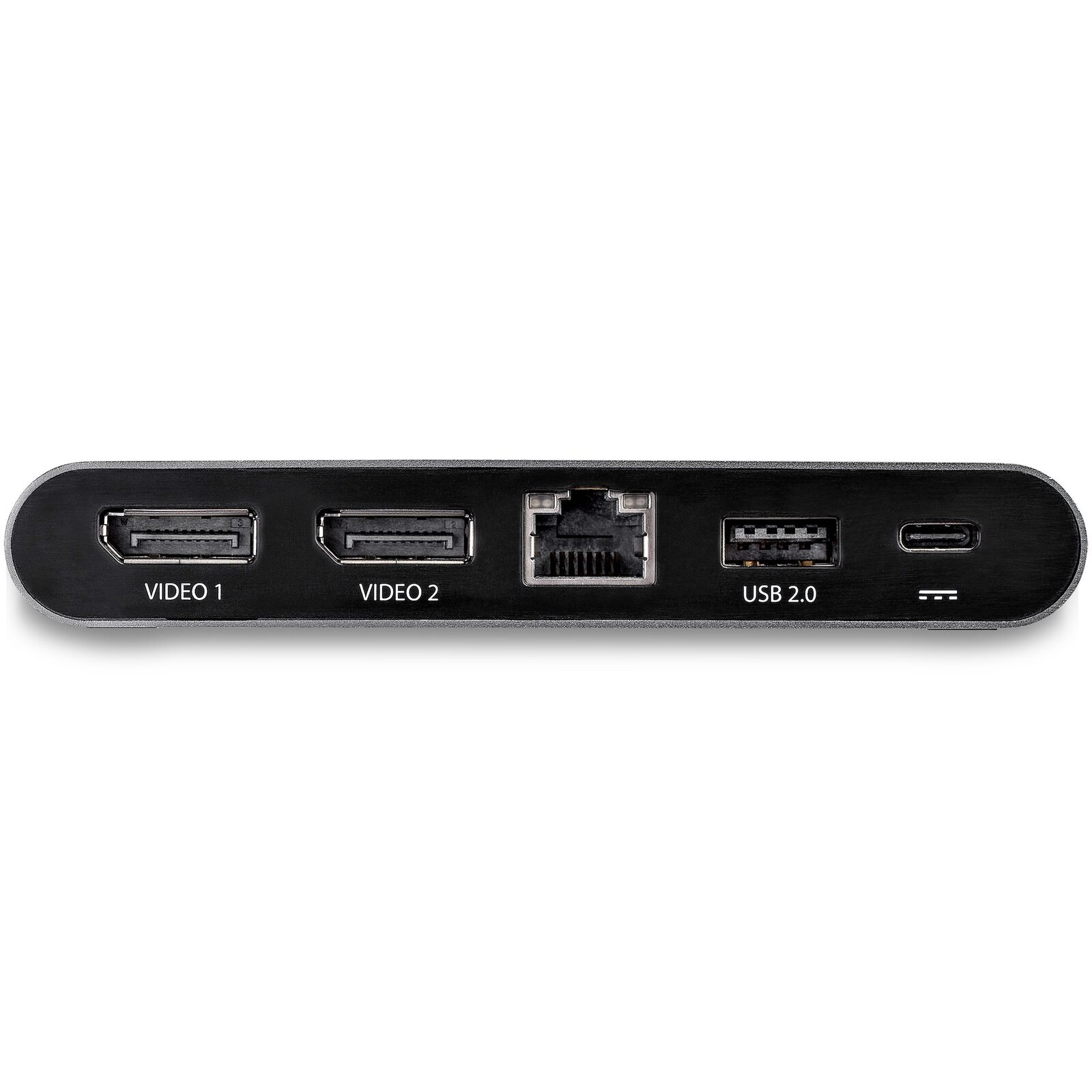

Connector Type(s): USB-C (24 pin) USB Power Delivery only Female: USB Type-C (24 pin) USB 3.0 (5Gbps) Male : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female: USB Type-A (4 pin) USB 2.0 Female: RJ-45 Female : DisplayPort (20 pin) Female
Special Notes / Requirements
System and Cable Requirements: A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode) : Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
What's in the Box

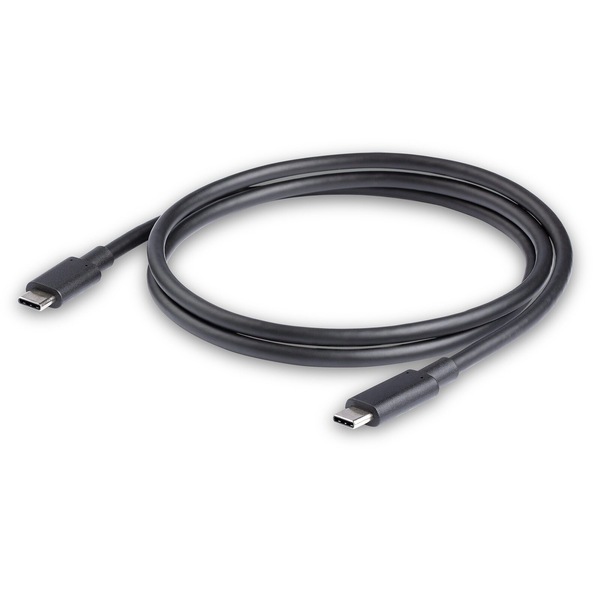

Included in Package: Multiport Adapter : Quick-Start Guide : USB-C Cable
This item comes with a 36 months warranty
