StarTech Dual Monitor Docking Station - HDMI and DVI / VGA - USB 3.0 [DK30ADD]
3x
StarTech Dual Monitor Docking Station - HDMI and DVI / VGA - USB 3.0
Expand your laptop connectivity by adding two displays, with HDMI and DVI or HDMI and VGA, plus six USB ports and a Gigabit Ethernet port, all through a single USB 3.0 port - HDMI and DVI/VGA Dual-Monitor Dock - USB 3.0
This USB 3.0 dual-monitor docking station lets you add the ports you need to your laptop, to maximize your workstation performance. The laptop dock provides a cost-effective universal docking solution, with support for HDMI® and DVI monitors and plenty of connection options for peripherals.
Enhance productivity with a dual-video workstationThe versatile laptop docking station enables you to improve your efficiency and productivity by expanding the display capabilities of your Windows laptop or MacBook. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the dock includes a DVI to VGA adapter, so you can connect your legacy VGA monitor in place of a DVI monitor.
With the dual-monitor dock, you can connect:
The USB 3.0 docking station offers a fast and easy way to maximize your laptop’s workable screen space, giving you three screens in total when coupled with your laptop’s display.

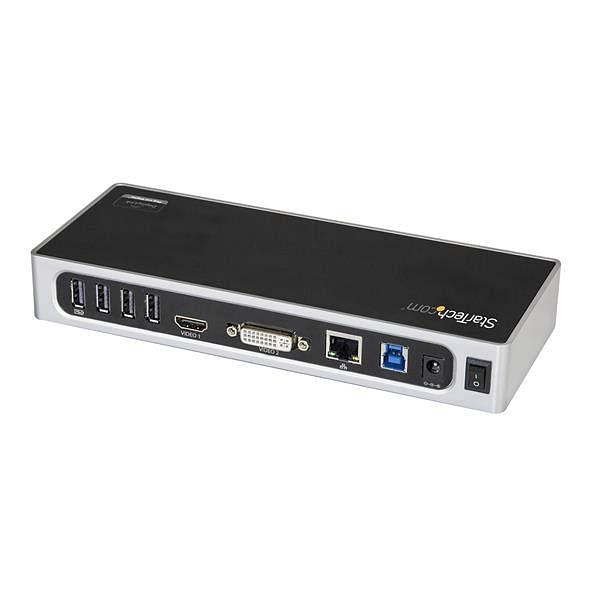

All the connections you needThis USB docking station lets you easily connect your keyboard, external drives and other peripherals, to transform your laptop into a powerful, fully capable workstation. The dock features a USB Type-B dock connection (host) for more robust port stability, unlike the Micro-B ports that are often used on other docking stations. From the single USB 3.0 host connection, the dock provides six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, plus a 3.5 mm audio headphone port. Two of the USB 3.0 ports are always-on fast-charging ports, adding charge-and-sync flexibility for up to two mobile devices.

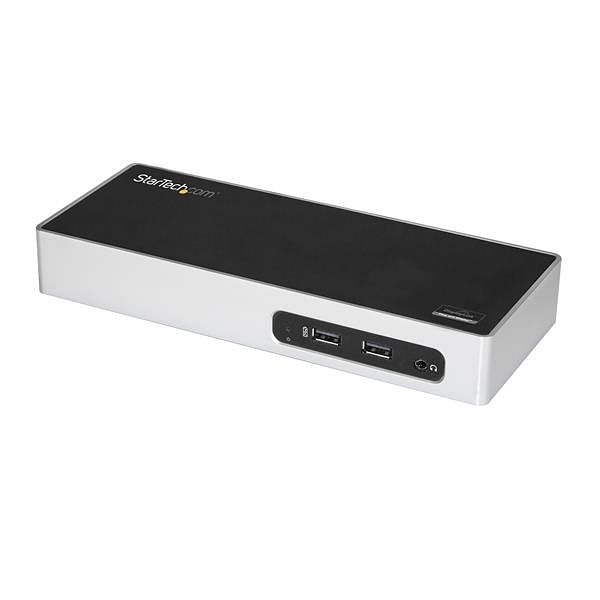

Perfect desktop companionThe compact, horizontal design of the laptop docking station makes it easy to position on your desk, alongside your other devices and peripherals. It’s an attractive addition to any workspace, with a sleek silver and black finish that matches most laptops.
The DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | 19 pin HDMI Female Female |
| 3.5 mm Mini-Jack (4 Position) Female | |
| DVI-I (29 pin) Female | |
| Ethernet Gigabit Female | |
| USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | |
| USB Type-A (9 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 10-90% non-condensing |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Hardware | |
| 4K Support | No |
| Bus Type | USB 3.0 |
| Chipset ID | DisplayLink - DL-3900 VIA/VLI - VL813 |
| Displays Supported | 2 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1 |
| Interface | USB 3.0 |
| Indicators | |
| LED Indicators | Power |
| Packaging Information | |
| Shipping (Package) Weight | 815 g [28.8 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | Dual displays - HDMI + DVI - 2048 x 1152 @ 60Hz Dual displays - HDMI 2048 x 1152 + VGA 1920 x 1200 @ 60Hz |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Cable Length | 1000 mm [39.4 in] |
| Color | Black & Silver |
| Enclosure Type | Plastic |
| Product Height | 31.2 mm [1.2 in] |
| Product Length | 216.1 mm [8.5 in] |
| Product Weight | 291 g [10.3 oz] |
| Product Width | 86.2 mm [3.4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2 A |
| Output Voltage | 20V DC |
| Plug Type | N |
| Power Consumption (In Watts) | 40W |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10 Mac OS® 10.10 to 10.13 |
| Special Notes / Requirements | |
| Note | A DVI to VGA adapter is included. |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | |
| System and Cable Requirements | A host laptop with an available USB-A port. |
| What's in the Box | |
| Included in Package | docking station |
| DVI to VGA adapter | |
| quick-start guide | |
| universal power adapter (NA/JP, UK, EU, ANZ) | |
| USB 3.0 cable |
| Specification | Value |
|---|---|
| Connection Data Interface | USB3.0 |
| MPN | DK30ADD |
| Manufacturer Part Number | DK30ADD |
| Product Condition | Brand New/Unused |
| SKU | 263340 |
