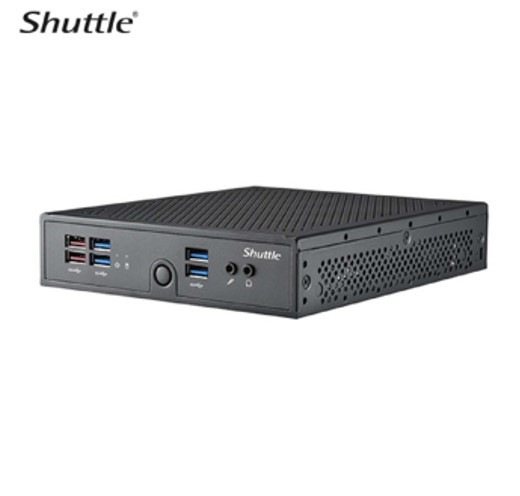

Shuttle XPC SLIM Barebone - Core i5-1335U (15W), 2x DDR5, 2x M.2 2280, HDMI, DP, VGA, COM, 2 x LAN, (5G LTE optional), 90W, fanless,
Efficient 1-Liter Fanless PC | Harness 13th Gen Raptor Lake-U Power
Shuttle's latest fanless model, the DS50U, supports the cutting-edge 13th Gen Intel(R) Raptor Lake-U processor, and enables dual-channel up to DDR5-5200 memory. With Iris(R) Xe or UHD integrated graphics based on processor SKUs, the DS50U can enhance multitask performance and handle a variety of digital applications effortlessly. Despite its compact 1-liter volume, this device features a rich array of I/O connectors, including eight USB ports, SATA 3.0, dual M.2 slots, and one M.2 E slot for expandability, enabling users to install various peripherals. Additionally, it supports triple displays via HDMI 2.0b, DisplayPort, and VGA. The DS50U is well-suited for a wide range of business applications, including IoT gateways, smart digital signage, automation control, edge computing, interactive kiosks, and more.
FORM FACTOR Shuttle 1.3L Chassis
PROCESSOR Intel Raptor Lake -U series
MEMORY 2 x 262 pin DDR5 SODIMM slots, 32GB per DIMM (Max 64GB)
Dual Channel DDR5 up to 5200Mhz
VIDEO OUTPUT (1)HDMI 2.0b + (1)DisplayPort 1.4 + (1) VGA video outputs
Support triple independent display
AUDIO Realtek ALC888S
2 channel High Definition Audio
ETHERNET (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFACE SATA for HDD/SSD
ONBOARD CONNECTORS (1) 2.5 inch SATA connector
(1) USB2.0 header
(1) Auto Power on Jumper
(1) RS232 voltage switch
(1) External 4 pin header
FRONT PANEL (1) Power on button
(1) Power LED
(1) HDD LED
(2) USB 3.2 Gen2
(4) USB 3.2 Gen1
(1) Mic in
(1) Headphone out
BACK PANEL (2) RJ45 LAN
(1) HDMI
(1) DisplayPort
(1) VGA
(1) RS232/RS422/RS485
(2) USB 2.0
(1) External 4 pin header (Clear CMOS/Power Switch/5V)
(1) DC-in
(1) Kensington lock
(2) Antenna fixture
DRIVE BAYS (1) 2.5" HDD / SSD bay
POWER 90W 19V Adapter bundled
Input:100- 240V AC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
Food stand
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
90W adapter
EXPANSION SLOT (2) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
OS SUPPORT Windows 11, Linux
GRAPHICS Integrated Intel(R) Iris(R) Xe
(Feature depends on processor)
CERTIFICATION Safety certification : CB , BSMI , cTUVus
EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA
OPERATING TEMPERATURE 0 ~40
