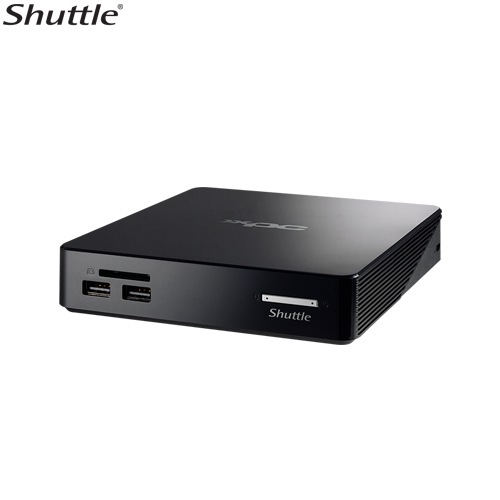

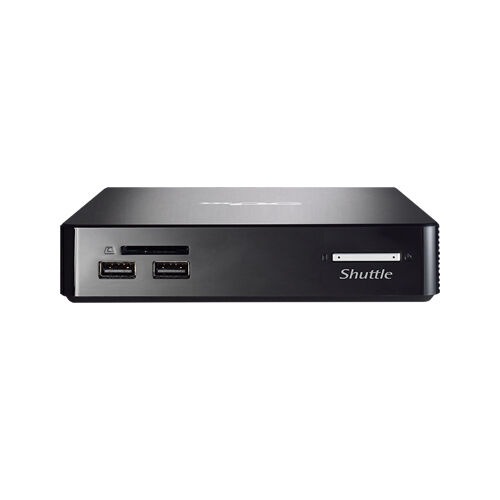

Shuttle NS02AV2 Mini PC 0.5L System-Rockchip RK3368

Shuttle NS02AV2 Mini PC 0.5L System-Rockchip RK3368, 2GB RAM, 16GB eMMC, LAN, 4xUSB, WIFI+BT, VESA, HDMI, Android 8.1, Free Digital Signage Software

Form Factor

• Shuttle 0.57L

Processor

• Rockchip RK3368 Octa core A53 1.5GHz Max.

Memory

• 4GB or 2GB On Board

Video Output

• HDMI 2.0

Ethernet

• Realtek Gigabit LAN 802.11 a/b/g/n/ac with BT 5.0

Storage Interface

• eMMC 16GB or 32GB on board Optional 2.5" 7mm SATA Interface HDD Support

Front Panel

• 1x Power Button
• 1x Power LED
• 1x HDD LED
• 1x USB 2.0
• 1x SD Card Reader

Back Panel

• 1x HDMI Out
• 2x USB 2.0
• 1x Ethernet Optional - POE Support
• 1x Headphone/MIC Combo jack
• 1x DC-In
• 1x 2 pin Remote Power Control Pin Header
• 1x 2 pin Recovery Pin Header
• 1x Kensington Lock

Dimensions

• 141x141x29mm

Power

• Automatics Voltage adjustment between 100 and 240VAC 50/60Hz
• Wall mount type, 12V/2A, 24W(LEVEL 6)

Accessories

• VESA mount

Expansion Slot

• PHD5 2.5" HDD Expansion Frame (Optional)

OS Support

• Android 8.1 Preinstalled
