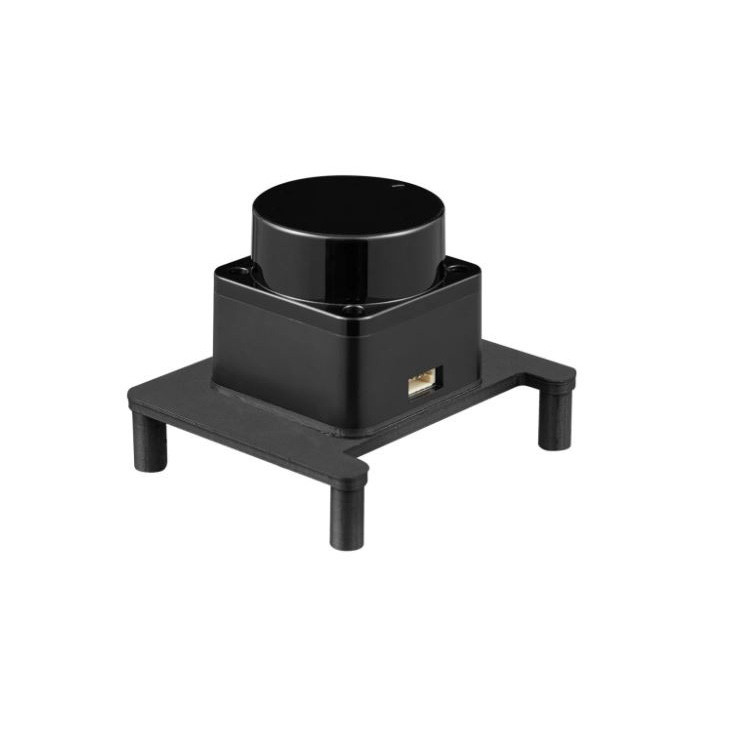

Okdo Lidar Module with Bracket Development Kit for LiDAR_LD06 Raspberry Pi / Rock Pi SBC

Okdo Lidar Module with Bracket Development Kit for LiDAR_LD06 Raspberry Pi / Rock Pi SBC

Hurry! 7 items left!
Price
$179
Collect 179 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (7) has been reached.


The LiDAR LD06 has adopted TOF (time of flight) ranging technology and can measure distance according to the laser pulse time of flight within a detection distance of 12 metres.
The LD06 uses first class algorithm logic to achieve 360 degrees environmental detection, autonomous map building and obstacle detection.
With high-speed wireless data transmission and brushless motors, the LD06 can last for up to 10000 hours.
The LD06 can achieve high-frequency and high-precision distance measurement and accurate map building indoors and outdoors.

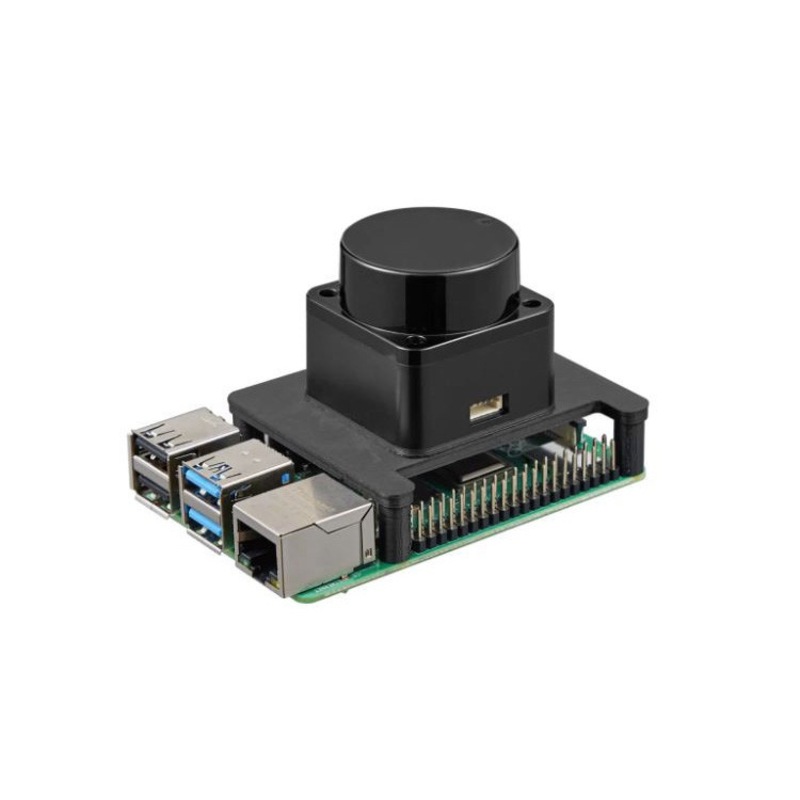

The LD06 is fully compatible with Raspberry Pi3 A+/B+, Raspberry Pi3 B and Raspberry Pi 4B

Specifications:
Distance measuring range: 0.02mm - 12m
Scanning Frequency: 5-13 Hz
Ranging accuracy: 30mm
Ranging frequency: 4500Hz
Scanning Angle: 360 degrees
Size: 38 x 38 x 33 mm

Specifications

Attribute Value
Featured Device LiDAR_LD06
For Use With Raspberry Pi SBC
Kit Classification Development Kit
Kit Name Lidar Module with Bracket

Datasheet

GTIN: 717360749158
