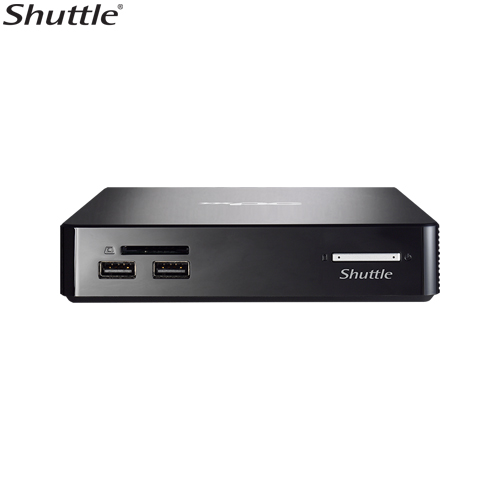

Shuttle NS02AV2 Mini PC 0.5L System-Rockchip RK3368, 2GB RAM, 16GB eMMC, LAN, 4xUSB, WIFI+BT, VESA, HDMI, Android 8.1, Free Digital Signage Software
Form Factor
Shuttle 0.57L
Processor
Rockchip RK3368 Octa core A53 1.5GHz Max.
Memory
4GB or 2GB On Board
Video Output
HDMI 2.0
Ethernet
Realtek Gigabit LAN 802.11 a/b/g/n/ac with BT 5.0
Storage Interface
eMMC 16GB or 32GB on board Optional 2.5" 7mm SATA Interface HDD Support
Front Panel
1x Power Button
1x Power LED
1x HDD LED
1x USB 2.0
1x SD Card Reader
Back Panel
1x HDMI Out
2x USB 2.0
1x Ethernet Optional - POE Support
1x Headphone/MIC Combo jack
1x DC-In
1x 2 pin Remote Power Control Pin Header
1x 2 pin Recovery Pin Header
1x Kensington Lock
Dimensions
141x141x29mm
Power
Automatics Voltage adjustment between 100 and 240VAC 50/60Hz
Wall mount type, 12V/2A, 24W(LEVEL 6)
Accessories
VESA mount
Expansion Slot
PHD5 2.5" HDD Expansion Frame (Optional)
OS Support
Android 8.1 Preinstalled
