Saer Submersible Electric Pump 415V 3 Phase 50Hz Manual

Saer Submersible Electric Pump 415V 3 Phase 50Hz Manual

Price	From $2063.60
	Collect 2063 Everyday Rewards points Log in to MyDeal to link your card
Pump Model	Please select an option
Shipping	$75.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Description

SAER's MBS series are enbloc electric pumps designed for where water pressurisation is required. The MBS series of pumps can be installed in 6 deep wells as submersed motor-driven pumps or as submersible pumps in open wells, basins, tubs or tanks. The electric pumps MBS series are suitable for use with variable frequency drives. Designed for fresh water only.

Specifications:

Outer Jacket: AISI304 Stainless Steel
Impellers: Thermoplastic Resin
Protection Class: IP68
Single and Three Phase
Head: up to 113m
Temperature of pumped liquid: min 0ºC - max 40ºC
Maximum depth: up to 70m below water level

Model	kW
MBS-B/3-3	1
MBS-B/4-3	1.2
MBS-B/5-3	1.5
MBS-B/7-3	2.2
MBS-C/3-3	1.5
MBS-C/5-3	2.2
MBS-C/6-3	2.8
MBS-C/7-3	3.3
MBS-C/9-3	4

Applications:

Water Supply

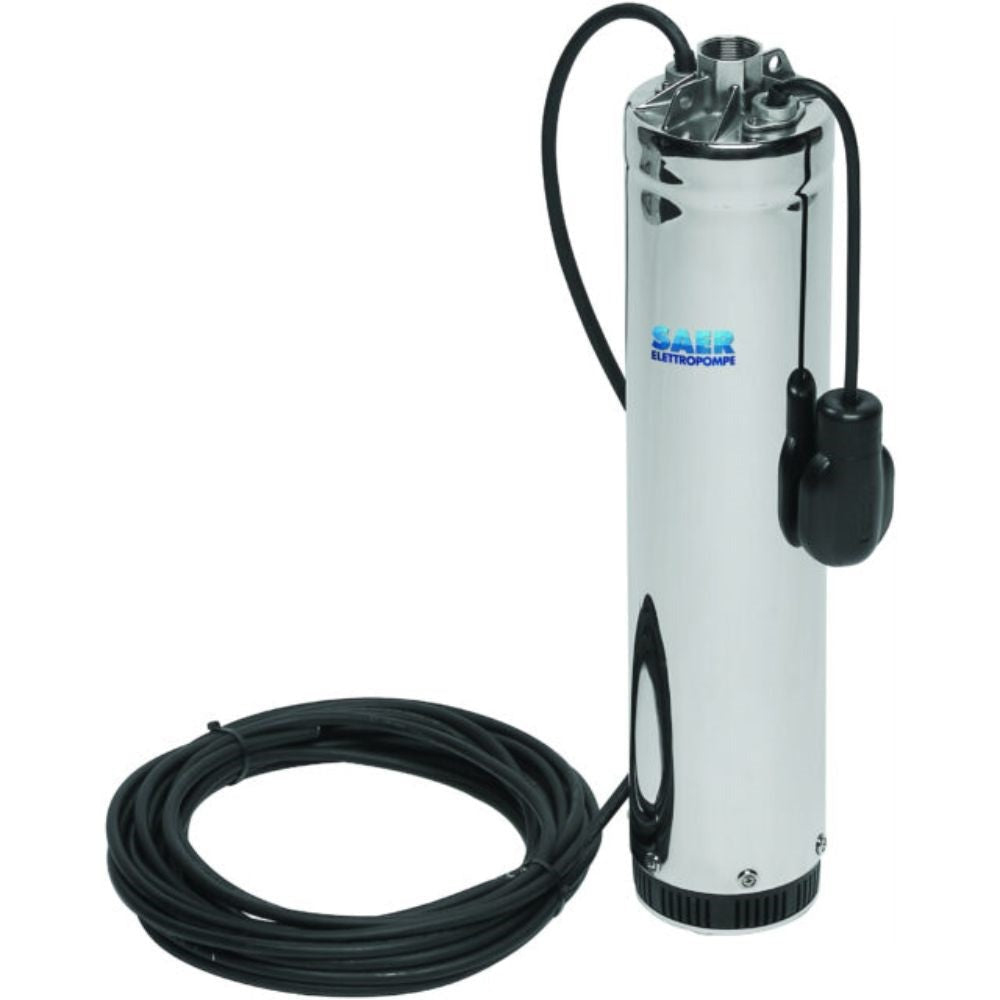

The product image shown is for illustration purpose only
