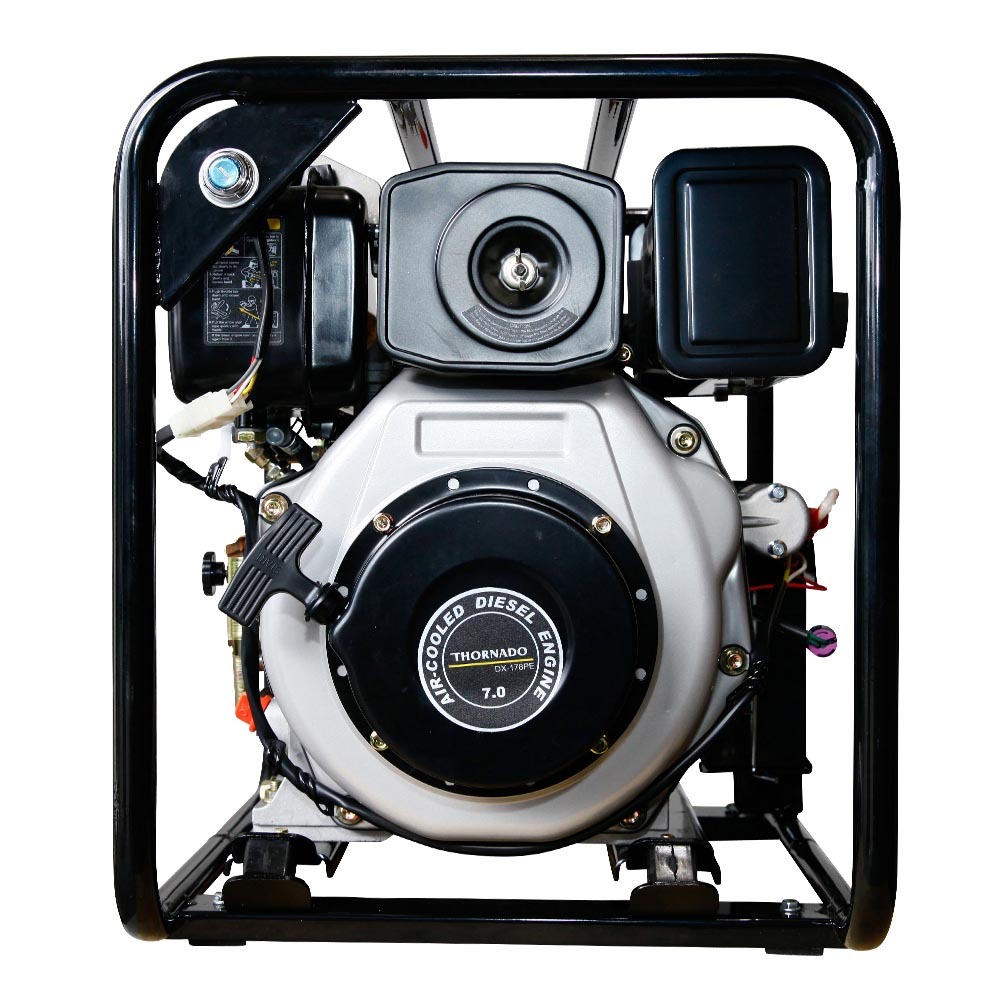

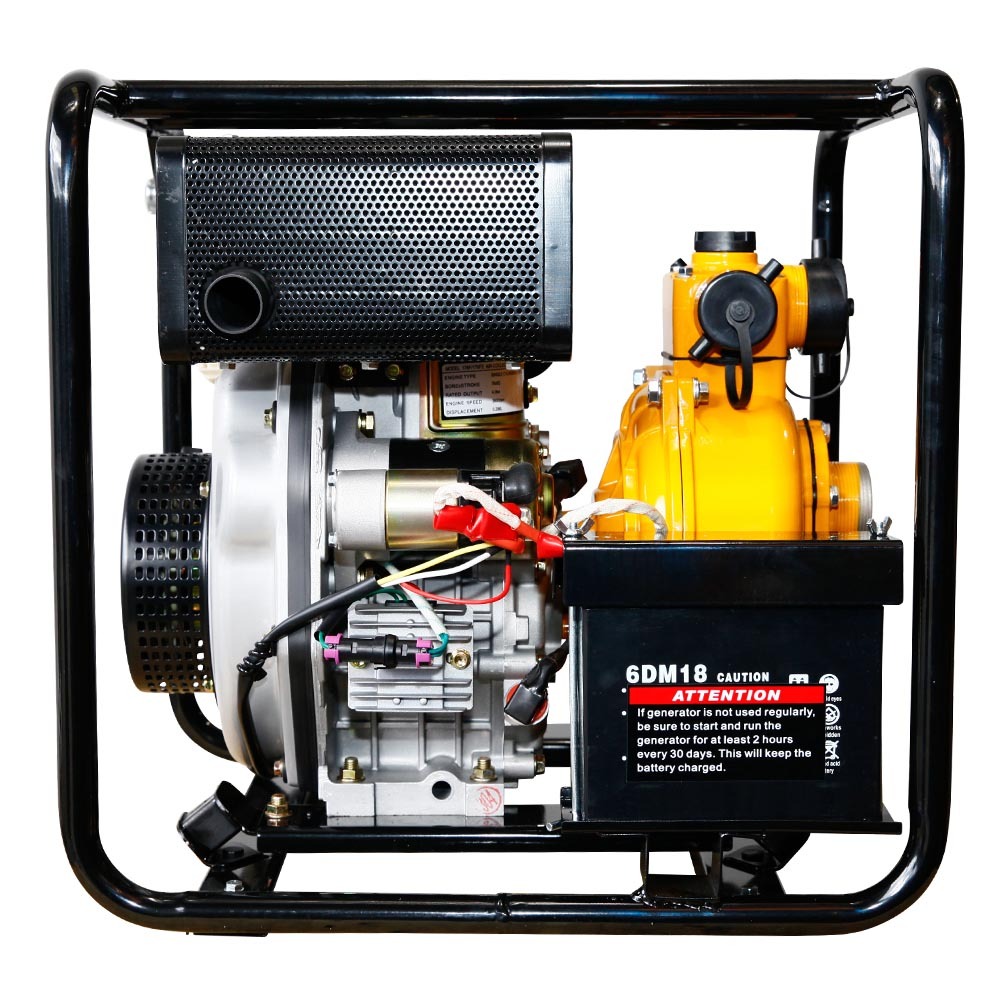

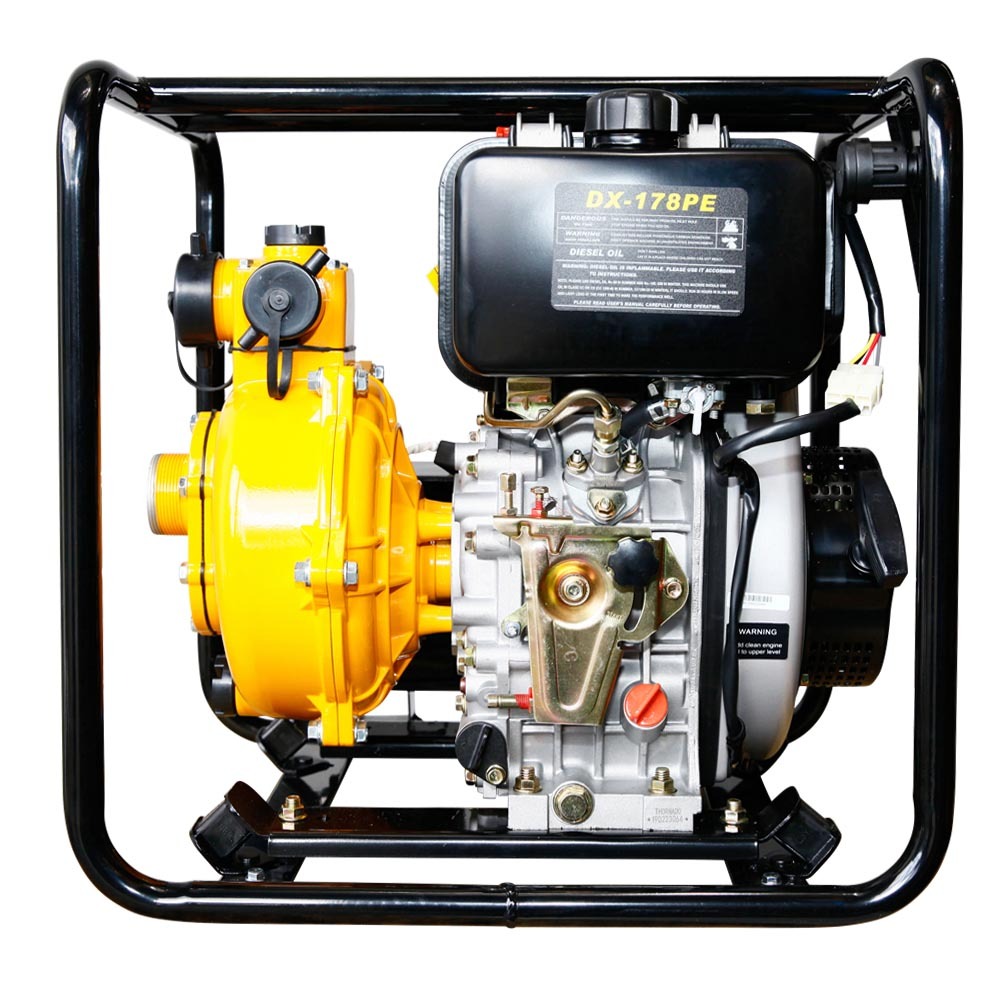

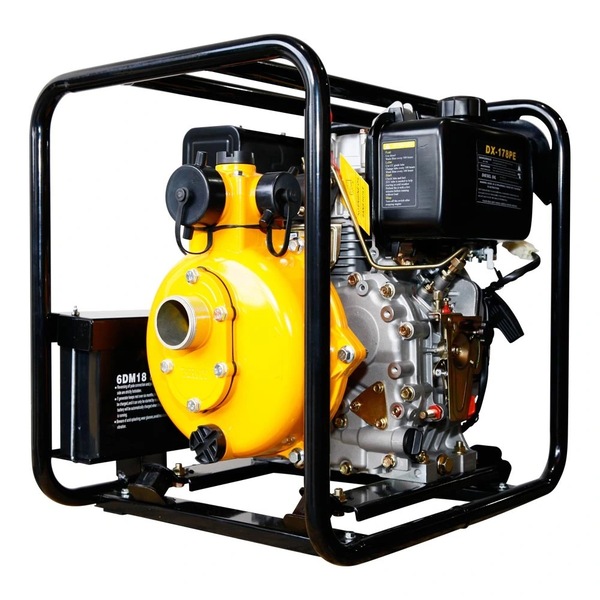

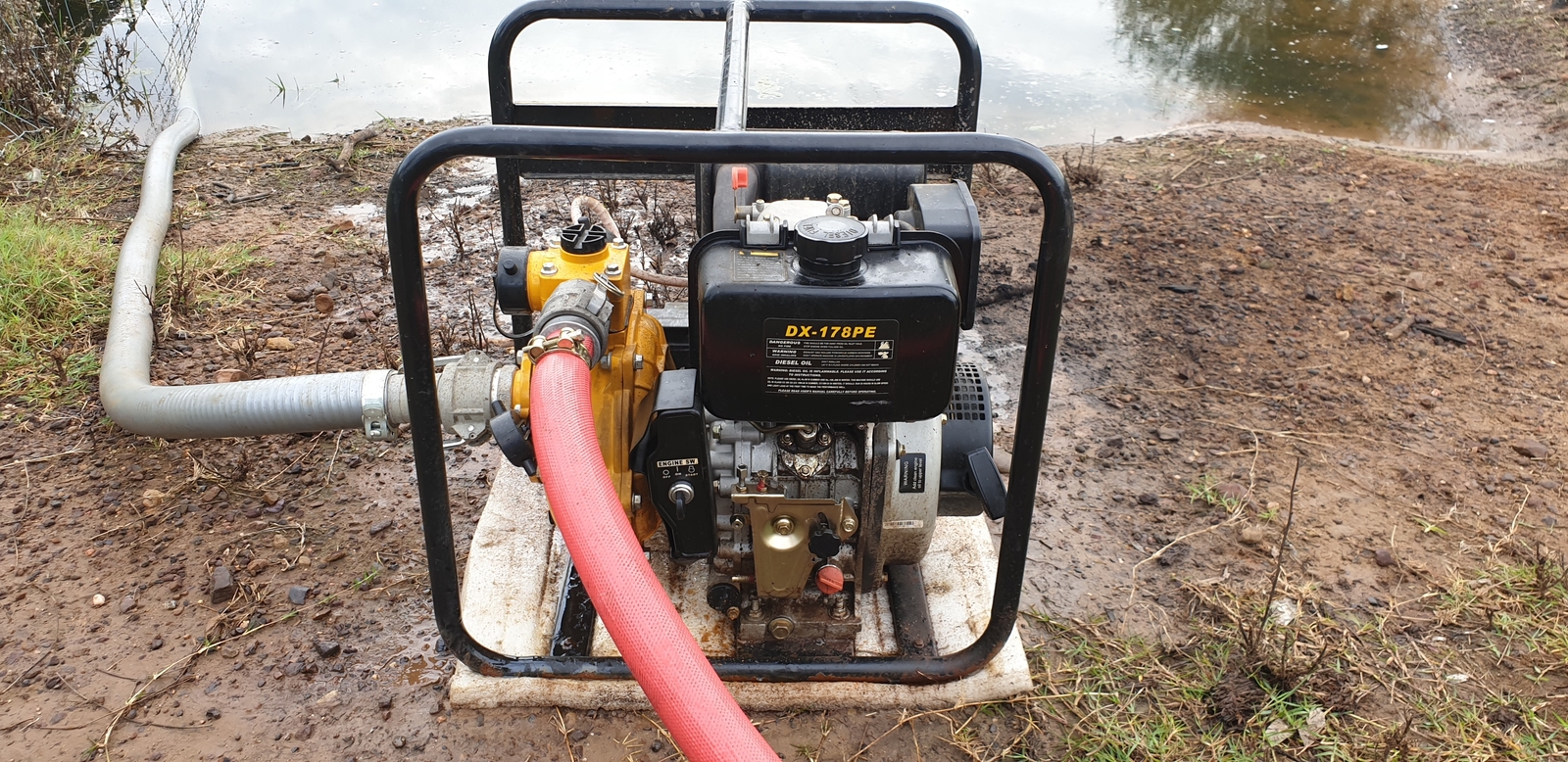

The THORNADO newly released Diesel twin impeller self priming fire fighting pump provides outstanding performance for fire fighting, water transfer and dewatering. It is powered by our high performance THORNADO 7HP 4-stroke single cylinder force air cooled Diesel engine with Electric start. The Diesel engine is driving a 19.05mm diameter horizontal shaft that delivers strong power and low noise.

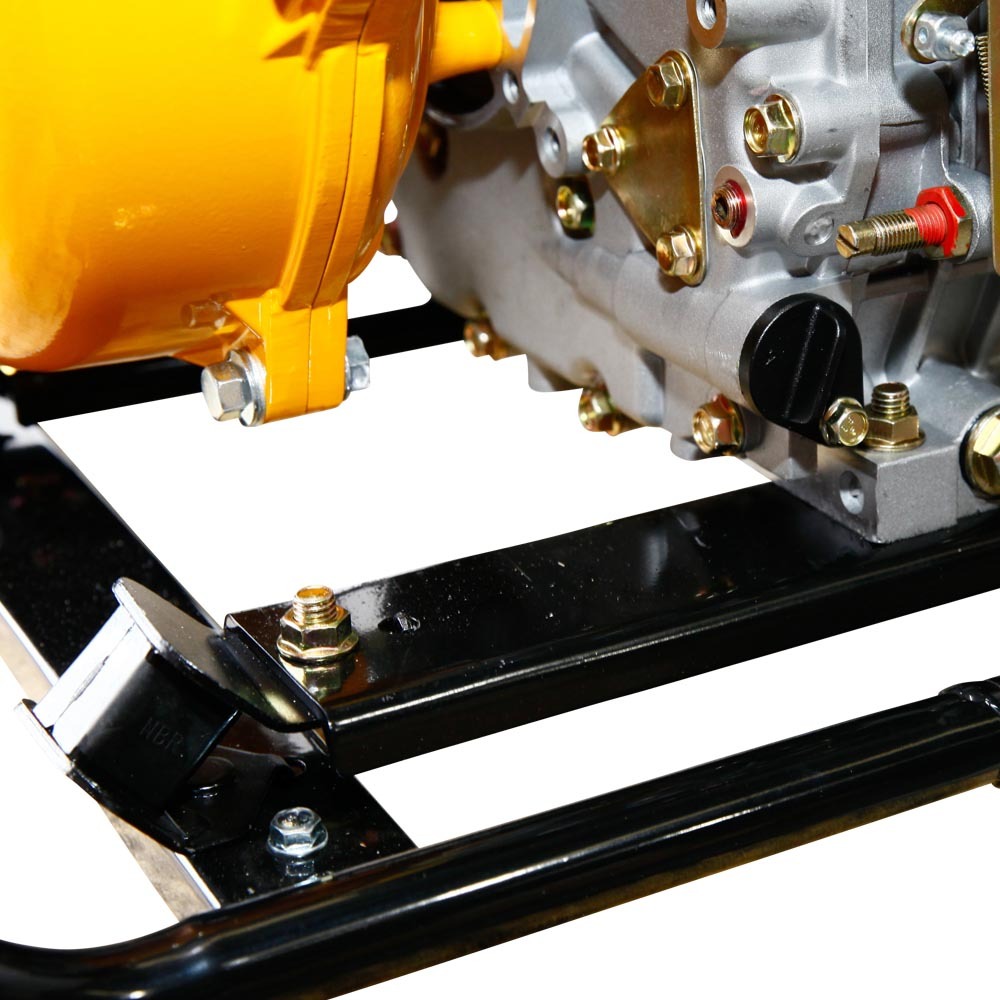

The THORNADO 2 inch Diesel twin impeller self priming fire fighting pump is offering a total head of 80m, drawing water up to 8m height, and capable of moving water up to 18,000 litres per hour. The external pump body are made of marine grade aluminium alloy for long life, and powder coated for added corrosion protection. A ceramic carbon mechanical seal is used on our pump providing rugged construction for long life, and a heavy duty steel frame protecting the pump and the engine on all sides.
Fire fighting pump can mean the difference between a total loss of property or a fire spreading to larger areas. If all these matters to you, then you have to get high quality and dependable fire fighter pump you can trust. Look no further than THORNADO for quality, range and value when investing in your new water pumps. Order your THORNADO 2 inch Diesel water pump now and experience the force behind the THORNADO brand.
*T&C's Apply, see Warranty Policy for full details.
| SPECIFICATIONS | |
| Model No | TH-DWP2HP20 |
| Type | Self priming, Centrifugal pump |
| Inlet Size | 2 inch |
| Outlet Size | 2 inch, 2 x 1.5 inch |
| Max Lift Head | 80m |
| Max Flow | 18,000 litres/hour |
| Max Suction Depth | 7m |
| Max Pressure | 114 PSI |
| Material | Alluminium alloy pump housing, cast iron impeller and diffuser |
| Engine | DX-178 (7HP) |
| Engine Type | 4 stroke, air cooled |
| Max Power HP / Rpm | 7HP / 3600 Rpm |
| Displacement | 296cc |
| Fuel Type | Diesel |
| Oil Type | SAE10w-30 / SAE30 |
| Fuel Tank Capacity | 3.5L |
| Oil Capacity | 1.1L |
| Run Time Full Tank | 2.5h at ¾ load |
| Starting System | Electric/Recoil start |
| Product Length | 560mm |
| Product Width | 460mm |
| Product Height | 550mm |
| Product Weight | 59kg |
| In the Box | Water pump, battery, hose fittings, hose clamps, intake strainer, User manual |
| Pump | TH-DWP2HP20 |
| Max Flow Rate | 18,000 litres/hour |
| Max Suction Depth | 7m |
| Max Head Lift | 80m |
| Inlet size | 2 inch (50mm) |

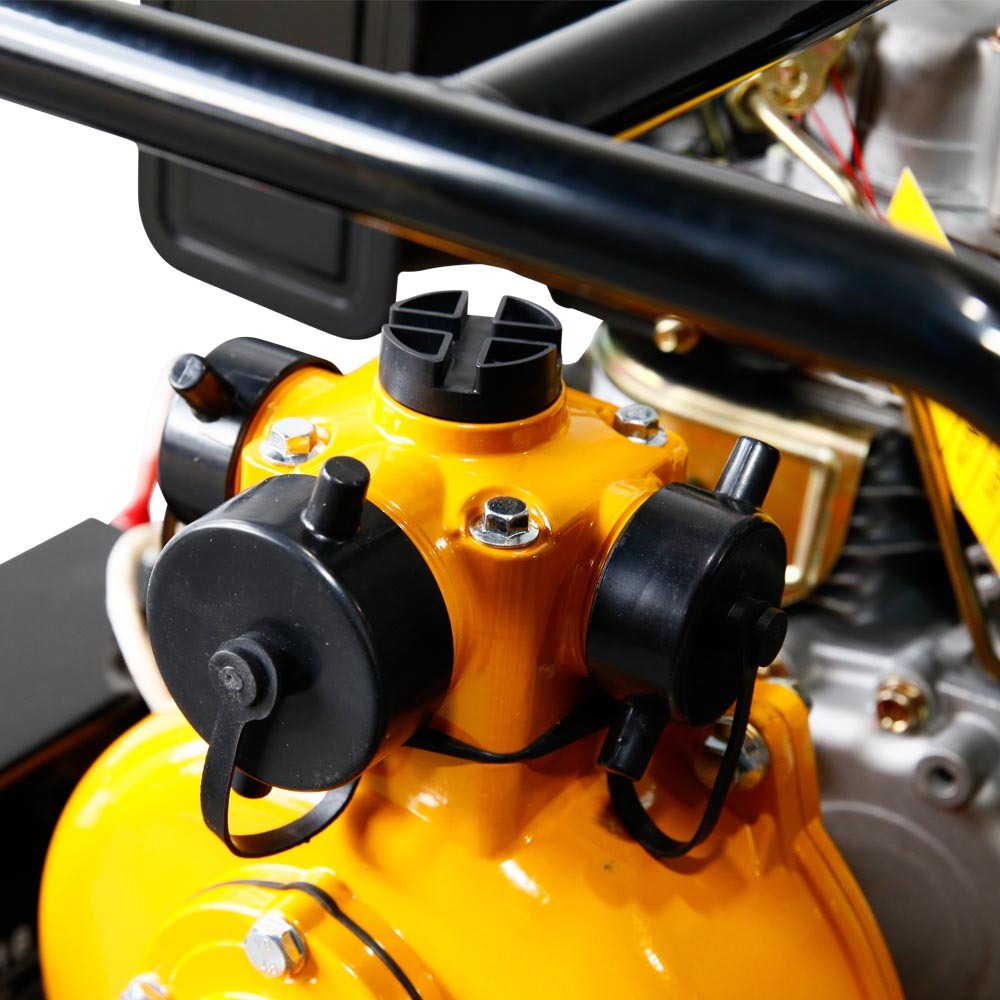

| Outlet size | 1x 2 inch (50mm) & 2x 1.5 inch (40mm) |
| Included Accessories | Intake Strainer, Hose Clamps, Spark Plug Wrench |
| Dimension (L, W, H) | 550x 470 x 550 mm |
| Net Weight | 62kg |
| ENGINE | |
| Displacement | 296cc |
| Engine Type | 4 Stroke OHV Air Cooled Engine |
| Engine Model | DX-178PE |
| Starting System | Electric / Recoil Start |
| Max Power HP / Rpm | 7HP / 3800 Rpm |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 3.5L |
| Oil Type | SAE10w-30 / SAE30 |
| Oil Capacity | 1.1L |
| Run time @75% Load | ~3hr |
| PTO Shaft Rotation | Counter Clockwise |
| Bore x Stroke | 78mm x 62 mm |
| Valve Clearance - Intake | 0.15 mm |
| Valve Clearance - Exhaust | 0.20 mm |
