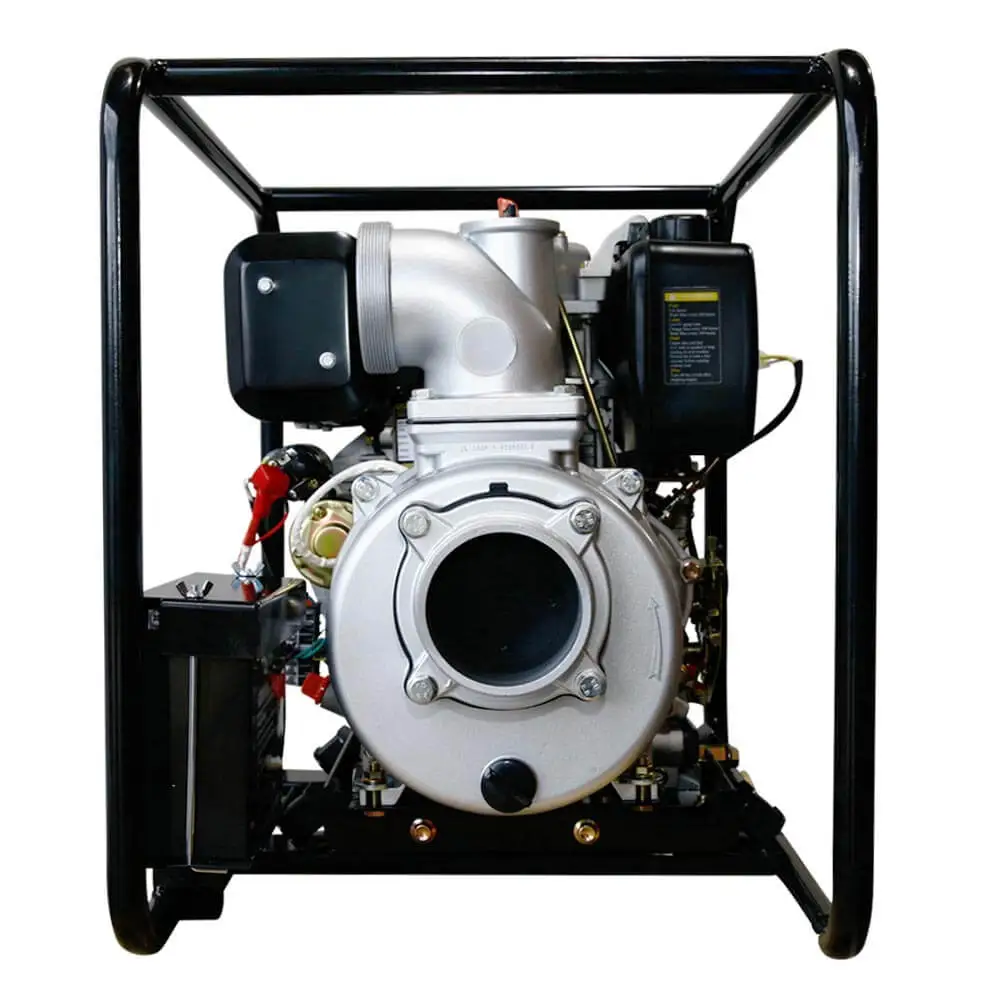

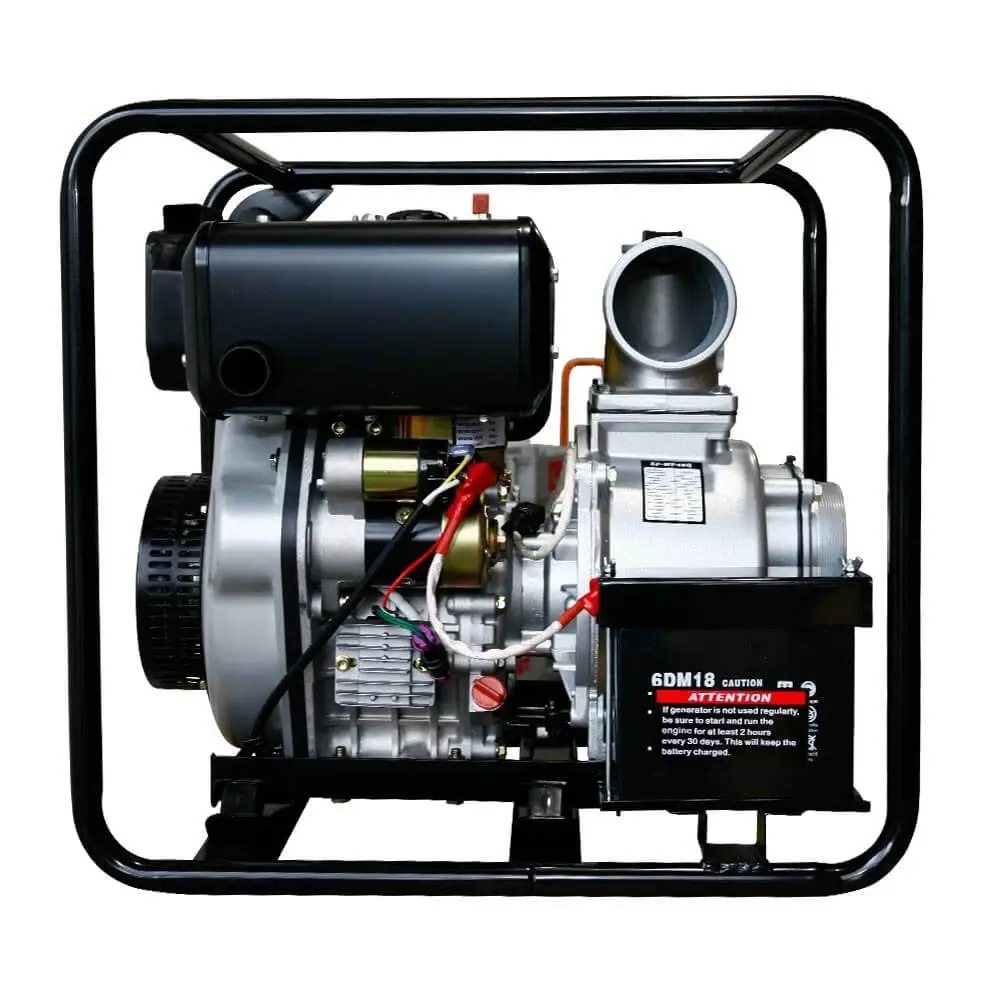

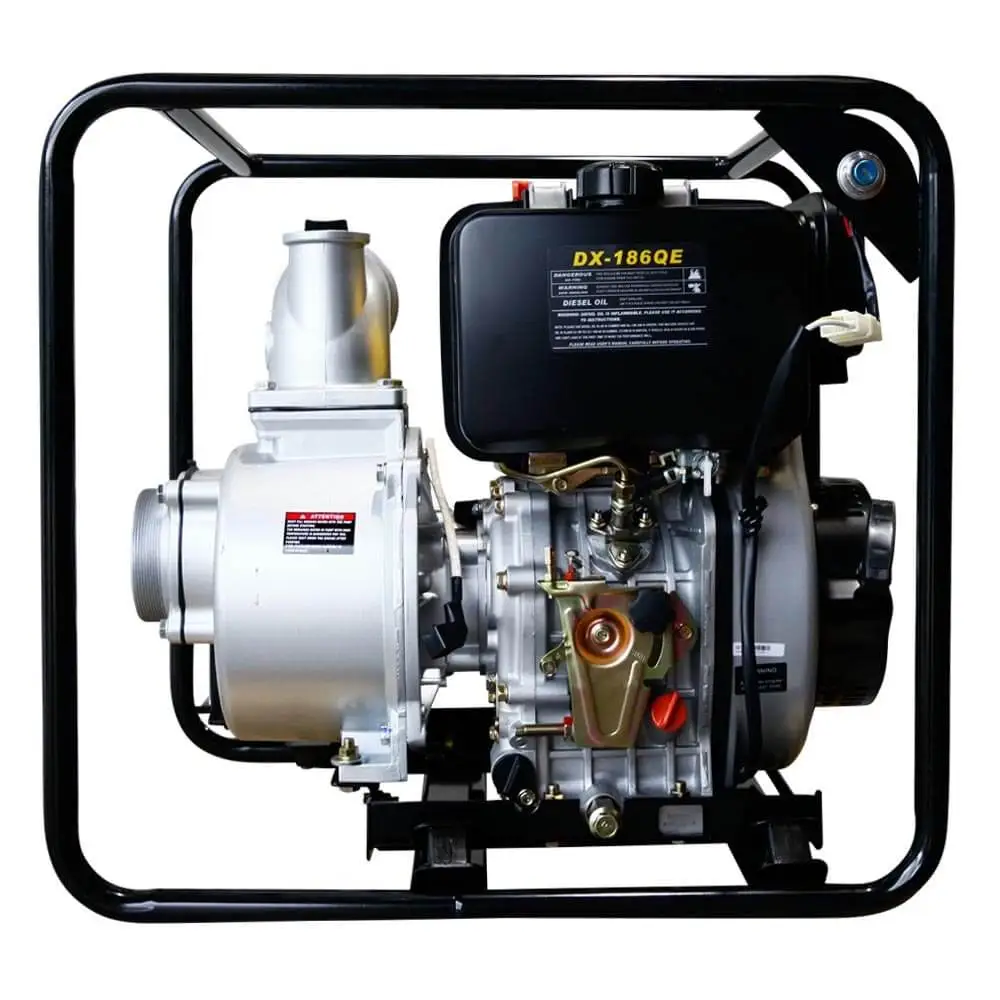

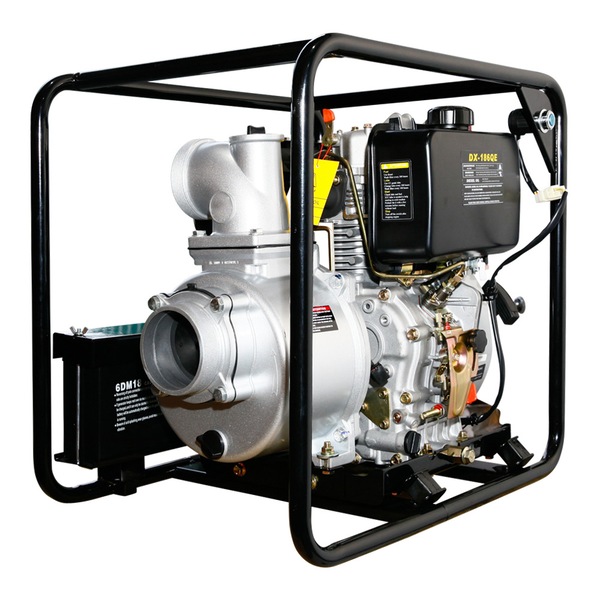

The THORNADO 4 inch water transfer pump is powered by a true commercial THORNADO 10HP Diesel engine, features a cast iron impeller and volute that ensures maximum durability and performance. A ceramic carbon mechanical seal is used on our pump provides rugged construction for long life. With a suction/discharge diameter of 100mm (4 inches), this pump has a maximum water displacement rate of 86,000 litres per hour and a maximum delivery lift of 30m. With the ability to draw water up to 7m in height, the THORNADO 4 inch Diesel water transfer pump is sure to be helpful to you in a variety of situations.

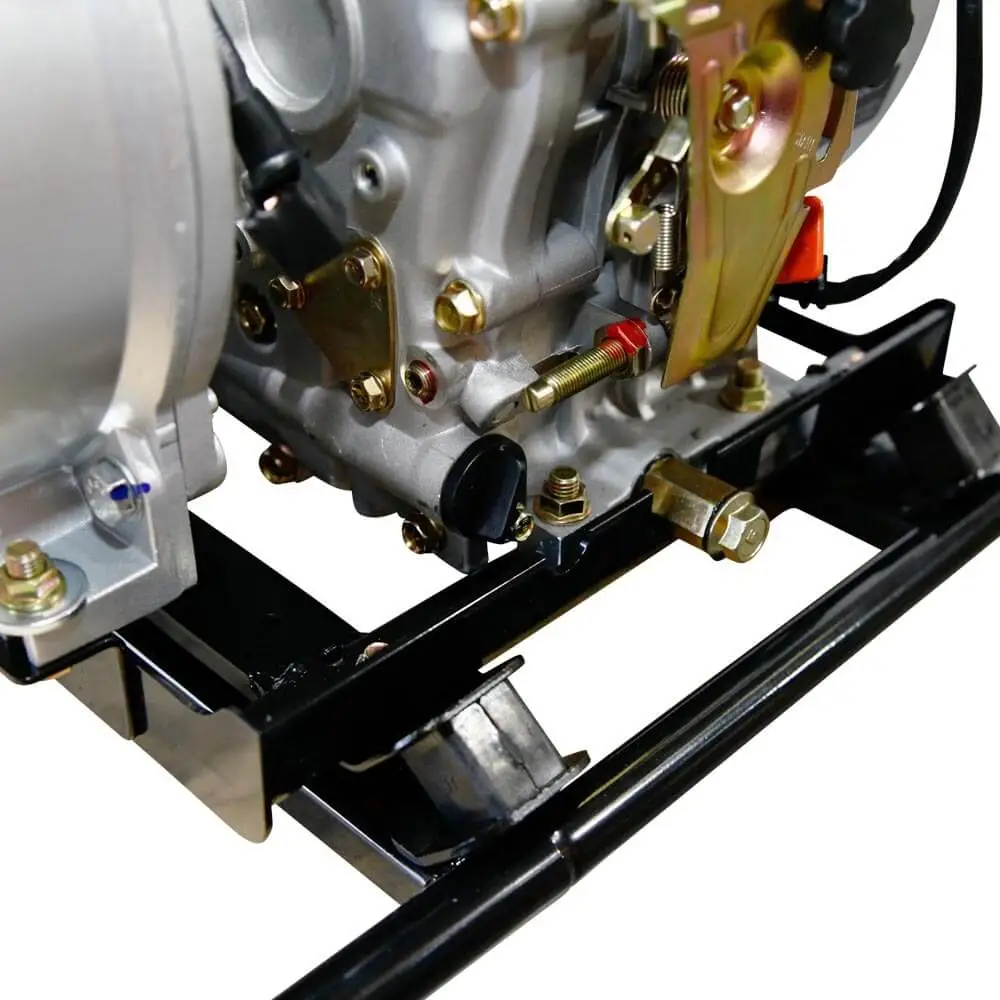

The THORNADO 10HP Diesel engine is a 4-stroke single cylinder forced air-cooled engine with a electric starter that makes it easy to get the equipment running and on task. The engine is coupled with 25.4mm diameter horizontal shaft, delivers strong power and low noise, and a heavy duty steel frame protects the pump and the engine on all sides.
Look no further than THORNADO for quality, range and value when investing in your new water pumps. Order your THORNADO 4 inch Diesel water pump now and experience the force behind the THORNADO brand.
*T&C's Apply, see Warranty Policy for full details.
SPECIFICATIONS | |
Model No | TH-DWP40 |
Type | Self priming, Centrifugal pump |
Inlet Size | 4 inch |
Outlet Size | 4 inch |
Max Lift Head | 30m |
Max Flow | 86,000 litres/hour |
Max Suction Depth | 7m |
Max Pressure | 42 PSI |
Material | Alluminium alloy pump housing, cast iron impeller and diffuser |
Engine | DX-186 (10HP) |
Engine Type | 4 stroke, air cooled |
Max Power HP / Rpm | 10HP / 3600 Rpm |
Displacement | 418cc |
Fuel Type | Diesel |
Oil Type | SAE10w-30 / SAE30 |
Fuel Tank Capacity | 6.5L |
Oil Capacity | 1.65L |
Run Time Full Tank | 2.5h at ¾ load |
Starting System | Electric/Recoil start |
Product Length | 665mm |
Product Width | 500mm |
Product Height | 625mm |
Product Weight | 75kg |
In the Box | Water pump, battery, hose fittings, hose clamps, intake strainer, user manual, |
Pump | TH-DW40Q |
Max Flow Rate | 86,000 litres/hour |
Max Suction Depth | 7m |
Max Head Lift | 25m |
Inlet size | 4 inch (100mm) |
Outlet size | 4 inch (100mm) |
Included Accessories | Intake Strainer, Hose Clamps, Spark Plug Wrench |
Dimension (L, W, H) | 665x 500 x 625 mm |
Net Weight | 78kg |
ENGINE | |
Displacement | 418cc |
Engine Type | 4 Stroke OHV Air Cooled Engine |
Engine Model | DX-186 |
Starting System | Electric / Recoil Start |
Max Power HP / Rpm | 10HP / 3800 Rpm |
Fuel Type | Diesel |
Fuel Tank Capacity | 5.5L |
Oil Type | SAE10w-30 / SAE30 |
Oil Capacity | 1.6L |
Run time @75% Load | ~3.5 hr |
PTO Shaft Rotation | Counter Clockwise |
Bore x Stroke | 86mm x 72 mm |
Valve Clearance - Intake | 0.15 mm |
Valve Clearance - Exhaust | 0.20 mm |
