Product Details
Features both the RedVision display screen & mobile phone connectivity for complete battery management for charging auxiliary batteries used in auxiliary batteries & in recreational automotive & marine applications.
The dual battery system incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery

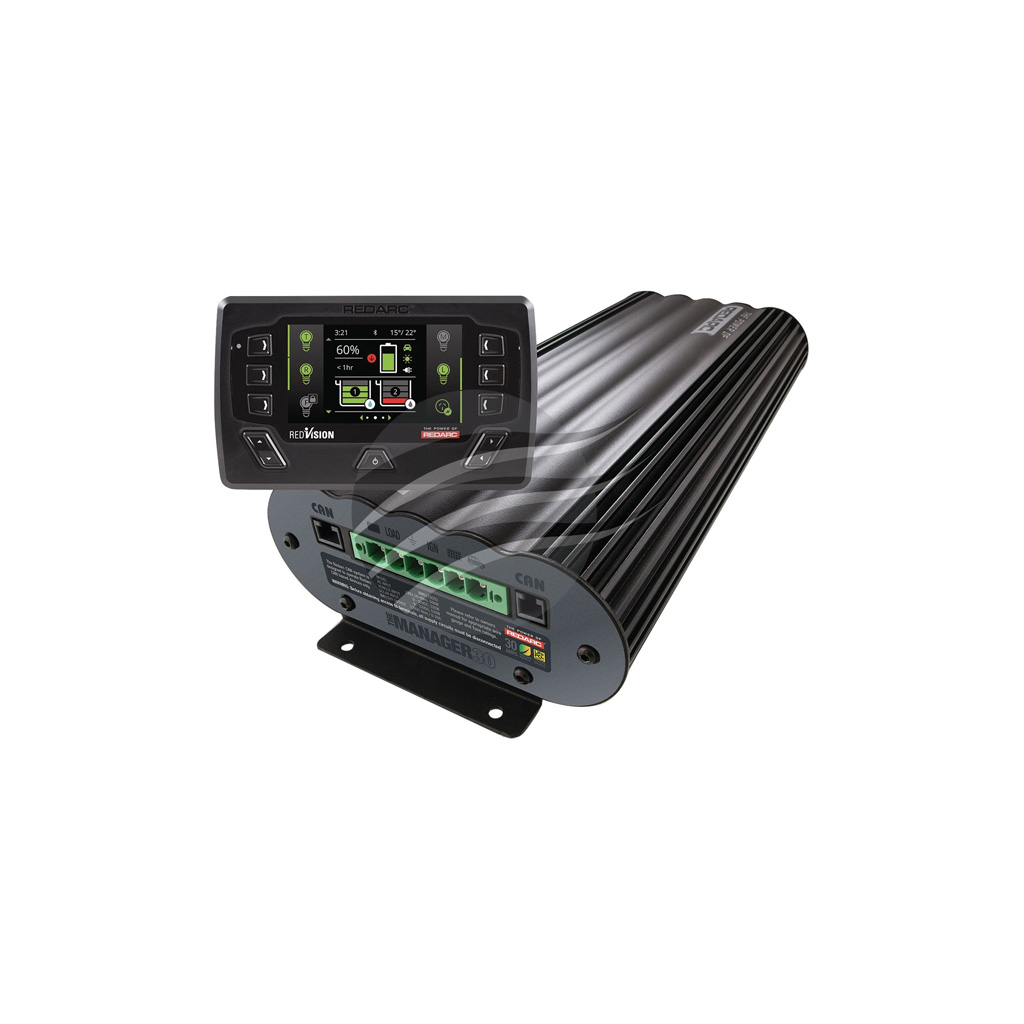

Redarc Manager30 V3 Battery Management System 12/24V 30amp with RedVision Remote LCD Display
12/24V Input, 12V 30amp Output (Nom.) with Lithium Charging capabilities
| Specifications |
| Output System Voltage |
12VDC |
| Maximum Charging Voltage |
16.0V* (*Calcium setting in storage mode) |
| Output Current Rating (Cont.) |
30A |
| Output Power |
520W |
| Input Fuse Rating |
50A |
| Output Fuse Rating |
40A |
| Protection |
Short Circuit, Surge, Reverse Polarity, Overload |
| Input (Operating) Voltage |
220-240VAC / 9 - 32VDC |
| Length (mm) |
445 |
| Width (mm) |
185 |
| Weight (kg) |
5.5 |
| AC Mains Plug Type |
AU, NZ, EU |
| Type Approval |
CE |
| Warranty |
2 Years |
Features
Multi-Stage AC-DC Battery Charger
Multi-Stage DC to DC Charger
Maximum Power Point Tracking Solar Regulator
Improved, 4.3 coloured RedVision display battery monitor
RedVision display allows connection to Smartphone via App
Dual Battery Isolator
Load Disconnect Controller
Super quiet operation
Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
Tested to mains power safety standards in Australia
Redarc 12/24v Manager V3 Battery Management System 30a w/ Redvision
Product Details
Features both the RedVision display screen & mobile phone connectivity for complete battery management for charging auxiliary batteries used in auxiliary batteries & in recreational automotive & marine applications.
The dual battery system incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery
Redarc Manager30 V3 Battery Management System 12/24V 30amp with RedVision Remote LCD Display
12/24V Input, 12V 30amp Output (Nom.) with Lithium Charging capabilities
| Specifications |
| Output System Voltage |
12VDC |
| Maximum Charging Voltage |
16.0V* (*Calcium setting in storage mode) |
| Output Current Rating (Cont.) |
30A |
| Output Power |
520W |
| Input Fuse Rating |
50A |
| Output Fuse Rating |
40A |
| Protection |
Short Circuit, Surge, Reverse Polarity, Overload |
| Input (Operating) Voltage |
220-240VAC / 9 - 32VDC |
| Length (mm) |
445 |
| Width (mm) |
185 |
| Weight (kg) |
5.5 |
| AC Mains Plug Type |
AU, NZ, EU |
| Type Approval |
CE |
| Warranty |
2 Years |
Features
Multi-Stage AC-DC Battery Charger
Multi-Stage DC to DC Charger
Maximum Power Point Tracking Solar Regulator
Improved, 4.3 coloured RedVision display battery monitor
RedVision display allows connection to Smartphone via App
Dual Battery Isolator
Load Disconnect Controller
Super quiet operation
Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
Tested to mains power safety standards in Australia
Redarc 12/24v Manager V3 Battery Management System 30a w/ Redvision
The Manager30 BMS1230S3R features both the RedVision display screen and mobile phone connectivity for complete battery management for charging auxiliary batteries used in recreational automotive and marine applications. The dual battery system incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery.
This 30amp charger is the complete battery management system that gives you the best of both worlds. Whether you re free camping or on a powered site, it knows how to take charge and keep auxiliary batteries fully charged.
The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it s a 240-volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote coloured RedVision battery monitor, making it market-leading.
The RedVision remote battery monitor is designed to show auxiliary battery information and charge status through its coloured display. You can customise how your battery is charged and monitor where it is coming from. It also provides full connectivity to the Manager30 via the RedVision Smartphone App on both Apple and Android devices.
Whether you re charging Lead Acid, Gel, Calcium, AGM or Lithium Iron Phosphate batteries, The Manager30 represents a complete DC to DC charging and maintenance solution. If you re charging one auxiliary battery or more, The Manager30 will ensure they re al...
