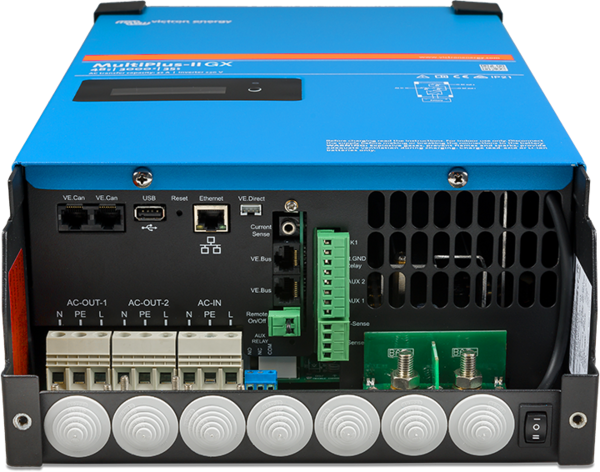

Model: Multiplus-II 48/3000/35-32
Output Power at 25deg (continuous): 3000 VA
Output Power (peak): 5500 W
DC Voltage (nominal): 48 V
Charge current: 35 A
AC Transfer switch: 32A
A MultiPlus, plus ESS (Energy Storage System) functionality
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 32A. It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
PowerControl and PowerAssist - Boosting the capacity of grid or generator power
A maximum generator or grid current can be set. The Multi will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).
PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.
ESS: Energy Storage Systems
The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Several system configurations are possible, for more detailed information see the ESS Design and configuration manual.
On-site monitoring and control
Internal Venus GX. Several options are available: Battery Monitor, Digital Multi Control Panel, Color Control Panel, Bluetooth laptop or computer.
Remote configuring and monitoring
Internal Venus GX will connect to the internet. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the Ethernet, systems can be accessed remotely and settings can be changed
Part Number | PMP482306000 |
---|---|
Manufacturer | Victron Energy |
Datasheet-MultiPlus-II-GX-inverter-charger-EN.pdf |
