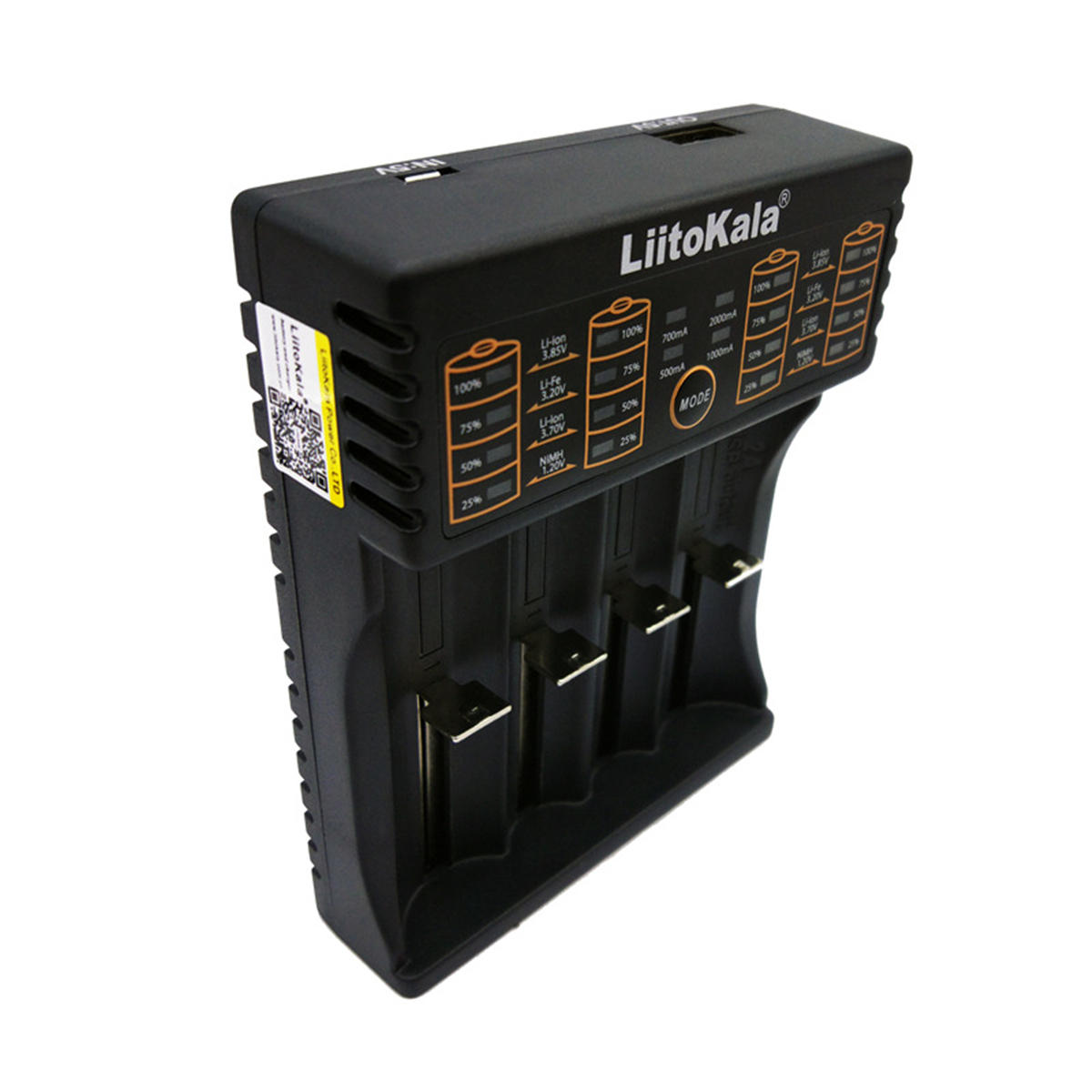

4 Port Smart Battery Charger Li Batteries Charging for lii-402 18650 26650 16340 14500 A AA AAA 21700 RCR123 SC

Features:

Micro USB DC 5V input, four independent charging and micro computer management system

Four charging current mode (500mAh/700mAhn/1000mAh/2000mAh), 2000mAh current mode is fixed only on the fourth slot

The LED indicators display the charging progress: 25% - 50% - 75% -100% and battery type (size): Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.85V

Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.85V li-ion batteries

Refresh for OV battery. It don’t charge any battery of1.65 -1.85V (refresh current can be detected only)

Protection for over-charge and over-discharge and short circuit. Identify broken battery and polar reverse inspection

Charing under constant voltage and current

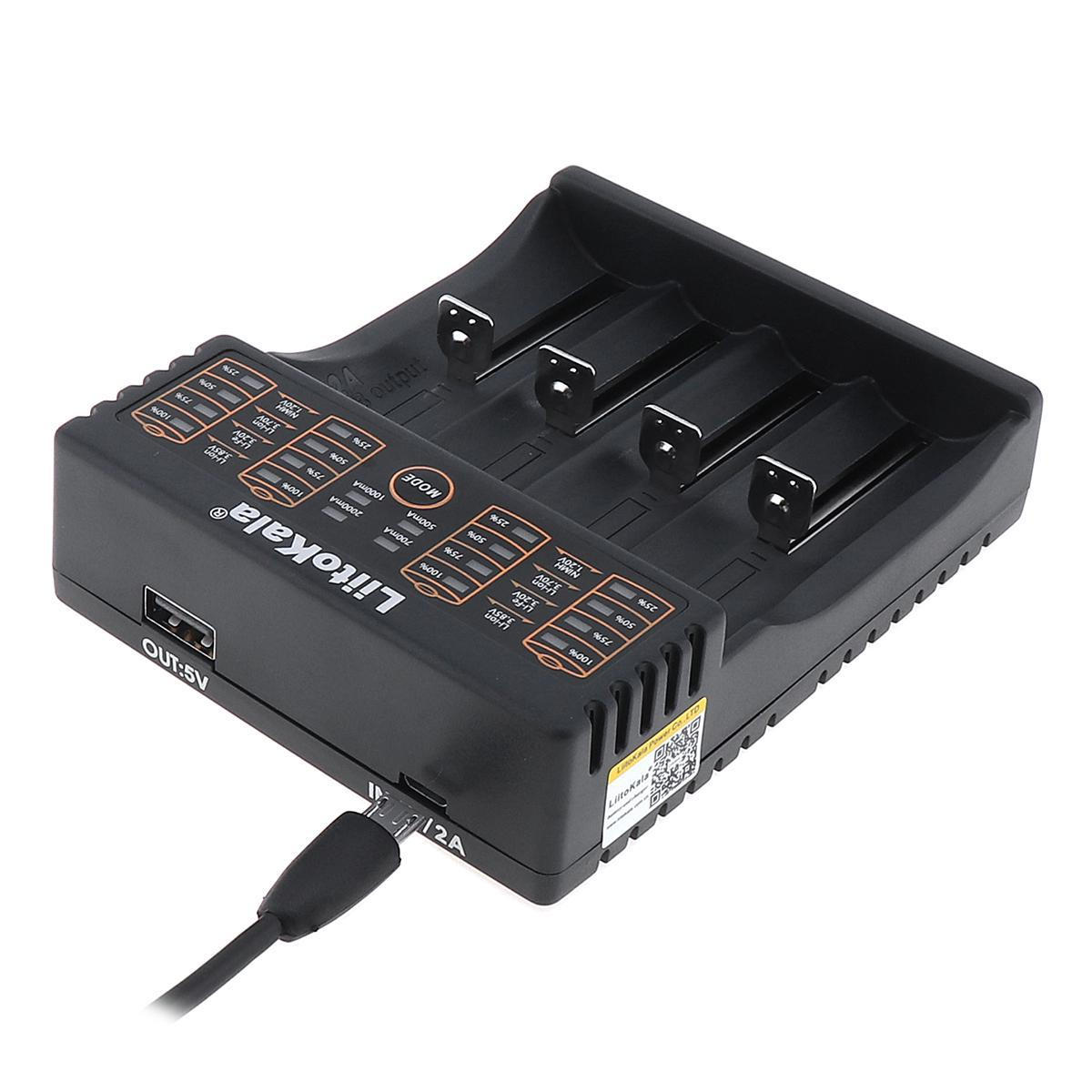

Input by DC interface and working voltage is 5V-2A (Micro plug)

Built with 5V/1000mAh USB discharge (output) function

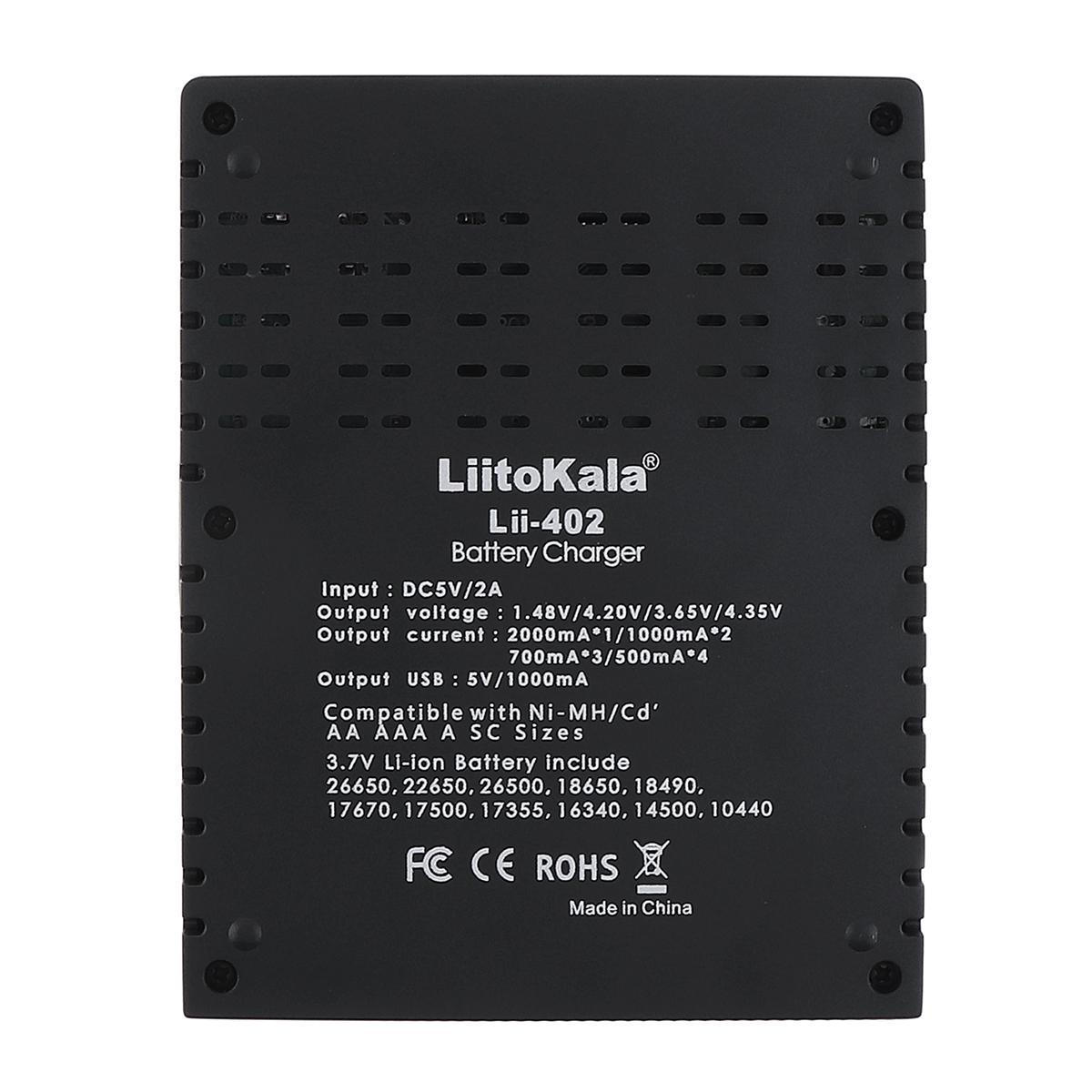

Model: lii-402

Material: ABS

Size: 112mm x 90mm x 30mm (L x W x H)

Input: Micro USB DC 5V/2A

Output: 1.48V/4.20V/3.65V/4.35V

Current: 2000mA x 1,1000mA x 2, 700mA x 3, 500mA x 4

Constant voltage, cut-off current: less than 100mAh

Standby current: less than 15mAh

Compatible with (18650, 26650, 26500, 22650, 18490, 17670, 17500, 17355, 16340, 14500, 10440, A, AA, AAA,C SC sizes)?

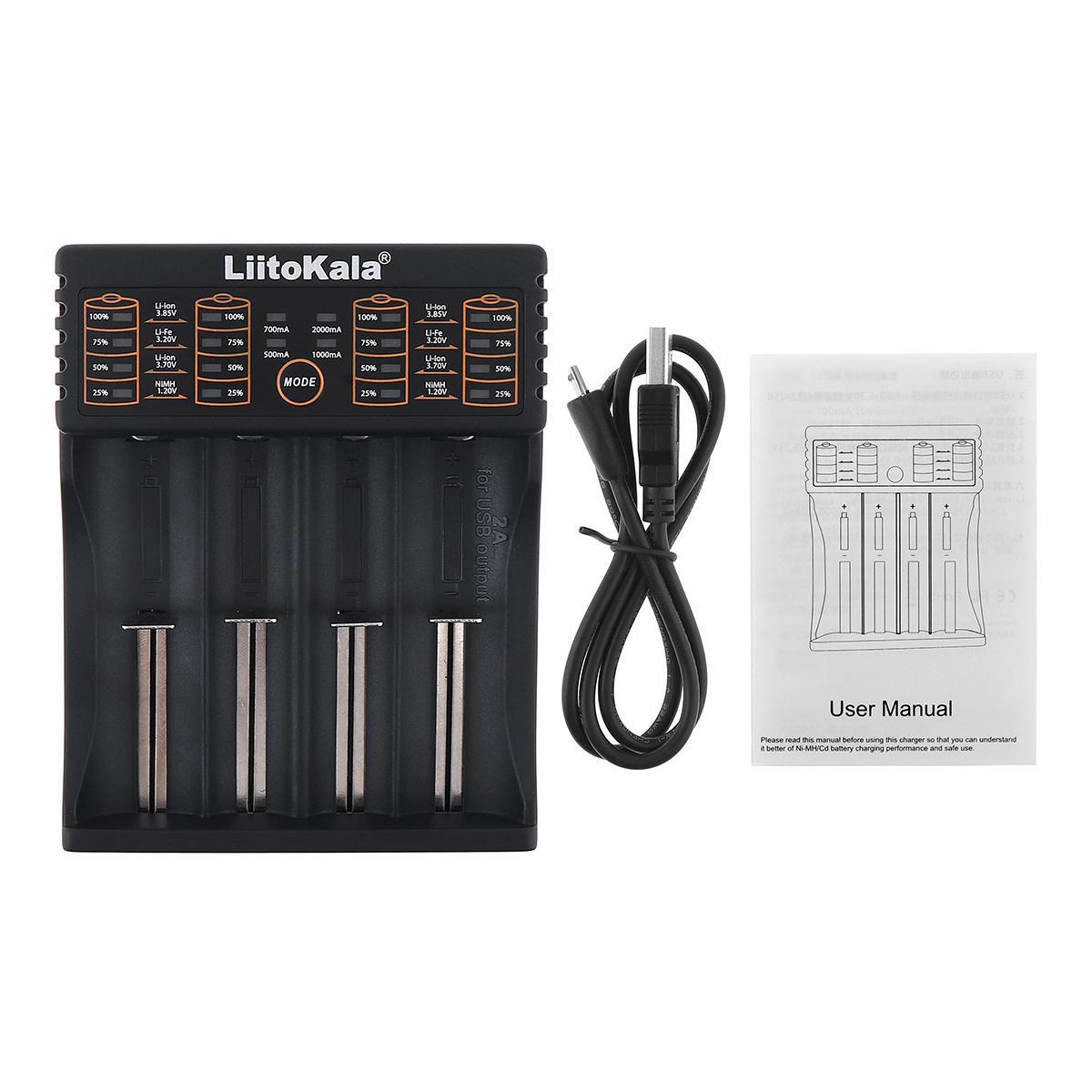

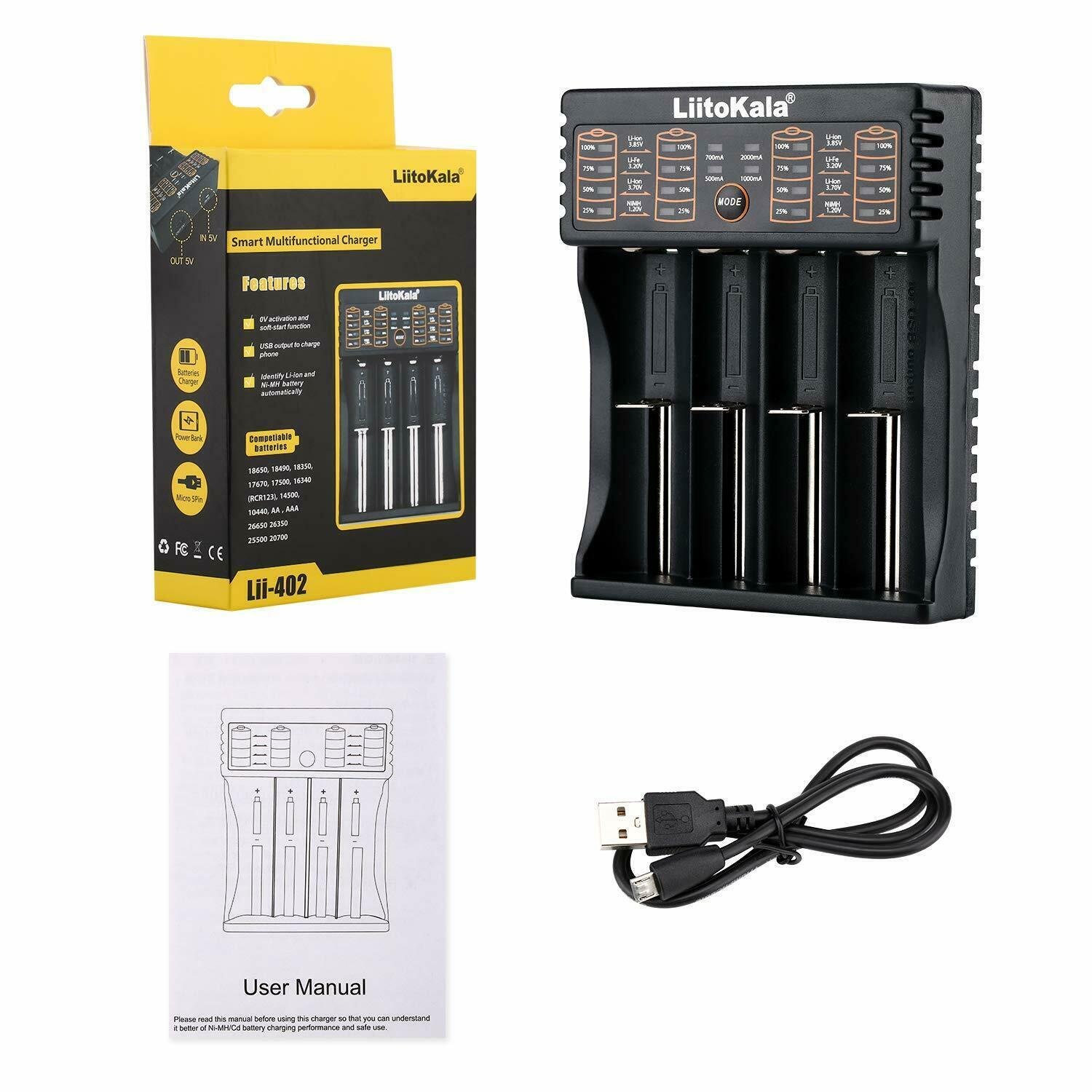

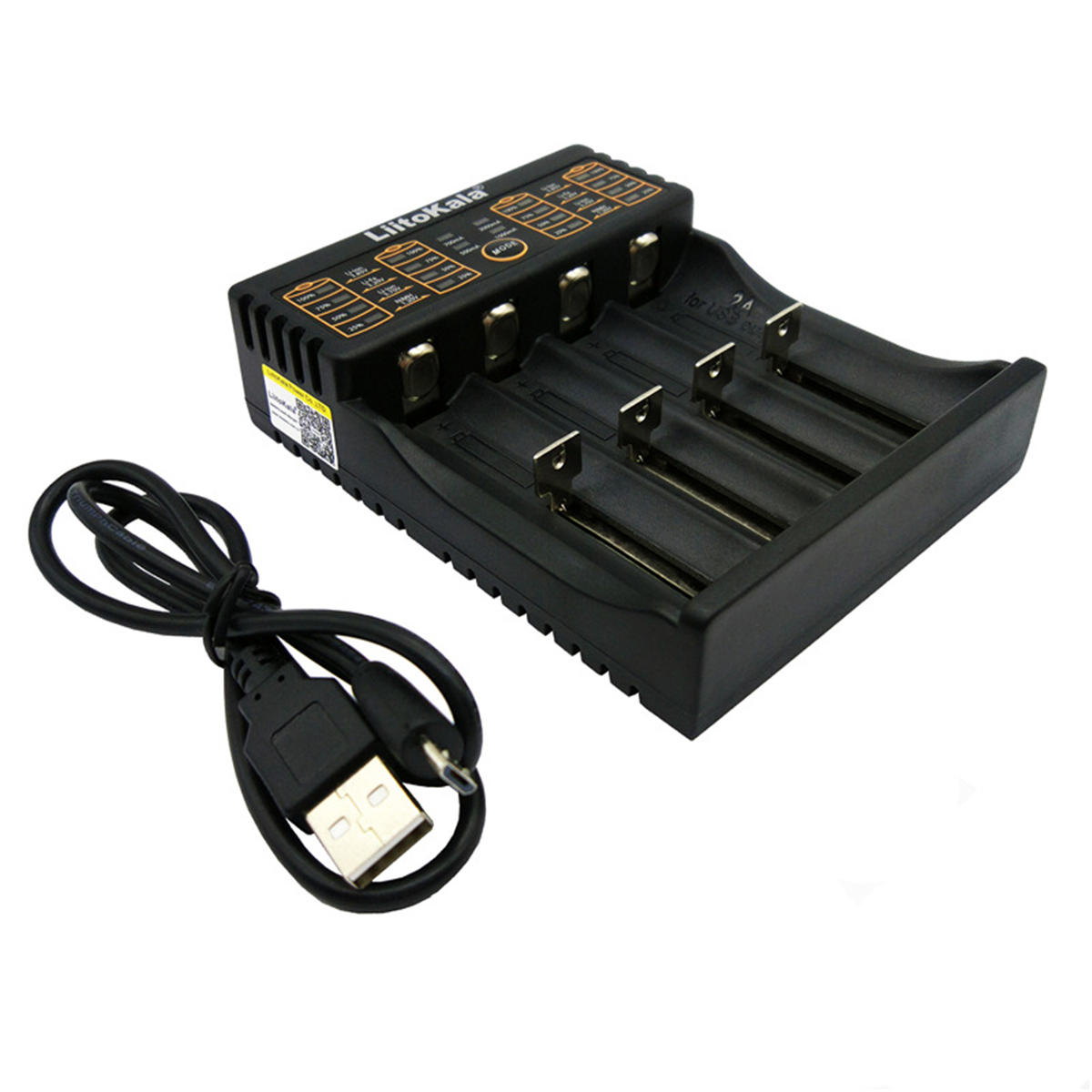

Package Included:

1 x Battery Charger(Not include battery)

1 x USB Data Cable

1 x User Manual

Button, LED and function

1. Buttons : While electricity is connected,? 1) press the button to change the battery type, it will start to charge 5 seconds after setting the battery type (3.2V or 3.85V),? 1.2V Ni-MH and 3.7V li-ion ca be detected automatically, so it need set for only 3.2V and 3.8V batteries;? 2) change the charging current amount 4 current at any time during charging by long press the button

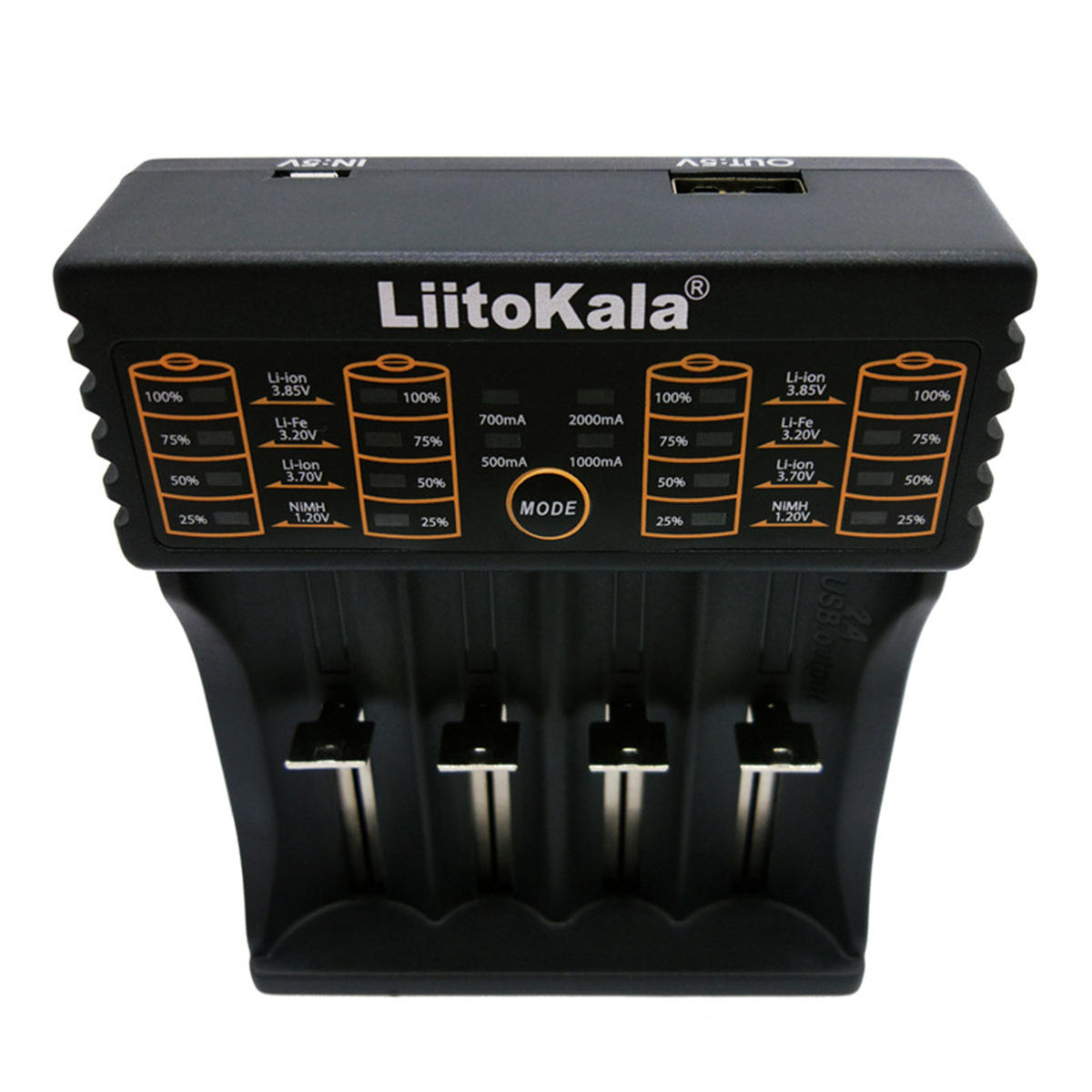

2. LED: While connect it to 5V input, all LED light up immediately? 1) If no battery is put in, 500mAh LED keeps on and others will go out.? 2) When battery is detected in, 4 LED lights on AND 3.7V LED keep flicker to indicate to set the battery type, if no operation, it begin to charge 5 seconds later automatically under detection, four LED lights will display the charging status. 3) Tap the button .can show the battery type for 5 seconds. 4) No electricity is connected, insert a battery can quick shows the remaining battery volume.

3. USB output indicator: When USB discharging port detected, indicator of battery volume will light up for 10 seconds and go out, press button to light up again.

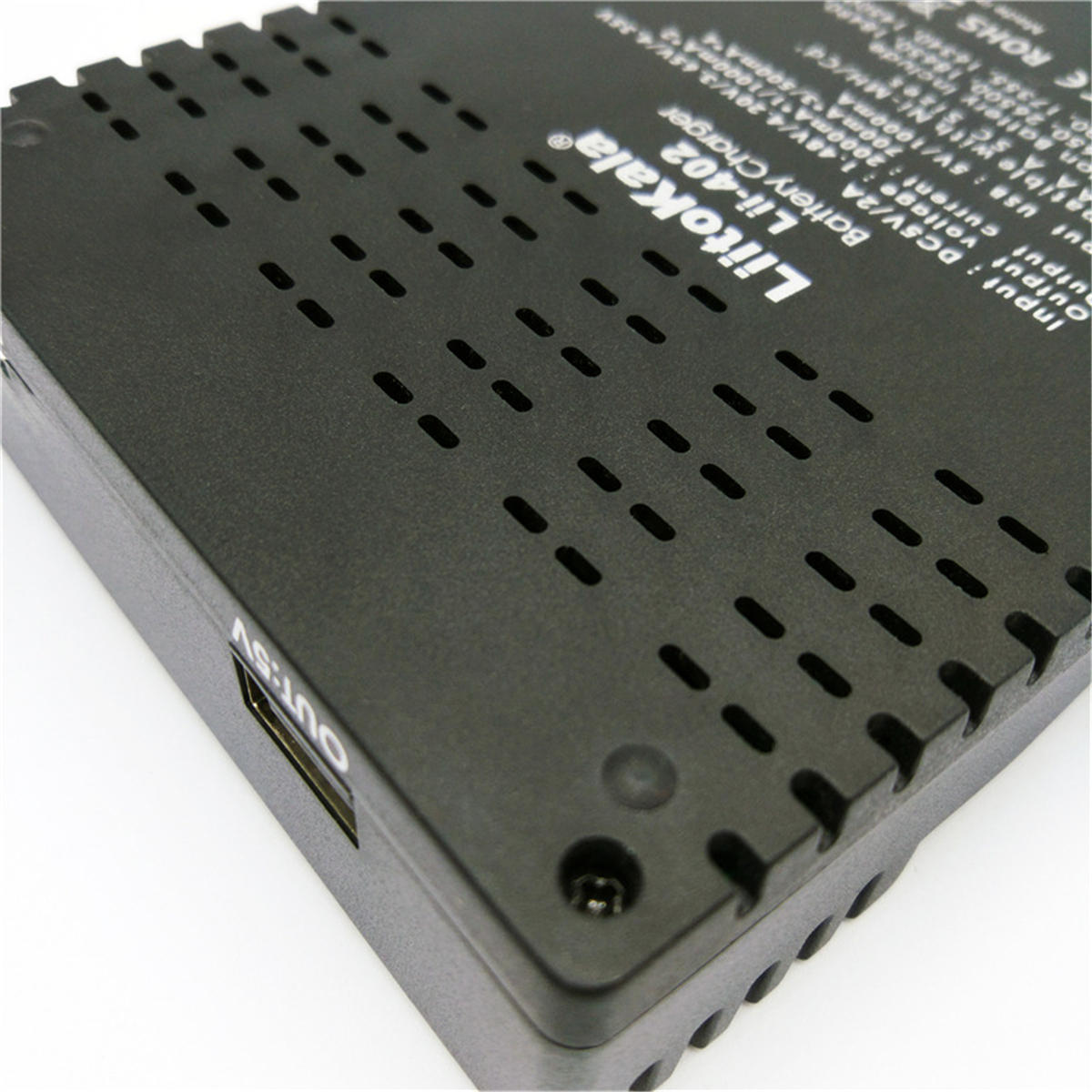

USB Output function

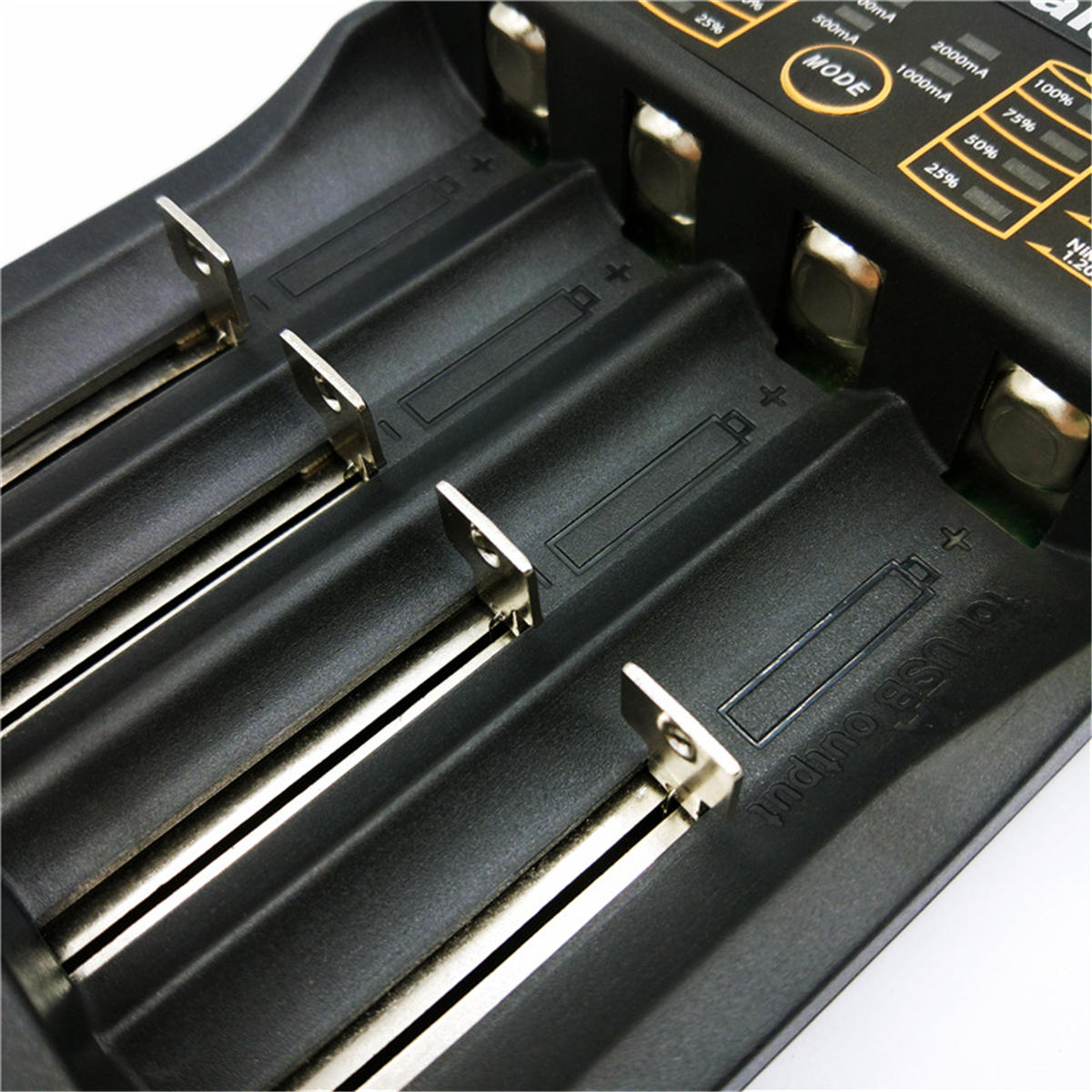

1. 0pen-circuit voltage of USB output : 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source

2. Output current: 1000mAh

3. Open circuit current: <1mAh

4. The corresponding voltage is 4.75-5.25V under 1000mAh current

5. Cut-off voltage for discharge protection: 3.0±0.1V
