PLATINUM TOOLS T130K4 Vdv Mapmaster 3.0 Cable Tester Field Kit Network and Coax Cable Tester W/ Case

PLATINUM TOOLS T130K4 Vdv Mapmaster 3.0 Cable Tester Field Kit Network and Coax Cable Tester W/ Case

Hurry! 1 items left!

Price	$606
	Collect 606 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

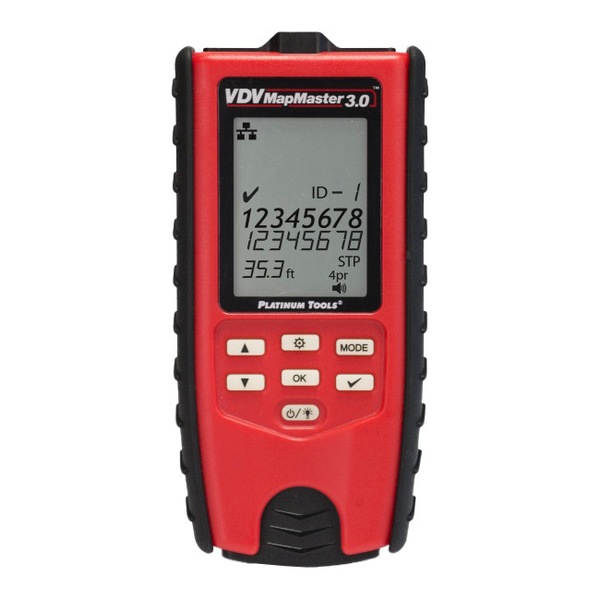

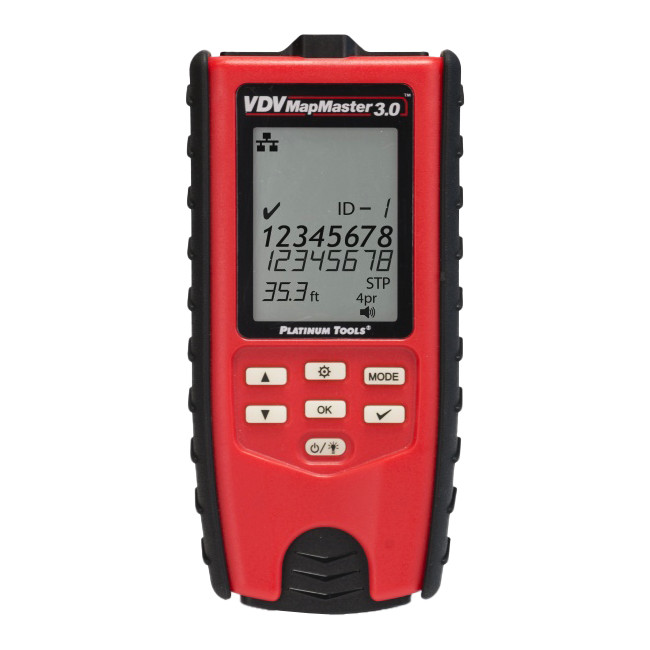

The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the-dark keypad, and a built-in flashlight help you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 make it a best value cable verifier for the professional installer!

Key Features

Detects Open, Shorts, Miswires, Reverses & Split Pairs
Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses, and split pairs
Single-ended Testing for Shorts & Split Pairs
Measures Length in Feet/Meters
Identifies cable location on active ports using flashing Port Link Light

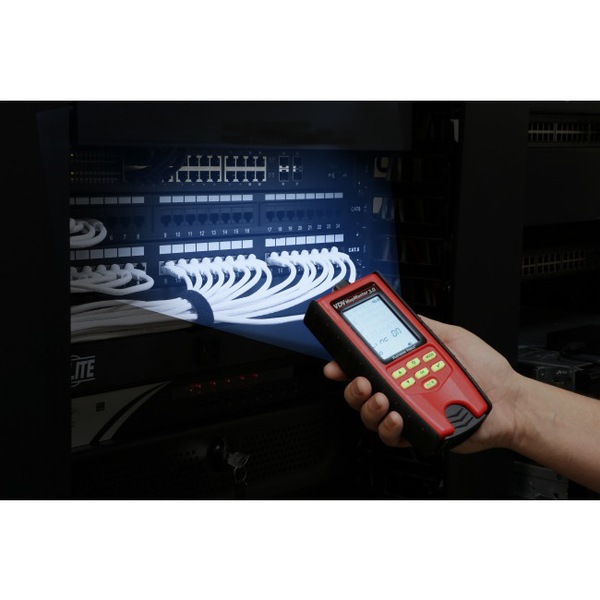

Easy to read, backlit LCD screen with large icons, glow-in-the-dark keypad, and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Audible Tone Generator, 4 selectable cadences
Tests Voice (6 wire), Data (8 wire) and Video (coax)
Works with Cable Tester Smart Remotes (#1-8)
Verifies continuity for multiple cable types (LAN, Phone, and Video)
Measures cable length, and distance to open and break specific wires, pairs, or all wires simultaneously
The master remote stored in the main unit
Voltage detection warning icon
Continuous loop test mode for troubleshooting
Auto-off and timed backlight in any mode for low power consumption and long battery life
Audible beep for additional feedback

Specifications

Display	Large 2.75" Backlit Monochrome LCD
Dimensions	6.8" x 3.2" x 1.4" (17.3 x 8.1 x 3.5 cm)
Weight	10.8 oz. (305 grams) with battery and remote
Operating Temperature	0°C/32°F to 50°C/122°F
Storage Temperature	-20°/-4°F to 60°C/140°F
Humidity	10% to 90%, non-condensing
Maximum Voltage between any two connector pins without damage	RJ12/RJ45/F: 50V DC or AC
Battery Life	9V alkaline battery typical
_	Standby: 4 years
_	Active:425 hours
Cable Types:	Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
Maximum RJ Cable Length Testing	0 to 1,000 feet (305 meters)
Minimum Cable Length for Split Pair Detection	1.5 feet (0.5 meters)
Maximum Coax Cable Length	Varies depending on cable resistance varies
Low Battery	Icon flashes when battery voltage falls below 6V
Measurement Technology	Capacitance testing
Length Accuracy Without Length Constant	± 3% plus + 1 foot
Default Length Constant (Restored with power on reset)	Voice (Twisted pair): 17.4 pF/ft
_	Video (Coax): 16.5 pF/ft
_	Data (Twisted pair): 15 pF/ft

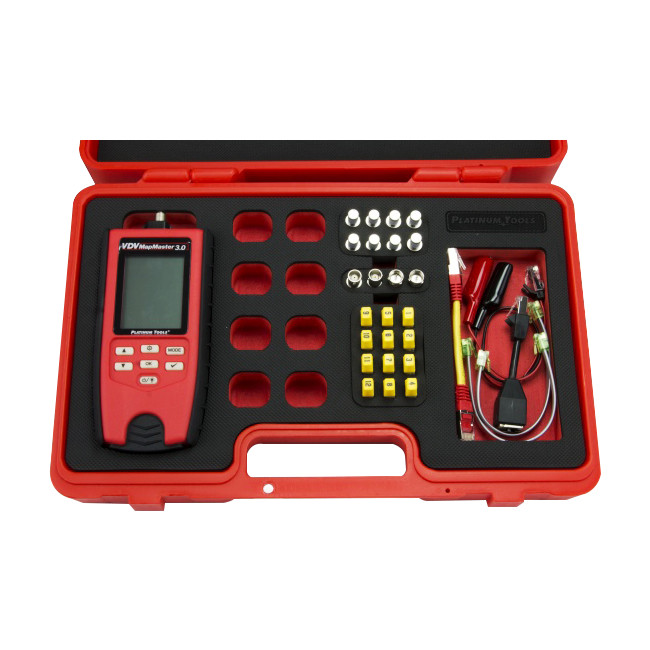

What is in the box?

VDV MapMaster 3.0 Main Unit
ID only network remotes, #1-12
ID only coax remotes, #1-8
Cable assembly, RJ45 to Alligator clip
FTP patch cable, 5" Cat6, (2)
No-fault RJ12 cable (2)
RJ45 port saver
BNC/F adapter kit
9V battery
Durable plastic case
