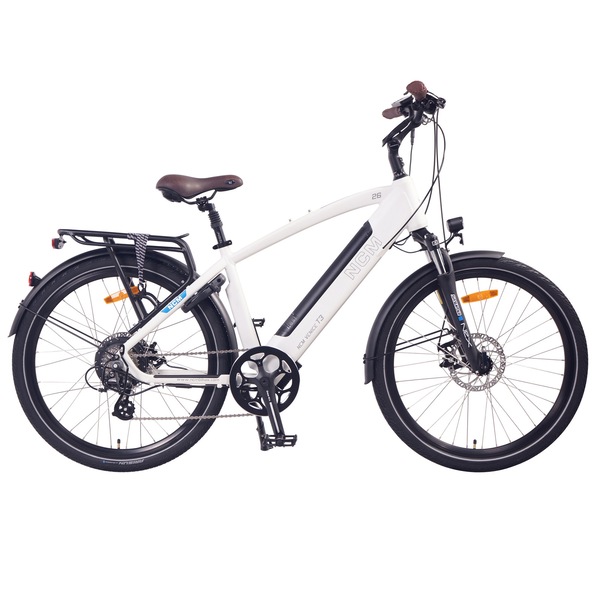

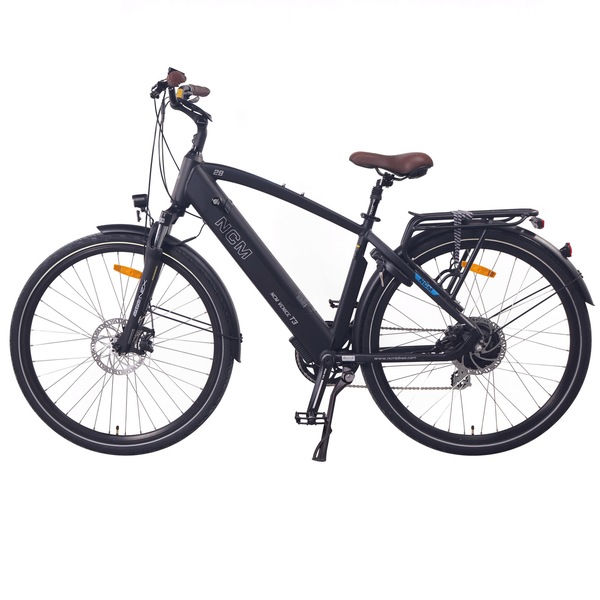

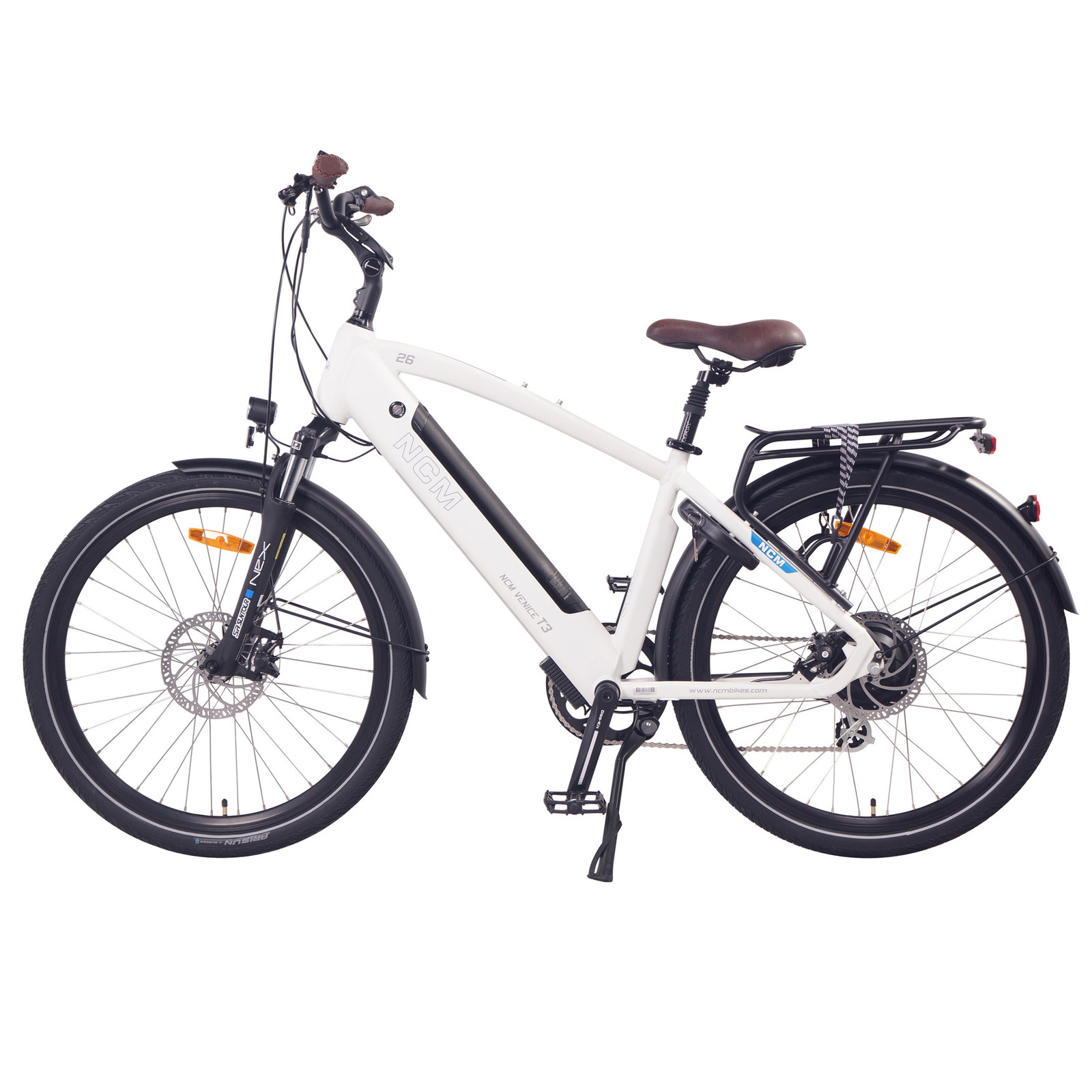

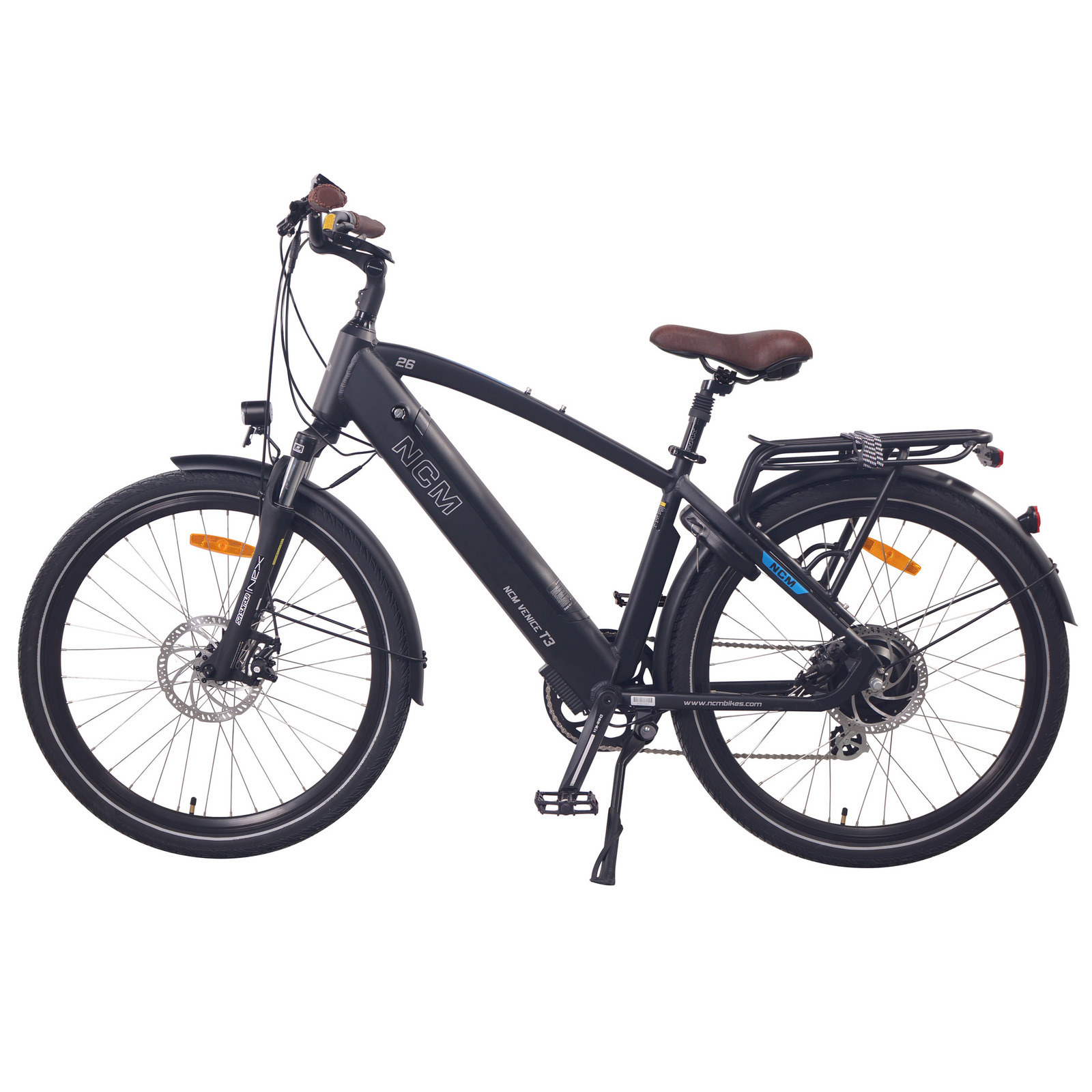

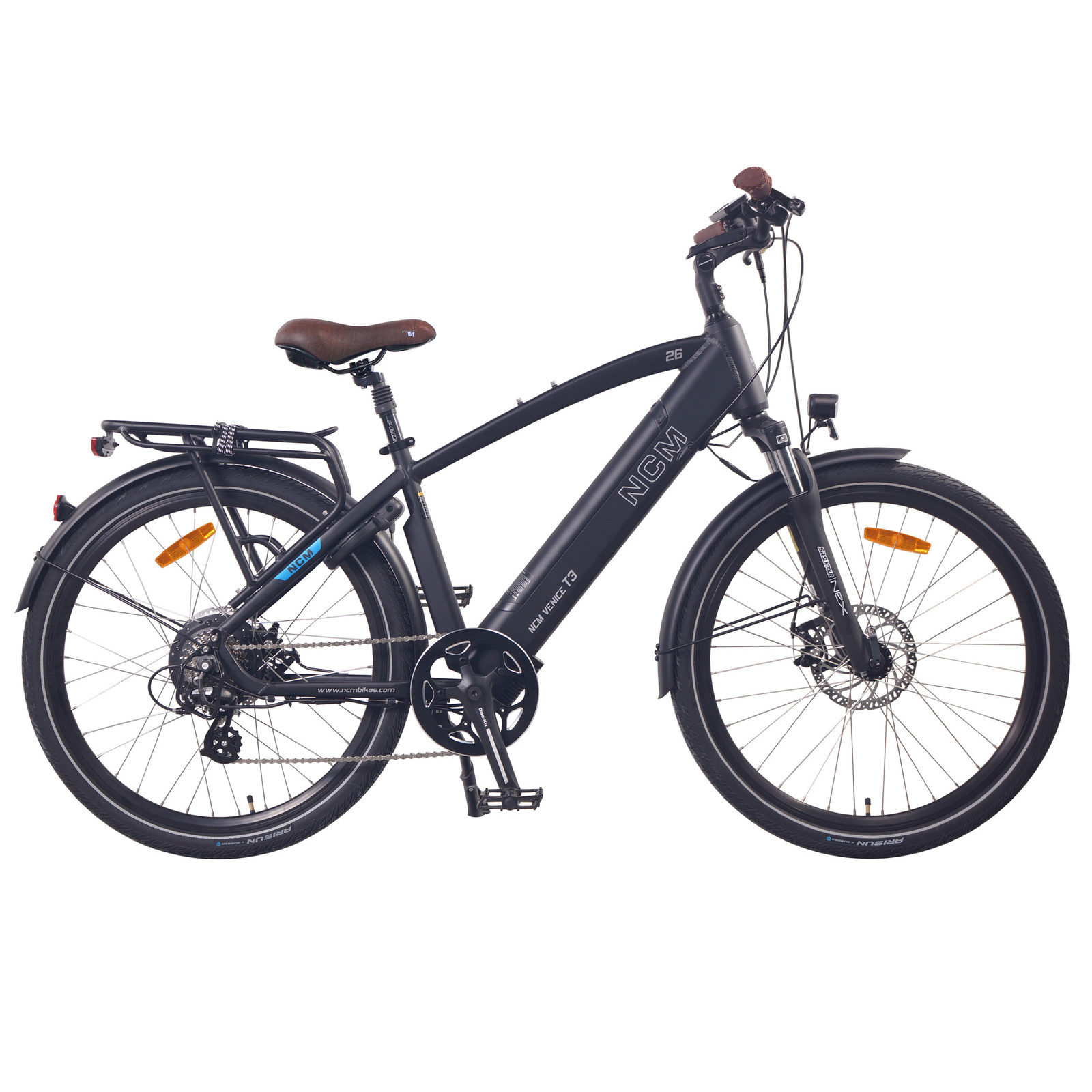

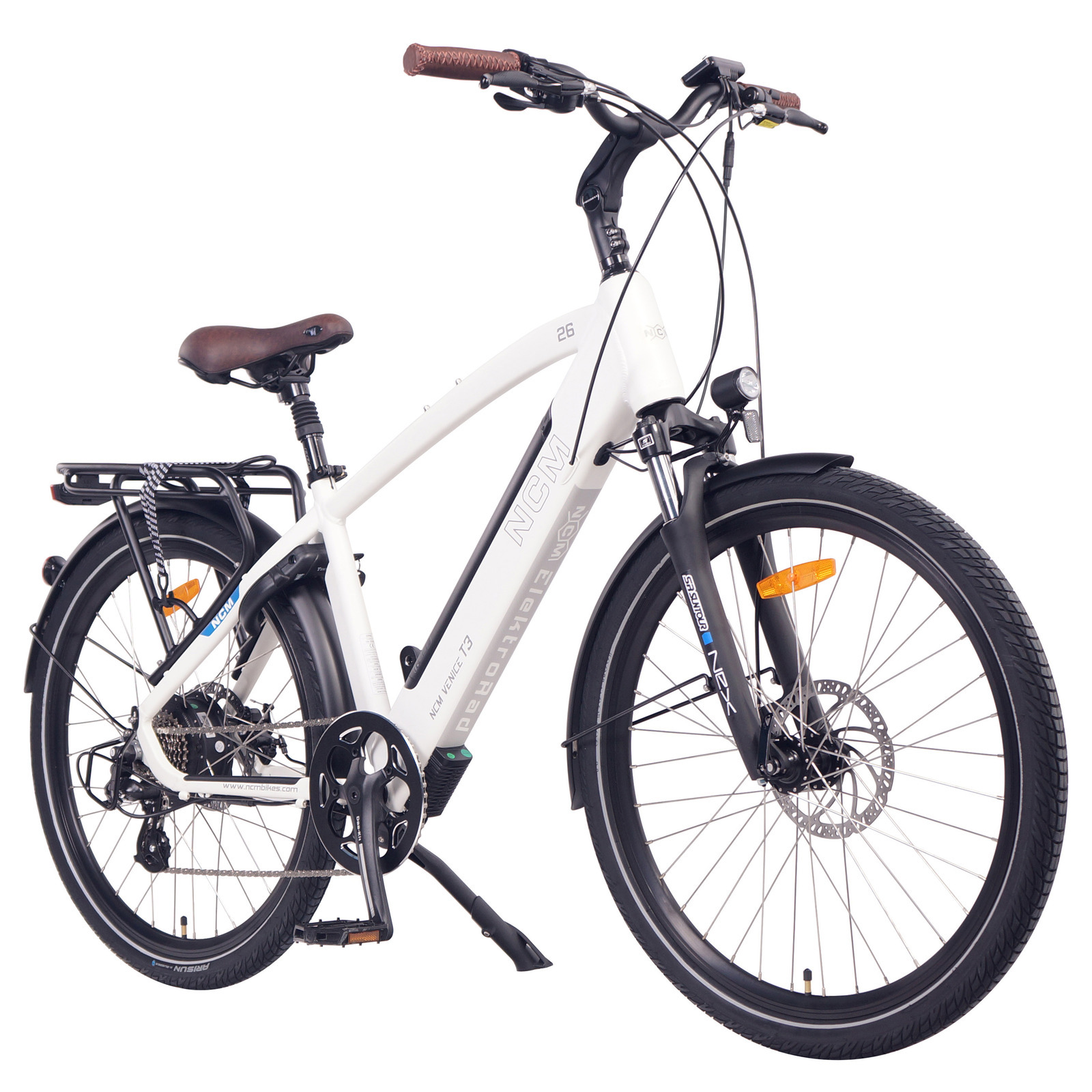

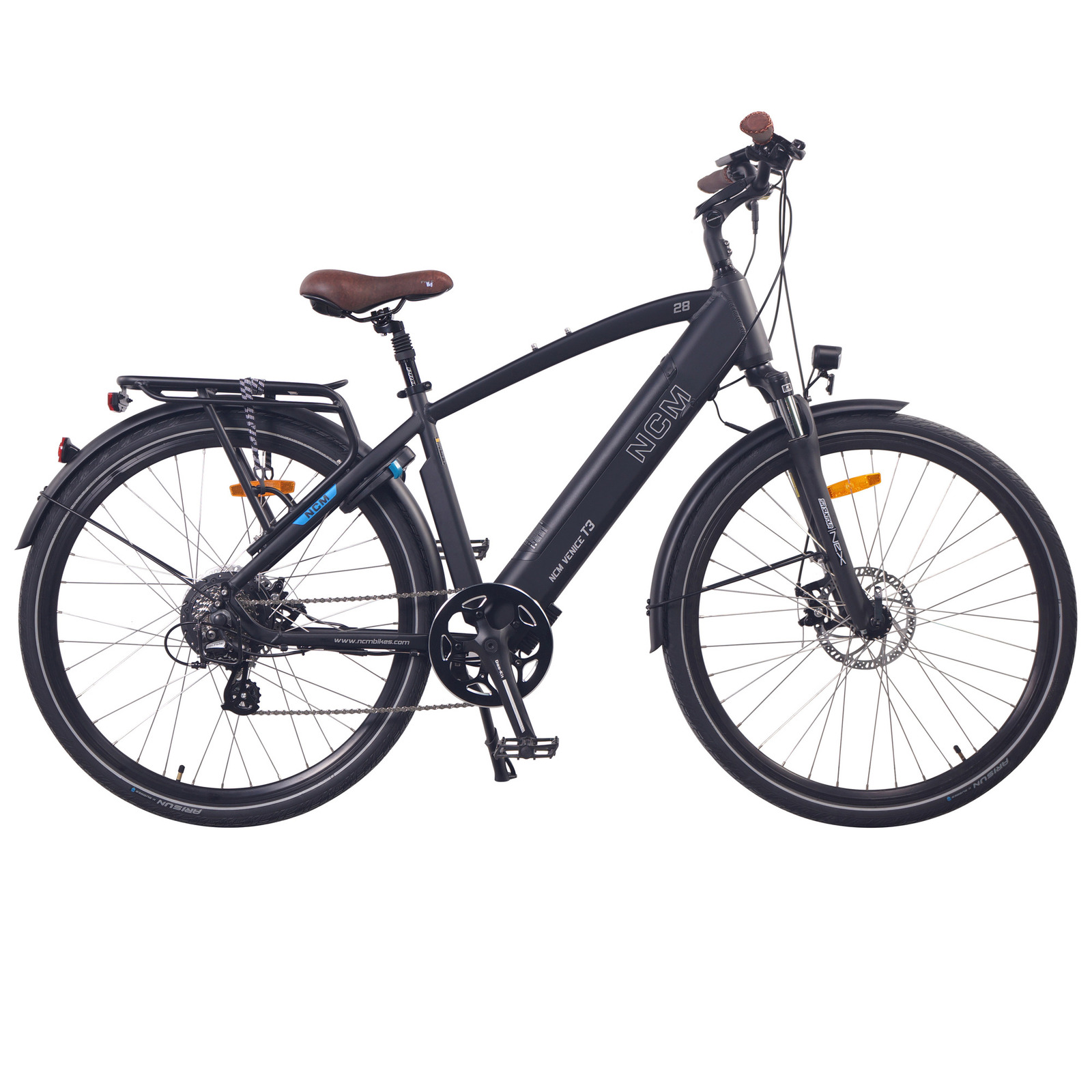

NCM T3 Trekking E-Bike, City-Bike, 250W-500W, 48V 12Ah 576Wh Battery [Black 28"]

Leon Cycle is the manufacturer of NCM and ET.Cycle Electric Bikes. Buy from Leon Cycle & we will guarantee for our product quality, & warranty.

Do you want to avoid traffic jams and still arrive quickly and safely at your destination? Then our E-Trekking and Citybikes are just the thing for you. Roadworthiness, comfort and elegance are the main features of our NCM Venice Electric Trekking Bike.

Compared to old Venice, T3 is built with a reinforced integrated battery. Inspired by the Romance on The great Italian City, The NCM T3 is both stylish and very practical. Perfect for running around the city, with a useful rack to the rear for extra storage. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat for improved comfort.

General Information

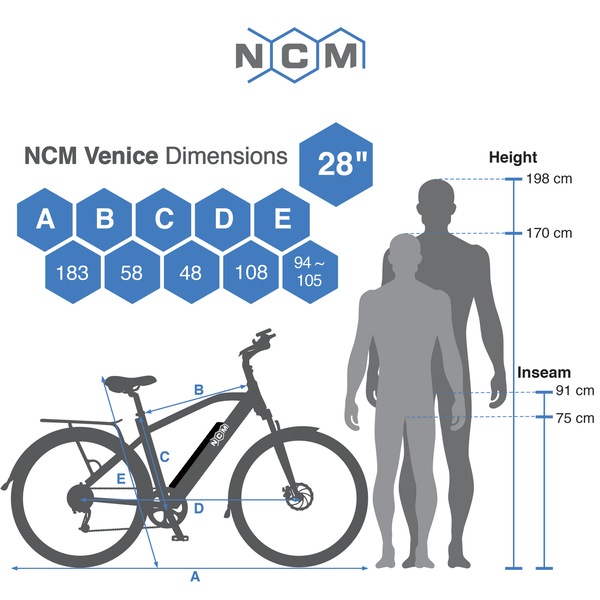

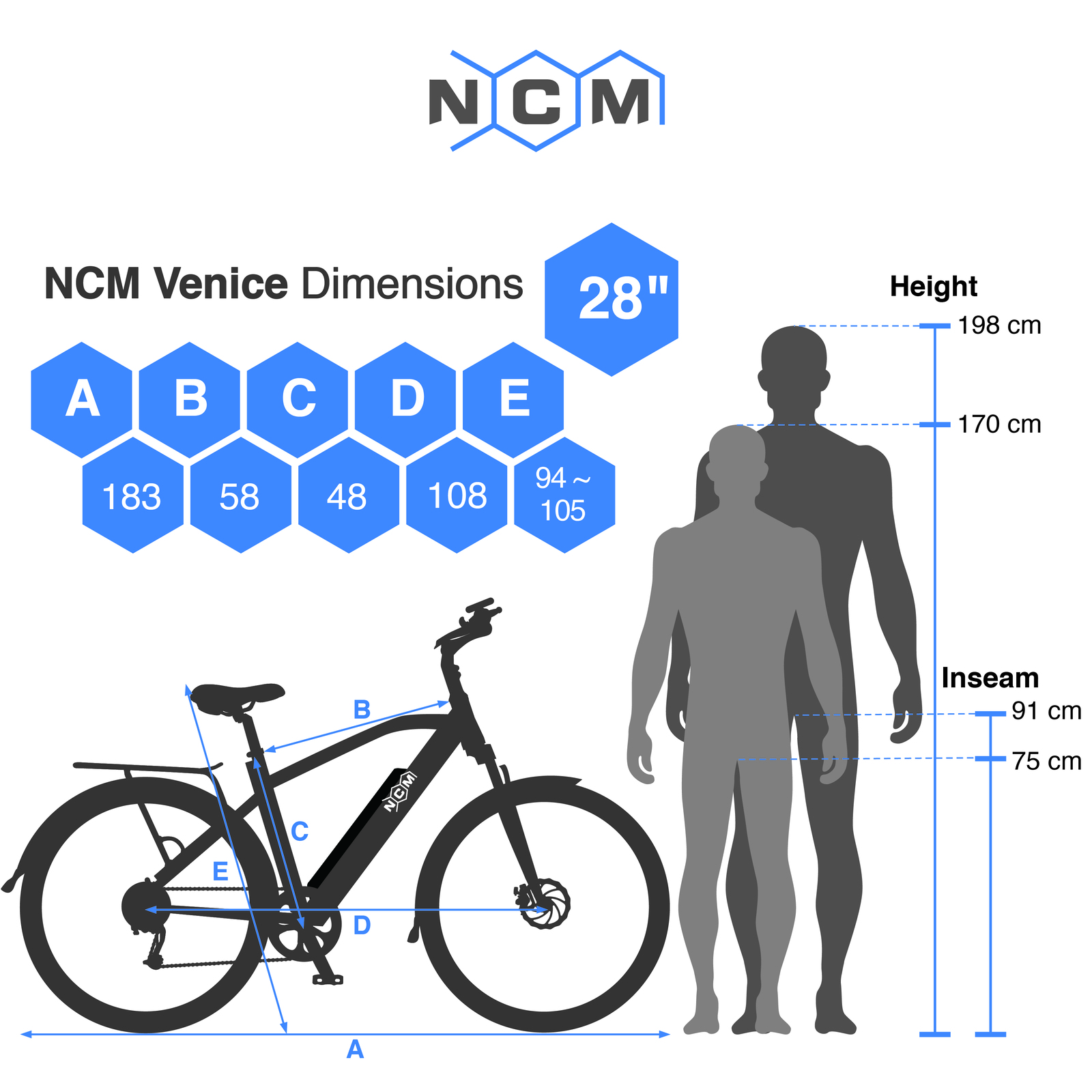

Weight: 26"= 26 kg / 28”= 27kg
Type: E-Trekking
Wheel size: 26"/28"
Load capacity: Max. 140kg(Rider and Bike)
Maximum speed: 25 km/h

Battery Information:

Lithium-ion Battery
Model: i5-4813 48V 624Wh
Ratings: DC 48V, 13Ah, 624Wh

Electric parts

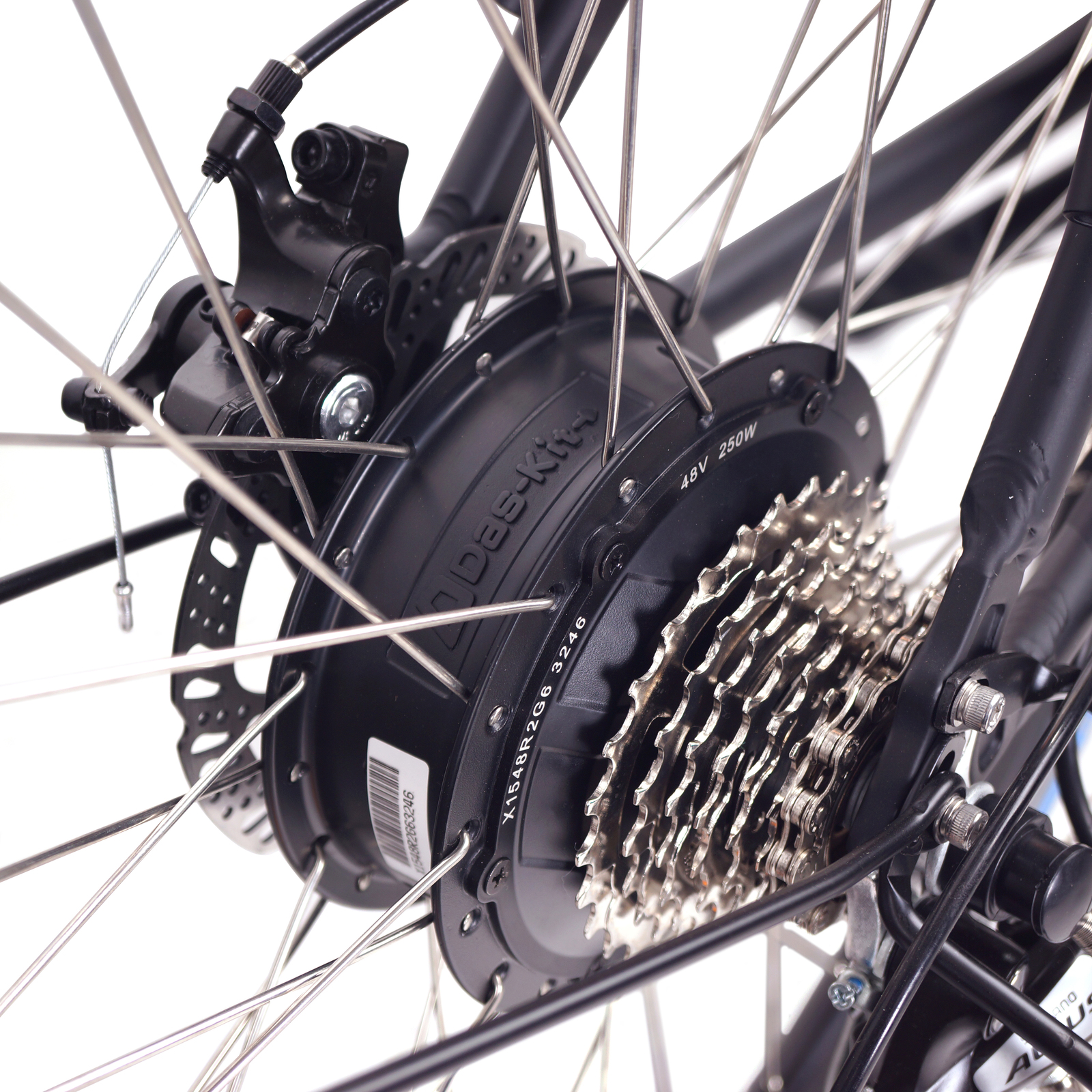

Motor: Das-Kit, X15 Rear-drive motor, 48V 250W-500W, 25 km/h
Controller: Das-Kit, CT5-I5, 48V 15A

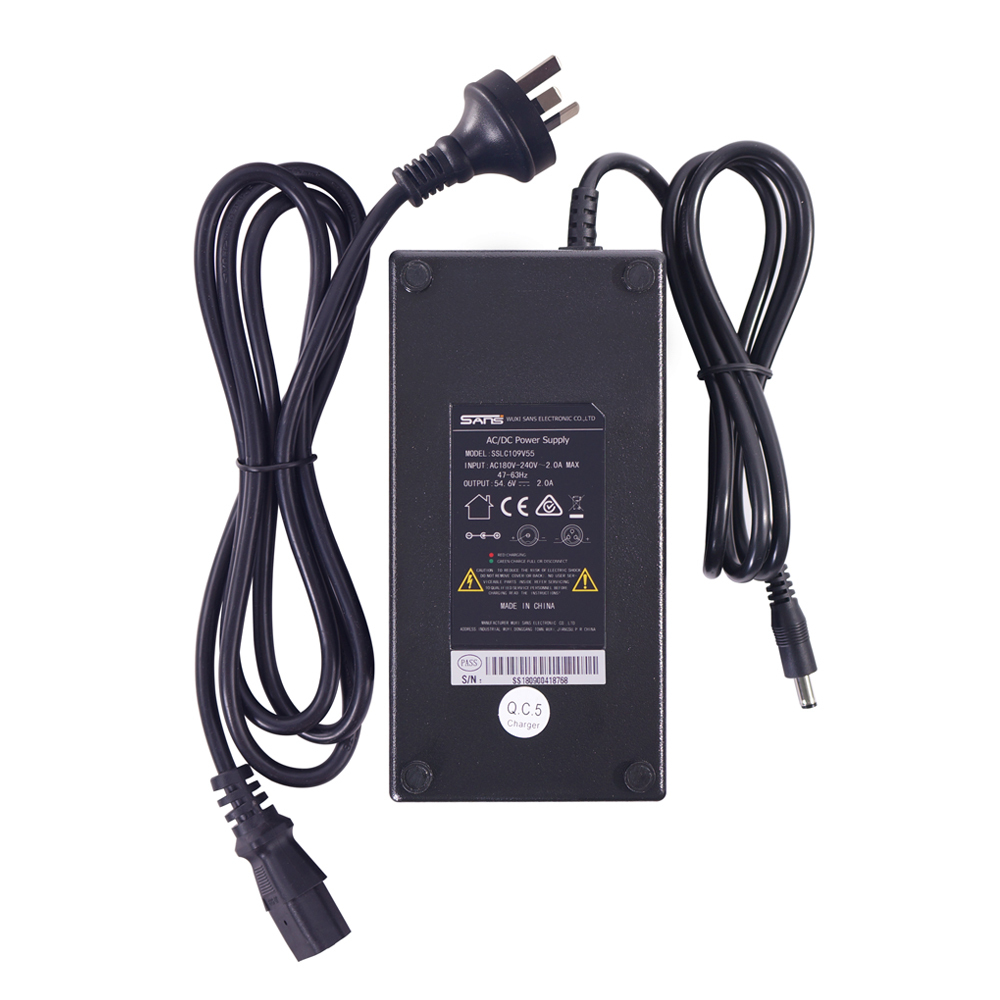

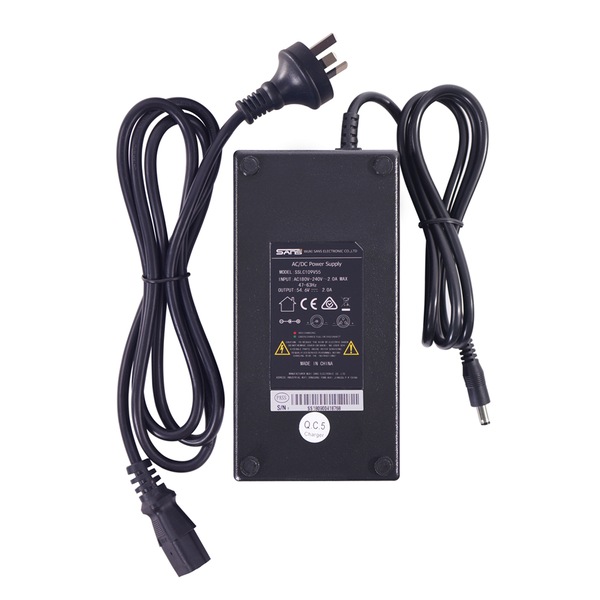

Charger: 48V 2A included (round plug) DC482AU (EESS Number: E2022081360)
Battery: DEHAWK I5-4813H,48V 13AH, 624WH, with USB port
Average range: 40-100 km depending on assistance level
Display: LCD Das-Kit L7 display with many functions

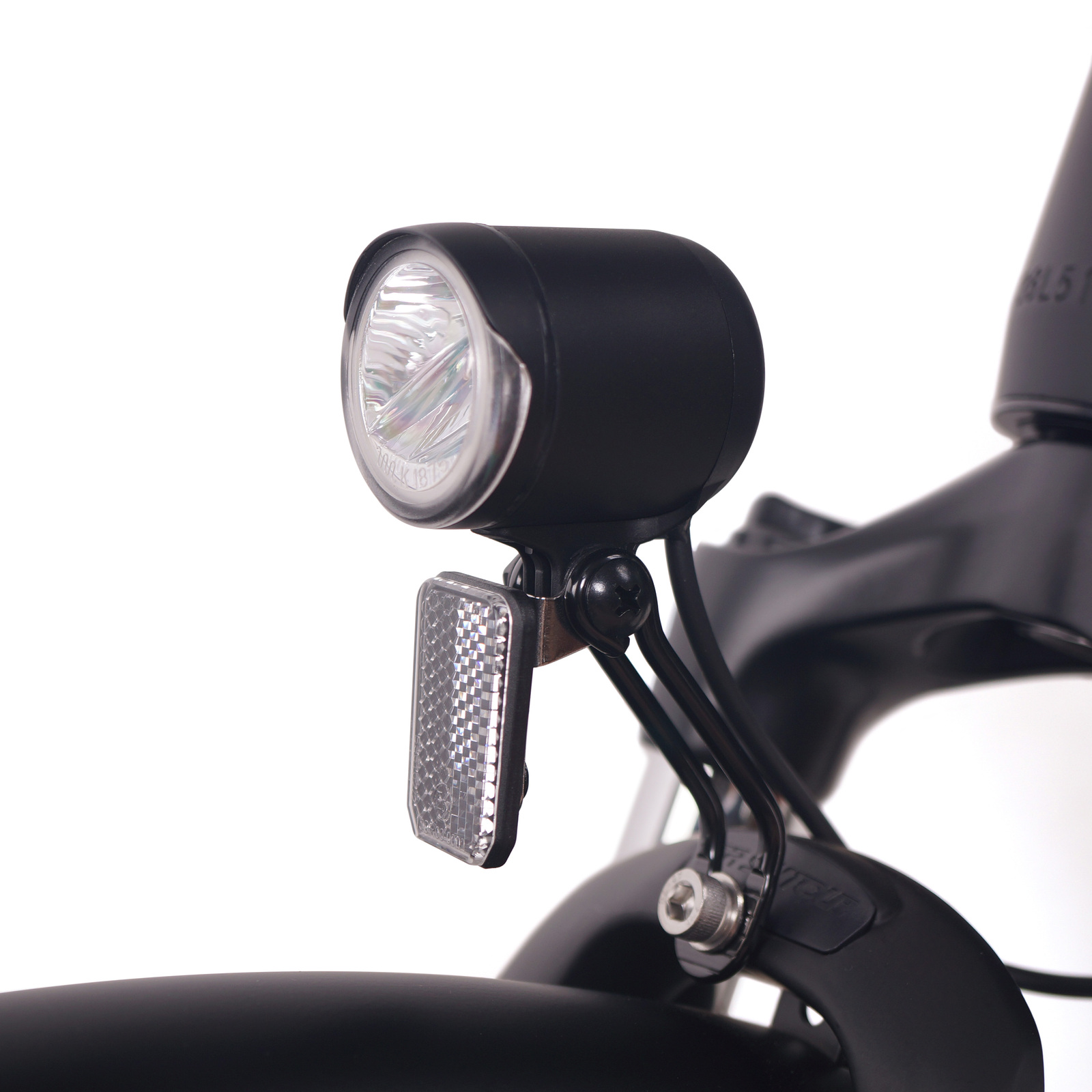

Front/Rear Light: Spanninga, Kendo, 48V, 30 Lux Spanninga over the bike battery/ Solo, with 2xAA batteries

Bike parts

Frame: Alu. 6061, 28"*480MM

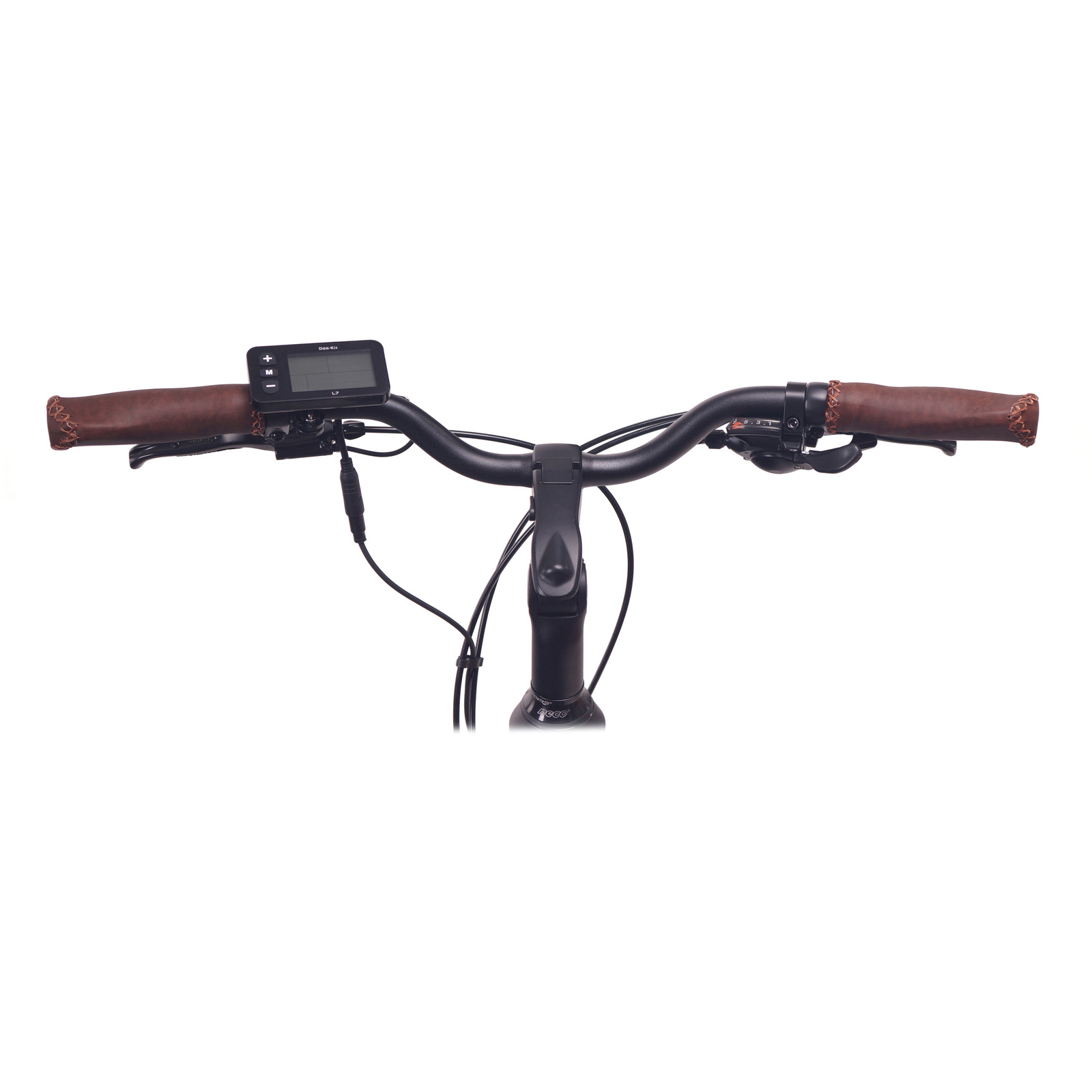

Handelbar: Promax MA579 adjustable

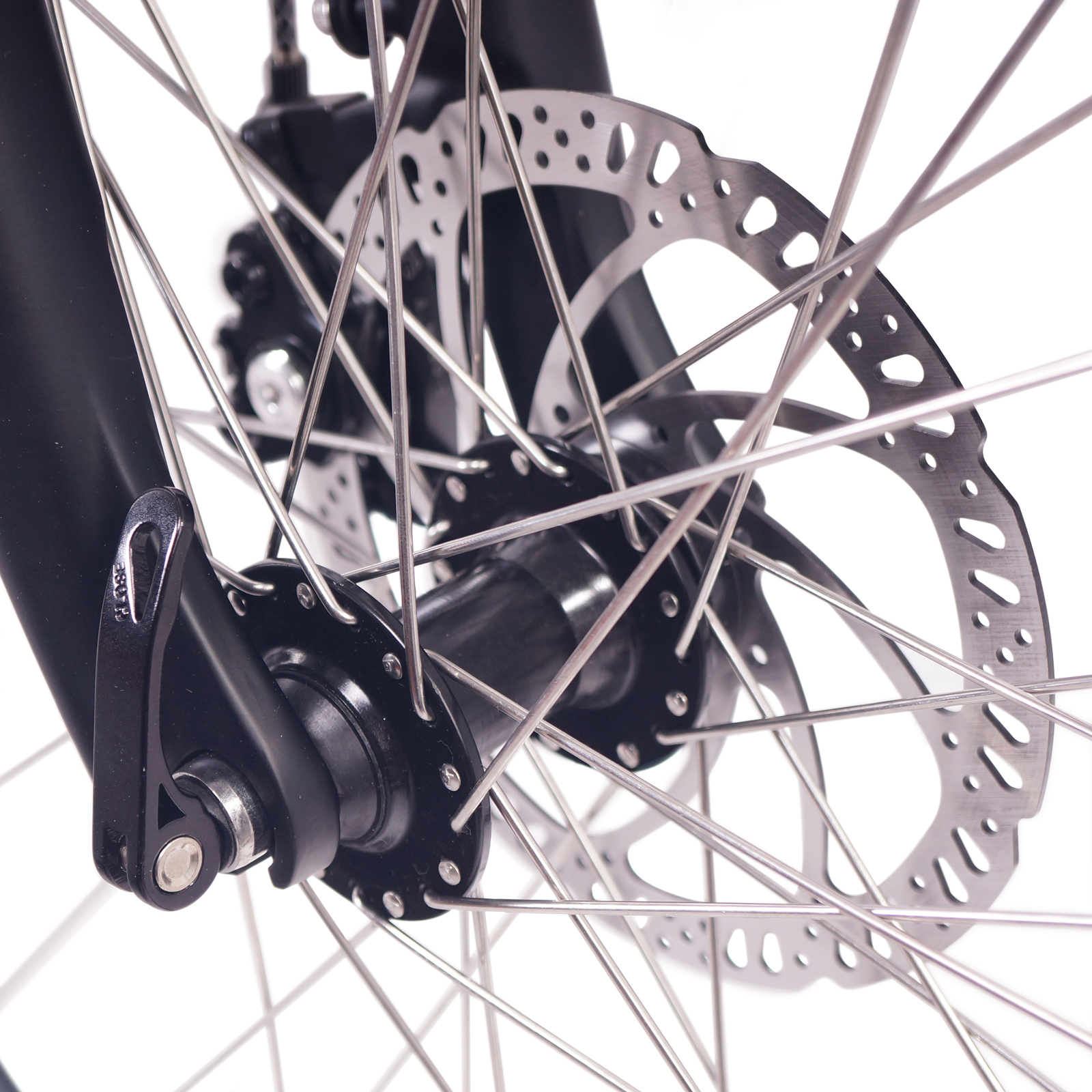

Fork: Suntour, NEX 28”
Brake Levers: Tektro, left with brake sensor

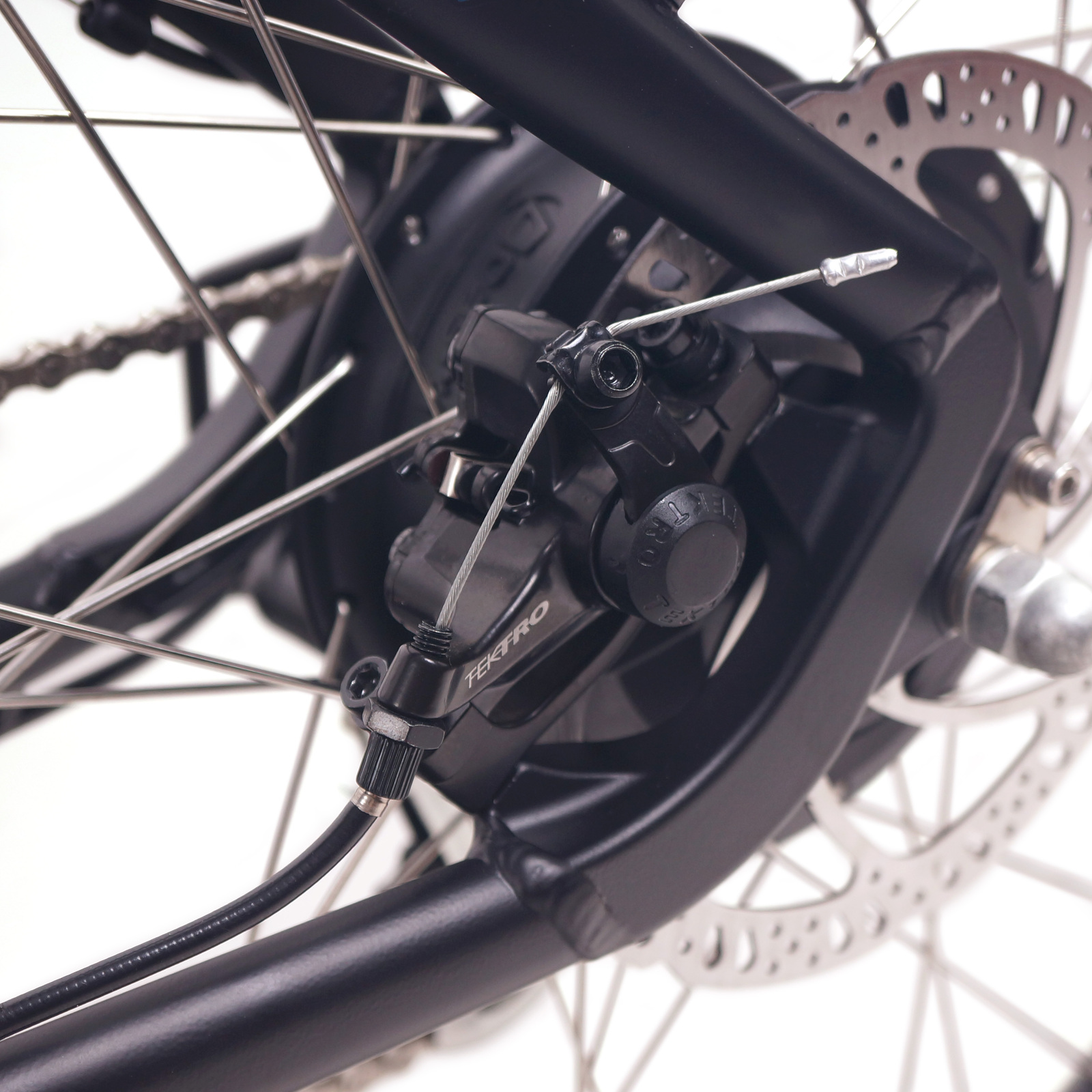

Brakes F/R: Tektro Mechanical Disc Brakes, MD-M280
Chain derailleur: Shimano, Altus M310, 7 speed
Crank set: Prowheel, OUNCE-248AC, 48T
Gear shift: Shimano, Altus M310, 7 speed
Pinion: 7-speed screw ring, 14-28T
Tyre: Schwalbe Marathon 26"*1.75 / 28"*1.5 700C black
Saddle: Selle Royal, gel saddle, brown (imitation leather)
Seatpost: Promax, SP-884, with suspension, 27.2*300MM
Handles: Selle Royal, brown (imitation leather)
Pedals: Wellgo, B087, black
Rack: Rear rack with elastic straps

Warranty

• Leon Cycle provides 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
• Leon Cycle provides 2 years warranty on the bike frame. For more warranty information visit our FAQS.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tyres, brake pads, chains, etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months. For more information contact Leon Cycle on 0390695443.

​​​​Disclaimer: Once you received the e-bike, we recommend to have it assembled by a professional in bike shops near you and also get your bike serviced after 1 month of use to ensure all aspects of the bike are set and calibrated correctly.​
