Description:

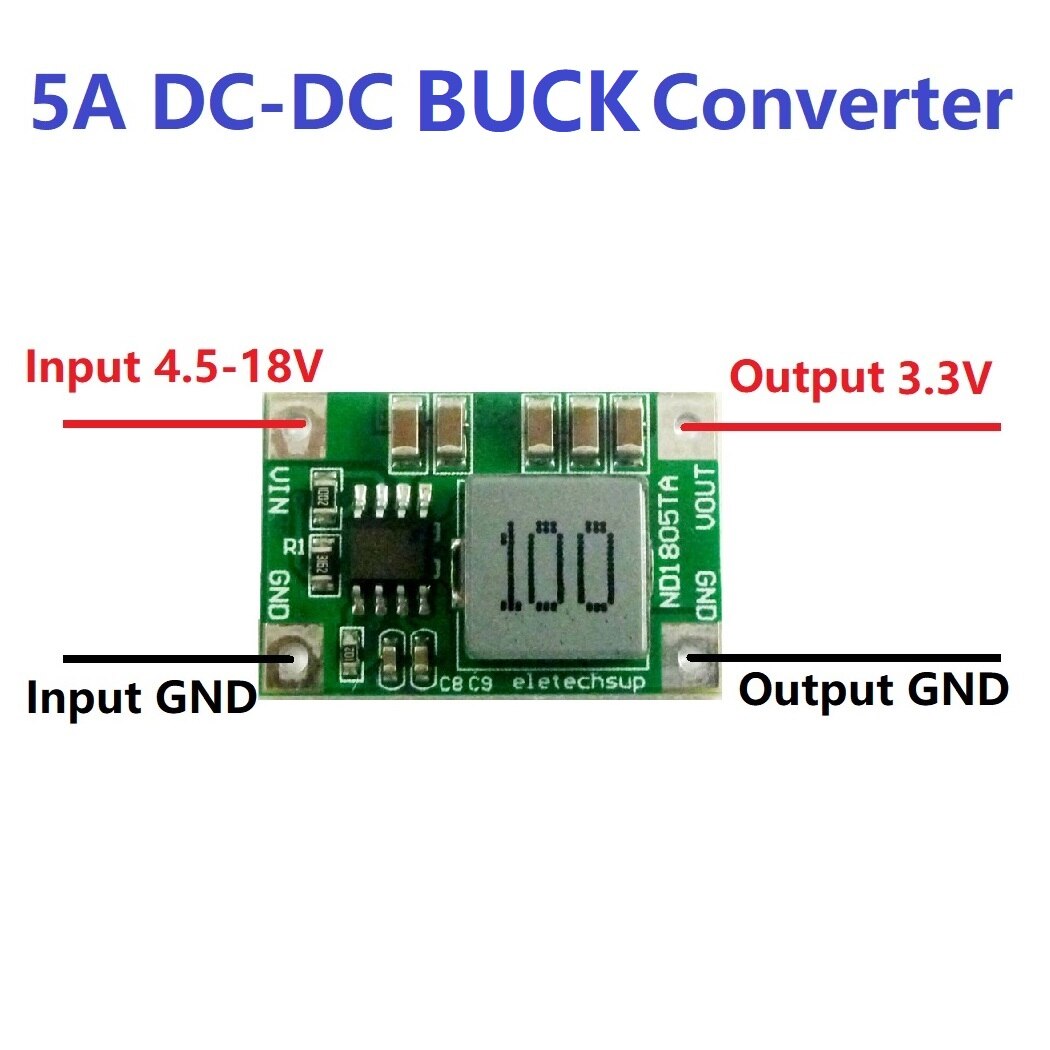

3.3V :Input voltage 4.5~18V,output 3.3V

Maximum output current 4A,Short time maximum output current 5A
DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 77-93% .
Quiescent current: 16-18mA

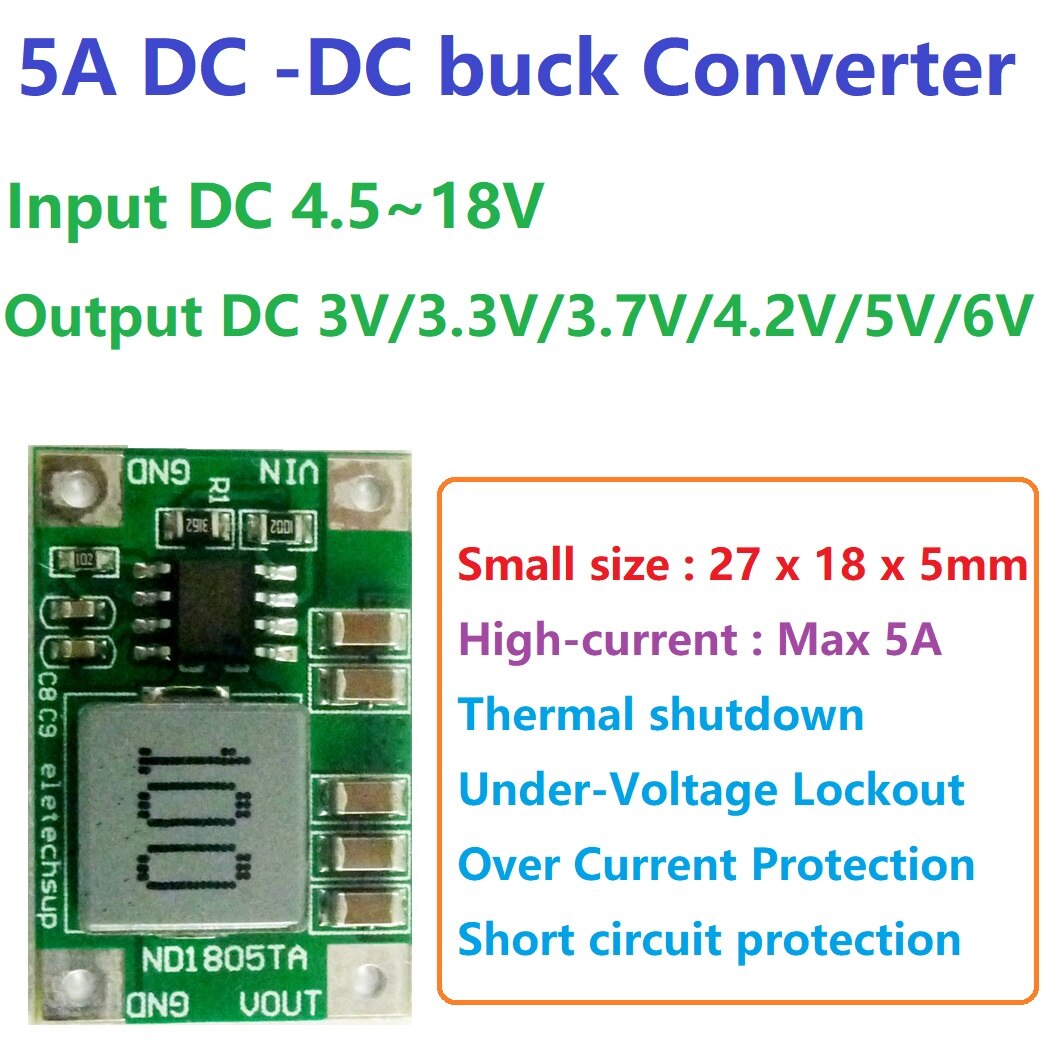

External soft start, Thermal shutdown, Under-Voltage Lockout (UVLO), Cycle-by-Cycle Over Current Protection, and short circuit protection.
Operating Temperature :�C40��C to +85��C
Size : 27 x 18 x 5mm
Weight : 4g

Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

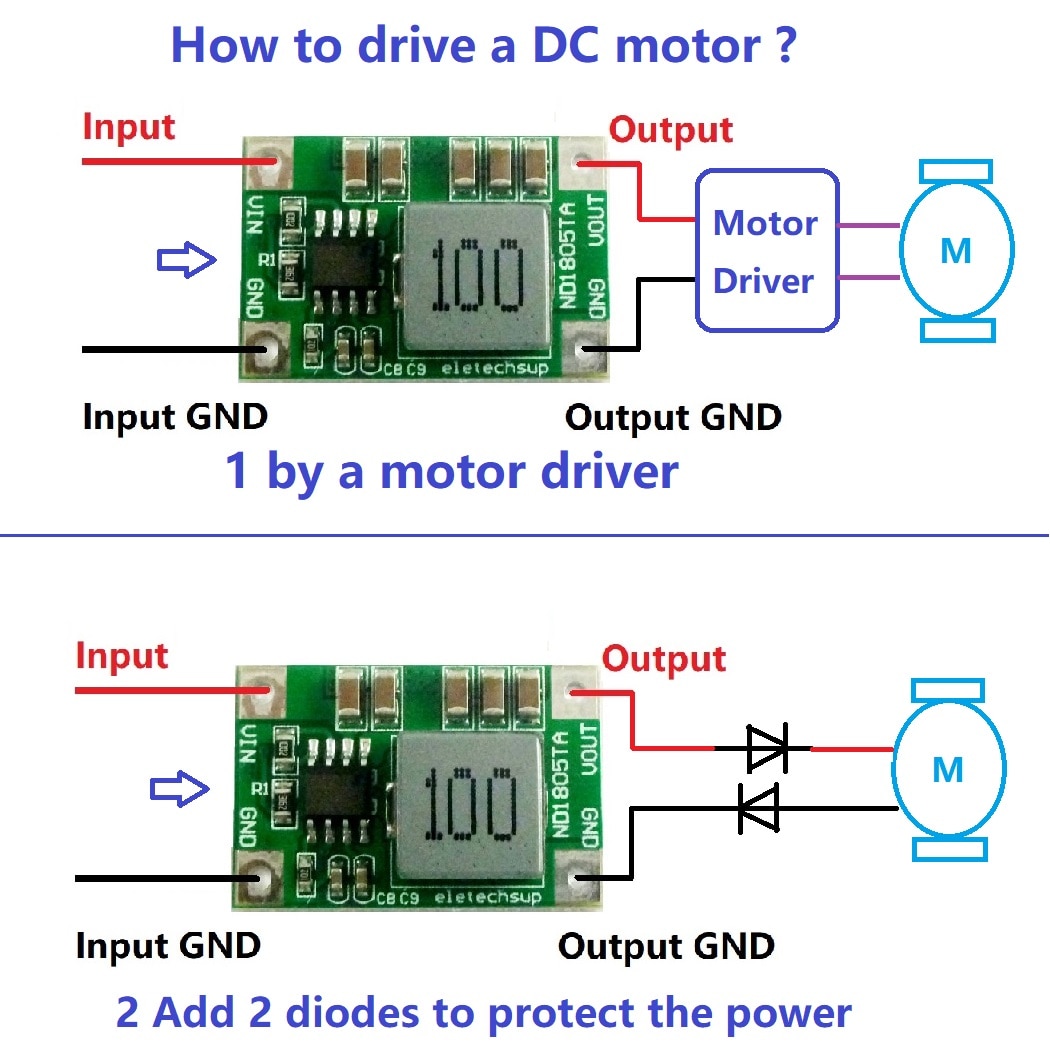

DC motor power supply
WIFI Router Switch
Network equipment
Multimeter instrumentation
CCTVcamera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
FM radio
Battery powered equipment
Audio amplifier
